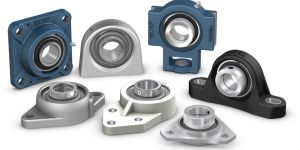

Conventional SKF ball bearing units are referred to as Y-bearing units. These units consist of: a Y-bearing (insert bearing) which is based on a single row deep groove ball bearing with a sphered (convex) outside surface and an extended inner ring (fig. 1) a housing, which has a correspondingly sphered but concave bore (fig. 2). Y-bearing units can accommodate moderate initial misalignment, but normally do not permit axial

All sprockets are oiled, bagged, sealed and then boxed; this enables the product to always reach the customer in excellent condition Sprockets are also available with hardened teeth, bored and keyed to size All sprockets up to 300 mm (12 in) of outside diameter are boxed; sprockets over 30 kg (66 lbs) are base mounted

The SKF SYSTEM 24 is a single-point automatic lubricator that can be used to supply grease to single lubrication points that are usually lubricated by means of a grease gun. SKF SYSTEM 24 lubricators can be set to provide the correct quantity of lubricant over a set time period. This enables more accurate control of the amount of lubricant supplied compared to traditional manual re-lubrication techniques. The SKF SYSTEM 24 is excellent for applications that are difficult to reach with a grease gun, or where a large number of greasing points mean that manual greasing techniques would be less effective.

SKF sensor bearing units are used to accurately monitor the status of rotating or linear components. These units are: compact robust and reliable simple and ready to mount Following is a brief overview of the sensor integrated solutions engineered by SKF. These solutions have been well proven in a variety of industrial and automotive applications such as electric motors, electric vehicles, road rollers, tractors, forklifts and conveyors. Typical uses include: motor management steering speed and position sensing measurement of angular position

Pulleys are all statically balanced to provide true running tolerances at higher speeds Dynamic balancing is also available on request All pulleys up to 300 mm (12 in) of outside diameter are boxed; pulleys over 30 kg (66 lbs) are base mounted

By developing its own range of solutions for power transmission, SKF is able to offer well matched products. Thus, giving you a wide choice for better performance at an optimum cost level. SKF power transmission products encompasses belts, pulleys, chains, sprockets, couplings and bushings. Ask us for more details about the availability of the new SKF line of power transmission products, and how they can help your plant achieve a new level of productivity.

Joining the technological know how of different kinds of linear movement SKF can provide complex and complete solutions for positioning through: miniature slides, standard slides, precision slides, complete systems.

To withstand these types of severe operating conditions SKF bearings can now be furnished with a low friction ceramic coating applied to the contact surfaces within the bearing. This coating, trade marked NoWear, was developed by SKF for rolling bearings and is covered by an SKF patent. NoWear bearings can withstand longer periods of insufficient lubrication, sudden variations in load, rapid speed changes, vibrations and oscillations.

SKF Mechatronics is the science of combining mechanics, electronics and control into exciting new solutions. SKF Mechatronics covers systems for precision multi-axis positioning, intelligent monitoring and by wire applications, as well as components such as ball and roller screws, actuators, rail guides and sensor modules. A number of mechanical and electronic products are combined into modules and sub-systems addressing unique needs where SKF has specialist industrial-specific expertise.

SKF offers all types of lubrication systems from single point lubricators to complex, fully-automated and centralized lubrication and oil circulation systems. SKF lubrication products are found in all industrial and vehicle systems, e.g. mining, railroad, machine tools, pulp & paper, wind power and marine equipment.

To provide the best performance for all your needs in guiding, the linear guide assortment is composed of these main products: shafts guidings, profile rail guides, precision rail guides, cam-roller guides, miniature slides, standard slides, precision slides, and complete systems.

Electric motors, generators and associated equipment are at risk when an electric current passes through their bearings. This can damage the contact surfaces of rolling elements and raceways in the bearings (electrical erosion) and rapidly degrade the grease. An additional risk in electric motors and generators comes from high frequency currents caused by the inherent stray capacitance. The risk of damage increases where the application uses a frequency converter.

Specialities : Protection against electrical erosion , High electrical resistance and Consistent electrical performance

Hybrid bearings have rings made of bearing steel and rolling elements made of bearing grade silicon nitride (Si3N4), which make the bearings electrically insulating.

Specialities : Protection from electric current damage , Higher speed capability

SKF high temperature bearings are designed to deliver increased reliability, reduced complexity and decreased environmental impact in operating temperatures up to 350 °C (660 °F). Because SKF high temperature bearings correspond to the ISO dimensions of grease-lubricated bearings, production efficiencies and cost savings can be realized with a simple change to the SKF bearing solution.

Increasing sensitivity to environmental issues and legislative pressure are driving demand for more energy efficient industrial motors. SKF Energy Efficient (E2) deep groove ball bearings offer an excellent solution.

The latest SKF Energy Efficient breakthrough is a new family of performance class bearings that have been specially engineered and manufactured to reduce frictional moment by 30% or more beyond the already efficient SKF standard bearings. Reductions can be even more dramatic compared to other manufacturers' bearings.

Flexible tyre, jaw, chain, gear, grid, FRC, universal and rigid couplings; no matter which coupling your application requires SKF offers options for bushings, bored to size or simply piloted All couplings are boxed or bagged for protection; couplings over 30 kg (66 lbs) are base mounted for ease of handling and safety

From the raw material to the finished product, SKF’s chain is superior in design: 100% pre-stressing, 100% pre-loading and running prior to packaging SKF uses a heavy pre-lubrication process to enable optimum storage life; all of SKF chain is fully wrapped in plastic prior to being boxed A very large range of plating is available: Dacromet, nickel, zinc and stainless steel SKF also supplies a full range of conveyor chain for every application

Material : Metal

Thickness : 10-15mm

Application : Motorcycle Use

Color : Gray

Finishing : Polished

Feature : Corrosion Proof, Unbreakable

The central lubricating system offers the following advantages: Higher productivity resulting from increased life and reduced shutdowns. Reduced operating costs resulting from a lower consumption of energy (lower friction), spare parts, lubricants and labour costs resulting from reduced requirements for maintenance and operation. Reduced wear resulting from dosing regularly and automatically precise and controlled quantities of a lubricant within short intervals over the operation of the machine. Elimination of the risk that some lubricating points are over-lubricated and others are neglected. Elimination of lubricant contamination. Increased safety because the operator does not need to be in the vicinity of difficult-to-reach and dangerous areas of the machine (e.g. ovens, cranes, harvesting machines, chemical). Maximum cleanliness is achieved. Environment-friendliness results from the usage of minimum quantities of lubricants and handling.

CARB toroidal roller bearings have one row of long, slightly barrel-shaped symmetrical rollers and torus-shaped raceway profiles (fig. 1). They are non-locating bearings and accommodate exclusively radial loads. CARB bearings are often used to replace the non-locating spherical roller bearing in a locatingnon-locating bearing arrangement.

Feature : Accommodate misalignment and Accommodate axial displacement

Taper bushes are designed for quick and easy installation and removal with basic tools, resulting in minimum downtime each time they are fitted The wide range of metric and imperial bore sizes 9–290 mm (38–12 in) available offers you off-the-shelf availability and eliminates the need for time consuming machining of products Each bush has a number of different bore sizes which translates to a reduction in the number of components that have to be held in stock thereby reducing inventory costs The taper bush is designed to accommodate under or oversize shafts enabling a powerful grip even on worn shafts

Oil and heat resistanceanti-static properties exceed industry standards Globally sourced rubber along with stringently controlled tension members provide the superior performance expected from SKF Timing belts made of polyurethane with steel cords are also available State-of-the-art electronic rubber blendingmixing processes maintains superior quality Tight tolerance stability during the manufacturing process along with superior raw materials eliminates the requirement to match individual belts to a single drive

SKF provides solutions to driving applications that require transforming rotary action into linear motion. The comprehensive assortment of driving products include: rolled ball screws, roller screws and ground ball screws.

Linear actuators: wide assortment and types, different designs and configurations are available for industrial or specific health care applications, from high load capacities and high operating speeds to quiet and aesthetically designed systems. Rotary actuators: modular to meet the needs of special design, compact but able to produce high torque, multiple motor options are available. Telescopic pillars: wide assortment and types for several applications, quiet, robust, powerful, attractive design. Control units: application focused system control, connection for foot and hand or desk switches.
