Heating Mantles Dealers in Chennai

• Material: Mild steel
• Application: Air Conditioners, Geysers, Industrial Ovens, Heaters
• Power: 100 - 3000 watt
• Capacity: 100 ml - 20000 ml
• High temperature: Up to 350 degree celsius
• Surface finish: Powder coated

• Brand Name: AVLAB
• Max Temperature: Upto 450 Deg C
• Thermal Insulation: Ceramic Fibre
• Energy controller: Built-in Simmerstat
• Case construction: Aluminium Spun Body Powder coated
• Mains Power: 220-240 V single Phase A/C

• Material: Aluminium Alloy
• Usage/Application: Laboratory
• Temperature Range: 0 to 100 Degree C
• Automation Type: Semi-Automatic
• Phase: Single Phase
• Operating Voltage: 110-220V
• Process: Thermal Conduct Process
• Adjustable Pulse On And Off: Yes

• Material: Stainless Steel
• Brand Name: Archanna Industries
• Voltage: 220V
• Usage/Application: Industrial Ovens
• Air-Flow Direction: Vertical Down Airflow
• Capacity: 50 Hz

• Capacity: 100
• 250: 500
• 1000: 2000
• 3000: 5000
• 10000: 20000
• 50000: Rating
• 60: 150
• 200: 300
• 500: 750
• 800: 1000
• 2000: 3000

• Material: Heating Mantle Body: Metallic, SS & Aluminium Construction
• Compatible Power: 200W
• Voltage: 230V
• Power Source: AC
• Usage/Application: Laboratory Use
• Controller: Digital
• Size: 500 ml
• Temperature: 400 Degree C
• Phase: Single
• Heating Control: Microprocessor based PID
• Permissible Ambient Temperature: 40 DegreeC
• Permissible Relative Moisture: 80%

We have carved a niche as one of the outstanding laboratory Heating Mantle suppliers from India. The heating mantle is widely demanded by many of the laboratories as these are very effective in the heating of chemical at the desired rate without any hassle. The electric heating mantle has an indicator and a regulator that helps us to keep a check on the temperature needed. Specification Voltage : 230 Volts AC Supply Outer : Made of Aluminium Inner : Fiber Glass Yarn Thread Insulation : Glass Wool Power Control : Sun Bin energy Regulator Thermometer Warning : Chemical Spillage Over and load minuses will greatily reduce the service life. Optional Availabe in different sizes and shapes as mentioned belowAlso glass wares in needed can be supplied

• Application: Heaters
• Features: Non-skid feet and 3 support rod brackets
• Capacity: 10 - 20 Ltr
• Maximum Temperature: 450 Degree C
• Is It Corrosion Resistant: Corrosion Resistant
• Usage: Laboratory

“MIGHTY INSTRUMENTS”Heating Mantle Aluminium Housing with powder Coat finish.The heating elements are made out of Kanthal wire on helically wound coil form safety insulated by fibre glass sleevings which in turn is attached to kintted glass fabric, to give flexible support to the flask and controlled by a simmer stat.

• Application: Chemical Industry
• Power Supply: 220/240V,50 Hz AC

RAAGAA Electric Heating Mantle is a quality laboratory heating instrument, which is manufactured from high quality of material, so to deliver it a longer like. The heating device used in Flask Heating Mantle is of good quality. Currently we are supplying to many laboratories and hospitals. With our experience of more than 3 decades has taught us a lot about bringing new and new improvisation in Laboratory Heating Mantle, making them more perfect with time. We are currently numbered among some of the most renowned Heating Mantle Manufacturers and Suppliers. General FeaturesDesigned on the model of Electro-thermal Engg, LTD. U.K.Manufactured to rigid international specifications and standards Close proximity of the heater to the container ensures perfect heat transfer.Highly polished aluminium housing prevents mechanical damage to the heater and flaskSafe element temperature of 450C operating at Black heat conditionsFunnels and Flasks with bottom drain of can be conveniently heated Resiliency of glass fabric permits use of flasks of normal capacity irrespective of makeWell designed panel box prevents damage to electrical accessories occurring due to heat radiationSuitable replacement by highly skilled and experienced engineer under rigid quality controlCan be handled by unskilled staff.Application Heating mantles are extensively used in laboratories and industries in carrying out operation like distillation digestion fraction etc particularly when inflammable liquids like organic solvents are used. These also find wide range of application in research institution quality control laboratories of chemical and pharmaceutical industries etc.

• Voltage: 230 Volts AC Supply
• Outer: Made of Aluminium
• Inner: Fiber Glass Yarn Thread
• Insulation: Glass Wool
• Power Control: Sun Bin energy Regulator
• Thermometer Warning: Chemical Spillage Over and load minuses

Capacity In Ml and Watts: In ML In Watts 50 ML 60 W 100 ML 60 W 250 ML 150 W 500 ML 200 W 1000 ML 300 W 2000 ML 500 W 3000 ML 500 W 5000 ML 1000 W 10000 ML 1000 W 20000 ML 1000X2 = 2000 Watts 50000 ML 1000X3 = 3000 Watts (3 Phase Supply)

• Material: Aluminium, Stainless Steel
• Color: Brown, Grey, Light White, White
• Voltage: 110V, 220V, 380V
• Power Source: Electric
• Warranty: 1year, 2years
• Use: Heating
• Classification: ISO 9001:2008 Certified

All mantles are supplied with built-in-energy regulator. Element temperature upto 450°C, Operates on 220240V, 50 Hz AC. Useful for heating test tubes, crucibles, small fl asks, beakers etc. The Heating element is spiralled nichrome wire enclosed hard knitted glass yarn.

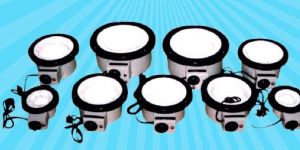

Technico heating Mantles are single piece and are made of flexible knitted glass fabric to which resistance wire is attached in a coil form. The heating mantle is housed in a housing made of mild steel sheets with powder coating finish. Each Mantle is fitted with built in energy regulator & pilot lamps. Designed for operation on 230 V single- phase 50 cys. A/C. Suitable for heating application using round bottom borosilicate glass ware. Optional :  Digital temperature controller with sensor Capacity (ml) 100 250 500 1000 2000 3000 5000 10000 20000 50000 Rating (watts) 60 150 200 300 500 750 800 1000 2000 3000

Heating mantles are made of thick gauge of spun aluminium with powder coated finish of attractive color. The heating elements out of Nichrome wire on helically wound coil form safety insulated by fibre glass sleevings which in turn is attached to knitted glass fabric, to give flexible support to the flask. The heating elements so, designed operates at black heat conditions, ensuring uniform heat transfer thus avoiding bumping of contents of flask. Mantles are duly insulated by glass wool. The mantle gives maximum surface temperature of 450 ºC. which is controlled by a energy regulator, suitable for operation on 230240V AC 50HZ.

• Material: Aluminium, Stainless Steel
• Color: Brown, Grey, Light White, White
• Voltage: 110V, 220V, 380V
• Power Source: Electric
• Warranty: 1year, 2years
• Use: Heating, In Laboratory
• Classification: ISO 9001:2008 Certified

• Material: Stainless Steel
• Voltage: 220/230 Volts. A.C.
• Frequency: 50 Hz
• Surface Finish: Powder Coated
• Rating: 80 Watts
• Capacity: 50 ml or 100 ml
• Phase: Single Phase

We have carved a niche as one of the outstanding laboratory heating mantle suppliers from india. The heating mantle is widely demanded by many of the laboratories as these are very effective in the heating of chemical at the desired rate without any hassle. The electric heating mantle has an indicator and a regulator that helps us to keep a check on the temperature needed. Specifications: voltage : 230 volts ac supply outer : made of aluminium inner : fiber glass yarn thread insulation : glass wool power control : sun bin energy regulator thermometer warning : chemical spillage over and load minuses will greatily reduce the service life. Optional availabe in different sizes and shapes as mentioned below also glass wares in needed can be supplied
