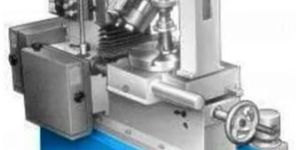

Hobbing Machine Dealers in Chennai

• Condition: New
• Automatic Grade: Automatic
• Application: Gear Cutting
• Maximum module/d. P. Cut: 4 module
• Maximum dia. Of gear: 350 mm
• Max. Without bellows: 350 mm
• Hob speed range (rpm): 35/50/60/90/115/140
• Maximum width cut of spur gear: 250 mm
• Helix angle 15 Degree: 200 mm
• Helix angle 30 Degree: 175 mm
• Machine dimension l x w x h: 1500 x 1000 x 1555 mm
• Weight of machine: 1500 kgs. (approx. )
• Helix angle 45 Degree: 150 mm
• Min. With bellows: 127 mm
• Main drive motor: 1. 1 kw
• Rapid motor: 0. 36 kw
• Range axial feeds of hob slide: 0. 2 mm to 4 mm
• Coolant pump: 0. 11 kw
• Axial distance between table & hob spindle: 0 to 175 mm

• Weight: 4000 Kg

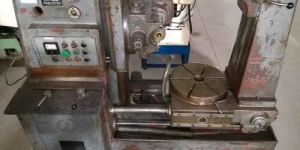

• Brand: Seiwa
• Model: MH-600D
• Maximum Cutting Outer Diameter without support: 600 mm
• Maximum Cutting Outer Diameter with support: 450 mm
• Maximum Cutting Module: M.6 (DP4
• HOB Saddle Vertical Movement Distance: 380 mm
• Distance Between Cutter Arbor Axis and Work Arbor Axis: 30-370 mm
• Diameter of Work Table: 445 mm
• Hole Diameter of Work Table: 120 X 120 mm
• Maximum length of Attachment Hob: 60 mm
• Maximum Adjustment Distance: (60 C/S) 80
• HOB Revolution: (50 C/s) 67
• Range of Axial Feed: 0.4
• Range Of Radial Feed: 0.2
• Range Of Feed: 0.2
• Main Motor: 2.2 KW (3HP)
• Rapid Traverse Motor: 0.75Kw(1HP)
• Cutting Oil Pump Motor: 150W (0.5 HP)
• Lubricant Oil Pump Motor: 75 W (1/10 HP)

• MAXIMUM MODULE/D.P. CUT:  4 MODULE
•  MAXIMUM DIA. OF GEAR:  350 MM
•  MAXIMUM WIDTH CUT OF SPUR GEAR:  250 MM
•  MAXIMUM WIDTH CUT OF HELICAL GEAR::
•  :  200 MM
•  :  175 MM
•  :  150 MM
•  DISTANCE BETWEEN HOB SPINDLE & SURFACE OF TABLE:
•  MIN. WITH BELLOWS:  127 MM
•  MAX. WITHOUT BELLOWS:  350 MM
•  AXIAL DISTANCE BETWEEN TABLE & HOB SPINDLE:  0 TO 175 MM
•  HOB SPEED RANGE (RPM):  35/50/60/90/115/140
•  RANGE AXIAL FEEDS OF HOB SLIDE:  0.2 MM TO 4 MM
•  MACHINE DIMENSION L X W X H:  1500 X 1000 X 1555 MM
•  WEIGHT OF MACHINE:  1500 KGS.(APPROX.)
•  MAIN DRIVE MOTOR:  1.1 KW
•  RAPID MOTOR:  0.36 KW
•  COOLANT PUMP:  0.11 KW
