Horizontal Flow Wrap Machine Dealers in Chennai

• Speed (Pcs/Min): Up to 120 *
• Pouch Size (LxW) in mm: 200 x 150
• Auto product infeed: Optional
• Power Required in KW: 4.00
• Dimension (LxBxH): 3793 x 750 x 1529MM
• Weight (Approx.): 800 kgs.
• Online batch coding: Optional

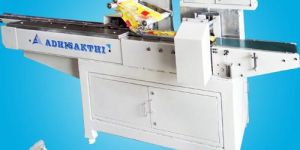

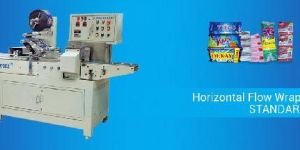

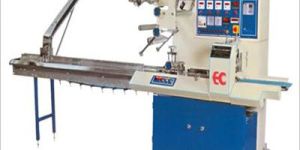

Horizontal flow wrap machines designed to form and seal solid products tightly Basic machine with PIV drive enables easy adjustments of product changeovers Product contact parts are of SS 304 Product from chain lug conveyors are fed inside pouches formed in Horiz chute Three pairs of sealing horizontal sealing and cross sealers with cartridge heaters PID controllers ensure temperature accuracy for effective sealing performance Fully plc controlled Speed upto 100 pcs/min Batch coding option extra User friendly change over system. basic machine with one set parts

• PACKING RANGE: 20g to 200g
• FILM WIDTH: 240mm
• FILM THICKNESS: 75 to 80 MICRONS
• MAIN DRIVE MOTOR: 1 HP
• POUCH STYLE:  PILLOW TYPE
• POWER CONSUMPTION: 3KW
• PRODUCTION CAPACITY: 30 to 40 packets/minute
