Industrial Controls & Drives (I) Pvt Ltd Maduravoyal, Chennai, Tamil Nadu

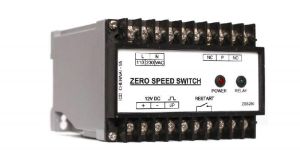

Zero Speed Switch is designed to detect the stalling of motors due to over load or chain delinking and conveyor belt stoppage. It is designed for accepting I/P Signal from non contact proximity pickup, Magnetic Pickup, Potential free NO Contact  for DC/AC  signal from Tacho generators. A Sensing Wheel with projection mounted on the shaft of the motor with proximity pickup or Magnetic reed switch gives a train of pulses. The signal is given to an electronic circuit which senses the duration between the pulses. If the interval between pulses is more than the set time and if it continues more than the time delay set, a relay de-energises. The circuit consists of signal conditioners, time interval detectors, power supply and Relay Circuit. Total system is housed in a compact dust proof ABS Plastic DIN Rail mounting Case.

digital three phase ac control relay, microcontroller based design, settings: over current, under current, individual phase, avg current  .

Packaging Type : Carton Box

Overall Weight : 200gm

Usage : Factories, Power Plants, Shopping Malls

Specialities : Durable

Overall Dimension : 96x96x80

Brand Name : ICD

Color : Brown

Voltage : 220V

Warranty : 1 Year

Current Type : AC

Mounting Type : Panel

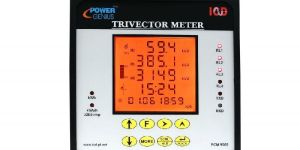

PCM 9505 is a new approach to Energy Management Systems and Energy Billing Systems integrating Control I/Os which enable Process Integration, Breaker Status Detection, Alarm output, Basic Demand control outputs and more, directly integrated within the meter . ICD has also developed matching advanced EMS applications for Specific Energy Consumption in Panel metering in sub stations, Distribution panels , Genset Panels, Pumps, Motors, Compressors and Individual Equipments, Control panels and Test benches and much more. features True RMS Measurement Simultaneous sampling of voltage and current Confirms IS14697 for Accuracy Class 1 and Class 0.5 Direct reading without multiplication factor Accurate on Harmonic Conditions 10 year back up for integrated energy data Available in both LCD and LED Model Measures 4 quadrant power and 2 quadrant energy Run hour Indication Energy storage in EERAM with 10 years backup Built in phase analyzer for proper connection Low PT, CT burden (Less than 0.2 VA) Digital Calibration ensures drift free operation for long time High reliability and user friendly to configure and operate Sealed dust proof Poly Carbonate Enclosure Touch safe terminals Wide range of Auxiliary supply (90 to 270V AC or DC)

HP 802 Small Combo Pack Multi Color Ink Cartridge

Type : Thyristor Power Regulator

Material : Aluminium, Brass, Fiberglass, Frp, Glass, Plastic

Application : Power Use

Color : Creamy, Golden, Green, Light Green, Metallic, Off White, Shiny Silver, Silver, Sky Blue

Condition : New, Old

Operating Temperature : -25 +85deg C

Feature : Accurate Reading, High Performance, Longer Service Life, Robust Construction

Current Type : AC, DC

Automation Grade : Manual, Semi Automatic

Thyristor capacitor switching module is designed to use for Real time power factor correction. It consist Dynamic switching Module (DSM- Electronic circuitry housed in Din rail mount enclosure) and Thyristor power stack (TSM –2 no Thyristors mounted on suitable heat sink).  DSM is a microcontroller based design which generates trigger pulse to TPS and ensures the zero voltage switching of thyristor to achieve the transient free operation. DSM is common for all rating thyristor capacitor switching module and TSM varies according to the capacitor bank KVAr rating. Both DSM and TPS are interconnected with simple wiring.   Features Transient free switching. Real time PF correction is possible. Suitable to use with tuned and detuned filter reactor. Relay provided for cooling fan to activate the fan only at bank ON Over temperature Protection. Electronic circuitry is housed in the enclosure, so that suitable to work in dust environment.

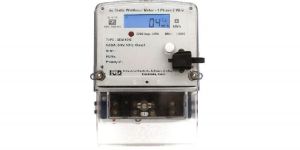

SEM 9514 is a new approach to Energy Billing Systems For Shopping malls, IT Parks and other Commercial Establishments . Majorly used as residential metering for house, colonies and apartments. Act as a major part in check metering and also for windmill ARR.     FEATURES State-of-the art SMD Technology Wide range of input voltage Whole current operation 10A and 20A Ib with 600% operating range Accuracy class 1.0 as per IS 13779, IEC 62053-21, CBIP88 (Whole Current Meters Accuracy class 0.5 as per IS14697, IEC 62053-22 (CT operated meters) Accurate under Harmonic conditions 8 Digit custom made LCD with backlit Simultaneous sampling of voltage and current Very low voltage and current burden Instantaneous start and records energy for low starting current (0.2% of Ib) Built in transient protection Higher meter constant for faster testing High quality poly carbonate enclosure with sealing arrangements Tamper indications for current reversal, phase sequence, magnetic tamper and cover open

ICD Temperature Scanner Model No. SCN525 is capable to measure and control the  Temperature  upto  16  points.  It  accepts  temperature  sensors  like  RTDs, Thermocouple, mV and mA signals  from Transmitters. The Scanner is completely user programmable  like High/Low set point control action, Auto/Manual operation, Channel grouping, Hold, Pause etc. The Scanner is a single board construction with the latest integrated circuit, so as to reduce  component  counts.  Fast  A/D  converter  is  used  for  quick  refreshing  of  all  the channels input and output. Digital Zero / Span calibration eliminates trim pot adjustments and settings are made  through key pad. Maximum 4  relay outputs are given  for Alarm & Trip controls. Channel grouping optional and control modes are programmable.The  Scanner  scans  all  the  channels  continuously  on  the  background  while displaying  and  generates  the  Alarm  &  Trip  outputs  after  comparison  with  respective settings. The Scanner has  two modes of operation:1. Operator Level and,2. Superior Level The operator level permits channel display selection in Auto, Manual, Hold mode and Alarm acknowledge. Whereas supervisory level access, Alarm & Trip setting, group configuration, output delay adjustments, channel pause  function, scan  time etc. Optionally, external relay box containing Max. 32 relays can be connected through serial  link. The scanner  is housed  in 96 x 192 x 250 mm  flush mounting enclosure.   FEATURES Microcontroller based design Accepts RTD, Thermocouple, mV, mA High Accuracy with software linearisation Multiplexing by Analog switches Channel pause & Hold facility Two set points per channel Over range & Open sensor indication Programmable scan time, set point & channel pause Alarm and Trip indication for each channel Error compensation at site Digital calibration for each channel Optional : PC Interface Optional : Relay output - Max.32 through external relay unit Compact in size / Modular construction EERAM storage, no battery required Protection against EMI/Stray noise Built-in Watchdog Timer 2 or 4 Relay output     APPLICATION Winding temperature monitoring of High Rating Motors,PowerGenerators and transformers Various parts of Engine bed,Ball bearings, Water and Steam pipe of boilers Various points in Sugar mills, Food processing, Chemical, Cement,Fertilizer & Pharmaceutical Industries

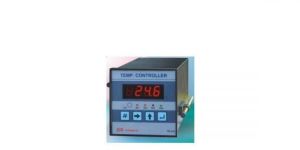

  Temperature Indicator/Controller is a micro controller based design which accepts input from Thermocouple(J,K,R,S), PT-100 RTD Sensor 3 wire, and (4-20)mA / 0-10V / 0-5V / 0-1V. Our Device acts as a controller by providing two relay outputs.

SEM 9510 is a new approach to Energy Billing Systems For Shopping malls, IT Parks and other Commercial Establishments . Majorly used as residential metering for house, colonies and apartments. Act as a major part in check metering and also for windmill ARR.   FEATURES State-of-the art SMD Technology Wide range of input voltage Whole current operation 5A and 10A Ib with 600% operating range Accuracy class 1.0 as per IS 13779, IEC 62053-21, CBIP88 Accuracy class 0.5 as per IS14697, IEC 62053-22 (CT operated meters) Accurate under Harmonic conditions 6 Digit custom made LCD with backlit Simultaneous sampling of voltage and current Very low voltage and current burden Instantaneous start and records energy for low starting current (0.2% of Ib) Built in transient protection Higher meter constant for faster testing High quality poly carbonate enclosure with sealing arrangements

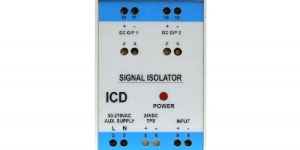

Signal Isolator is a versatile for LT/HT application. It measures basic electrical quantity DC Voltage(75 mV /200 mV /1V /10V), DC Current(0-20mA/4-20mA), Resistance(500 Ohm,1kOhm, 2kOhm, 5kOhm, 10kOhm) as input and convert it as Current(0-20mA, 4-20mA), Voltage(0-1V DC, 0-10V DC). The number of outputs provided two.

a sequential timer, also referred to as a sequencer or sequence timer, will energize and de-energize multiple outputs over a period of time. the amount of time before each output is energized and the amount of time the output remains energized is variable. the outputs may be energized one at a time in order. for mechanical relay applications, the relay contacts of the first relay will close. then, after a set amount of time, the first relay's contacts will open and the second relay's contacts will close.   features microcontroller based design high accuracy individual and multifunction 5 digit display two relays output flexible design flexible control input non erasable memory storage

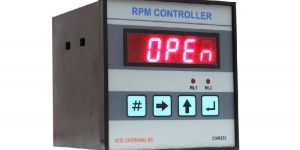

  CNR 230 is a new approach to Process Measurement integrating Control I/Os which Measures RPM value of any motors or Devices which accepts input from Proximity, Photo Electric, Magnetic Pickup, Potential Free Contact Limit, Pulse Inputs. Our Process Indicator which acts as a controller device with respect to the input by providing two number of Relay's. EERAM is provided to store the Setpoints and constants. Our Device can measure the RPM ranges from 0 to 99999 RPM with Accuracy of 0.01%.

Type : Rpm Indicators

Resolution : 0.1 Rpm For 4.0 To 999.9 Rpm, 1 Rpm Above 1000 Rpm

Warranty : 1yr

Country of Origin : India

UPC 5200 is a new approach to Process Measurement integrating Control I/Os which Measures input from Temperature(J,K,T,R,S,RTD, mA/Volt), Current(4-20 mA / 0-20 mA), Volt(0-10v / 1-5v). Our Process Indicator which acts as a controller device with respect to the input by providing two number of Relay's.

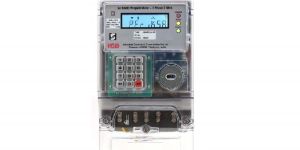

ICD SPARTAN prepayment meter is designed with latest state of art technology. It offers high accuracy, reliability and alsoreal value for money. This instrument is most suitable for measuring all electrical parameters. The measured information’s are shown in 8 digit LCD. 3x4 matrix keypad is provided on the front panel of the meter toaccess the information easily and quickly. The front panel is provided with antiglare feature for improved readability. The measurement parameters include voltage, current, kW, and Energy (KWh). The voltage, Current, Power and energyreadings are true R.M.S including harmonics. The power and energy measurement is done for the full four quadrants. Themeter computes and updates the parameters every second. In the present power scenario, Revenue & Demand Side Management are crucial for electrical power distribution. Users should be guided towards the energy savings & awareness needed on their energy consumption. So system need revenue management with better cash flow, reduced / elimination of billing and payment process & metering with the facility of demand side management.   Features Load Earthing Magnetic tamper Top and Terminal cover Open Reversal of Mains and Load Current Terminal Short

ICD Power Meter PWR 9070 is micro-controller based and assembled in 96x96 mm ABS plastic enclosure. It operates with voltage and current signals from suitable voltage and current transformers. It measures kW, kVA, PF, kVAr, 3 Phase Voltage, 3 Phase Current, Frequency, RPM, Power ON hours, Load ON hours and Number of interruptionspower factor and also the reactive power consumption of the load.

The ICD Power Matrix APM7500 is an advanced compact powerful power monitoring device suitable for applications where basic to advanced metering functions, Power quality monitoring, Data logging, IO controls and flexible communication options are required. The ICD Power Matrix can be used as a standalone meter or as part of an energy management system, Energy billing system, Building automation system and substation automation systems.   features Basic and advanced metering functions Energy monitoring for all 4 quadrants with multiple tariff Demand storage with date and time stamp Power quality monitoring Alarm feature for selected parameters I/O module option for breaker status monitoring and remote control Data logging feature Multiple choice of communication ports (Modbus, Ethernet, Profibus) Modular design and full graphical 160*160 pixel LCD display

PCM 9505 is a new approach to Energy Management Systems and Energy Billing Systems integrating Control IOs which enable Process Integration, Breaker Status Detection, Alarm output, Basic Demand control outputs and more, directly integrated within the meter .

Majority of the loads in the industries are highly inductive in nature such as induction motors, welding equipments, arc furnaces andfluorescent lightings. There may be a few resistive loads for heaters and incandescent bulbs. Very rarely industries may have capacitive loads such as synchronous motors. Net industrial load is highly inductive causing a lagging power factor. If this poor power factor is left uncorrected, the industry will require a high maximum demand from Electricity Board and also will suffer a penalty for poor power factor. These two factors of high kVA demand and penalty for poor factor will inflate the monthly Electricity Bill. Since Power Factor can be corrected to near unity there can be huge saving from the Electricity Bills. Standard practice is to connect power capacitors in the electrical network at appropriate places to compensate the inductive nature of the load.   FEATURES 1Ø and 3Ø Welding Equipments Wind Turbine Generators Robotic Machinery Steel Rolling Mills Elevators, Cranes, Presses IT Companies, Hospitals Water Treatment Plants Air-conditioning etc

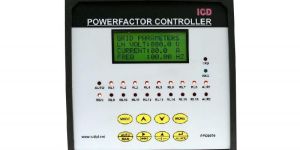

  ICD Power Factor Controller PFC 9070 is micro-controller based and assembled in 144 x 144 mm ABS plastic enclosure for flush mounting. It operates with voltage and current signals from suitable voltage and current transformers. It measures power factor and also the reactive power consumption of the load. With appropriate user program fed, it gives relay output signals to switch IN/OUT capacitor banks by contactors in a sequential manner to achieve the preset PF.   Features Measurement of PF for all 4 quadrants Identification of the power of connected capacitor either automatically or through user program Optimum usage of capacitor banks through cyclic switching Control either in Auto / Manual Suitable for switching in / out capacitor through thyristor module / Contactor Adjustable connection delay and reconnecting delay for banks to suit the load changes Alarm against Over Voltage, Under Voltage, Over Current, Over Compensation, Under Compensation & Step fault THD Measurement and alarm (optional) Alarm for insufficient measurement current Disconnection of particular step for step problem Disconnection of capacitor bank for excessive harmonics Connection of permanent capacitor value in addition to the measured required power E.g: for compensation of a transformer Separate PF setting for EB/DG (optional) External potential free digital input provided to select EB/DG Setting (optional) RS485 Port for communication with MODBUS RTU protocol (optional)

MFM 9500 is a new approach to energy management, integrating Control I/Os which enable process integration, breaker status detection, alarm output, basic demand control outputs and more, directly integrated within the meter. ICD has also developed matching advanced EMS applications for specific energy consumption in heat treatment, textile, cements, power and steel much more.   features True RMS measurement Simultaneous sampling of voltage and current Measures 4 quadrant power and 2 quadrant energy Digital calibration ensures drift free operation for long time Isolated RS485 with industry standard MODBUS-RTU protocol Ethernet module, PROFIBUS-DP module available as option Dual communication ports option Sealed dust proof poly-carbonate enclosure

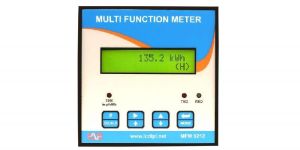

MFM 9212  is a new approach to Energy Management Systems and Energy Billing Systems integrating Control I/Os which enable Process Integration, Breaker Status Detection, Alarm output, Basic Demand control outputs and more, directly integrated within the meter . ICD has also developed matching advanced EMS applications for Specific Energy Consumption in Panel metering in sub stations, Distribution panels , Genset Panels, Pumps, Motors, Compressors and Individual Equipments, Control panels and Test benches and much more. features User Programmable Simultaneous sampling of voltage and current Confirms IS14697 for Accuracy Class 1 and Class 0.5 Direct reading without multiplication factor Accurate on Harmonic Conditions 10 year back up for integrated energy data Available in both LCD and LED Model Measures 4 quadrant power and 2 quadrant energy Run hour Indication Built in phase analyzer for proper connection Low PT, CT burden (Less than 0.2 VA) Digital Calibration ensures drift free operation for long time High reliability and user friendly to configure and operate Sealed dust proof Poly Carbonate Enclosure and Touch safe terminals

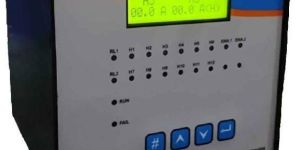

ICD offers heater system monitoring and burnout detection. This product is designed to monitor status of the heater system with 3 phase star or delta connected loads. This instrument measure and monitors voltage, current, power and energy through external CT’s and voltage detection; it can operate with 3 CT’s or 2 CT’s with true RMS measurement, CT ratio is settable in the meter itself. Under current setting will be given to study heater status and it will announce the heater burnout detection. This unit also shows the thyristor short circuit failure or open circuit failure. This instrument displays voltage, current, power and energy by digital measurement and finds the heater burnout status and provide alarm through an external relay output.   Main Functions Heater burnout alarm Heater layer short circuit alarm on crossing limit Power device short circuit detect Power device open circuit detect Display of all electrical quantities Heater useful run hour Features Ensure best quality product Avoid scrap and raw material wastage Automatic human intervention Monitoring unbalance heating Monitoring a group of heater together in an enclosure Contribute preventive maintenance

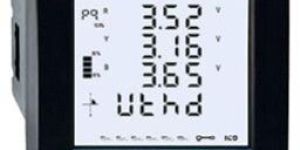

We offer harmonics indicator. Display of true rms voltage and current thd in % of voltage thd in % of current individual harmonic amplitude and in % of voltage spectrum individual harmonic amplitude and in % of current spectrum

Any device with non-linear operating characteristics, draw current from the source which does not follow the voltage wave form and introduce wave form distortion in current. These wave form distortion in current are called current harmonics
