Instrutech Solutions Kovilambakkam, Chennai, Tamil Nadu

Welding Neck Flanges are easy to recognize at the long tapered hub, that goes gradually over to the wall thickness from a pipe or fitting.The long tapered hub provides an important reinforcement for use in several applications involving high pressure, sub-zero and / or elevated temperatures. The smooth transition from flange thickness to pipe or fitting wall thickness effected by the taper is extremely beneficial, under conditions of repeated bending, caused by line expansion or other variable forces.These flanges are bored to match the inside diameter of the mating pipe or fitting so there will be no restriction of product flow. This prevents turbulence at the joint and reduces erosion. They also provide excellent stress distribution through the tapered hub and are easily radiographed for flaw detection.

Country of Origin : India

Finishing : Polished

Size : 10-20 Inch

Inner Diameter : 10-20mm

No. of Holes : 4-8 Holes

Specialities : Strong Construction, Rust Proof, Fine Quality, Durable

Thickness : 10-20mm

Outer Diameter : 30-50mm

The diverse selection of Water Quality Panels can be customized to fit your liquid analysis needs.

Country of Origin : India

Feature : Fine Finishing, High Quality

Pattern : Plain

Finishing : Polished

The custody transfer flow metering system with prover includes an analyses and control system. Our quality system and performance is subject to continuous monitoring by our clients and third-party inspectors. Our track record and project approach contributed to the award of this project.

Country of Origin : India

Driven Type : Electric

Warrenty : 1 Year

Finishing : Polished

Usage : Industrial

Specialities : Spiral Water Meter, Multi Jet, Digital Water Meter Display

Packaging Type : Carton Box, Wooden Box, Metal Sheet Box

Weight : 50-100kg

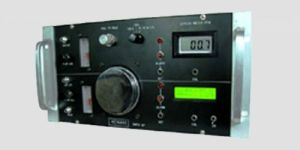

The Ultra High Purity Gas Analyzer available with us is provided by Orthodyne - Belgium which offers various custom-built devices to meet clients specific analysis needs. The product is tailor-made as per the demands of end users. It uses the science of chromatography to measure impurities in virtually all gases. Some of the application areas of the product are as follows:Aerospace industry, for products' high-precision and reliable measuring capacitiesGas industry; in all facilities from air separation plants to gas bottling centre.

Country of Origin : India

Certification : CE Certified

Weight : 10-20kg

Feature : Accuracy, Digital Display, Highly Competitive, Light Weight, Low Battery Consumption

Condition : New

Driven Type : Electric

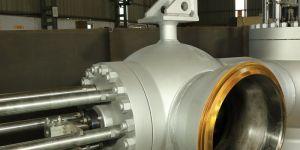

Whether as individual fittings or complete HP-IP-LP turbine control systems, we offer the highest quality through precise tuning. Our turbine control stations are: Designed for high-frequency, flexible power plant operation via KS-Inductive Coat Customised with process-specific / equal-percentage / linear control characteristics Superheated steam cooling possible to 5 ° C above saturated steam Use of modern pneumatic or hydraulic drive systems for fast vapor transfer (open / close)

Country of Origin : India

Certification : CE Certified, ISO 9001:2008

Condition : New

Automatic Grade : Automatic

Pressure Limit : 0-10Bar

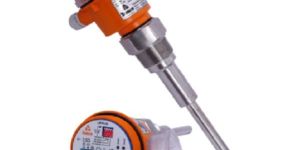

Trumen LSVR is a vibrating rod level switch used in free-flowing powders and granules size upto max. 25 mm. This vibrating rod is ideally for solids and low bulk density materials. It detects the point level switch measurement reliably. LSVR level switch is used as protection device of Hi and Low level switching in solid applications. This vibrating rod level switch avoids blocking of bulk solid material and this rod is easy to clean.

Country of Origin : India

Mechanical Life : 1 Year

Phase : Single Phase

Switch Operation : Push Switch

Surface Finishing : Polished

Usage : Office, Home

Specialities : Rust Proof, High Tensile

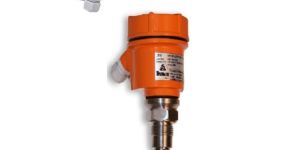

Trumen LSV is a vibrating fork level switch used in free-flowing powders and granules size upto max. 10 mm. This vibrating fork is ideally for solids and low bulk density materials. It detects the point level switch measurement reliably. LSV level switch is used as protection device of Hi and Low level switching in solid applications.

Country of Origin : India

Design : Standard

AC & DC Voltage : 110V

Mechanical Life : 1 Year

No Of Switch : 2 Switch

Surface Finishing : Polished

Usage : Office, Home

Packaging Type : Box

Specialities : Rust Proof, Heat Resistance

Trumen LFV Vibrating Fork Level liquid level switch used in all liquids, It detects the point level switching measurements reliably. for all liquids, independent level switch and it detects. LFV level switch is used as protection device of Hi and Low level switching in liquid applications. This level switch can be used as empty or full detection, dry run and pump protection in tanks and pipelines. This device can also be used in hazardous areas, chemical and food industry.

Country of Origin : India

Design : Standard

AC & DC Voltage : 110V

Phase : Single Phase

Surface Finishing : Polished

Packaging Type : Box

Specialities : Rust Proof, Heat Resistance

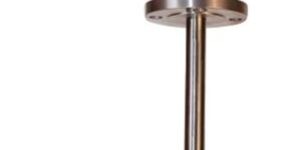

Trumen RF Admittance type level switch suitable for Sticky solid and semi solid materials. This level switch has been designed specifically for Packaging Industries, Material Handling Industries. This level switch also used in slurries stored in open or closed tanks

Country of Origin : India

Cable Entry : 2 no. 1/2 inch BSP

Working Pressure : 0-16 MPa

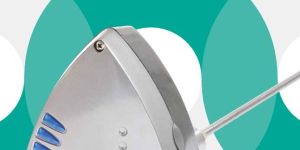

TUV certified to meet the EN 14181 (2004) standard, the S305 dust monitor is used for official emissions applications.  The state of the art dust monitor has been used in stack emissions for a number of state owned and private industrial applications around the world. Utilizing our unique Inductive Electrification principle, the S305 brings the reliability the government requires and combines it with the convenience plant operators expect from a particulate measurement device.  With minimal maintenance required, this is an optimal solution for plant operators needing to measure stack dust emissions for government control.

Country of Origin : India

Weight : 100-200kg

Condition : New

Automatic Grade : Automatic

Driven Type : Electric

Warranty : 1year

We make Transparent Level Gauges are suitable for high pressure and high temperature applications. They TLG201 made up of borosilicate toughened glass having two side visibility.They are highly used in liquid, chemical, oil, solvent, steam applications.

Country of Origin : India

Shape : Round

Thickness : 0-5mm

Weight : 100-200gm

Measuring Range : 0-1500mm

Temperature : 0-100 Deg C

Country of Origin : India

Application : Laboratory Use

Weight : 0-200 Gm

Voltage : 220V

Condition : New

Surface Finishing : Polished

Operational Temperature : 10°C - 28°C

Threaded Flanges are used for special circumstances with their main advantage being that they can be attached to the pipe without welding. Sometimes a seal weld is also used in conjunction with the threaded connection.Although still available in most sizes and pressure ratings, screwed fittings today are used almost exclusively in smaller pipe sizes.A threaded flange or fitting is not suitable for a pipe system with thin wall thickness, because cutting thread on a pipe is not possible. Thus, thicker wall thickness must be chosen.ASME B31.3 Piping Guide says..Where steel pipe is threaded and used for steam service above 250 psi or for water service above 100 psi with water temperatures above 220° F, the pipe shall be seamless and have a thickness at least equal to schedule 80 of ASME B36.10.

Country of Origin : India

Inner Diameter : 10-20mm

Outer Diameter : 30-50mm

Specialities : Superior Finish, Strong Construction, High Strength, Fine Quality

Packaging Type : Shrink Wrapping, Jute Wrapping

Thickness : 10-20mm

Finishing : Polished

We introduce our selves as one of the leading manufacturers of Gas analsyer / Gas Chromatography, we have more than 20 years of experience in the Analytical Instrumentation field. We have developed dedicated Multi gas analyser based on Gas Chromatography technology.

Country of Origin : India

Certification : CE Certified

Application : Indsustrial Usage

Feature : Accuracy, Durable, Low Power Comsumption

Voltage : 3-6VDC

Frequency : 50Hz-65Hz

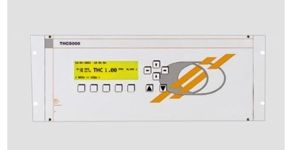

Total hydrocabon analyzer for N2, Ar, He, and Air General characteristics Continuous measurement system based on a flame ionisation detector. System controlled by microprocessor. Easy to use . Easy maintenance. Weak sample flow. Less power consumption. CE Analyzer. Alphanumeric screen 8 x 40 characters, 64 x 240 pixels Multifunctional and real-time software.

Country of Origin : India

Application : Industrial

Weight : 10-20 Kg

Feature : Durable, Fine Finished, Good Quality

Finishing : Polished

Frequency : 50-60 Hz.

Solid element Bimetallic is a temperature element instrument formed from two types of metal that have different thermal expansion properties

Application : Industrial

Certification : ISO 9001:2008

Feature : Fine finish Reliable. Durable

The Clarity™ II turbidimeter Model T1056 measures turbidity in water. Low stray light, high stability, efficient bubble rejection, and a display resolution of 0.001 NTU make Clarity™ II ideal for monitoring the turbidity of filtered drinking water.

Country of Origin : India

Driven Type : Electric

Warrenty : 1 Year

Finishing : Powder Coated

Application : Industrial

Specialities : Multi Jet, Accuracy

Line Size : 4-20mm

Packaging Type : Carton Box, Wooden Box

Weight : 50-100kg

The TRSMEDOR is an automatic and isothermal gas chromatograph dedicated to sulfur compounds analysis (H2S, mercaptans and sulphides) in different matrices.Two versions exist : the TRSMEDOR ppm which measures at ppm levels and the TRSMEDOR ppb which measures at ppb levels.

Country of Origin : India

Application : Industrial Use

Weight : 0-40 Kg

Height : 45 Inches

Depth : 459 Mm

Sample Weight : 0.5 G

Average Cycle Time : 0-20

Time of Analysis : 35 Sec

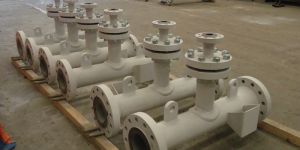

The primary function of a desuperheater water heater is to minimize the temperature of superheated gas and other vapors. This temperature reduction is achieved by the process vapor being brought into direct contact with a liquid such as water.

Finishing : Coated

Condition : New

Power : Electric

Automation Grade : Automatic

Application : Industrial Use

Superheated steam coolers are used to cool superheated steam in pipelines and to produce process steam at given temperatures. In the case of superheated steam coolers, the cooling water is preferably injected in the area of the smallest flow cross-section, with correspondingly highest vapor velocities. Due to the streamlined design, impermissible pressure losses are effectively prevented. Our steam boilers offer: Ring cooler with spring-loaded nozzles Venturi cooler with annular gap or nozzles (swirl atomization) Motion steam-assisted superheated steam coolers Multi-stage, regulated nozzle injection coolers

Country of Origin : India

Application : Industrial Use

Condition : New

Finishing : Coated

Temperature : 540 Deg C

Operated Noise : 100 DbA

Socket Weld flanges were initially developed for use on small-size high pressure piping. Their static strength is equal to Slip On flanges, but their fatigue strength 50% greater than double-welded Slip On flanges.The connection with the pipe is done with 1 fillet weld, at the outside of the flange. But before welding, a space must be created between flange or fitting and pipe.ASME B31.1 1998 127.3 Preparation for Welding (E) Socket Weld Assembly says..In assembly of the joint before welding, the pipe or tube shall be inserted into the socket to the maximum depth and then withdrawn approximately 1/16" (1.6 mm) away from contact between the end of the pipe and the shoulder of the socket.The purpose for the bottoming clearance in a Socket Weld is usually to reduce the residual stress at the root of the weld that could occur during solidification of the weld metal. The image shows you the X measure for the expansion gap.The disadvantage of this flange is right the gap, that must be made. By corrosive products, and mainly in stainless steel pipe systems, the crack between pipe and flange can give corrosion problems. In some processes this flange is also not allowed. I am not an expert in this matter, but on the internet, you will find a lot of information about forms of corrosion.

Country of Origin : India

Material : Metal

Diameter : 10-20mm

Shape : Round

Thickness : 10-20mm

Application : Industrial Fitting

Feature : Perfect Shape, High Strength, Fine Finishing, Excellent Quality

Finishing : Polished

The calculated strength from a Slip On flange under internal pressure is of the order of two-thirds that of Welding Neck flanges, and their life under fatigue is about one-third that of the latter.The connection with the pipe is done with 2 fillet welds, as well at the outside as also at the inside of the flange.The X measure on the image, are approximately..Wall thickness of pipe + 3 mm.This space is necessary, to do not damage the flange face, during the welding process.A disadvantage of the flange is, that principle always firstly a pipe must be welded and then just a fitting. A combination of flange and elbow or flange and tee is not possible, because named fittings have not a straight end, that complete slid in the Slip On flange.

Country of Origin : India

Shape : Round

Flange Type : Slip On

Inner Diameter : 10-20mm

Outer Diameter : 30-50mm

Specialities : Strong Construction, Rust Proof, Fine Quality

Material : Standard: 304L / 316L stainless steel, others according to your application.

Accuracy : 0.5% of Max Flow

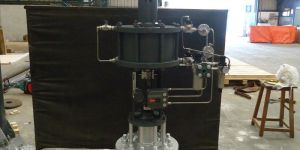

Severe service control valves are used in power plants and applications which demand a very high pressure drop applications leading to noise, vibration, cavitation and flashing. We perform the pressure reduction through spindle-hole bushing systems step-by-step and or with labyrinth disc stack technology undercritical and particularly low-noise. Designed for maximum availability in continuous operation with short revision times Customised with process-specific / equal-percentage / linear control characteristics Use of modern pneumatic or hydraulic drive systems for exact steam control
