jai suriya industries Tiruvottiyur, Chennai, Tamil Nadu

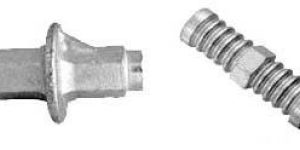

SIE water stopper is compatible with 17mm tie rods, for achieving water tight ties.Water stoppers are made from high quality casting and have a plastic caps at both ends, special feature is an additional surrounding disc for better Anchoring and further security against penetrating water. SIE water stoppers are optimal choice for contractors.

Wall Form Economy Panel   Economy panels are today's most advanced multi-purposed formwork system because: Stiffeners are built into the panel, therefore only two scaffold tube or channel wafers are required for alignment. Minimum champs required. Rapid assembly with wedge sets Can easily be erected by unskilled labour. Accommodates any tie system. Durable steel face plate cannot be damaged by vibrators or penetrated by the reinforcing steel. The Automatic precision on assembly results in 100% dimensional accuracy of the finished concrete.

The function of the swivel coupler is to connect two scaffold tubes at any angle for ledger, facade or similar bracing. These are important structural components and must be load-bearing. We provide alternative models to compliment the double couplers.

Stair Case Coupler - Used for the construction of temporary stairways by connecting together scaffold tubes and timbers (often scaffold boards) with angles ranging from 28° to 90°. These units can be used either left of right handed.

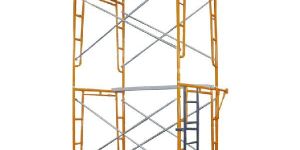

Our Scaffolds Frame systems has gained world wide acceptance. In addition to this, our reliable and fiducial products are widely used by our esteemed clients in domestic market. We offer principal products at reasonable prices, Our Frame system are Light Weight. These Frame sets are Flexible, easy to install and dismantle, Frame System are Dynamic, can be extended or joined with additional units Frame systems Can achieve a wider roof span.

Our Coupler and fittings like pressed double coupler, pressed swivel coupler are manufactured by a modern rapid production system. The materials employed are principally mild steels/Forged Steels, and fittings have been tested and conform to the BS - 1139. The fittings are tested to resist corrosion having a complete zinc coating with chromate passivation.   The Following Models are as below, 1. Beam Coupler These are critical components in the scaffold structure and must be load bearing to resist both slip and distortion. The design is based on a strong one piece body with flaps and T-bolts that can be removed for maintenance or replacement.

Galvanized steel scaffolding planks and battens are lightweight non-slip working surface, which can be used with omega transoms. We are one of the dominant manufactures and suppliers of Scaffolds-steel planks. We use all modern techniques in the manufacturing of our world class products. We proffer unique and unparalleled products at acceptable price.

Roofing Coupler - Designed for securing corrugated sheets to scaffold tube without the need for holes.

Connects putlog tubes to ledger tubes for the support of scaffold boards. The one piece body has been carefully designed and press-formed to provide the maximum resistance to movement and a long working life. It is not required to be a load bearing coupler.

steel scaffolding planks and battens are lightweight non-slip working surface, which can be used with omega transoms. We are one of the dominant manufactures and suppliers of Scaffolds-steel planks. We use all modern techniques in the manufacturing of our world class products. We proffer unique and unparalleled products at acceptable price.

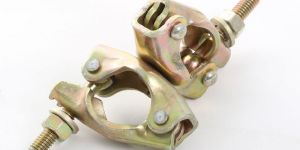

Pressed Double Coupler - Pressed Double Couplers connect two scaffold tubes at right angles. These are critical components in the scaffold structure and must be load bearing to resist both slip and distortion. The design is based on a strong one piece body with flaps and T-bolts that can be removed for maintenance or replacement. Pressed Swivel Coupler - NO PIC Pressed Swivel Couplers connect two scaffold tubes at any angle to provide a ledger brace, facade, or similar bracing.

Pressed Double Coupler - Pressed Double Couplers connect two scaffold tubes at right angles. These are critical components in the scaffold structure and must be load bearing to resist both slip and distortion. The design is based on a strong one piece body with flaps and T-bolts that can be removed for maintenance or replacement.Pressed Swivel Coupler - NO PIC Pressed Swivel Couplers connect two scaffold tubes at any angle to provide a ledger brace, facade, or similar bracing.

Light Duty Double Coupler This type of coupler is used for connecting scaffold tubes at right angle to each other. Right angled couplers are available for 40 X 40 mm N. B. Pipes.Light Duty Swivel Coupler Swivel Couplers connect two scaffold tubes at any angle to provide a ledger brace, facade, or similar bracing.

The Ledgers are manufactured from 48.3mm O.D. tube with forged steel blade ends which locate into bottom cups of the standards and are locked in place by the corresponding top cups. Ledgers are available in various lengths to provide the desired grid dimension for scaffolding or formwork.   SIZE WEIGHT 2.50 9.17 2.00 9.39 1.80 6.68 1.50 5.61 1.30 4.90 1.25 4.72 1.00 3.83 0.90 3.47 0.60 2.40

Joint Pin-Provides end to end connection of scaffold tubes. Operates by being inserted internally and expands to apply grip against the inner walls of the tubes. The fittings are designed only for compression joints, and should not be used where tension can be developed in the tubes.

Formwork clamps are used with mild steel rods and provide a cheap, effective clamping system that has no nuts or bolts and leaves no expensive ties in the concrete. Available in blue painted, galvanized or rough finish. The wedge of the clamp is available with heat treatment also for long life. Clamps clamps are used with mild steel rods and provide a cheap, effective clamping system that has no nuts or bolts and leaves no expensive ties in the concrete. Available in blue painted, galvanized or rough finish. The wedge of the clamp is available with heat treatment also for long life.

Galvanized steel scaffolding planks and battens are lightweight non-slip working surface, which can be used with omega transoms. We are one of the dominant manufactures and suppliers of Scaffolds-steel planks. We use all modern techniques in the manufacturing of our world class products. We proffer unique and unparalleled products at acceptable price.

There is often a requirement to fasten scaffold tubes to girders and other steel sections which demands a specialized fitting with a high degree of versatility.In erection, the Gravlock Coupler is highly effective, as it enables the fitting to be bolted to the girder first, leaving both hands free to present and secure the tube. As the tube is not compressed against the girder it is not distored by the fastening process. Gravolock couplers must be used in pairs.

Our Scaffolds Frame systems has gained world wide acceptance. In addition to this, our reliable and fiducial products are widely used by our esteemed clients in domestic market. We offer principal products at reasonable prices. SILENT FEATURES   Our Frame system are Light Weight. These Frame sets are Flexible, easy to install and dismantle. Frame System are Dynamic, can be extended or joined with additional units Frame systems Can achieve a wider roof span. Out Frame System Has higher safety factor. Aesthetic frame systems, due to decorative geometrical structural pattern. Best Frame System because of Fast site installation, without any disturbances to other site jobs.

Floor Forms and Adjusters Manufactured out of 14 G (2mm Thick) Tested Quality Sheets. Pressed on Four Sides.

Sleeve Couplers join two scaffold tubes externally end to end. A steel divider located centrally ensures equal insertion of each tube. They can be employed where tension joints are required and therefore are particularly useful for long bracing.

Joint Pin-Provides end to end connection of scaffold tubes. Operates by being inserted internally and expands to apply grip against the inner walls of the tubes. The fittings are designed only for compression joints, and should not be used where tension can be developed in the tubes.

The function of the swivel coupler is to connect two scaffold tubes at any angle for ledger, facade or similar bracing. These are important structural components and must be load-bearing. We provide alternative models to compliment the double couplers.

To complement the use of drop-forged double couplers a putlog coupler is also supplied. This is used to fasten putlogs to ledgers. The flap is manufactured from a high quality steel drop-forging.
