Jasper Gaskets & Power Projects Pvt. Ltd Kottivakkam, Chennai, Tamil Nadu

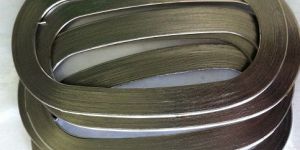

We are offering spiral wound gaskets. Style jgs gaskets are a sealing element only with a few additional layers of winding strip for use in tongue and groove and male female flanges. These gaskets are also available in oval, obround and diamond shape for valve bonnet and hand hole applications.

Brand Name : Jasper

Material : SS, LCS and any alloy

Shape : as per drawing or Specifiation

Style : As per ASME B 16.20

We are offering laboratory centrifuge. The standard jg style with an extra inner ring fitted, providing an additional compression stop that protects the sealing element from heat and corrosion. Inner rings are standard on all gaskets nps24" class 900#, nps12" and above in 1500#,nps4" and above in 2500#. All spiral wound gaskets with ptfe filler material have inner rings fitted.

Brand Name : Jasper

Material : SS, LCS and any alloy

Shape : as per drawing or Specifiation

Style : As per ASME B 16.20

We are offering bright bars. The standard gasket choice for rf and ff flanges, with the guide ring and sealing element made to asme b16.20din standards.

Brand Name : Jasper

Material : SS, LCS and any alloy

Shape : as per drawing or Specifiation

Style : As per ASME B 16.20

Bx ring gasket is distinct from the oval or octagonal gasket. The gasket is square in cross section and it is tapered at each angles. Bx is used at pressures up to 15,000 psi and it can be used only in api 6bx flanges and 16bx hubs.

Type : As per ASME B 16.20

Brand Name : Jasper

Material : SS, LCS and any alloy

Shape : as per drawing or Specifiation

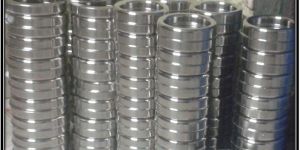

We are specialist in any custom metal seal ring as per specification. We assure that our price and quality will be 100% the best around the world.our product engineers and machinists deploy the latest technology and state of the art equipment in an innovation-engendering atmosphere that delivers quality engineering products all the time.

Brand Name : Jasper

Material : SS, LCS and any alloy

Shape : as per drawing or Specifiation

Rx gaskets are designed for pressures up to 15,000 psi. These gaskets are compatible to r type oval or r type octagonal rings used on api 6b flanges. Thickness or the height of the these rx type of gaskets are more than r type gaskets, hence the weight of one ring is also more than r type gaskets, therefore it is expensive when compared to r type gaskets. Hence it doesn't sell in huge volumes. Rx type gaskets are best one which can be used in the areas where r type gaskets are used with high pressure flow like on shore under sea applications.

Brand Name : Jasper

Material : SS, LCS and any alloy

Shape : as per drawing or Specifiation

Type : As per ASME B 16.20

The r-type ring gasket are found in two shapes, oval or octagonal. Both shapes have the same pitch diameter as the flange groove they communicate to. These gaskets are used in pressures up to 10,000 psi. The octagonal type has a higher sealing coefficient than the oval, therefore it is the most wanted shape. The oval type is the only gasket that will fit a bottom radiused groove. Both the gaskets can be used in flanges with flat bottom v-grooves. Ovl and oct is used as abbreviation for oval and octagonal shapes respectively.

Brand Name : Jasper

Material : SS, LCS and any alloy

Shape : as per drawing or Specifiation

Type : As per ASME B 16.20

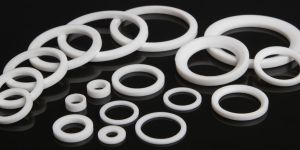

We are offering ptfe -based gasket materials are able to withstand significantly more aggressive chemical environments (including highly oxidizing environments) than standard non-asbestos gasket materials. However their temperature, pressure and mechanical performance is inferior to standard non-asbestos gasket materials. Metal inserted and expanded ptfe are able to operate at higher pressures. Ptfe is principally used as a gasket material because of its capability to remain unaffected by the majority of chemicals used in industry. It is also classified, in most cases, as a food grade material, making it acceptable to both medical and food production industries. There are three basic types of ptfe gasket materials. Virgin ptfe filled ptfe and expanded ptfe.

Brand Name : Jasper

Material : SS, LCS and any alloy

Shape : as per drawing or Specifiation

BX gaskets are designed for pressures up to 15,000 PSI. These gaskets are compatible to R Type Oval or R type Octagonal rings used on API 6B flanges. Thickness or the height of the these BX type of gaskets are more than R type gaskets, hence the weight of one ring is also more than R type gaskets, therefore it is expensive when compared to R type gaskets. Hence it doesn't sell in huge volumes. BX type gaskets are best one which can be used in the areas where R type gaskets are used with high pressure flow like on shore under Sea applications.

Brand Name : Jasper

Material : SS, LCS and any alloy

Shape : as per drawing or Specifiation

Type : As per ASME B 16.20
