KAZHUGU ALAVUKOL PRIVATE LIMITED Kundrathur, Chennai, Tamil Nadu

We are experts in supplying the standard, non-standard & customized of Width Gauge. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Reversible type design Also make woodruff & Crankpin width Made of Alloyed Steel and Tungsten Carbide Setting Master in ± 1 μm Available Range : 0.5 – 100mm.

Non Contact Video Based Metrology provides more detailed data about sample than single point contact systems. The integration with highly accurate positioning auto edge determination and powerful 2 dimensional Data processing Software’s / hardware’s has made Video Measuring Systems one of the most versatile metrology tool. An excellent solution to the most critical requirements of high quality Optical Profile Measuring. Suitable for measuring different shapes, complicated profiles such as press components, gears, cams, treads, tools, dies, turned components, automats etc. Most effective device to measure most 2 dimensional parameters like linear dimension, angle. Software: Multi-Window display and easy operation. Automatic edge-detection 2-Axis geometrical measuring function 2D Parameters like Line, Circle, Angle, Distance, Rectangle etc. Focus Indicator – can precisely determine Z axis. Windows 2000/XP Vision tool equips edge-trimming, output the most precise data. Excellent graphic allows to save, print out, and transfer to CAD.

Trinocular Microscope offered is made available by us in 45º inclined finish with 360 degree rotatable trinocular head that provides for optimum user interface. For smooth operations, these also come with co-axial built-in mechanical stage with option of fine vernier graduation, low drive control as well as presence of ball bearing guide ways so as to ensure jerk free smooth slide manipulation through 50 X 75 mm travel feature. Further, the presence of exclusive preset focus lock also helps in preventing damages of valuable slides and objectives. Standard Features: 45º inclined with 360 degree rotatable Trinocular head Co-axial built in Mechanical stage with fine vernier graduation, Low Drive control, working on Ball bearing Guide ways for jerk free smooth slide manipulation through 50 X 75 mm travel Dust proof quadruple/quintuple ball bearing revolving nose piece provided with rubber ring for easy rotation Co-axial coarse & fine focusing adjustment knobs, fine motion, graduated to .002 mm Sub-stage Abbe type N.A. 1.25 condenser focus-able with rack & pinion having iris diaphragm and swing out filter holder Steeple Grey, chemical resistant, back-on finish Exclusive preset focus lock prevents damage of valuable slides and objectives Heavy rectangular sturdy base, with built-in illumination LED lamp, with intensity control, provided with fuse for extra safety With dust cover packed in Styrofoam packing Optical Accessories :  Objective : 5 X 10 X 15X [Hygienic]  Dark Field Condenser, Phase Contrast Attachment

We are experts in supplying the standard, non-standard & customized of Thread Ring Gauge. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Offers with GO member in Carbide and NO Go in Steel (NO GO member can also be provided in Carbide) Both GO & NO GO in Steel also available Setting Master in ± 1 μm Manufactured Range : 4 – 83mm

We are experts in supplying the standard, non-standard & customized of Thread Plug Gauge. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Offers with GO member in Carbide and NO Go in Steel (NO GO member can also be provided in Carbide) Both GO & NO GO in Steel also available

We are experts in supplying the standard, non-standard & customized of Taper Thread Ring Gauge. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Offers with GO member in Carbide and NO Go in Steel (NO GO member can also be provided in Carbide) Both GO & NO GO in Steel also available Setting Master in ± 1 m Manufactured Range : 4 – 83mm

We are experts in supplying the standard, non-standard & customized of Taper Thread Plug Gauge. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Offers with GO member in Carbide and NO Go in Steel (NO GO member can also be provided in Carbide) Both GO & NO GO in Steel also available

We are experts in supplying the standard, non-standard & customized of Taper Ring Gauge. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Offers with GO member in Carbide and NO Go in Steel (NO GO member can also be provided in Carbide) Both GO & NO GO in Steel also available Setting Master in ± 1 μm Manufactured Range : 4 – 83mm

We are experts in supplying the standard, non-standard & customized of Tape Plug Gauge. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Offers with GO member in Carbide and NO Go in Steel (NO GO member can also be provided in Carbide) Both GO & NO GO in Steel also available

Features Offering grade 00,k,0,1 & 2 in line with IS/ISO/DIN/BS standards in Metric and imperial Made from special grade of Alloy steel Check set of slip gauges for micrometer calibration are available Customized sizes available Standard Sets Offered are:

Strain free bi-ocular view for comfortable , long work hours Aesthetically pleasing and lasting powder coat surface finishes for stand. Robust and simple design that makes it simple to maintain. Most popular and long running model. The oldest versions were introduced 20 years ago and have gone through numerous upgrades. Most popular ‘value for money’ model, available ex stock. Used in large numbers on manufacturing and assembly lines

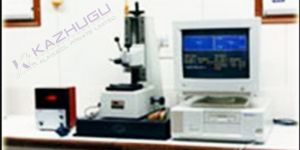

The instrument serves the calibration of gauge from 0.5 to 100 mm length. The slip gauge to be measured is compared with reference master whose deviation at center is exactly known. With two measuring probes, one at the top and the other at the base plate, this differential measurement gives reliable measurements with extremely high accuracy. A template profile allows the probes to trace 5 points on the surface of the slip gauge under test and one at the center point of the reference master. The manual remote control allows to move the slip gauge smoothly without jerk and interference from body heat. The instrument comes in two versions: Manual and Computerized.The computerized version allows quicker inspection its user-friendly interface and intuitive design. The calibration conform with the requirements of National and International Standards i.e. IS-2984 of 1981 and DIN-861 of 1988.The following features are determined in accordance with the specifications of the standards: Center deviation. Parallelism by measuring at 5 points, and Thereby selection of the Grade. The system is useful in the calibration laboratories which are officially approved by the National Accreditation Board.

We are experts in supplying the standard, non-standard & customized of Single End / U Type Standard Snap Gauge. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Made of Alloyed Steel and Tungsten Carbide Customized sizes available for checking of length and groove diameters etc. Available Range : 3 – 290mm

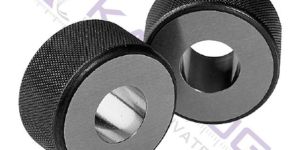

We are experts in supplying the standard, non-standard & customized of Setting Ring Gauge. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Offers with GO member in Carbide and NO Go in Steel (NO GO member can also be provided in Carbide) Both GO & NO GO in Steel also available Setting Master in ± 1 μm Manufactured Range : 4 – 83mm

We are experts in supplying the standard, non-standard & customized of Setting Plug Gauge. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Offers with GO member in Carbide and NO Go in Steel (NO GO member can also be provided in Carbide) Both GO & NO GO in Steel also available

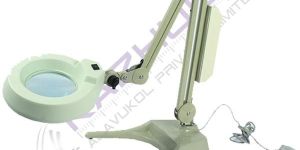

Strain free bi-ocular view for comfortable , long work hours Aesthetically pleasing and lasting powder coat surface finishes for stand. The concealed spring mechanism allows easy cleaning. Better for work in clean rooms. Electronic ballast makes the unit run even at low voltage of 190 V A robust model with a design that conceals the balancing mechanism. Easier to clean.

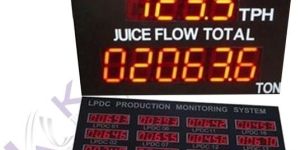

We are one of the leading suppliers of Production Counter Display to our highly esteemed clients. It is also known as Andon display and can be customized to suit diverse requirements of our clients. It has gained us huge applaud for its clear display of numeric as well as alphanumeric characters. In First Row: Shift Wise Target Per Hour, Time, Speed, Down Time, Total Target Per Shift. In Second Row: Actual Production Per Hour in One Shift. In Third Row: Balance. In Fourth Row: Total Production In Last Shift, Progress In Percentage, Total Production In One Shift & Balance. Enclosure: Remote for reset. Power Supply: 90 – 270 V AC Mounting: Wall/ Hanging.

We are experts in supplying the standard, non-standard & customized of Plain Ring Gauge. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Offers with GO member in Carbide and NO Go in Steel (NO GO member can also be provided in Carbide) Both GO & NO GO in Steel also available Setting Master in ± 1 μm Manufactured Range : 4 – 83mm

We are experts in supplying the standard, non-standard & customized of Plain Plug Gauge. Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Offers with GO member in Carbide and NO Go in Steel (NO GO member can also be provided in Carbide) Both GO & NO GO in Steel also available

These are mainly used in laboratories and also in different medical and drug industries. They are well known and widely appreciated for their quality, design, easy installation and precise dimensions.

Micrometer checker for quick calibration of 0-25mm micrometers. These sets are available in metric & inch sizes. They are designed specially to suit calibration and inspection of micrometers. The sizes in the set are so selected that they ensure checking of micrometers at various radial positions. Thus in addition to the pitch error, errors due to drunken threads also can be located. This set is also recommended by is-2967 of 1964 for inspection of external micrometers. Micrometer Checking Set comprises of the following sizes in grades ‘0, ‘ I ‘ and ‘ II’.Metric 10-piece Set2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mmMetric 8-pieces set3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mmImperial 8 pieces set0.130″, 0.250″, 0.385″, 0.50″, 0.615″, 0.750″, 0.870″ & 1″.

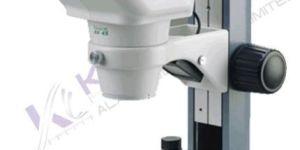

Our upright metallurgical microscopes are popular around the world for providing the best and most accurate results in minimal time. These high grade upright metallurgical microscopes are available with us with the following specifications & added advantages at consumer friendly price. BINOCULAR OBSERVATION HEAD Siedentopf observation head inclined at 45°. Diopter adjustment ring on ocular tube (±5). Interpupillary distance from 53mm to 75mm. Objectives (Infinity Corrected) M Long working distance plan 10X (WD 20.2mm)  M Long working distance plan 20X (WD 8.80mm)  M Long working distance plan 50X (WD 3.68mm)  M Long working distance plan 100X (S.L.) Dry(WD 0.40mm) MECHANICAL STAGE Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.  Quadruple nosepiece on ball bearing. Mechanical stage is 242mm X 200mm and moving range 30mmX30mm. Mechanical stage has low positioned co-axial controls on ball bearing guide ways.  Side port with phototube for micro photography. ILLUMINATOREpi-Koehler’s illumination. Aperture iris diaphragm and field iris diaphragm 6V/30W halogen lamp. Adjustable brightness. Filter wheel fixed in light path with blue, green & yellow filters. POLARIZING OUTFITAnalyzer rotatable at 360°. Polarizer & Analyzer can be slide in/out of the optical path. STANDARD ACCESSORIES6V/30W halogen tungsten bulb, operating manual, dust cover, guarantee card and styrofoam molded pack.

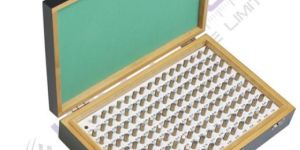

We are experts in supplying the standard, non-standard & customized of Set Box . Customer’s satisfaction is our atmost priority. We may compromise our price but will not compromise our quality of product and service. Offers measuring pins 0.5 – 20mm in “Grade 0 tol. ±0.5μm Grade 1 tol. ±1μm, Grade 2 tol. ±2μm” as per IS11103 standard. Length: 40 ≤ 1.5mm, 50 ≥ 1.5mm Step 0.01mm / 0.02mm / 0.05mm with Wooden box Carbide std pin Length 35mm Made of selected alloy steel and tungsten carbide giving high-grade super finish and greater wear resistance. Supplied in set as well as individual pins.
