Level Switches Dealers in Chennai

• Mounting Options: Top Mount
• Switch Type: Potential free
• Current Rating: 8 amps
• Media Type: Liquid
• Features: Efficient electrodes,Detects liquid levels,Ease of installation
• Working Pressure: 10 bar
• Measuring Range: 2 mtr
• Pole And Throw Specification: SPST

• Pole And Throw Specification: DPDT
• Cable Length: 10 Mtrs, 2 Mtrs, 20 Mtrs, 3 Mtrs, 5 Mtrs
• Mounting: Top Mount
• Weight: 1 Kg
• Microswitch: 10(8)A250V
• Protective Connection: T70U
• Medium Temperature: 70 Deg. C
• Medium Working Pressure: Max. 1 Bar
• Circuit Breaking Capacity: Directly KW with 250V
• Material of the Float: Polypropylene

• Brand Name: Esha
• Media Type: Liquid
• Connection: Flanged (or) Screwed
• Mounting Options: Side Mounted
• Brand Name: Esha
• Model: ESHA/ SMLS/607/78
• MOC: Allwetted Ports $.5. 316, 304
• Advantages: Minimum Maintenance, Low Cost , Pump Sofe Guard Against Dry Running

• Material: Nylon
• Country of Origin: India
• Application: Cable Float Levelling
• Certification: Other
• Voltage: 200VDC,230VAC
• Type: Cable Float Level Switch
• Hole Diameter: 0-20mm
• Setting Range: 0-1500pF
• Temperature: 0Dig C to + 60Dig C
• Frequency: 50HZ
• Power: 10-15Amp
• Electric proof: Flexible cable
• Accuracy: Inbuild copper contact
• No corrosion: Water proof
• No nc contact: 3 core
• Long life: Heavyduty

A hydraulic level switch is usually available in both small and large sizes depending upon the function. In addition, hydraulic level switches can range from simple to very intricate designs. These products are highly demanded by clients. We offer these products at affordable prices. Features: Reasonable price High quality Durable Specifications: Minimum Specific gravity of liquid: 0.75 Density of float: 0.6+5% Switching level: 50mm to75mm Repeatability: 3mm Maximum Switching hysteresis : 85ºc

• Specialities: Rust Proof, High Tensile, High Quality, Heat Resistance
• Design: Standard
• Shape: Rectengular
• Brand Name: KLINGER
• Housing: AISI 316
• Bracket: AISI 316
• Hose Clamp: AISI 316
• Nuts: Brass Nickel Plated
• Cable Gland: Brass Nickel Plated
• Cable Gland Seal: TPE
• Cable: Silicone
• Cable Core: Copper 3 x 0.75 mm2
• Ground Plate: AISI 316
• Mica Sheet: Mica

• Mounting Options: Side Mount
• Switch Type: Level Switch
• Measuring Range: 0-25 m bar
• Automation Grade: Automatic
• Packaging Type: Box
• Country of Origin: Made in India
• Probe length: 250mm to 1000mm
• Interconnecting cable: Upto 25 meters
• Power/Voltage: 32V DC
• Size: 0.25 to 8 Meter
• Frequency: 50 Hz
• Model: 5716
•  Power supply: AC & DC
• Probe insulation: PTFE, Ceramic

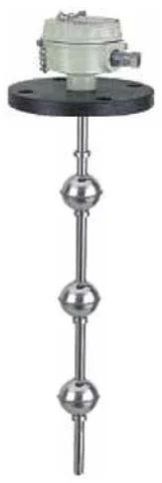

The Top Mounted Liquid Level Switches, offered by us, are offered in side mounted and top mounted varieties for suiting the specific application demands. The Top Mounted Liquid Level Switches are accessible in weather and flame, explosion proof housing and eliminate likelihood of leakages. The Top Mounted Liquid Level Switches are magnetically operated gland less switches which are mainly used to control the low and high level of the tools.

• Type: Groundwater Level Measurement Devices
• Application: Industrial
• Color: Brown, Grey, Light White, White
• Condition: New, Used
• Display Type: Analog, Digital
• Automatic Grade: Automatic, Fully Automatic, Manual, Semi Automatic
• Power Source: Electric
• Supply Voltage: 22 VDC, 24VDC
• Feature: Durable, Easy To Use, Good Quality, High Performance, Long Life
• Warranty: 1yrs, 2yrs

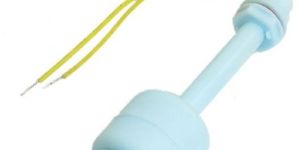

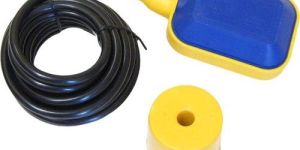

We are one of the prominent Manufactures and Suppliers of Float Switch. The Float Switch is a device used in pump and tanks to detect the level of liquid in the tank. Float Switch has waterproof and weatherproof housing. Float Switch is available in different specifications, catering diverse demands of customers.   Specifications FLOAT SWITCH 2M,3M,5M,10M CABLE Contact Voltage AC Max : 250V External Length / Height : 103mm External Width : 81mm Lead Length : 2M,3M,5M,10M Material : PUR Operating Force Max : 1.3N Operating Force Min : 0.9N Operating Temperature Max : 70oC Panel Cut-out Depth : 40mm Specific Gravity : 1.3 Specific Gravity of Liquid Min : 0.90

This is the electronic device which will control the level of liquid, water, oil and many more. This will also work for even high temperature application. These are available in stainless steel construction and plastic construction. Different mounting is also possible like verticle mounting and harizantal mounting.

We are offering top mounted magnetic level switch. A top mounted magnetic level switch is normally a simple device that monitors the liquid level in a tank and sends a trip signal to another device such as a pump to protect it. These level switches are used for pump protection, cooling circuit protection, high & low level alarm and general level monitoring.

• Material: Polypropylene ( PP )
• Operating Temperature: Minus 20 deg C to 80 deg C
• Switching Voltage (Max): 240 V AC / 200V DC
• Switching Current: 1A
• Contact Rating: 50VA
• Lead wires: PVC insulated copper wire of 300 mm free length
• Maximum Pressure: 2 ( Kg / cm2 )
• Pay Mode Terms: T/T (Bank Transfer)

A float switch is a device used to detect the level of liquid within a tank. The switch may be used to control a pump, as an indicator, an alarm, or to control other devices.

DFSH – 01,02 DESV – 01,02For sensing min. Oil level electrically with NO or NC ( Top ON or Bottom ON ) contact. Horizontally / vertically, (220V AC / 24V DC, 1 AMMP.) ( All models of float switches are potential free. )

• Mounting Options: Top Mount
• Switch Type: DPDT Relay output
• Current Rating: 5A
• Media Type: Dry Material
• Working Pressure: 20 BAR
• Features: Compact size, Low power consumption, Remote electronics version available on request, Suitable for side as well as top mounting..

• Brand Name: S Control
• Current Rating: 10 A at 230 VAC
• Operating Temperature: 0-70 degree C
• Usage/Application: For Water Tank
• Material/Body: Plastic
• Working Temperature: -40 to 50 Degree C

• Maximum Load: 15A 250 V
• Cable Material: PVC
• Contact Type: Microswitch with NO NC Contact
• Contact Life: 10 Million Switching Actions
• Switch Angle: ±45º
• Process Temperature: 50º C Maximum
• Pressure: 2 Bar max.
• Medium Density: 0.8 g/cm3 min.
• Housing Material: Non-Toxic Polypropylene
• Protection: IP 68
• Cable Specification: 8mm / 3x1.5mm2

• Float: PTFE, PP, PVDF, SS316, SS304, SS316L, SS304L, Monel, Titanium, hastealloy
• Float stem: PTFE lined SS, PP lined SS, PVDF lined SS, SS316, SS304, SS316L, SS304L, Monel, Titanium, hastealloy
• Flange: PTFE, PP, PVDF, SS316, SS304, SS316L, SS304L, Monel, Titanium, cast carbon steel, hastealloy
• Switch enclosure: Die cast aluminium, SS304, SS316, SS316L
• Cable gland: Brass, PBS plastic, SS316, SS304, 316L

• Cable Length: 3.048m (10ft)
• Size: L140.0mm (5.5in)
• Diameter: 76.0mm (3in)
• Switching Voltage: 240 Vac
• Switching Capacity: 10A 120 Vac / 5A 240 Vac
• Switching Resistance: 3.0 Ohms Max.
• Differential Angle: 8degC

We offer wika make magnetic float level switches large range of application due to the simple, proven functional principle for harsh operating conditions, long service life level measurement for almost all liquid media pump and level control and monitoring for distinct filling levels chemical, petrochemical, natural gas, offshore, shipbuilding, machine building, power generating equipment, power plants process water and drinking water treatment, food and beverage industry.

• Length Size: 2 Meters,3 Meters,5 Meters,10 Meters,15 Meters

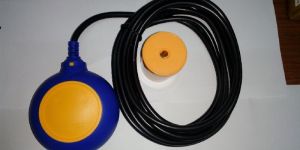

Cable float switch effectively monitor and controls waterliquid level in the Overhead tanks, Underground tanks, Sumps, Wells etc. It prevents Overhead tank from overflow and also over pumping of Sump, Well etc. It allows the user to be free from the botheration of switching the electric pump ON OFF and makes water liquid level available round the clock. Cable float switch prevents pump running when Sump is empty, Low voltage, High voltage and dry run situation, thus avoiding damage to motor resulting increased availability, cost saving in electricity and maintenance.

• Type: Continuous measurement and switching
• Material: Aluminium
• Country of Origin: Made in India
• Usage/Application: Industrial
• Packaging Type: Wooden Box
• Communication Protocol: HART, 4 -20 mA, RS 485, Potential Free relay

Application:Position switches with safety function are suitable for sliding and hinged safety guards which need to be closed to ensure the necessary operational security.In combination with safety monitoring modules all position switches class 1 shown in this chapter achieve Control Category 3 or 4 to EN 954-1.Further applications for positions switches class 1 are most varied positioning duties. The variety of requirements to be found in practice can be met in detail by means of a wide range of actuating elements.Design and mode of operation:On the position switches class 1 the guarding device and the positive break NC contact are positively linked.Enclosure rating of all the safety switches is IP 67. The safety switches can be fitted in any desired mounting position.

We offer Side Mounted Level Switches which is accumulated with float and permanent Magnets. Our side mounted magnetic level switches is intended to work on magnetic coupling with snap acting contacts. Features Can be used with internal/External Units for very high pressure and temperatureAs our switches work on magnetic principle, they are glandless and leak proofNo power consumptionSimple in designRobust construction Applications Drinking fountainMachinery ElectricalChemicalMarineTest instrumentFood machineryWarmer machineryWasherAir condition Specifications Op.Pressure:- 0-100kg/cm²Op.Temperature:- 0-400ºC

This capacitor switch, depending on the load pattern, will close or open automatically and connect or disconnect the capacitor bank to the lines. The capacitor switch provides not only reactive power compensation at overload current, but also prevents over-voltage problem at the receiving end during light load conditions by switching "on" and "off" the capacitor bank in the circuit respectively.   Features of Capacitor Switch:  Automatic switching -on of the capacitor bank whenever the load current exceeds a re-set value. The setting of load current is adjustable upto 150 amps, continuously. An on time delay of 5 minutes is provided each time the capacitor is required to be connected. The capacitor bank is automatically disconnected if the line current is reduced below a specified level. Automatic switching off the capacitor bank whenever the control voltage is beyond the minimum and maximum limits. i.e. 240 volts -15 % to 10%. In the event of line current exceeding a certain specified limit, the CT mounted on Y phase operates through the control unit and closing command is given to the closing solenoid which closes the interrupter, thereby connecting the capacitor bank in the circuit and thus improving the power factor. When line current is reduced, to a specified value control, unit gives a tripping command to the trip coil thereby disconnecting the capacitor bank. The power to the closing solenoid and tripping coil is also taken from the control transformer secondary.
