Linear Grill Dealers in Chennai

Application Air supply or air return in Air-Conditioning , Ventilating and heating systems Mounting Overlapped in sidewall or in false ceiling by means of hidden fixing systems as well as for continous grilles fixing by means of concelead bridge type fixing Implementation Extruded aluminium constructoin. Frames with flat frontal face 16mm, 20mm, 25mm or 30mm and inner blades of 0, 15, 30, 45 degree deflections. Avaliable with or without end flanges as well as of standard or non-standard sizes. Optional mittered corners available The models available in linear fixed bar Grilles are one way type/two way type, Curved Grilles and removable core Grilles Standard Finishes Natural Aluminum, Anodized or powder coated in standard RAL white colours

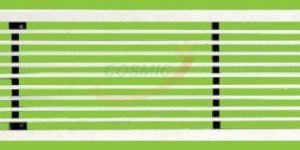

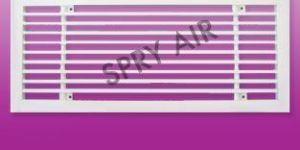

Product Description The grille consists of single deflection horizontal blades, Frame and face bars are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity. Horizontal face bars with 0, 15 – 1 way throw and 15, – 2 way throw are fixed rigidly to the frame with 8-mm pipes. Grilles are fixed rigidly with opposed blade  damper by grippers. This ensures positive control over the air stream. Damper blades can be screw operated from the face opening. For perfect unbroken appearance of continuous runs, alignment strips are provided with no additional cost. Foam gasket is sealed around the back of the frame as option to avoid air leakage. Supplied with C clamps for concealed fixing. Model ARLG is available without dampers.

Linear Bar Grille, Ceiling Suspended Air Conditioner
