Milling Tool Dynamometer Dealers in Chennai

• Range of Force: 100kg in XYZ direction - 200kg in XYZ direction - 500kg in XYZ direction.
• Sensor: 4 Arm Bounded Strain Gauge Component Bridge for Each Force.
• Bridge Resistance: 350 Ohms Typical
• Bridge Voltage: 12 Volts Maximum
• Linearity: 0.1% of Full Scale
• Accuracy: 0.1% of Full Scale
• Mounting: Using Slots Provided
• Additional Facility: Vice 4” Size to Hold the Specimen Optional
• Optional: Data Logger with Computer Interface Software

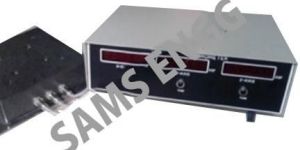

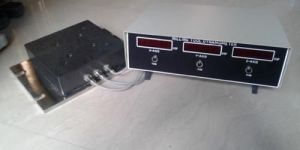

SAMS Tool dynamometers to measure cutting forces on various machines like lathe, drill, milling machines. All three direction forces are measured simultaneously and displayed. Tool dynamometers are useful to study, analyse the optimum feed, speed and depth of cut on different materials Product Code : SAMS DYN - 027

Milling Tool Dynamometer, Embedded System, Strain Gauge, load cell sensor
