Mtab Engineers Pvt Ltd Perungudi, Chennai, Tamil Nadu

MTAB QUEST, a 4-axis Selective Compliance Assembly robot consists of sturdy profile with DC servo motor for all joint actuation placed on a rugged base making it stable for any kind of pick and place applications. The robot is programmable through PC using dedicated software for diverse practical applications.

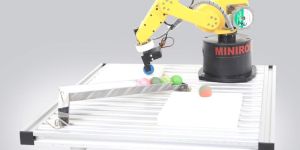

we are offering mini robot. Mtab mini robot, a table-top 5 axis articulated robot consists of medium duty stepper motors for all joint actuation. The gripper is driven by a rc servo motor. The controller consists of easy pluggable type cable for swift interfacing and online programming throught dedicated application for various applications control.

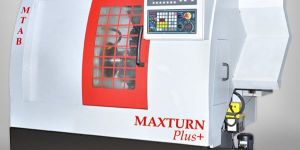

mtab make model maxturn plus+ cnc 2 axis slant bed lathe turning center with 8 station programmable turret. Cnc turning centre lathe with fanuc industrial control, electrical control box, central automatic lubrication system, lm guides for x & z axes, 8 station programmable turret, flood coolant system of capacity 100 litre.25 gallon, 165mm jaw self-centering hydraulic chuck. Construction: grey cast iron base with integrated coolant tank. • other features include dynamically calibrated cartridge spindle, manual tailstock, removable chip tray, automatic lubrication system and adjustable flood coolant system

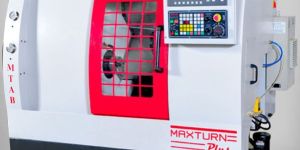

mtab make model maxturn plus cnc 2 axis slant bed lathe turning center with 8 station btp 63 programmable turret. Cnc turning centre lathe with industrial control, electrical control box, central automatic lubrication system, lm guides for x & z axes, flood coolant system of capacity 100 litre.25 gallon, 135mm three jaw hydraulic chuck, hydraulic tailstock. The machine is built on casted base and bed and offered with industrial cnc control system. Dynamically calibrated cartridge spindle with 3.7 kw motor. The machine can be offered with mtab fanuc control system.

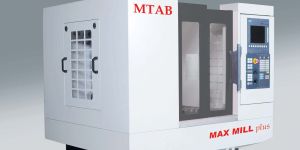

mtab make model maxmill plus , cnc vertical machining centre with fanuc or siemens control and with option of 20 station automatic tool changer (arm type). It is a precision milling machine totally enclosed high visibility sliding guard. The machine is provided with widely placed precision lm guide ways for increased rigidity and high accuracy construction: castings with internally reinforced with heavy ribs to resist flex and damp vibrations, integrated base with coolant tank. The machine is equipped with cartridge type spindle power 5.5kw,

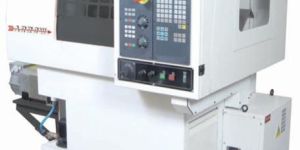

we are offering cnc turning centre. Mtab model, compact turn, cnc turning centre with linear tooling. Cnc slant bed bench turning centre, mtab siemens 828d fanuc 0imate td industrial control with colour monitor, closed loop servo motor control. Options: 1. 0-2 live tools (only with fanuc siemens) 2. Automatic door 3. Hydraulic chuck

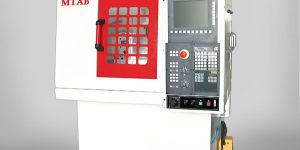

we are offering compact mill. Mtab make cnc compact mill with industrial control. • a mid segment compact footprint cnc vertical milling machine with an optional 8 station automatic tool changer. Work envelope of 250 x 150 x 200 mm. Cartridge type spindle of 1.1 kw motor. Mtab fanuc siemens industrial cnc control. Cast iron based (bed, table, column, headstock) and fabricated base, which houses chiptray, coolant tank and electrics, ac panel cooler for control box. Precision grade grounded ball screws & lm guide ways in all axes. Options: hydro pneumatic vice, rotary table for 4th axis machining.

mtab model, compact drill, cnc drilling machine.x, y & z axis servo motor driven. X and y fitted with linear motion guides and ball screws. Quill type drill head shall travel up and down for drilling, peck drilling, tapping and light milling operations. Offered with siemens controller or mtab 4640 industrial controller.

Type : Cnc Turning Machine

Application : Metalworking, Spinning, Woodturning

Certification : ISO 9001:2008

Weight : 100-1000kg, 1000-2000kg

Color : Black, Blue, Brown, Grey, Light Green, Light White

Voltage : 415 V

Condition : New, Used

Automatic Grade : Automatic, Fully Automatic

Driven Type : Electric

Warranty : 1year, 2years

Power : 1-3kw, 3-6kw, 6-9kw, 9-12kw

Type : Cnc Milling Trainer Machine

Certification : ISO 9001:2008

Weight : 100-1000kg, 1000-2000kg

Color : Black, Brown, Grey

Voltage : 220V, 380V

Condition : New, Used

Rated Power : 1-3kw, 3-5kw, 5-7kw

Automatic Grade : Automatic

Warrenty : 1 Year, 2 Years

MTAB ARISTO 6XT Robot is a 6 axis Robotic arm designed especially for Training and research. The robot is capable of lifting up to 2.5kg of payload. The robot can be used with pneumatic electrical gripper. It can be integrated with CNC machine, FMS or mechatronics equipment. Optional experiment table with 6 different kits

We are offering compact grinder. compact grinding machine, bg-4s, designed for high precision blade grinding such as surgical blades. Components (column, base, saddle table & spindle head) made of c.i. Gr 25. Machine base fabricated with 10mm ms plate and stress-relieved. Linear axes use preloaded high grade lm guides & blocks, double nut preloaded c3 class ball-screw, zero backlash double membrane coupling

We offer maxmill plus+. Mtab make model maxmill plus , cnc vertical machining centre with fanuc or siemens control and with option of 20 station automatic tool changer (arm type). it is a precision milling machine totally enclosed high visibility sliding guard. The machine is provided with widely placed precision lm guide ways for increased rigidity and high accuracy construction: castings with internally reinforced with heavy ribs to resist flex and damp vibrations, integrated base with coolant tank. The machine is equipped with cartridge type spindle power 7.5kw,
