DFT Tech Tondiarpet, chennai, Tamil Nadu

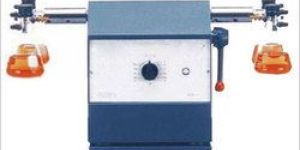

It has a heavy cast iron base with rugged construction and two side arms for holding flasks. Fitted with a F.H.P. heavy duty motor with variable speed. Can hold flasks from 100 to 100 ml. Capacity. Supplied with cord and plug to work on 220230 volts A C. supply .

In order to check the viscosity cup’s calibration or to certify it for ISO purposes, it is imperative that viscosity cup standard calibration oils are used. Standard oils have a specific drain time, dependent upon the viscosity cup type (Ford, Shell, Zahn etc.) and the orifice or cup number used. Specific calibration oils can only be used with specific flow and dip cups. Please use the table below to determine which calibration oil is required with each cup, or contact Elcometer. Viscosity oils are supplied in ½ litre (1 pint) bottles.

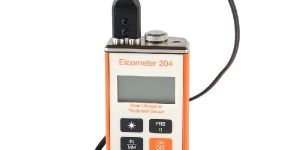

Elcometer has a wide range of transducers available for use with the Elcometer 205, 206, 206DL, 208 & 208DL Ultrasonic Thickness Gauges. When selecting a transducer, it is important to choose one which will meet the application, taking the following into consideration: Whether the shape of that substrate is flat or curved or hard to reach.

Each gauge is supplied with an integrated steel “zero” plate to ensure the greatest accuracy. Supplied with a transducer & ultrasonic couplant, simply switch on the gauge and take readings. The inbuilt backlight allows measurements in low light conditions.

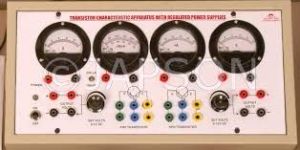

We offer Transistor Characteristics Apparatus to our clients backed by the technological expertise of professionals and our vast domain experience.

Tile Flexure Strength Testing Machine with 200kg Lead Shot IS: 654, 1237,1706 For clay roofing tiles (Mangalore Pattern) and Cement Concrete Flooring Tiles. This is a double lever (leverage 1:12) loading machine and the load is applied by flow of lead shots, which automatically stops when the sample breaks. The load is applied at rate of 450 to 550 Nminute (45 to 55 kg minute) or 2000 Nminute (200 Kgminute) and the accuracy of load indication is ± 2%. The sample is mounted between rollers 40 mm dia or12 mm dia. Bearing Rollers can be placed at center distance of 150 mm, 200 mm, 250mm or 270mm as the case may be. Complete with 20 Kg lead shots

The tile sample is pressed under a specified load against a grinding path, strewn evenly with an abrasive powder, revolving at the rate of 30 ± 1 rpm. At the end of 100 revolutions of the disc, the second parallel side of the tile is subjected to wear for an equal number of revolutions of the disc. The wear of the tile is measured using thickness-measuring device (which is supplied at extra cost). The abrasion-testing machine consists of a replaceable grinding path, fitted on to a disc rotating about its vertical axis. The rotating disc and the grinding path are enclosed by a circular

Our company holds specialization in the manufacturing and supplying of premium quality Digital Thickness Tester. Manufactured under strict supervision, using best quality metal and latest machinery, offered thickness testers are highly demanded around the globe. Offered testers are appreciated for their seamless finish, abrasion resistance and optimum measurement.

Elcometer 6700 Electronic Thermo Hygrograph elcometer 6700 elcometer 6700 electronic thermo hygrograph Download Full Catalog Product Description: The Elcometer 6700 is a portable laboratory instrument which records the ambient temperature from -15°C to 65°C (5°F to 149°F) and relative humidity (0 to 100% RH) using the hair hygrometer principle. Indication recorded on a paper diagram Manual selection of three time periods: 1, 7, 31 days Quartz movement Battery operated

Manual Slide Staining procedure occupies considerable amount of technician's time. To accelerate the process slide staining machine was designed on modern priniciples for carrying out practically all Slide Staining techniques of Cytology & Histology. Slide Staining Machine – "12 Stations", is compact and rugged equipment designed on latest technology for automatic staining of slides in different reagents according to pre programmed chronological user selectable cycles. Throughout the process the slides are shaken (Switch selectable) for effective staining in a slide carrier (Capacity 16 slides). The last trough 1.e. 12th Station is provided with an inlet and outlet to enable washing of the residual chemicals.

Designed for continuous shaking of solutions in Erlenmeyer Flasks from 50ml to 1000 ml capacity. It is a compact bench type tabletop model with platform fitted with rubber discs mounted on ball bearing crank shafts to give an orbital motion to the flasks, within a diameter of approximately 2" . The motor is coupled by means of a V-belt with pitch pulley, and is mounted on a heavy and sturdy angle iron frame. To work on 220 230 volts A.C. Supply. Fixed speed models have a preset shaking peed of approximately 180 r.p.m. Fitted with heavy duty DC DRIVEN MOTOR with a VARIAC (AUTO TRANSFORMER) for speed control from 50-250 r.p.m.

Light weight with ceramic fibre wool insulation (instead of brick Insulation). The outer casing is made of double walled thick P.C.R.C. sheet, duly painted. Heating elements are made of KANTHAL "A-1" wire and backed by high temperature cerwool insulation, which avoids loss of energy. To work on 220230 Volts of 400440 volts A.C. Maximum Temp. is 1000°C and working temp 900°C. For models of higher temperature the maximum temp. is 1200°C and working temp. 1150°C.

Powder containment booths are used to control the hazardous emissions of powders, dust or vapors during powder dispensing, product sampling, or bag dispensing, etc., without risk to the operator or environment. The downdraught prevents airborne dusts caused by weighing and dispensing operations rising into the operator's breathing zone. The air forced downwards is extracted at low level into the booth's filtration system where dust particles are contained at each level of filtration prior to being re-circulated back into the booths' air stream.

The Elcometer 270 range utilises the wet sponge technique and has been designed to set a new standard for wet sponge detectors - a high quality, low voltage detector with similar accessories to a high voltage spark tester. Supplied ready to use Automatic sensitivity calibration and voltage checks Low battery indicator Visual and audible alarms Integral and separate wand functionality A wide range of fully interchangeable wand accessories Three model variants - single, dual or triple voltages Easy release snag proof cables Large standard sponge

We supply a highly accurate and precision range of physics lab equipment that is used widely across various research institutes and laboratories.

Glass agencies are the manufacturer, exporter, supplier and trader of PFA Beaker With Handle, We are a leading manufacturer & exporter of a wide range of laboratory apparatus, laboratory instruments & equipment, glass wares, polythene-wares, chemicals etc. Used in physics, chemistry, biology and general science laboratories.

It is a double walled unit with inside made of thick stainless steel sheet and outer of mild steel sheet duly enamel painted. ◊ Thepyramidical lid made of S.S. Prevents falling of condensed water droplets and the specimens. ◊ Heating is achieve through a immersion type heater the bath has an oscillating tray riding on ball rollers oscillated through a geared variable speed motor. ◊ Shaking speed range is between 40 to 140 cycles per minute.

Used for finding specific gravity of hydraulic cement. Made from Borosilicate glass. The long neck of the flask has at top a funnel of 50mm dia in that fits a ground glass stopper. The neck has over-all 11mm i.d. upper portion is graduated from 18ml to 24ml with 1 ml graduation. Just at the bottom of the neck 1 ml capacity is marked in between there is 17 ml capacity bulb.

This is for the determination of lateral extension of 150 mm dia x 300 mm high cement concrete cylinders while testing them under compression. The extensometer consists of two movable frames pivoted at one end. A dial gauge measures the lateral extension, and a removable spacer strip is for the initial setting of the dial gauge. Mounting of extensometer on the specimen is with the help of screws. Supplied complete, with a dial gauge 0.002 mm x 5 mm. For determination of the change in size of a concrete or cement sample, brought about by a change in moisture content, following apparatus have been designed. Tests can be performed on freshly made specimens or specimens from existing structures.

It consists of a stainless steel cylinder with an insulated cover, mounted on a sturdy supporting frame, enclosed in a heat insulated metal housing, attractively finished. The attached control unit encloses a sensitive pressure regulator and pressure gauge, power switches and pilot lamps for controlling the electric heating units. Inside Chamber dimensions: 15 cm dia x 60 cm height, with stainless steel Cylinder (20 kgcm2 pressure capacity) Suitable for operation on 220 V, 50 Hz, Single Phase, AC Supply. Supplied complete with Test Bar Holder, Special Rack to hold specimens above water level in the autoclave and in a vertical position to expose them in the same manner.

It is a disc type grinder designed to produce fine mesh samples. It is a self contained grinder furnished with rotating plate. Maximum feeding size of 6 mm grinding is done between 2 discs of 175 mm dia. Fitted with 3 H. P Motor to work on 440 Volts A. C. supply

The jolting apparatus consists of a rectangular table, rigidly connected by two support arms to spindle at a horizontal distance of 800 mm from the center of the table. The table can be raised and allowed to fall freely by a cam, which is connected to a motor. The cam rotates at a rate of 60 rpm. A stroke counter, fitted with micro switch, is provided, which stops the machine after 60 jolts. Locating pins are provided for mounting the mould compartments on the table. The mould, surrounded by the hopper, can be clamped rigidly to the table. Supplied complete with mould and hopper. Suitable for operation with 230 V, 50 cycles, single phase, AC Supply.

Ideal for inspecting difficult to access areas - inside pipes, behind corners, underneath inspection tanks, and other inaccessible or awkward areas.Combined with the full range of test equipment from Elcometer, these high quality, robust mirrors help to provide a detailed examination of the component or project under inspection.

HCL absorption columns are used for absorption of Hydrochloric gas, which statutorily are not permitted to vent into the atmosphere, and to produce the HCl acid. The column is constructed with a series of packed sections, a gas introduction point below that, a condenser on the top, and a cooler at the bottom. Make water is sprayed from the top and acid is collected from the bottom.
