Multiport Valve Dealers in Chennai

• Color: Black
• Application: Water Fitting
• Size: 1inch
• Feature: Eco Friendly
• Type: Multiport Valve
• Thickness: 20-30mm
• Country of Origin: India
• MOQ: 1

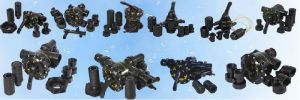

We are offering manual multiport valve. Multi-port-valve size 20-40 nmb value top & bottom double strainers

Multiport valve primarily to help clean or backflush the filter media.These filters are cleaned by removing the cartridge and spraying it with a garden hose.

• Maximum Flow Rate: 14m3/Hr @ 0.5 Kg/cm2 Pressure Drop
• End Connections: 1½” BSP (F)(Flanged connections also available)
• Pressure Gauge Sampling Points: ¼” BSP (F)
• Maximum Operating Pressure: 5 Kg/cm2
• Regenerant Suction Tubing Size: ½”
• Injector Ratio: 1:1
• Injector Suction Rate: 1000 lph @ 3Kg/cm2, 500 lph @ 3Kg/cm2 (Optional)
• Minimum Pressure for Uniform Suction: 3 Kg/cm2
• Riser Pipe Size (Top mount models only): 32 mm OD PVC Pipe
• Ejector Connections: ½” BSP (F)
• Drain: 2” Hose Elbow
• Valve Connection to Vessel (Top Mount Type Only): 2½" NPT(M) or 4" NPT(M)

• Brand Name: Initiative
• Material: Brass/Bronze
• Color: BLACK
• Valve Size: 1",11/2" 3/4"
• Usage/Application: Ro Plant
• Media: Water
• Finish: PERFECT
• Model Name/Number: MULTIPORT VALVE
• I Deal In: New Only

We have in store for our clients, a quality proven range of distribution systems ; that is used    for uniform collection of the feed water owing to its larger area of collection.    These distribution systems are constructed using high-grade material and are fitted with    world class components to make sure that they work efficiently at client's end. These power distribution systems yield higher efficiency and have longer life. These distribution systems are easy to assemble and install systems are integrated with perforated pipe laterals that allow easy channeling of water flow.Available in varied specifications, these systems allow uniform distribution of the backwash water and air.

• Body Style: Three Piece
• Ports: Reduce Port \ Full Port
• Size Range: ½ “ to 4” (15mm to 100mm)
• Temperature: 205° C (400° F)
• Pr. Rating: CL150 /300
• End Connection: Flanged CL150 /300

• Available sizes:: 1/4" through 2".

Jameel Trading Company provides wide range of 3-BALL BALL VALVE, these ITAP Valves are most commonly used in pressurized lines, gas or liquid. They are Popular amoung the clients all around the world. Technical Spec. Suitable for domestic water services. Heating and air-conditioning plants. Compressed air systems. Female/female threads. Lever handle in aluminium Body in nickel-plated brass. Minimum and maximum working temperatures: -20°C, 150°C in absence of steam. Threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228). Available also with a T ot L-drilled ball

• Drain: 50 mm ( 2'' ) Hose elbow
• Maximum Fow: 15 m3/hr @0.5kg/cm2 pressure drop(service / rinse / backwash)
• Regenerate Suction Tubing Size: 1/2''
• Injector Ratio: 1 ratio 1
• Maximum Operating Pressure: 5 kg/cm2
• Minimum Pressure for Uniform Suction: 2.0 kg/cm2

• Material: PVC
• Pressure: Upto 5 Kgs/Cm2
• Color: Black & Orange
• Valve Size: 65 NB (2.5")
• Usage/Application: Water Treatment
• Brand: Initiative Engineering
• Media: Water
• Finish: Smooth
• Handle Operation: Do Not Operate While The Pump is Running Codition.
• I Deal In: New Only

• Material: A 105, A479 304,A 479 316, A 182 GR F 316, Monel, Hastelloy
• Optional Items: Plug at outlet End: Drain / Vent valve
• Test Pressure: @ 250C Room Temperature
• Hydrostatic: Body – 620 bar
• Seat: 415 bar
• Pneumatic: Seat – 40 bar
• Graphoil: Temeperature Above 1800C
• Finish: CS Zinc Plated. SS Natural

Auto Multi Port Valve – Titan Valves Titan Valves based in the capital of Tamil Nadu – Chennai. We are operating since 2007 specialized in study and manufacturing of ceramic control valves. We have got invention patents and we have also applied for PCT global patent. We have a team of dedicated and trusted employees.

Multiport Ball Valve, Ball Valve, Needle Valve, Jacketed Ball Valve

MMP Offers multiport valves, along with its vessels. These are critical components and are needed for effective flow of water during operation. All valves in ABS material of construction Available in sizes of 20NB, 25NB and 40NB Available in options of Top Mounting and Side Mounting for all sizes

Multiport Valve, Recycling Plant, Reverse Osmosis Plant, Sand Filter

Multiport Valve, MICRON FILTERS OF DIFFERENT RANGES, UF DISPOSABLE CARTRIDGE

Multi Port Valves, Ball Valves, Check Valves, Globe Valves

Multiport Valve, cartridge water filter, Filter Vessel, Pressure Gauge

Multiport Valves, dosing equipment, Led Lights, pool covers, Pumps
