VW 8 Step NDT Calibration Blocks
800 Per Piece
1 Piece(s) (MOQ)
8 step block 304 stainless steel (metric version) thickness and linearity calibration block this block comes in thicknesses of 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 7.0mm and 8.0mm. Step face: 15mm x 15mm
Type : Calibration Block
Material : Metal
Application : NDT
Application : Ultrasonic Testing
Country of Origin : India
...more

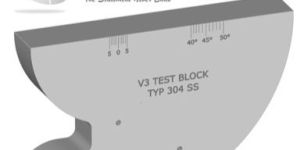

V3 NDT Calibration Block
700 Per Piece
1 Piece(s) (MOQ)
For calibrating ultrasonic flaw detection equipment in both laboratory and on-site conditions. This block is intended to function as a more compact and light-weight alternative to v1 or iiw-type test blocks. Includes 25mm, 50mm, and 100mm radii, (2) 3.0mm diameter through holes, engraved reference mark scales, and a 0.4mm wide x 2.5mm deep slot. made in accordance with nde flaw drawing no. 10250, with design based on prototypes from the i&t nardoni institute in brescia, italy. � dimensions: 150mm x 90mm tall x 25mm wide � made from 1018 steel, nickel-plated
Country of Origin : India
...more

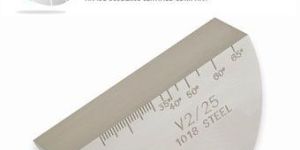

NDT V2 A4 Calibration Block
751 Per Piece
1 Piece(s) (MOQ)
Calibration block no-2 25mm 304 stainless steel geometry: 25mm and 50 mm radius, 5.0mm hole, engraved reference mark scales from 35 to 75 degrees.dimensions: 75mm x 43mm x 25.0mm. 25mm thick small calibration block for on-site checking of miniature shear wave probe index, time base, beam angle and gain. In accordance with en 27963, din 54-120, and iso 7963.
Type : Calibration Block
Material : Metal
Application : NDT
Application : Ultrasonic Testing
Country of Origin : India
...more

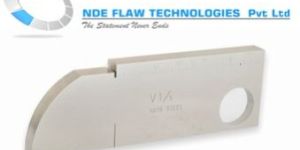

V1 A2 NDT Calibration Block
700 Per Piece
1 Piece(s) (MOQ)
V15 Block 1018 Steel (A2) Geometry:100mm radius, 1.5mm and 50.0mm holes, engraved reference mark scales, and two optional slots at the zero point which provide calibrating signals at intervals of 100mm range. Dimensions: 300mm x 100mm x 25mm In accordance with British Standard BS 2704 Block A2 Mod. 1, German Standard DIN 54-120, Australian Standard AS 2803, and ISO 2400.
Material : Metal
Application : NDT
...more
USAF Eddy Current Standard NDT Calibration Blocks
1,100 Per Piece
1 Piece(s) (MOQ)
Navy universal eddy current standard. a (3) plate assembly containing (20) fastener holes with a total of (71) edm notches in various locations. Overall dimensions: .875" thick x 4.0" wide x 7.0" long alloy: 6al-4v titanium (20) fastener holes from .156 to .750" diameter. (40) corner notches, (20) bore notches, (9) surface notches, (1) tapered notch, (1) radius notch all edm notches are .004 ± .001 wide manufactured iaw u.s.a.f. Tech order 33b-1-1, figure 4-40. Pn nrk-3t
Type : Calibration Block
Brand Name : NDE Flaw Technologies
Application : Eddy Current Testing
Country of Origin : India
...more
Type MAB Mini Angle Beam ASTM E164 NDT Calibration Blocks
800 Per Piece
1 Piece(s) (MOQ)
Mini Angle Beam Block 12.5mm 1018 Steel (Inch Version) Geometry:1.0" radius opposite a 2.0" radius, and a 564" diameter x .375" deep flat-bottom hole. Dimensions: 1.000" thick. (also available in .500" thickness, see here) This Miniature Angle Beam Block is also known as a "Rompas" block or simply "Angle Beam," and it is the ASTM and U.S. Air Force substitute for the DSC block for distance, beam index, refracted angle and sensitivity calibration. In accordance with ASTM E164 and U.S. Bureau of Public Roads, Type B specifications.
Material : Metal
Application : NDT
Application : Ultrasonic Testing
Type : Calibration Block
Country of Origin : India
...more

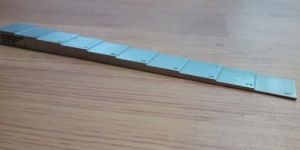

Titanium Calibration Block
10 Step Block Titanium (Metric 10A) 10 Step Block Titanium (Metric 10A) 10 Step Calibration Block Metric 1 Type: The Metric 10A- 10 Step Calibration Block has steps starting at 2.0mm to 20.0mm in 2.0mm increments. Metric Step Face: 20mm x 20mm
...more

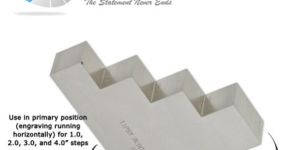

Tipsy Step NDT Calibration Block
1,100 Per Piece
1 Piece(s) (MOQ)
Tipsy Block 304 Stainless Steel (Metric Version) Tipsy Thickness Calibration Block Metric Version: Set this block down on one side and get the 25.0mm, 50.0mm, 75.0mm and 100.0mm steps. Then tip it over and you get the 37.5mm, 62.5mm, 87.5mm and 112.5mm steps. Metric Step Face: 25mm x 25mm Step thickness tolerance: ±0.04mm
Material : Metal
Application : NDT
Application : Ultrasonic Testing
Type : Calibration Block
Country of Origin : India
...more

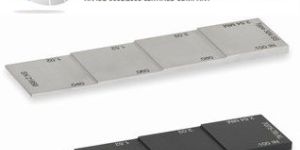

Thin Step NDT Calibration Blocks
650 Per Piece
1 Piece(s) (MOQ)
Thin Step Block 304 Stainless Steel(Metric Version) Thin Step Calibration Block for thickness and linearity calibration. Metric Version: Metric Thin Step (1.0, 1.5, 2.0 and 2.5 mm) Step Face - Metric Version - 20mm x 20mm
Material : Metal
Application : NDT
Application : Ultrasonic Testing
Type : Calibration Block
Country of Origin : India
...more

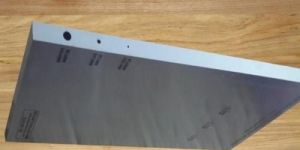

Steel Reference Plate
ASME N-625 Reference Plate 1018 Steel (Metric Version) ASME N-625 Reference Plate 1018 Steel (Metric Version) Geometry: Contains six flat-bottom holes. Also contains the calibration notch. Geometry: Contains six flat-bottom holes.Also contains the calibration notch.In accordance with ASME 1275N Boiler and Pressure Vessel Code, Section III, Nuclear Vessels. Used for longitudinal, shear, and surface wave sensitivity calibrations.
...more

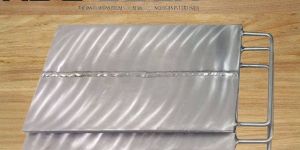

Standard NDT VT Flawed Specimens Kit
650 Per Set
1 Set(s) (MOQ)
Standard NDT VT Flawed Specimens Kit.(Visual Testing) For NDT VT Demonstration. 7 Plates, 3 Tee 25 Randomly Placed Discontinuities Flaws. Total Kit : 10 specimens (7) Plates 0.25"T (3) Tee 0.25"T Flaws: 2 to 3 each specimen, 25 total Flaws. Documentation: NDT Verification Reports,C of C, CAD Drawings and Test Sheets. Material: Carbon Steel
...more
Standard NDT UT Flawed Specimens Kit Ultrasonic Testing
800 Per Set
1 Set(s) (MOQ)
Standard NDT UT Flawed Specimens Kit.(Ultrasonic Testing) For NDT UT Demonstration. 8 Plates, 1 Pipe and 1 Tee 25 Randomly Placed Discontinuities Flaws. Total Kit : 10 Specimens (4) Plates 0.375�T (4) Plates 0.625�T (1) Tee 0.375�T (1) Pipe 4� Sch80 (0.337� wall) Flaws: 2 to 3 each specimen, 25 total Flaws. documentation:UT Verification Reports,C of C, CAD Drawings and Test Sheets. Material: Carbon Steel
Type : Flawed Specimens
Brand Name : NDE Flaw Technologies
Application : Ultrasonic Testing
Country of Origin : India
...more
Standard NDT RT Reference Radiograph Set
751 Per Set
1 Set(s) (MOQ)
Standard NDT RT Reference Radiograph Set.(RTFI) For NDT RTFI Demonstration. Document Includes C of C, CAD Drawings, Test Sheets & Radiographs Film Set Contains: 16 Radiographs of 25 "Real Flaws" plus 6 Processing Defects Radiographs are of 10 carbon steel specimens as follows: (4) Plates 0.375"T (3) Plates 0.625"T (1) Tee 0.375"T (2) Pipe 4" Sch80 (0.337" wall)
...more

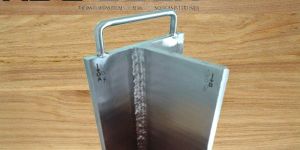

Standard NDT PT Flawed Specimens Kit
1,100 Per Set
1 Set(s) (MOQ)
Standard NDT PT Flawed Specimens Kit.(Liquid Penetrant ) For NDT PT Demonstration. 8 Plates, 2 Tee 25 Randomly Placed Discontinuities Flaws Total Kit : 10 specimens (8) Plates 0.25"T (2) Tee 0.25"T Flaws: 2 to 3 each specimen, 25 total Flaws. Documentation: NDT Verification Reports,C of C, CAD Drawings and Test Sheets. Material: Carbon Steel
...more

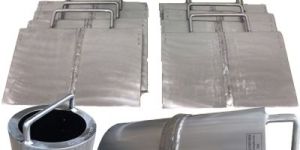

Standard NDT MT Flawed Specimens Kit
650 Per Set
1 Piece (MOQ)
Standard NDT MT Flawed Specimens Kit.(Magnetic Particle) For NDT MT Demonstration. 8 Plates, 2 Tee 25 Randomly Placed Discontinuities Flaws Total Kit : 10 specimens (8) Plates 0.25"T (2) Tee 0.25"T Flaws: 2 to 3 each specimen, 25 total Flaws. Documentation: NDT Verification Reports,C of C, CAD Drawings and Test Sheets. Material: Carbon Steel
...more

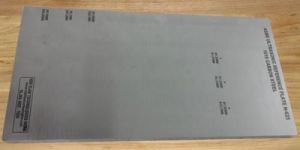

Stainless Steel Reference Plate
ASME N-625 Reference, Plate 304 Stainless Steel (Inch Version) ASME N-625 Reference Plate Geometry: Contains six flat-bottom holes: three 4/64” diameter, one each at depths of .050”, .250”, and .500”; one 4/64” diameter at 1.500” deep; one 8/64” diameter at 1.625” deep; and one 16/64” diameter at 1.750” deep. Also contains the calibration notch.
...more

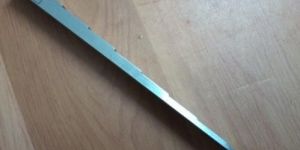

Stainless Steel Calibration Block
10 Step Block 304 Stainless Steel (Metric 10B). 10 Step Block 304 Stainless Steel (Metric 10B) 10 Step Calibration Block The Metric 10B 10 Step Calibration Block has steps starting at 2.5mm to 25.0mm in 2.5mm increments. Metric Step Face: 20mm x 20mm
...more

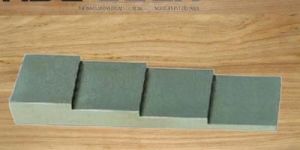

Stainless Steel Block
4 Step Block 304 Stainless Steel Block 4-Step Calibration Block for thickness and linearity calibration Inch Version: 0.750" square with thicknesses of steps at .250", .500", .750" and 1.000". Metric Versions: Metric 4A (6.25, 12.5, 18.75 and 25 mm) Metric 4B (5.0, 10.0, 15.0 and 20 mm) Step Face: 3/4" x 3/4"-Spec: ASTM E797
...more

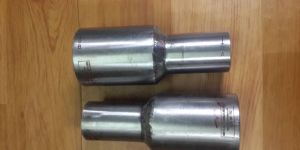

Socket Weld Kit 304 Stainless Steel
1 Set(s) (MOQ)
Geometry: Kit includes 2 specimens per pipe size Pipe size specifications: 0.75� Sch80, 1.0� Sch80, 2.0� Sch80 (1) pipe to socket pipe coupling (1) pipe to 1.5�x6�x6� plate with machined socket. Total of 15 real flaws per set; 2 flaws in each specimen, Fatigue & HAZ Cracks and Lack of Fusions. Critical Tolerance: +-0.040" (1mm) Set of 6 Socket Weld specimens designed and recommended for technician practice inspection of vent, drain line, misc. socket welds and balance of plant.
...more
SC NDT Calibration Block
751 Per Piece
1 Piece(s) (MOQ)
AWS-type block used for shear wave sensitivity calibration. Contains two .062" diameter through holes. In accordance with ASTM E164 and BRRAWS requirements. � Dimensions: 3.000" x 1.250" x .905"
Material : Metal
Application : NDT
Application : Ultrasonic Testing
Type : Calibration Block
Country of Origin : India
...more

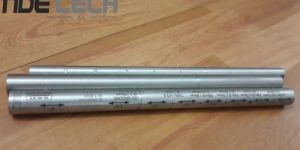

Remote Field Testing Tube
Eddy Current Tube Standards. Ready to request a quote for a standard? Here's what we need... What is the material? (Alloy, OD and Wall) Is NDE supplying the material or will it be customer supplied? What defects are needed and what size? (most depths are given in % of tube wall) Is there a specification the standard needs to comply with? (ASME, etc.) If you have a drawing, or even a simple hand sketch, please send that along as well. We specialize in custom eddy current tubes, and have years of experience in machining a huge range of defects. From TWHs and FBHs, OD and ID grooves, milled flats, and OD and ID thinning bands, to ID FBHs, ID contoured flats, 120°/180° wearscars, tapered flaws, and tube-to-tube wear, Remote Field Testing Tube Remote Field Testing Tube Eddy Current Tube Standards. Ready to request a quote for a standard? Here's what we need... What is the material? (Alloy, OD and Wall) Is NDE supplying the material or will it be customer supplied? What defects are needed and what size? (most depths are given in % of tube wall) Is there a specification the standard needs to comply with? (ASME, etc.) If you have a drawing, or even a simple hand sketch, please send that along as well. We specialize in custom eddy current tubes, and have years of experience in machining a huge range of defects. From TWHs and FBHs, OD and ID grooves, milled flats, and OD and ID thinning bands, to ID FBHs, ID contoured flats, 120°/180° wearscars, tapered flaws, and tube-to-tube wear,
...more

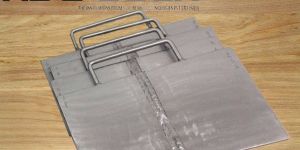

Plate Ultrasonic Practical Exam flawed specimens
900 Per Piece
1 Piece(s) (MOQ)
Plate Ultrasonic Practical Exam flawed specimens. Geometry: 0.75" x 8" x 10" Flaws: 3, randomly placed Standard Tolerance: +-0.150" (4mm) Documentation: NDT Verification Reports,C of C, CAD Drawings and Test Sheets. Material: Carbon Steel
...more

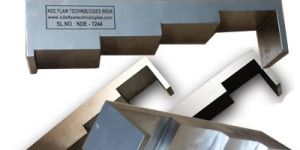

PDI Alternative ASME NDT Calibration Blocks
800 Per Piece
1 Piece(s) (MOQ)
Pdi alternative asme blocks are manufactured in accordance with the requirements of the performance demonstration initiative (pdi) procedure no. Pdi-ut-1, rev. C, fig. 4 (ferritic) and pdi-ut-2, rev. C, fig. 4 (austenitic). These cover the generic procedures for the ultrasonic examination of both ferritic and austenitic pipe welds. The blocks offer an economical alternative to fabricating multiple curved calibration blocks (pipe sections) in numerous diameters and wall thicknesses. The blocks are normally supplied in sets of 3 individual blocks. Materials for each blocks are a516 grade 70 steel, 304304l stainless steel and 316316l stainless steel. Individual blocks of any one alloy are also available. Overall block dimensions are 2.000" wide x 2.250" tall x 10.000" long. Block design consists of steps simulating wall thicknesses measuring 0.500", 1.000", 1.500" and 2.000". Each step contains a .010" wide edm notch, machined across the width of the step at a depth of 10% of wall thickness. Scanning surfaces and reflecting surfaces. Are machined to simulate pipe and plate surfaces of 250 ra max. Finish. Each block is machine-engraved on one side with the block description, serial no., alloy and heat no. All blocks are made from ultrasonically inspected, heat number traceable materials.
Type : Calibration Block
Material : Metal
Application : NDT
Application : Ultrasonic Testing
Country of Origin : India
...more

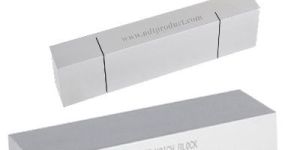

PAUT-Notch Block NDT Calibration Blocks
900 Per Piece
1 Piece(s) (MOQ)
PAUT-Notch Block 7075-T6 Aluminum (Inch Version) Geometry:The block contains four EDM slots at depths of 20, 40, 60, and 80% and a width of .031". Standard thickness is 1.000". Dimensions: 1.000" thick x 2.000" wide x 7.00" long. The Phased Array Calibration Standard Notch Block has been specially designed for use with Phased Array instruments used for sizing of OD and ID-connected cracks.
Type : Calibration Block
Material : Metal
Application : NDT
Application : Paut and Tofd
Country of Origin : India
...more

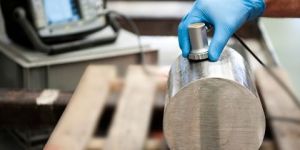

ndt inspection services
With our experience, quality and standards you can trust nde flaw technologies with the integrity of your assets and ensure continued safe operation of your equipments. Industrial support service the support services division of nde flaw technologies pvt ltd is basically involved in providing assistance to our various clients to their requirement of technical personnel in a timely and efficient manner through our multidisciplinary services together with the vast experience in petrochemical project. Support services divisions objective is to assist & advice on all aspects of operations to our various clients with qualified, experienced and quality personnel & to meet the requirements through the knowledge and expertise we gained over the past few years. The value of services lies as much in their independence as in their technical competence. Management strategy must be defined and understood. We can provide independent advice an appropriate operations and maintenance strategies and review accountability and authority levels, cost reporting procedures, budget development and control overall system and procedure by management control is expertise. Nde offers ndt inspection services in steel, aluminum, stainless steel, titanium, and other alloys. Please browse our products to find the best one for you. If you have any questions about nde and our ndt inspection services.
...more
EDDY CURRENT TUBE BUNDLE SPECIMENS
700 Per Piece
1 Piece(s) (MOQ)
Pcn classification eddy current tube bundle specimens tubes in each bundle is 13 no�s, for training 6 bundle�s, for examinations 12 bundle�s, total 18 bundles 3 no�s cupro-nickel bundles for training 3 no�s aluminum brass bundles for training 6 no�s cupro-nickel bundles for examinations 6no�s aluminum brass bundles for examinations materials: 1. Amplitude analysis test � 7030 cupro-nickel of the following composition. Cu 66%; ni 30%; fe 2%; mn 2% 2. Phase analysis test � brass tubing of the following composition. Cu 76%; al 2%; as 0.04%; zn reminder tube dimensions, length thickness outer diameter and artificial flaws as per pcn requirements.
Type : Calibration Flawed Specimens
Brand Name : NDE Flaw Technologies
Application : Eddy Current Testing
Country of Origin : India
...more
