NEEDLES BEARINGS INDIA Ambattur, Chennai, Tamil Nadu

Deep groove ball bearings are very widely used. A deep groove is formed on each inner and outer ring of the bearing enabling them to sustain radial and axial loads in either direction as well as well as the complex loads, which result from the combination of these forces. Deep groove ball bearings are suitable for high-speed applications. In addition to unsealed bearings, deep groove ball bearings include ball bearings with greased sealed inside (sealed or shielded) and bearings with a snap ring that simplify structure around the bearing and design.

Country of Origin : Made in India

Material : Stainless Steel

Miniature Linear Guide Series incorporate the design of two rows of ball recirculation, the ball track has gothic profile design with 45-degree contact angle to attain the effect of equal load capacity in all directions. Under the restriction of limited space, larger steel balls are used to enhance the load and torque capacity.

Tapered roller bearings consist of four interdependent components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer. The taper angles allow the bearing to handle a combination of radial and thrust loads. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.

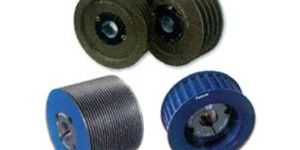

Dual Duty grooves to perfectly match Classical V and Spacesaver Wedge belts. Standard range caters to drives up to 200 Kw with speed ratios upto 1:7. Shelf to shaft 'Taper Lock' bushes. Over 470 standard sizes to cater to wide range of requirements. Custom-built large pulleys in solid or split construction for higher Power Transmission.

Easy and quick 'Shrink fit' Eliminates precision taper fitting keys Interchangeable between many products Convenience in dismantling, maintenance and component replacement

Application : Automobile Industry

Material : Rubber

Country of Origin : Made in India

Anaerobics adhesives and sealants are ideally developed for various needs and requirements of both production and maintenance applications. The products can be used as raw material in OEMs like Automobiles, Engineering, and for the purpose of maintenance in industries like textile, sugar, fertilizers, refineries, chemical, power stations and steel plants etc. Thread Lockers – designed for sealing and locking of nuts, bolts and small screws. Salient features Withstands heavy vibration Prevent corrosion and replace Nyloc nuts Can be used for high strength applications Can be dismantled with mechanical tools Superior to conventional locking devices.

Spherical roller bearings consist of an outer ring having a continuous spherical raceway within which operates two rows of barrel-shaped rollers, which are in turn guided by an inner ring with two raceways separated by a center rib. This bearing has self-aligning properties, and therefore is suited for use where misalignment between the inner and outer rings occurs from housing installation error or shaft flexure.

These bearings are designed primarily to support axial loads at contact angles between 30° and 90°. Just as with radial bearings, these bearings differ according to the type of rolling element they use: there are thrust ball bearings that use balls and thrust roller bearings that use rollers. Single direction thrust ball bearings Spherical roller thrust bearings Cam Followers Roller Followers Cam Followers Cam Followers are bearings with a stud incorporating needle rollers in a thick walled outer ring. They are designed for outer ring rotation and both crowned and cylindrical outer rings are available.

Spherical Bushing are self aligning spherical plain bearings which have the inner and outer rings making contact with each sphere surface and which can take a large radial load and two directional thrust load at the same time. There are basically divided into Steel on Steel Type Maintenance Free Type Steel on steel type is especially suitable for applications where there is alternate load and shock load. They can therefore operate with low torque, and have excellent wear resistance properties and large load rating. They have a wide application mainly in industrial and construction machinery etc. Maintenance Free Type are especially suitable in cases where fixed direction loads are to be taken and are used mainly in food processing machines and construction machinery and in other fields where the use of oil is undesirable and where lubrication is not possible.

Material : Steel

Shape : Round

Color : Silver

Finishing : Smooth

Material : Steel

Color : Silver

The outer ring raceway of self-aligning ball bearings forms a spherical surface whose center is common to the bearing center. The inner ring of the bearing has two raceways. The balls, cage, and inner ring of these bearings are capable of a shifting in order to compensate for a certain degree of misalignment with the outer rings. As a result, the bearing is able to align itself and compensate for shaft / housing finishing unevenness, bearing fitting error, and other sources of misalignment.

Rollers Followers are bearings designed for outer ring rotation in which needle rollers are incorporated in a thick walled outer ring. We deal with the following Rollers followers: Separable Rollers Followers Separable Shield Rollers Followers Separable Sealed Rollers Followers Non - Separable Shield Rollers Followers Non - Separable Sealed Rollers Followers Heavy Duty Type Roller Followers

Rod End is small size self-aligning spherical plain bearings, which can take radial loads and two directional thrust load at the same time. These bearings also have excellent wear resistance properties and can take heavy loads. They are suitable for all kinds of controlling mechanisms in machine tools, textile, farm and packaging machinery, and also for link mechanisms Pilloball spherical Bushings- Insert type Pilloball rod ends- Insert type with female thread Pilloball rod ends- Insert type with male thread Pilloball rod ends- Die cast type with female thread

Deep groove ball bearings are very widely used. A deep groove is formed on each inner and outer ring of the bearing enabling them to sustain radial and axial loads in either direction as well as well as the complex loads, which result from the combination of these forces. Deep groove ball bearings are suitable for high-speed applications. In addition to unsealed bearings, deep groove ball bearings include ball bearings with greased sealed inside (sealed or shielded) and bearings with a snap ring that simplify structure around the bearing and design.

High precision angular contact ball bearings have all the characteristics demanded by today’s machine tool high speed capabilities, high running accuracy, low noisevibration levels and low operating temperatures. Cylindrical Roller Bearings Cylindrical roller bearing E Type cylindrical roller bearing Double row cylindrical roller bearing Four row cylindrical roller bearing

Plumber blocks are housing type assemble of heavy Load when compared with pillow block, which can take heavier load. It is open able type and can be tightened by bolt, after fitting the bearing in it. Ball Bearing and Spherical roller are used with a sleeve and lock nuts in these blocks. Sleeves/Locknuts/Washers Adapter Sleeves, Locknuts, washers are part of assemble of Bearings

Pillow Block units are a combination of a bearings and a housing of high-grade cast iron or pressed steel, which come in various shapes. The bearing unit consists of high-grade grease, which runs for lo nger period. Pillow blocks are basically used in environments where dust and rain are inevitable, and for heavy industrial machinery such as construction and transportation equipment. They are also used in flourmills, steel mills, foundries, galvanizing plants, chemical plants etc.

Type : Full Gear Coupling

Material : Steel

Finishing : Smooth

Color : Silver

Shape : Round

Needle Thrust Bearings are bearings in which the radically arranged rolling elements are accurately guided by the cage. It is very right bearing which has the capacity to bear large loads in a small space. These bearings have various washers so can be chosen for every kind of application. If the mounting surface for the bearing in the machine has been hardened and ground, and is of a high precision, it is possible to use only the cage assembly by itself, making it even more compact and able to withstand high speed and fluctuating heavy load. They are suited to use when high accuracy is required, such as in automobile driving mechanisms, machine tools, NC machinery, high-pressure pumps, etc.

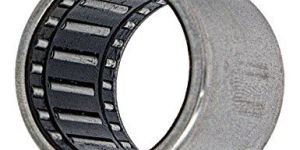

Drawn Cup Needle Bearing Drawn cup needle bearings are designed to support radial loads and reduce friction between rotating components. The low cross section of the drawn cup bearing provides maximum load-carrying capability with a minimum of space required. Drawn cup bearings are easily installed with a press fit in the housing. We offer a wide size range of standard inch and metric drawn cup bearings. There are two basic designs: the full complement and the caged version. Both have a drawn outer shell, which serves as a raceway for the rollers contained in the bearing. The full complement version has the maximum number of rollers mechanically retained by the drawn outer shell. This design combines high radial load-carrying capability with low cost. The standard caged version contains a one-piece steel cage to guide and retain the rollers. This design provides high speed and maximum lubricant retention capability.

Drawn cup needle bearings are designed to support radial loads and reduce friction between rotating components. The low cross section of the drawn cup bearing provides maximum load-carrying capability with a minimum of space required. Drawn cup bearings are easily installed with a press fit in the housing. We offer a wide size range of standard inch and metric drawn cup bearings. There are two basic designs: the full complement and the caged version. Both have a drawn outer shell, which serves as a raceway for the rollers contained in the bearing. The full complement version has the maximum number of rollers mechanically retained by the drawn outer shell. This design combines high radial load-carrying capability with low cost. The standard caged version contains a one-piece steel cage to guide and retain the rollers. This design provides high speed and maximum lubricant retention capability.
