VERTICAL HYDRAULIC BALER (NXGN C20A) :
Technical parameters: model nxgn-c20a hydraulic power 20 ton bale size (l*w*h)mm 1000*700*(400-800) feed opening size (l*h)mm 1000*500 output(balesh) 5-7 bale weight(kg) 90-160kg voltage(customizable) 415v50hz power 4kw5.5hp machine size (l*w*h)mm about 1400*940*3000 machine weight(kg) about 850.
...more

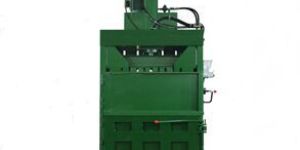

VERTICAL HYDRAULIC BALER (NXGN-C10A):
Machine description: • suit for compress scrap paper, plastic etc. • the machine use the hydraulic drive with independent plate balance device. • controlled by manual valve, easy to operate. • separate feed opening and automatic bale out device, safety and reliable. • good quality with best price, economical machine. • adopt england brand sealing parts; improve the life time of oil cylinder. • oil pipe joint adopts conical without gasket form, no oil leakage phenomenon. • adopt taiwan brand superposition type valve group. • adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump. Technical parameters: model nxgn-c10a hydraulic power 10 ton bale size (l*w*h)mm 800*600*(400-800) feed opening size (l*h)mm 800*450 output(balesh) 4-6 bale weight(kg) 30-80kg voltage(customizable) 415v50hz power 2.2kw7.5hp machine size (l*w*h)mm about 1070*800*2850 machine weight(kg) about 780
...more

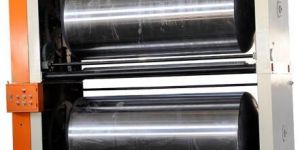

Two layer Pre heater
Structural features: Preheat cylinders conform to class of pressure vessel with national standards, and the pressure vessel and certificate of inspection certificates. Preheating cylinder and each roller grinding pins by precision after finishing grinding and hard chromium plating processing, improving the finish reduced friction and durable. Angle adjustment using electric adjustment, Angle range in 60-270 °arbitrary adjustment, which can effectively adjust paper of heated area. Preheat urns adopt wing sealing head design, it can improve the cylinder block of artesian performance; Features steam heating,Ensure base paper heated evenly. Angle electromotor adopt planets cycloid motor, has the good self-locking performance. The electrical components centralized control, can greatly improve the production efficiency. Technical Parameters Effective width:1600mm The diameter of preheater：Ø800mm. Electric adjust the dimension of pre-heater: adjusting range is 60-270°;Ø86mm×2 Steam temperature.：150-200° Steam pressure 0.8-1.3 MPa. Work power: 440V 50HZ. Motor power: 440V 50HZ.
...more
TWO COLOUR FLEXO PRINTING MACHINE
Suitable for printing and corrugated boards. The machine is fitted with hard chromed cylinder, anilox rollers for water based ink feeding, variable speed motor, digital counter with sensor, mechanical brake. Size 52 x72” Imp. Per Min. 1200 Power 3HP
...more

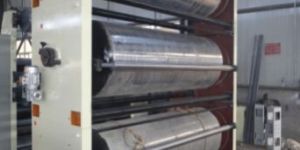

Triple pre-heater
Technical parameter: No Name Technical parameters 1 Effective working width 1800mm 2 Wallboard Casting HT200 3 Pre-heater diameter Ø600mm 4 Wrap angle shaft diameter Ø86mm×2 5 Cycloid pin wheel motor power 0.75kw 6 Steam temperature and pressure 150-200°0.8-1.3MPa Structure features: 1.Preheat cylinder pressure vessel meets a national standard, together with the pressure vessel certificate and inspection certificate. 2.Preheat cylinder electric wrap angle worm drive shaft, corners integrally connected with the cylinder axis of the structure. 3.Preheat the cylinder after each roll-off grinding and precision grinding hard chrome plating, improved finish reduces friction, durable. 4.With electric adjustment corners, corners can be adjusted within the range of 60-270 °, can effectively adjust the paper heated area. 5.Preheat the cylinder head using the butterfly design can improve the performance of the pressure cylinder; using steam heating to ensure uniform heating paper. 6.Corners motor with planetary cycloid pin wheel motors, and a good self-locking performance. 7.Electrical components centralized control, its components: use Shinaide brand,West Germany 8.Bearings are made of: Harbin Bearing 9.Pneumatic components, rotary joints, metal hose: AirTAC selection, Tengzhou Jin Xuan genuine products
...more

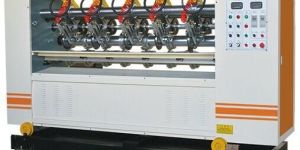

Thin Blades Cutting and Creasing Machines
500,000 - 550,000 Per piece
1 pieces (MOQ)
Main Configuration: 1. 4 blades 6 scorers or 5 blades 8 scorers. 2. Adopt electromotion lift-lower in order to change the height of paper cutting and indentation, and to fit for the height of paper feeding. 3. Adopts novelty thin edge high speed paper cutting, the incisions are level up and velvet. 4. Auto-grinding edge system can be realized in the process of production, non-stop machine grinding edge, according to material and condition of hem, set the interval meter and the grinding time at any moment. 5. The whole set adopt electromotion movement horizontal, to correct cardboard deviation Main configuration: 1. AC servo control in order change, fast and precise. 2. Slitting and indentation inverter control, synchronous with carboards’speed. 3. Alloyed steel thin-blade, automatic sharpening, cooling and greasing. 4. Easy in indentation mode change, automatic adjustment in indentation clearance. 5. Color code tracing slitting system and auto paper edge suction mechanism can be selected. 6. Colourful touch screen plate computer operation monitor, easy operation and visual monitor. 7. Perfect order management and operation monitoring, can be linked to production management system. Use and characteristic: 1.Pre-pressed paper feeding ensures the stable paper transmit 2.Thin edge (about 1mm thickness) slitting with automatic and manual grindstone grinding to keep edge sharp and make slit paper smooth and tidy all times 3.Press lines on slit pre-pressed paper board ensure the original lines without crack The thin edge slitter used for corrugated board production line can be provided
...more

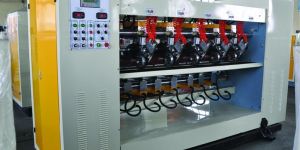

Thin blade Slitting scorer Machine
Technical Parameters Scoring speed: 100-150mmin Max. slitting size: 1600mm Max. slitting thickness: 11mm Axial shifting: ±65mm Blades & Scorers: 4刀6线4 blades 6 scorers Power: 9KW Blade dia.: φ200mm Blade thickness: ≤1.3mm Min. slitting width: 140mm Min. scoring width: 135mm Structural Features Slitting part: with electric blade space adjusting, pneumatic locking and switching, with blade made of high quality tungsten alloy steel for sharp edge and long use life and with sheet edge regular without crack burrs. Scoring part: with electric scoring space adjusting, pneumatic locking and automatic switching, in 5-dot scoring and with scoring gap in sync adjusting in beautiful line shape without cracks and easy for bending. With upper and lower scoring in sync adjustment and lower scoring can be in separate micro-adjustment. With pneumatic blade and scorer lifting. With auto and manual blade grinding for high work efficiency. With electric corrections for simple operations for different lines needs. With famous variable-frequency motors and inverters for high precision on line. With sync belt transmission for low noise and stable running. Can be used in two sets for fast order change.
...more

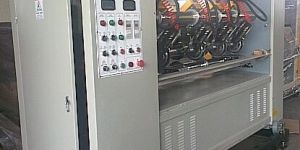

Thin Blade Slitter Scorer Machine
Technical parameter: design speed:150mmin. expiry width: 1600mm five knife 8 press lines electric move, electric adjust knife adopt tungsten steel thin blade high speed cutting. The edge unknit and lubricity. automatically grinding system, can grind the knives without stop the machine. The grinding time and length can be set as requirement. the whole machine electric transverse move. Main feature: high quality tungsten alloy thin knife, sharpening device is equipped with both automatic and manual structure and convenient operation. wheel wire wheel pressure line using french technology lines and beautiful cardboard martin should not be broken. According to user requirements with a four-or five-blade knife six-eight lines. the machine speed can be synchronized with the host running the operation to reduce the staff alone.lower production costs. Equipped with electric correction device. Can be tracked according to theoperating position slitting cardboard.
...more

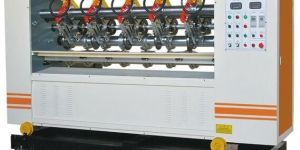

Thin Blade Slitter Scorer
1.The machine adopts the structure of convenient electric lift. 2.High quality tungsten alloy thin knife, sharpening device is equipped with both automatic and manual structure and convenient operation. 3.Wheel wire wheel pressure line using French technology lines and beautiful cardboard Martin should not be broken. According to user requirements with a four-or five-blade knife six-eight lines. The machine speed can be synchronized with the host running the operation to reduce the staff alone. Lower production costs. Equipped with electric correction device. Can be tracked according to the operating position slitting cardboard. Reduced waste paperboard.
...more

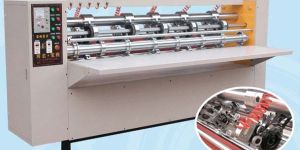

Thin blade cutting & creasing machine
Use and characteristic: Pre-pressed paper feeding ensures the stable paper transmit Thin edge (about 1mm thickness) slitting with automatic and manual grindstone grinding to keep edge sharp and make slit paper smooth and tidy all times Press lines on slit pre-pressed paper board ensure the original lines without crack The thin edge slitter used for corrugated board production line can be provided.
...more
Thin Blade Cutting and Creasing Machines
1,500,000 - 2,000,000 Per Piece
Main Configuration: 1. 4 blades 6 scorers or 5 blades 8 scorers. 2. Adopt electromotion lift-lower in order to change the height of paper cutting and indentation, and to fit for the height of paper feeding. 3. Adopts novelty thin edge high speed paper cutting, the incisions are level up and velvet. 4. Auto-grinding edge system can be realized in the process of production, non-stop machine grinding edge, according to material and condition of hem, set the interval meter and the grinding time at any moment. 5. The whole set adopt electromotion movement horizontal, to correct cardboard deviation Main configuration: 1. AC servo control in order change, fast and precise. 2. Slitting and indentation inverter control, synchronous with carboards’speed. 3. Alloyed steel thin-blade, automatic sharpening, cooling and greasing. 4. Easy in indentation mode change, automatic adjustment in indentation clearance. 5. Color code tracing slitting system and auto paper edge suction mechanism can be selected. 6. Colourful touch screen plate computer operation monitor, easy operation and visual monitor. 7. Perfect order management and operation monitoring, can be linked to production management system. Use and characteristic: 1.Pre-pressed paper feeding ensures the stable paper transmit 2.Thin edge (about 1mm thickness) slitting with automatic and manual grindstone grinding to keep edge sharp and make slit paper smooth and tidy all times 3.Press lines on slit pre-pressed paper board ensure the original lines without crack The thin edge slitter used for corrugated board production line can be provided
...more

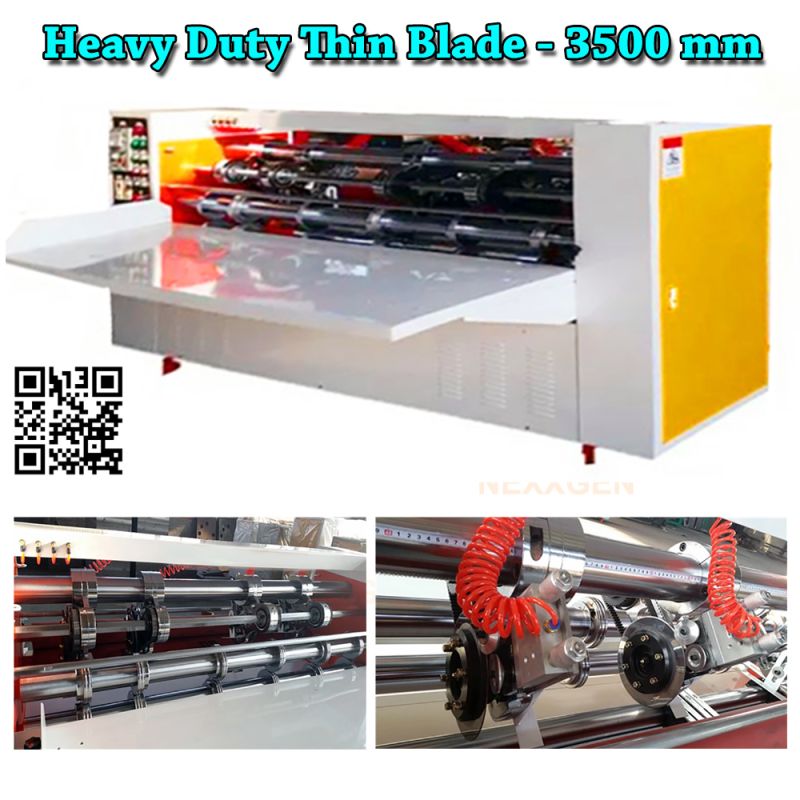

Thin Blade Cutting and Creasing Machine
400,000 - 450,000 Per Unit
1 U (MOQ)
Thin Blade cutting and creasing machine ready stock available. We have normal mannual thin blade as well as Motorized movement thin blade kinfe.
Driven Type : Elecric
Color : White,Yellow, White
Condition : New
Rated Power : 1-3kw
Automatic Grade : Automatic
Voltage : 220V
...more

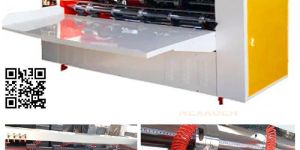

Thin Blade Cutting and Creasing
The Thin Blade Cutting and Creasing machine is very useful for corrugated board production line. Pre-pressed sheet feeding ensures stable sheet travel, thin edge slitting with auto and manual grinding stones keeps knives edge sharp and ensures smooth and clean slitting.
...more

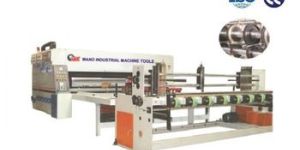

Slotter Machine
Color : Silver
Condition : New
After-Sales Service Provided : Engineers available to service machinery overseas
Automatic Grade : Semi-Automatic
Application : Machinery & Hardware
Weight : 6000kg
...more
SINGLE FACER PAPER CORRUGATION MACHINE
Features and technology parameters: • effective width:1800mm. • flute roller diameter: φ295mm. • flute type: a,b,c flute. • electric heating fan motor: 11kw main motor: 7.5kw heater: 44kw. • vacuum suction type pulling cardboard with wind control device. • glue roller and fixed roller are designed to groups guide way slippage load-unload, convenien and swift. • flute roller diameter: φ295mm adopts 48crmo high quality alloy steel, with heat treatment, hardness hrc50-55, • surface be grinded and chrome plated. • pressure roller diameter: φ295mm it is made of 45# steel. • the bearing of flute roller and pressure roller adopt high temperature resistant lubrication grease. • motorized glue movement. • frequency motor with vfd. Product introduction : ● maximum paper roll diameter：ф1800mm． ● maximum support weight：2t． ● round-plate type manual brake, the web tension is adjusted at any time． ● arm clamp and rotary structure set fixed torque clutch, operate safety． ● the structure is double rotary shaft with four arms; support two paper mill rolls on both arms at the same time.
...more

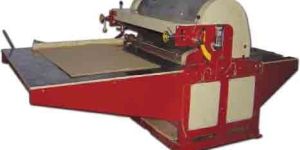

SINGLE COLOUR FLEXO PRINTING MACHINE
Suitable for printing and corrugated boards. The machine is fitted with hard chromed cylinder, anilox rollers for water based ink feeding, variable speed motor, digital counter with sesor, mechanical brake. Size 52 x72” 52 x 82” 60 x 90” Imp. Per Min. 1200 1200 1200 Power 2HP 3 HP 3 HP
...more
sheet pressing machines
50,000 - 90,000 Per Piece
Specification: Suitable for pressing of pasted corrugated boards, The machine is fitted with heavy guage screw rod for pressing the boards pasted in the pasting machine
Automatic Grade : Automatic
...more
Sheet Pressing Machine
Suitable for pressing of pasted corrugated boards, The machine is fitted with heavy guage screw rod for pressing the boards pasted in the pasting machine
...more
sheet pasting machines
80,000 - 100,000 Per piece
Specification: 1.Suitable for gluing the fluted side of the liner / Board for making 3,5,7,9 & 11 ply. The machine is 2.fitted with feeding table, delivery stick, paste holding tray.
...more

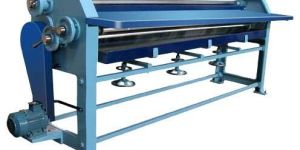

Sheet Pasting Machine
Suitable for gluing the fluted side of the liner Board for making 3,5,7,9 & 11 ply. The machine is fitted with feeding table, delivery stick, paste holding tray. Size 75” 85” 100” Output per min. 60mtrs 60mtrs 60mtrs Power 0.5 HP 0.5 HP 1 HP
Power : 0.5 HP
...more
sheet cutter machine
Brand Name : Mano Industrial Machine Tools
Condition : New

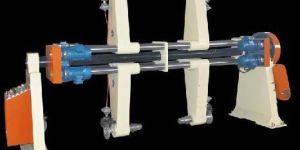

shaftless reel stand
Structure characteristics: 1. Symmetrical structure may also install two original paper and finish 360-degree flip action, tube bundle is kept for paper assignments.paper lift, clamp, loosen,and move,adopt electric shift control. 2. Each motor is equipped with a friction clutch, so that in case of overload idling sprockets slipping, effectively protect machine and motor role. 3. Paper tension is adjusted by pneumatic brake or manual brake, top with tapered tip or expansive top. Disc brake and automatically bulge style chuck. 4. Each shaftless feeder rail bracket with two sets, both on paper trolley; trolley fitted with guide wheels on paper, you can steadily push the paper in place. Rails using the 12th channel and guide post weld on paper using 12mm car. Welded steel, paper feed rail length 4500mm. Technical parameter： no. name parameter 1 expiry width 1600mm 2 action mode electric action of up and down 3 clamp paper range max:1400mm min：400mm 4 clamp paper dia max:1400mm min：400mm 5 single arm max load max weight: 2000kg 6 clamp motor work power：0.75kw 4pcs 7 lift motor work power：2.2kw 1pcs 8 voltage as customer’s required
...more

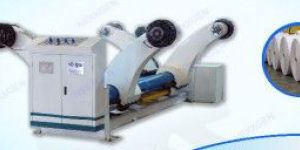

Shaftless Mill Roll Stand
Electrical shaftless mill roll stand, which is used in corrugated cardboard production line, its fuction is supporting the paper mill roll. The Mill Roll Stands offered by us are appreciated for their features such as corrosion resistance, automatic operations and easy to use. Maximum paper roll diameter: 1400mm Maximum support weight:2T Round-plate type manual brake, the web tension is adjusted at any time Arm Clamp and rotary structure set fixed torque clutch, operate safety The structure is double rotary shaft with four arms; Support two paper mill rolls on both arms at the same time
...more

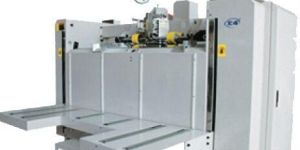

semi automatic stitching machines
Usage and Characteristics: 1.Single & double strengthened nail are available. 2.Nailing from 30-120 mm, auto-calculated; servo motor controls the nailing by Delta, Japan. 3.HD 5.7” color touch screen by Eview, Taiwan 4.PLC system and electrical devices by Siemens, Germany; photo-electricity switch and limit switch by autonics,Korea,high quality assured; the motor and reducer are made in Taiwan. 5.The reamer of pinhead is made by tungsten steel of Germany. Machine is exactitude by special heat – treatment and numerical control system. 6.Fully electrical controlled and it can change the size in less tha one minute and handle easily without the relevant experience. 7.Nailing speed : 400nails /min 8.Number of Nails: 1-99 9.Automatic counter in the latter part ; deliver paper boxes in lot is fixed up for strapping . 10.Total power : 6kw 11.paper height : 900 mm / Dimensions:3300×2500×2000 mm 12.For Cardboard : 3/5layers corrugated paper 13.Wire size: 17# flat Yam (2.0×0.75) Usage and Characteristics: 1.Single & double strengthened nail are available 2.Nailing from 30-120 mm, auto-calculated; servo motor controls the nailing by Delta, Japan. 3.HD 5.7” color touch screen by Eview, Taiwan 4.PLC system and electrical devices by Siemens, Germany; photo-electricity switch and limit switch by autonics,Korea,high quality assured; the motor and reducer are made in Taiwan. 5.The reamer of pinhead is made by tungsten steel of Germany. Machine is exactitude by special heat – treatment and numerical control system. 6.Fully electrical controlled and it can change the size in less tha one minute and handle easily without the relevant experience. 7.Nailing speed : 400nails /min 8.Number of Nails: 1-99 9.Automatic counter in the latter part ; deliver paper boxes in lot is fixed up for strapping . 10.Total power : 6kw 11.paper height : 900 mm / Dimensions:3300×2500×2000 mm 12.For Cardboard : 3/5layers corrugated paper 13.Wire size: 17# flat Yam (2.0×0.75)
...more

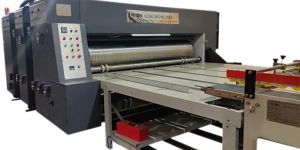

Corrugated Machines
1,000,000 - 1,200,000 Per
Driven Type : Electric
corrugated board making plant
carton box making machine
850,000 - 950,000 Per piece
1 piece (MOQ)
Operating Mode : Automatic
corrugated products
three ply & five ply automatic corrugated plant
