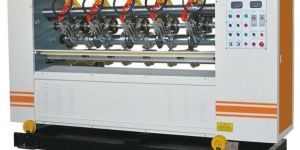

Design speed:100m/min.   Expiry width: 1800mm   Five knife 8 press lines   Electric move, Electric adjust knife   Adopt tungsten steel thin blade high speed cutting. the edge unknit and lubricity.   Automatically grinding system, can grind the knives without stop the machine. The grinding time and length can be set as requirement.   The whole machine electric transverse move.   1. High quality tungsten alloy thin knife, sharpening device is equipped with both automatic and manual structure and convenient operation.   2.Wheel wire wheel pressure line using French technology lines and beautiful cardboard Martin should not be broken. According to user requirements with a four-or five-blade knife six-eight lines.   3.The machine speed can be synchronized with the host running the operation to reduce the staff alone. Lower production costs. Equipped with electric correction device.Can be tracked according to the operating position slitting cardboard.Reduced waste paperboard.

1.All the electrical appliances adopt domestic excellent products.   2.All the drive gears are skewed tooth. It adopts high frequency quenching, and part of them are cementite treated.   3.After milling, grinding and sprinkle lubricating, the driving precision and using life are greatly improved.   4.The mainframe, blower, phase motor, etc, adopt transducer control. The speed adjusting is steady, and it can save And it is correct and reliable.   5.Each set has emergency stop switches, which can ensure the safety of the operators. Automatic Stacker(Option)

Suitable for pressing of pasted corrugated boards,   The machine is fitted with heavy guage screw rod for pressing   the boards pasted in the pasting machine

Suitable for gluing the fluted side of the liner / Board for making 3,5,7,9 & 11 ply. The machine is 2.fitted with feeding table, delivery stick, paste holding tray.

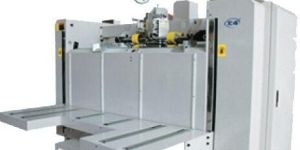

Single & double strengthened nail are available.   2.Nailing from 30-120 mm, auto-calculated; servo motor controls the nailing by Delta, Japan.   3.HD 5.7” color touch screen by Eview, Taiwan   4.PLC system and electrical devices by Siemens, Germany; photo-electricity switch and limit switch by autonics,Korea,high quality assured; the motor and reducer are made in Taiwan.   5.The reamer of pinhead is made by tungsten steel of Germany. Machine is exactitude by special heat – treatment and numerical control system. Fully electrical controlled and it can change the size in less tha one minute and handle easily without the relevant experience.   7.Nailing speed : 400nails /min   8.Number of Nails: 1-99   9.Automatic counter in the latter part ; deliver paper boxes in lot is fixed up for strapping .   10.Total power : 6kw   11.paper height : 900 mm / Dimensions:3300×2500×2000 mm   12.For Cardboard : 3/5layers corrugated paper   13.Wire size: 17# flat Yam (2.0×0.75)

The machine can glue the opening of 3-ply and 5-ply corrugated cardboard. 2.Low cost machine, suitable for all kinds of cartons. 3.Auto piler allows to load maximum carton to operate. 4.Quick change over of sizes. 5.Continuous carton feeding is possible. 6.Automatic digital counter. 7.Finished carton travels to the end of conveyer by setting the number of carton as per requirement. 8.Reduces man power while comparing manual method. 9.Strong bonding and even pressing of the carton

Automatic feeding bottom paper, frontage pushing face paper, feeding paper fast and lower work intensity. Localization bottom never go beyond, suitable for laminating the paperboard together and for laminating the 2.paperboard with the A/B/C/D/E corrugated cardboard together. 3.Bottom paper and face paper can fore-and-art adjustment, easy to laminate together. 4.Feeding glue system are automatically controlled by liquid relay, thickness of glue can adjust. Gluing uniformity, lower glue cost. 5.Control panel, electromagnetism clutch without touch point relay, position is monitored by photoelectric switch, digital automatic counter. 6.High precision laminate, the finished products are of smooth surface edge and of high intensity. Whole structure is compact, with beautiful appearances and high work efficiency.

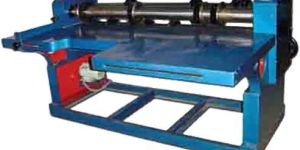

Suitable for cutting and creasing the corrugatedBoards. The machine is fitted with 4 bars (2 in front & 2 in back) front bars are fitted with cutting dies and the rear bars are fitted with creasing dies, side wheel adjustment is provided for increasing and decreasing the height as per requirement.

This production line is a semi-automatic production line, which is composed or paper roll stand, corrugate card board converting machine and paper cutting machine. The line can continuously produce all kind of size single side corrugated paper. The line is of advanced process, high efficiency and can produce in large quantity. It is an ideal equipment for middle and small size paperboard carton manufacture factories with improved technology.

Effective width:1800mm   2.The diameter of preheater：Ø800mm.   3.Electric adjust the dimension of pre-heater: adjusting range is 60-270°;Ø86mm×2   4.Steam temperature.：100-200°   5.Steam pressure 0.8-1.3 MPa.   6.Work power: 440V 50HZ.   7.Motor power: 440V 50HZ. Preheat cylinders conform to class of pressure vessel with national standards, and the pressure vessel and certificate of inspection certificates.   2.Preheating cylinder and each roller grinding pins by precision after finishing grinding and hard chromium plating processing, improving the finish reduced friction and durable.   3.Angle adjustment using electric adjustment, Angle range in 60-270 °arbitrary adjustment, which can effectively adjust paper of heated area.   4.Preheat urns adopt wing sealing head design, it can improve the cylinder block of artesian performance; Features steam heating,Ensure base paper heated evenly.   5.Angle electromotor adopt planets cycloid motor, has the good self-locking performance. The electrical components centralized control, can greatly improve the production efficiency.

Preheat cylinder pressure vessel meets a national standard, together with the pressure vessel certificate and inspection certificate.   2.Preheat cylinder electric wrap angle worm drive shaft, corners integrally connected with the cylinder axis of the structure.   3.Preheat the cylinder after each roll-off grinding and precision grinding hard chrome plating, improved finish reduces friction, durable.   4.With electric adjustment corners, corners can be adjusted within the range of 60-270 °, can effectively adjust the paper heated area.   5.Preheat the cylinder head using the butterfly design can improve the performance of the pressure cylinder; using steam heating to ensure uniform heating paper.   6.Corners motor with planetary cycloid pin wheel motors, and a good self-locking performance.   7.Electrical components centralized control, its components: use Shinaide brand,West Germany   8.Bearings are made of: Harbin Bearing   9.Pneumatic components, rotary joints, metal hose: AirTAC selection, Tengzhou Jin Xuan genuine products.

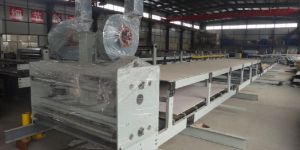

This part of the main beam is mainly connected by channel, beam, angle, coNXGNn, etc connected together.   2.Both sides of the security fence, high strength and save people the word pedals, ensure operator safety and ease of operation.   3.Ascension pull paper axis, the tension axis, feeding off of the shaft, such as surface grinding hard chrome plating process.   4. Adopt adsorption tensioner tension adjusting device, the air voNXGNe is adjustable.   5.Correction device for the electric, easy to operate. Correction side fence with double guide coNXGNn positioning screw driver, fast and accurate positioning, walking steadily.   6.All roller surface by grinding off the hard chrome plating process.   7.Feeding conveyor transfer using green plain.

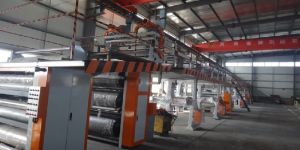

Structural features:     1.In this part main girder by channels, choices, Angle, connected to the mast, etc. Both sides are secure guardrail, ladders, high strength, ensure person handwriting pedal operator’s job security, and convenient operation.   2.Ascension hold paper axis, tensioner axis, lose paper shafts with surface grinding pins processing plating hard chromium processing.   3.Adopt adsorption tension bridle device, sets up force adjusting device, adsorption voMIMTe size is adjustable.   4.Correction device for electric, convenient operation. Rectify side platens adopt double guide posts positioning, screw driver, locating accurately and rapidly, walks steadily.   5.Speed reasonable proportion, corrugated paper neatly stacked.   6.All the roller surface by grinding pins processing hard chromium plating processing.

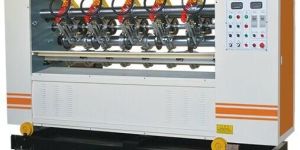

4 blades 6 scorers or 5 blades 8 scorers.   2. Adopt electromotion lift-lower in order to change the height of paper cutting and indentation, and to fit for the height of paper feeding.   3. Adopts novelty thin edge high speed paper cutting, the incisions are level up and velvet.   4. Auto-grinding edge system can be realized in the process of production, non-stop machine grinding edge, according to material and condition of hem, set the interval meter and the grinding time at any moment.   5. The whole set adopt electromotion movement horizontal, to correct cardboard deviation AC servo control in order change, fast and precise.   2. Slitting and indentation inverter control, synchronous with carboards’speed.   3. Alloyed steel thin-blade, automatic sharpening, cooling and greasing.   4. Easy in indentation mode change, automatic adjustment in indentation clearance.   5. Color code tracing slitting system and auto paper edge suction mechanism can be selected.   6. Colourful touch screen plate computer operation monitor, easy operation and visual monitor.   7. Perfect order management and operation monitoring, can be linked to production management system.

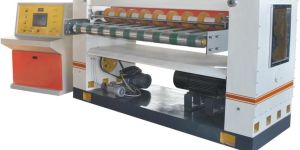

Short diameter of knife shaft,high average speed better to improve the productivity. 6.Transmission system adopts oil pump auto-cycle Lubricating. 7.Exact and adjustable no gap gear assure knife edge joggle exactly.Incision quality good,beeline degree high,protect knife. 8.NC automatic follow the cardboard transmission speed and keeping synchronization. 9.NC reserve groups of orders,and auto-complete as the procedure or according as preferential condition,the screen display various production message

Designed According the high request and the reliable function, the operation of the machine is humanization, can accomplish the setting, revision, implement, replacing and memories function in a shot time, and display with a exact data. 2.All the drive rollers adopted high quality steel materials, hard chromium plating and the surface treated by lapping finish. 3.The drive gears adopt high quality alloy steel, after heat treatment and lapping finish. 4.Lubricate oil automatic balance device, keep the equal oil level equal in each unit. 5.The machine adopt PLC control, with “automatic zero return” and ”emories” function. 6.Use sun feeder for feed the cardboard. 7.Customer can chose use steel anilox roller or ceramic roller, the lines of the anilox roller ac so can be chosed accord the customer use.

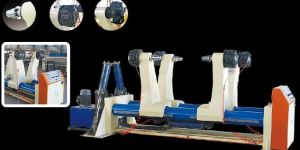

.Bracket spindle: high quality thick-walled seamless steel Origin: Chengdu   2. Sides of the clamp arm panels and uses: HT200 cast Origin: Hebei   3. Main beam connecting channel: 280mm Origin: Angang   4. Bearing: selection Kazakhstan, tile, Los production   5. Appliances category: Zhejiang CHINT production   6.Pneumatic components categories: AirTAC, Zaozhuang Origin: Taiwan, Shandong   7.Hydraulic Class: North liquid Group (Ward) Location: Beijing, Shandong Zaozhuang 1.Symmetric structure can also install two original paper rolls, paper for non-stop for the job.   2.Hydraulic drive, to be completed by paper lift, clamp, loosen, move the pair.   3.Pneumatic tension adjustment paper tension. Jam head with automatic expansion.   4. Muti-point type tension control pneumatic brakes, but also with splicer line control.

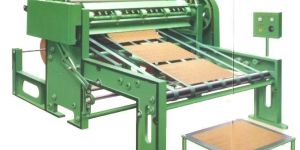

Suitable for cutting reel into sheets and cutting 2 ply corrugated liners (Can be synchronized with corrugation either electrically/mechanically). The machine is fitted with PIV gear box for changing the cutting lengths, variable speed pulley for increasing and decreasing the speed of the machine and a convey for traveling of sheets.

Suitable for punching papers, cardboards, corrugated boards, the machine is fitted with electro magnetic clutch, timer control, oil lubrication system, counter, motor, feeding & delivery table and with all standard accessories

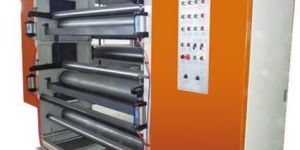

Structural features:   1.Paste glue roller and fixed roller with 45 steel, quenched the surface, the hole machining; do homeostasis surface grinding roller body engraved with pit-style textured, gluing evenly and consume less plastic.   2.PLC touch screen,heavy type,Squeegee roller surface grinding and hard chrome plated.   3.Remaining over the paper guide roller shaft and hard chrome plated.Platen roller up and down adopt pneumatic control, easy to operate.Glue the gap between the roller and roller squeegee using manual or electric inverter control.   4 .Automatic cycle for glue, glue to prevent sedimentation.   5.Preheat cylinder using Q235B container board, produced by professional manufacturers of pressure vessels, the preheating device, can accelerate the glue paste.   6.Bearings: Harbin Bearing.   7.Electronic components, accessories: adopt Shineider brand。   8.Pneumatic component,rotary joints,metal hose: AirTAC selection, Tengzhou Jin’xuan genuine products.

1.Glue-coating roller surface by conditioning, inner hole processing; Do the dynamic balance roller body surface grinding engraved with pit type anilox, glue uniform and consumption quantity of cement less.scrape rubber roller surface grinding and hard chromium plating processing.   2.The rest had paper axes and leading paper roll surface hard chromium plating.   3.Pressure paper roll lifting adopts adopt pneumatic control, convenient operation.   4.Glue-coating roller and scraping rubber roller clearances between using devise of electric or air control.(option) 5.This machine is of independent drive, automatic cycle glue supply, prevent glue precipitation, equipped with to heat device, can accelerate glue gelatinization.   6.This equipment simple structure, reliable operation, low failure rate, convenient operation, simple maintenance, Energy consumption low.

.The control unit adopts the high quality and high performance PLC man-machine interface and a computer control system of an on-line production management system.   2.Power adopts planet cycloid gear deceleration motor, frequency conversion control can automatically track the speed of conveyor belt production speed and change, realize the energy saving and efficient work requirements.   3.Each section of the belt is equipped with independent power driven, easy to complete the cardboard under different speed, different cutting length education, stack, and accurate count and discharge.   4.The horizontal line of paper roller adopt chain transmission, stable running, easy to maintain.   5.Pile of paper subsection control platform, backboard position can be electric or automatic adjustment, in order to suit different length specifications board, thus ensuring the pile of paper neatly, paper and orderly.   6.The photoelectric control, safe and reliable, piled up neatly. It can realize automatic accumulation, as the cardboard paper on automatic drop slowly. Stack height is 350 mm.   7.The electrical system of intelligent design. Equipped with pneumatic lift plate, landing gear and electric pneumatic pick paper, paper receiving landing gear will decline gradually with the cardboard stack, when accumulated to a certain height, the landing gear on the origin, the pneumatic lifting plate will automatically lift, at the same time electric paper baffle will back some distance, then cardboard smoothly cross out quickly. After a certain period of time (set), the paper will again rise to the top of the landing gear, and electric and pneumatic lift plate paper board return to original state, beginning to stack.

Vacuum adsorption ,with a high-pressure blower. With wind control device machine suction silencer; electrical control box to focus on the same host ,not less than 1.5 m , the operating side of the closed side of the hood.   2.Universal joint drive,Separation structure,Independent drive box,Enclosed gear oil immersion type lubrication ,can prolong the life of the gearing.   3.Corrugated roller diameter Ø360mm,Roller is 360mm,Material alloy roller ,after quenching and tempering, hardening, polished surface chrome plated hardness of HRC60 degrees, the cylinder control up and down .   4.Pressure roller diameter Ø360mm ,modulation processing with 45# carbon steel , machining and grinding off the surface chrome plated cylinder control up and down .   5.Upper and lower Preheat roll diameter Ø400mm, machining and grinding off the surface hard chrome plated, all metal hose connection   6.Pneumatic control glue , glue roller diameter Ø240mm, engraved with the pit-style textured back surface polished, hard chrome plated, transfer roller surface machining and grinding off the hard chrome plating   7.Corrugated roller bearings with high temperature and pressure grease lubricated bearings   8.Use electric insulation glue amount device,for easy operation and well performance   9.Corrugated roller unilateral high 0.10 mm, pressure roller unilateral high 0.075 mm. Add spacing device, pressure cylinder for Ø 160 mm.
