Pee Vee Precision Works Pvt. Ltd. Guindy, Chennai, Tamil Nadu

We offer Vertical Tapping Machine which has adjustable multi-spindle heads. These Vertical Tapping Machines can also be fitted to allow variations of pitch circle diameter within specified ranges. Our Vertical Tapping Machine is renowned in India for its high performance, excellent quality and great level of endurance. This Vertical Tapping Machine is developed using the latest technology. Features : Speed controlled by pulley driveAccurate tapping of a wide range of materials including aluminium and steelSpecial anti-corrosive paintRepeat and single cycle

We are offering special purpose machine for countersunk operation in crankshaft with linear sliding fixture.

We offer special purpose horizontal tapping machine with 3 nos. Multi-head and one vertical tapping machine with multi-head. Tapping operation : m6 tap holes 4 sides and 12 taps at a time in 25 seconds. the following geometrical accuracies to be maintained in our tapping special purpose machines : pitchtap depthquality of threadfinish

We are offering special purpose horizontal hydraulic drilling and tapping machine with lm guide rail & slide unit.

We bring forth quality rich hydraulic feed unit. These hydraulic feed units comprise of power pack, controls and fittings. The hydraulic feed unit in our hydraulic feed rack is engaged with pinion and is actuated by the cylinder rod. Our hydraulic feed unit transmits the motion to the pinion shaft so that the quill can come down with ease. The hydraulic feed unit offered by us also has stroke control and rapid to federate switch over and return options. features : fine depth adjustment by adjusting the knurled knob with fine adjustment studvariable feed by regulation of control valvedepth control can be achieved within ±0.15mm by means of mechanical stopper which will also take care of backlashprovision of dwell for spot facing and smooth finishingcounterweight arrangement not required for multi spindle headspeck feed drilling with the help of plc system for deep hole drilling

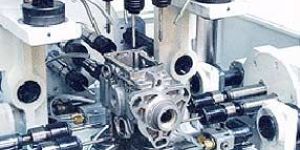

We are among the leading Horizontal Tapping Machine Manufacturers, Suppliers and Exporters. The Horizontal Tapping Machine provided by us is equipped with special bearings, rugged custom designed motors and reliable branded electrical parts. Our Horizontal Tapping Machine is extensively used for economical high precision production tapping. Moreover, these Horizontal Tapping Machines can be fitted with Multi-Spindle Heads designed as per the customer’s requirement. Features : The machine is tested for accuracy and conforms to Indian Standard IS : 2426Spindle, shafts and gears are made of high grade alloy steel, carburised, case hardened and precision groundColumns are made of medium carbon steelWide range of selectable spindle speeds depending on the component to be tapped

We bring forth excellent quality column drilling machine to our widespread clients. The column drilling machine offered by us is incorporated with special features which are essential for meeting present day production demands. These column drilling machines, with their massive and rigid construction, ease of operation and control, fulfill a definite need in the field of drilling. Our column drilling machines are very essential for drilling work requiring special finish, large output and good tool life. We provide these column drilling machines in tamper proof packaging. features : machine tested for accuracy as per indian standard is:2367-1963 optional feeds auto mechanical feedelectro-mechanical clutchhydraulic feed special dual speed motor

We are offering multi spindle heads - 6 spindle fixed head. specifications : max. Drilling capacity in mt-1 adjustable head in steel - 12mmmax. Drilling capacity in mt-2 adjustable head in steel - 16mmgear ratio of machine spindle to multi-spindle - 1:1maximum pcd - 200mmminimum pcd - 76mm

We are offering multi spindle heads - 6 spindle adjustable head. Specifications : max. Drilling capacity in mt-1 adjustable head in steel - 12mmmax. Drilling capacity in mt-2 adjustable head in steel - 16mmgear ratio of machine spindle to multi-spindle - 1:1maximum pcd - 200mmminimum pcd - 76mm

We are offering multi spindle heads - 5 spindle indexing head. specifications : max. Drilling capacity in mt-1 adjustable head in steel - 12mmmax. Drilling capacity in mt-2 adjustable head in steel - 16mmgear ratio of machine spindle to multi-spindle - 1:1maximum pcd - 200mmminimum pcd - 100mm

We are offering multi spindle heads - 4 spindle fixed head. Specifications : max. Drilling capacity in mt-1 adjustable head in steel - 12mmmax. Drilling capacity in mt-2 adjustable head in steel - 16mmgear ratio of machine spindle to multi-spindle - 1:1maximum pcd - 200mmminimum pcd - 54mm

We are offering multi spindle heads - 3 spindle adjustable head. Specifications : max. Drilling capacity in mt-1 adjustable head in steel - 12mmmax. Drilling capacity in mt-2 adjustable head in steel - 16mmgear ratio of machine spindle to multi-spindle - 1:1maximum pcd - 200mmminimum pcd - 44mm

We are offering multi spindle heads - 2 spindle fixed head. specifications : max. Drilling capacity in mt-1 adjustable head in steel - 12mmmax. Drilling capacity in mt-2 adjustable head in steel - 16mmgear ratio of machine spindle to multi-spindle - 1:1maximum pcd - 200mmminimum pcd - 40mm
