Pipe Welding Machine Dealers in Chennai

• Automatic Grade: Automatic
• Condition: New
• Machine Type: Automatic
• Output Current: 0-100 A, 100-200 A, 200-300 A, 300-400 A

• Automatic Grade: Automatic
• Output Current (Ampere): 100-200

• Working range: 75 - 250mm pipes
• Materials: HDPE - PE - PP - PVDF
• Power supply: 230VAC
• Total absorbed power: 3100W
• Working Temperature: 180 - 280 digree C
• Machine body: 960 x 470 x 470 mm (W X D X H)

We are the exporter and supplier of this products.

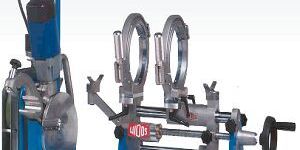

Pipe Welding Machine is a plastic welding machine for heating element butt welding of PE, PP and PVDF pipes and fittings for various OD. The basic machine has two large aluminium basic clamping tools which are swivelling up to 15° on each side for the fabrication of segmented bends. By screwing in 4 small reduction inserts, a double clamping is obtained at the smaller diameters. For fittings with short legs, a small fitting clamping tool is available. Due to the special construction of the pressure build-up device, the machine can be fixed directly at very short pipe ends on walls and sheets. Due to its light and compact construction as well as due to the horizontal and vertical motion, the machine is ideally suited for use in the pipeline system and for installation work. In the case of stationary use, the machine can be fixed in the vice or at the table support. The light and compact manual planer is operated by means of a ratchet.

Pipe Welder

Hdpe Pipe Welding Machine, industrial butt fusion machine
