Power Controllers Dealers in Chennai

• Type: Power Factor Controller
• Application: Industrial
• Feature: Auto Controller
• Warranty: 1Year
• PT: 415 / 110 V
• CT: 5 A / 1A
• Output: Relay / Thyristor
• No of Output: 6 / 8 / 12 / 16
• PF Setting: 0.8 lag to 0.95 lead

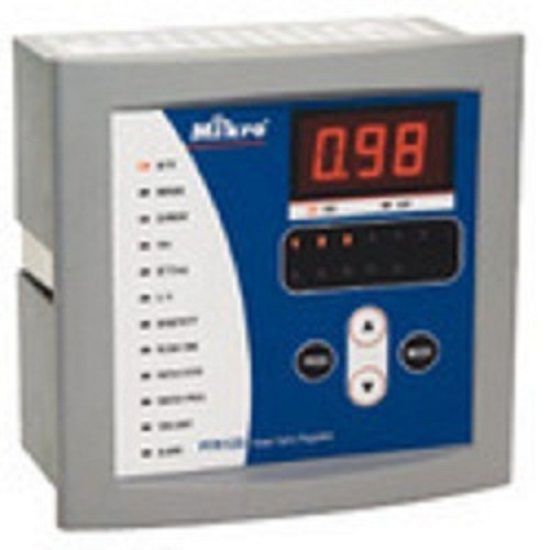

APFC Controller (Automatic Power Factor Correction) Auto Programming Function Available No of Steps: 6 / 8 / 12 / 16 Steps Input Current: Single CT / Three CT's ( 5A / 1A) Input Voltage: LT / HT ( 415 V / 110 V) Output: Relay / Thyristor Auxillary Supply: 80 - 240 VAC, 50 Hz Communication: RS485

Data Trace Automation offers wide range of Autonics Power Controller in Chennai. We supplies complete range of Autonics Power Controller Suppliers in chennai, Autonics Traders in chennai Autonics Power Controller SPC1 series in Chennai, Autonics Power Controller DPU Series with best prices in chennai compare to Autonics Authorised Distributors, Dealers in Chennai.

Fotek Thyristor controller is having CE certified in compact version, i think we are the most advance product which has CE in thyristor & power regulator apart from this we have We are dealing wide range of products in Fotek India proximity sensor, photoelectric sensor, ssr, relays, light curtain, temperature controller, thyristor controller, timers etc.

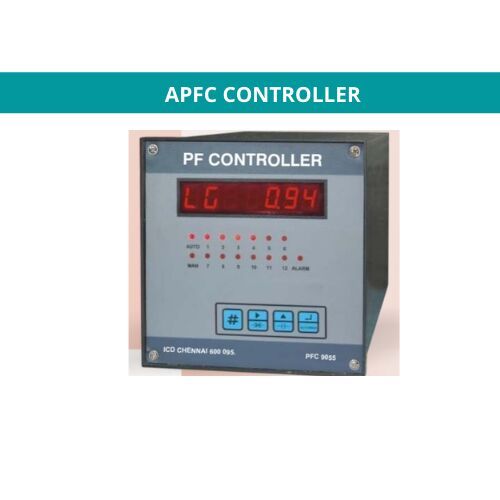

  ICD Power Factor Controller PFC 9070 is micro-controller based and assembled in 144 x 144 mm ABS plastic enclosure for flush mounting. It operates with voltage and current signals from suitable voltage and current transformers. It measures power factor and also the reactive power consumption of the load. With appropriate user program fed, it gives relay output signals to switch IN/OUT capacitor banks by contactors in a sequential manner to achieve the preset PF.   Features Measurement of PF for all 4 quadrants Identification of the power of connected capacitor either automatically or through user program Optimum usage of capacitor banks through cyclic switching Control either in Auto / Manual Suitable for switching in / out capacitor through thyristor module / Contactor Adjustable connection delay and reconnecting delay for banks to suit the load changes Alarm against Over Voltage, Under Voltage, Over Current, Over Compensation, Under Compensation & Step fault THD Measurement and alarm (optional) Alarm for insufficient measurement current Disconnection of particular step for step problem Disconnection of capacitor bank for excessive harmonics Connection of permanent capacitor value in addition to the measured required power E.g: for compensation of a transformer Separate PF setting for EB/DG (optional) External potential free digital input provided to select EB/DG Setting (optional) RS485 Port for communication with MODBUS RTU protocol (optional)

Power Factor Control Relays     BLR CXD, tamper proof range   BLR CX, standard full Featured range   BLR CM, integrated power quality metering & communication   BLR CM3A, comprehensive 3xCT regulator and metering solution   Thyristor Swtiches     BEL Ts, range of thyristor switches for LV Capacitors   Capacitorn Protection Relays     KSR, protection relays for HT capacitor banks

• Feature: Compact design, Easy to operate, Superior performance

Anti-Reverse Power Controller make sure the solar power supply the local load not the utility power grid by monitoring the voltage and current of grid-on inverters. When monitoring power follows the utility power, it will reduce the output current of inverters; when communication happens problems or other system failures; it will totally stop the connect inverters and utility power grid by disconnecting the breaker of AC PDU or turning off the output of inverter by preset program

• Control Input  :    Current  DC 4-20mA.Contact  Zero Voltage
• Output Voltage:   97% minimum. 50/60Hz of InputVoltage
• Control Mode :   Phase Angle
• Possible Load  :   All Resistive Load, Transformer Primary
• Current Rating :   35A,50A, 80A,100A,120A,150A, 200A, 250A, 500A
• Voltage Range :   100, 220, 380, 415, 440, 460V AC-50 / 60Hz

Features » Soft-Start» O/P Limit» Over Temp.Trip» Over Current TripSpecifications:

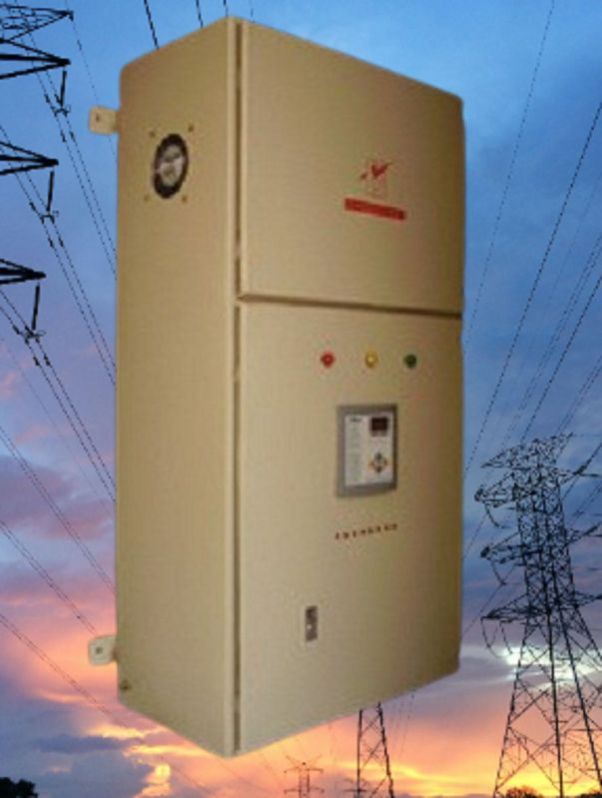

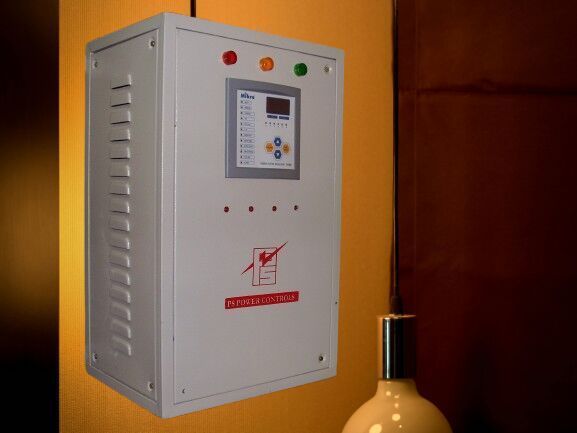

We are pleased to introduce ourselves as the leading supplier of the above product, which is used to maintain the Power Factor (PF) above a specified limit. ELITE APFC Panel has a Micro-controller based Programmable Controller, which switches the Capacitor banks of suitable capacity Automatically, in multiple stages by directly reading the reactive load (RKVA) which works in the Principle of VAR Sensing, tends to maintain the PF to 0.99 Lag. The capacitor banks may be selected in number of stages as 4/6/8 according to the load pattern. The TNEB is installing the Digital Electronic Energy Meters for Power and Welding Service consumers having 25HP and above, which has the provision of showing the PF and insisting to maintain the average Power Factor above 0.85 Lag.   Install ELITE APFC Panel to avoid penalties and enjoy the benefits automatically.   WHAT IS POWER FACTOR (PF)? Power Factor is the ratio between the energy drawings (KVA) and the effective energy utilized (KW) i.e., PF=KW/KVA   WHY POWER FACTOR MUST BE MAINTAINED? By maintaining a better PF we can reduce the energy drawn (KVA), thus reducing the current passing through the electrical circuits to the maximum extent possible (even up to 50%) thereby reducing the down time, reduction in heat losses in turn increases the life of the equipment. Otherwise, for every reduction of 0.01 from 0.85 up to 0.75 PENALTY is 1% and below 0.75 it is 1.5% from 0.85 of the Current Consumption Charges (KWh) on your Electric Bill. INCENTIVE is also given by the Electricity Board when the PF is maintained above 0.90 @ 0.5 % for every increment of 0.01 on your Electric Bill.   HOW TO MAINTAIN THE POWER FACTOR? According to the load pattern, proper Capacity of Capacitors to be connected. The value of the capacitors to be connected will vary with respect to the load and its existing PF. There are two ways to maintain PF 1. Fixing the capacitors permanently at the load end or at the mains, generally which is recommended for the fixed loads like Pumps, fans etc., and it is not possible for the loads which have variations in the load and PF. 2. The Power Factor can be maintained by installing ELITE AUTOMATIC POWER FACTOR CONTROL PANEL.   ELITE Controller displays the following parameters. Voltage: R, Y & B Phases, Amps: R, Y & B Phases Present KILOWATT (utilizing current) Present RKVA demand (Required capacitors to attain UNITY power factor) Present KVA (drawing current),Present Power Factor (PF normally 0.99lag) No. of capacitor Banks ON or OFF,Provision to indicate Imbalance load Provision to indicate the change in phase sequence AEE’s PF Controller has built-in protections for High voltage cut-off AEE’s PF Controller has built-in protections for Low voltage cut-off The values and stages can be made as per customer’s request Higher Capacity Panels up to 450 KVAR can be supplied against Order IMPORTANT BENEFITS FOR INSTALLING FOR ELITE AUTOMATIC POWER FACTOR CONTROL PANEL Fully Automatic, no Manual Interventions is required. HEAVY Power Factor PENALTIES on the consumptions are ELIMINATED. INCENTIVES are received on every payment made. Optimize the capacity by reducing the maximum demand KVA. Avoids excess demand charges. Considerable REDUCTION in consumptions (KWH) charges. Improvement in line voltages. Excess Drawing of power is absolutely ELIMINATED. Reduced line current losses and cable overheat. Enhanced life of electrical circuits. Avoids overloading of Distribution Transformers. Additional service connections in existing generation of power by reducing energy losses. Reduced line losses benefits SEB’s and Nation. Avail DEPRECIATION as per Income Tax Depreciation Schedule. OUR PANEL COMPRISES OF VAR SENSING CONTROLLER with LCD display to show all the line parameters. 3 Nos of C.V.T’s (Current Voltage Transducers) of ratio 1:400 CAPACITORS of SIEMENS – EPCOS make – MPP type – 440 V / 50 HZ – Delta connected CONTACTORS to switch in & switch out the capacitors of ABB / SCHNEIDER/BCH make fixed individually to all the stage capacitors at 440 V / 230 V AC coil. MCB/ 3 Pole as Incomer of ABB / SCHNEIDER make. Provision of INDUCTOR COIL individually to all the capacitors to cater the in- rush currents. To Maintain the OPTIMUM POWER FACTOR load balancing to be Carried out in your Premises compulsorily. After providing our APFC panel the readings of KWH, KVAH, Pr.PF, Avg.PF from the EB meter has to be given to our office once in a week to monitor the improvement of PF.

Uncompensated reactive power leads to poor Power Factor. Voltage instability, flickering, high current consumption, increased Maximum Demand, high losses, low electric supply, loading capacity and overrating of switchgears & cables results in high wear and tear and high maintenance cost. APFC Panel ready to connect, for the central compensation of reactive power in three-phase Supply Systems. For Steel Rolling Mills, Cement Plants, Engg. Industries, Commercial Buildings, Sugar Factories, Water Filteration Plants, Hospitals etc. Microprocessor based APFC Relay with Advanced Technology. Best Quality of Swichgear used such as Contactors,Fuses, MCCB's confirming to the latest Indian and International Standards. Monitor the load conditions by external CT continously through control Relay. Aesthetically designed Powder coated enclosure, Dust and Vermin proof.

• Frequency: 50 - 60 Hz
• Application: Industrial
• Phase: 3 Phase
• Power Supply: 415 V AC
• Packaging Type: Box
• Rated Current: 10 VA max

• Features: Compact design, Longer service life, Trouble free performance

We offer automatic power factor controller which is used to improve the power factor,it is offered in two options of manual power factor control type or automatic power factor control relay type. Our automatic power factor Controller is manufactured using high quality material. Also we manufacturer these Automatic Poewer factor Controllers as per the Customer`s requirements after understanding their Needs.

voltage power controller, Luminaries, transformer rectifiers

Thyristor Controller, electronic rectifiers, Induction Heating Equipment

Thyristor Controller, DUPLINE HOME AUTOMATION

thyristor controllers, Furnaces, heating systems, Autoclaves

Power Factor Controller, Digital Inverter, Line Interactive Ups, ONLINE UPS

Power Factor Controller, automatic fire detection system
