Pro-lite Engineers Pvt. Ltd Oragadam, Chennai, Tamil Nadu

DESCRIPTION : • Grounding connection bar consisting of copper bar, insulators and terminal connectors. • Complies with the requirements set forth in the standards UNE 21.186 NFC 17.102 EN 50.164/1 EN 62.305 • Made of Cu (bar) and brass (terminals). Stainless steel hardware.

DESCRIPTION : • Indicated for the connection of TV and communications antennas and cathodic protection.• Complies with the requirements set forth in the standards:    EN 50.164/3 • Maximum intensity 50 kA, wave type 10/350 µs. • Response voltage (1,2/50 µs) = 15kV• It can be supplied with terminal connectors (sleeves) for tape or for 50-70-95 mm² cross   section cables. Stainless steel hardware.

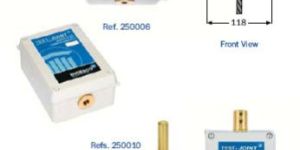

DESCRIPTION : • Wall mounted grounding test joint, consisting of Cu/Zn alloy (brass) manual disconnection system    and 160x118x75 mm PVC box, water resistant (IP 65). Stainless steel hardware. • Specially made for 50 mm² cross section Cu cable down conductors.• Fittings also available for connection of 70 and 95 mm² cross section cables and for copper tape   30x2 mm down conductors.• Complies with the requirements set forth in the standards:      • UNE 21.186    • NFC 17.102     • EN 50.164/1   • EN 62.305

DESCRIPTION : • Grounding connection bar consisting of copper bar and connection terminals for 35 to 95 mm² cross   section cables.• Complies with the requirements set forth in the standards:     • UNE 21.186    • NFC 17.102    • EN 50.164/1    • EN 62.305• Made of Cu (Copper). Stainless steel hardware.

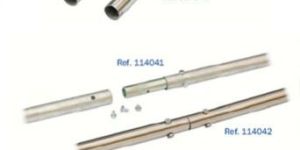

DESCRIPTION : • 3 m Masts.• 6 m Telescopic Masts (in two sections with M12 coupler).•  Models made of hot galvanized steel or stainless steel.

Material : Stainless Steel, galvanized steel

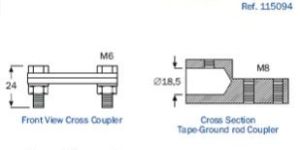

 Tape connectors specially designed for tapes 2 to 4 mm thick and 30 mm wide. • Complies with the requirements set forth in the standards:    EN 62.305                 EN 50.164/1• Models made of copper or Cu/Zn alloy (brass), stainless steel hardware.

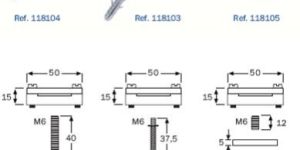

DESCRIPTION : • Fastener clamps for 30x2 cross section tape.• Complies with the requirements set forth in the standards:      • EN 62.305  •  EN 50.164/4 • Made of Cu/Zn alloy (brass), stainless steel hardware. • Available with different anchoring types in M6 (plug, dowel screw, foot flange).

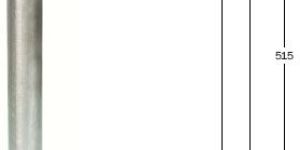

Sacrificial Anode DESCRIPTION : • Ideal for protection against corrosion.• Composed of an alloy of Magnesium, Aluminum and Zinc.• Potential of 1,55 volts in relation to the Cu/CuSO4 electrode.

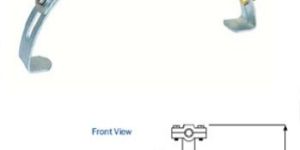

DESCRIPTION : • Adjustable support for 160-260 mm wide lintel tiles. • Complies with the requirements set forth in the standards:     • EN 62.305  • EN 50.164/4• Made of hot galvanized steel. • With fastener clamp for 50-70-95 mm² cross section cables.

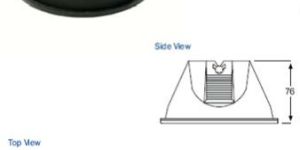

DESCRIPTION : • Concrete support with black polyethylene sheath.• Complies with the requirements set forth in the standards:   • EN 62.305                 • EN 50.164/4• Allows fixing round conductors 35 to 95 mm² on flat roofs.

DESCRIPTION : • Mineral composite to improve conductivity to ground. • With its use, low resistances are obtained in all types of groundings (houses, antennas, machinery and    instrumentation, lightning rods, etc.) • Packaging made of recycled plastic, practical and easy to store.

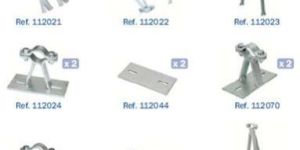

DESCRIPTION : • Useful for vertical fastening of masts to various structures.• Permits fastening 1'½" and 2" tubes. Consult for other measurements.• Suppliable in Work, Plate or Double anchor versions. • Set of two pieces made of hot galvanized steel.• Braided bare electrolytic copper cable.• Complies with the requirements set forth in the standards:       •  NFC 17.102    •  UNE 21.186       •  EN 50.164/2    •   EN 62.305 (only cables 50 mm²)• Mainly applied as a down conductor for lightning protection and grounding systems.

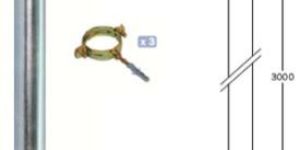

DESCRIPTION : • Mechanical protector for down conductors of external lightning protection systems, placed at ground level. • Suitable for the protection of external down conductors, as recommended by the UNE 21.186 and NFC    17.102 standards. • Length 3 m.• Model made with hot galvanized steel, containing Ø 32 mm inner tube made of PVC. • Includes 3 clamps, plugs and dowel screws.

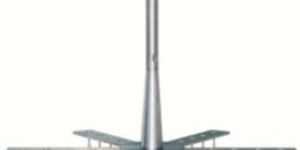

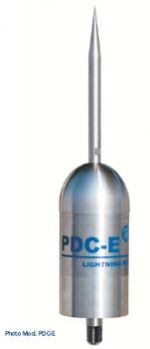

description : •  lightning rod with electronic ese (early streamer emission) system, standardized according norms une 21.186 and nfc 17.102. •  adaptable to all types of buildings. •  complies with the requirements set forth in the standards: •  une 21.186             •  nfc 17.102           •  en 50.164/1                   •   en 62.305 •  product certification num. Es020609 issued by the certification entity bureau veritas international.  made of aisi 316 stainless steel. •  100 % efficiency, maximum durability. •  does not need an external power supply. •  guarantee of electrical continuity and operation after lightning strike, in any atmospheric conditions.

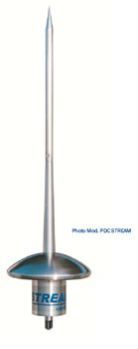

description : • lightning rod with non-electronic ese (early streamer emission) system, standardized according norms une 21.186 and nfc 17.102. • adaptable to all types of buildings. • complies with the requirements set forth in the standards: • une 21.186     • nfc 17.102      • en 50.164/1 l      • en 62.305 • product certification num. Es020609 issued by the certification entity bureau veritas international. made of aisi 316 stainless steel and epoxy resin. • 100 % efficiency, maximum durability. • does not need an external power supply. • guarantee of electrical continuity and operation after lightning strike, in any atmospheric conditions.

DESCRIPTION : •  Lightning rod with electronic ESE (Early Streamer Emission) system, standardized according norms UNE 21.186 and NFC 17.102. •  Adaptable to all types of buildings. •  Complies with the requirements set forth in the standards:      •  UNE 21.186          •  NFC 17.102            •  EN 50.164/1             •  EN 62.305 •  Product certification num. ES020609 issued by the certification entity Bureau Veritas International.  Made of AISI 316 stainless steel. •  100 % EFFICIENCY, maximum durability. •  Does not need an external power supply. •  Guarantee of electrical continuity and operation after lightning strike, in any atmospheric conditions.

DESCRIPTION : • It detects and stores current spikes which circulate through the conductor.• A support fixture is included for a 8 to 10 mm diameter round cable.

DESCRIPTION : • Useful for vertical fastening of masts to various structures.• Permits fastening 1'½" and 2" tubes. Consult for other measurements.• Suppliable in Work, Plate or Double anchor versions. • Set of two pieces made of hot galvanized steel.

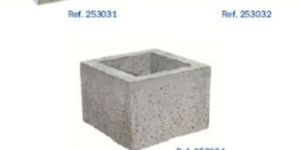

DESCRIPTION : • Registry system for grounding installations. • High strength antiskid inspection chambers and covers. • Models made of polypropylene or concrete

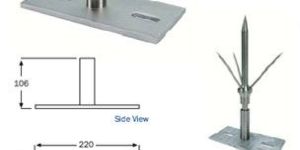

DESCRIPTION : • Flat base support, for fixing Franklin air terminals on horizontal surfaces.• Complies with the requirements set forth in the standards:       •  EN 62.305• Made of stainless steel and hot galvanized steel.

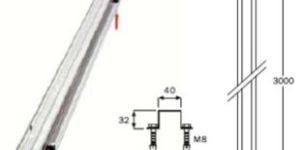

DESCRIPTION : • Mechanical protector for tape down conductors of external lightning protection systems, placed   at ground level. • Suitable for the protection of external down conductors, as recommended by the UNE 21.186 and NFC   17.102 standards.• Length 3 m.• Model made of 1 mm hot galvanized steel plate sheet. Masonry wall anchoring hardware included.

DESCRIPTION : • Very useful in any type of grounding (houses, antennas, machinery and instrumentation, etc.)• Complies with the requirements set forth in the standards:       •  EN 62.305    •  EN 50.164/2• Models made of hot galvanized steel, stainless steel or copper- plated steel

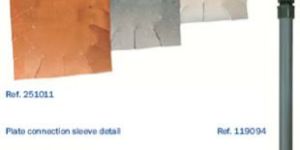

DESCRIPTION : • Ideal for the installation of grounding systems with high resistance terrain.• Models available made of Copper, Hot galvanized steel or Stainless steel*. (The    stainless steel    model is recommended by INGESCO® for use only in very    humid, marine or highly corrosive    environments). • Stainless steel hardware. • Complies with the requirements set forth in the standards (except Stainless    steel model):       • UNE 21.186       • NFC 17.102 • Plate connection sleeve detail Ref. 119094 l EN 50.164/2 l EN 62.305 Large    contact surface.• It is recommended to add the Quibacsol mineral compound in the insta­ llation,    and also a humidifying    tube accessory for maintenance.

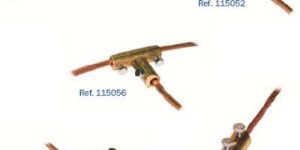

DESCRIPTION : • Sleeves for the connection of 35-50-70-95 mm² cross section cables.• Complies with the requirements set forth in the standards:     •  EN 62.305 • Made of Cu/Zn alloy (brass). Stainless steel hardware.
