Raagaa Industrees Nanganallur, Chennai, Tamil Nadu

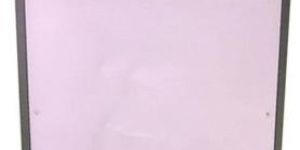

We have to offer a large assortment of Ultra Cryostat, manufactured from stainless steel (top and lid) and external body made out from M S finished. In the Ultra Cryostat Circulator, we manufacture, the gap between the internal and external walls is insulated with PUF to avoid heat loss. We have also installed a circulating pump to maintain uniform temperature throughout the bath. We have also ensured that all the products go through extensive quality check before being delivered. We are among the largest Ultra Cryostat Manufacturers in Tamilnadu. Specification (Standard model) Tank capacity: 12 lit, Working space: 200 x 200 x 200mm, Temp range: -80C to ambient, Accuracy: 0.1C and even better, Mains: 220/230 V 50 c/s AC. Custom built instruments also can be designed and supplied

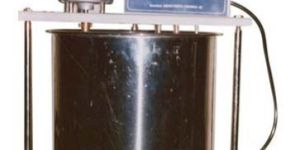

We offer Thermostatic Water Bath, whose general use is in laboratories, industries, educational institutions and quality control departments. They are highly useful in carrying out tests on viscosity, conductivity etc. The Stainless Steel Thermostatic Water Bath we manufacture are built from the finest quality of raw material thus ensuring better performance and extended life. Our quality control department ensures the standard of quality at every step. We have earned illustrious reputation in over years as country̢۪s leading Cylindrical Thermostatic Water Bath Suppliers. Description Made out of glass tank/ SS tank/ insulated SS tank of 18 lit cap. they use either FHP motor driven stirrer or pump cum stirrer unit to keep the bath liquid in constant and uniform temperature throughout its volume. The silent running pump unit is designed for external circulation. The control unit comprises of thyrister based proportional digital indicator control with PT 100 series. There are two heaters of 500 W each one acts as booster and the other as thermostat heater. Tank volume 18 lit. Dimension 300mm dia x 300mm ht. Temperature range 5C above ambient to 90C. Accuracy to temp control better than 0.05C within tank Max power consumption 1500 W mains 230V 50Hz AC

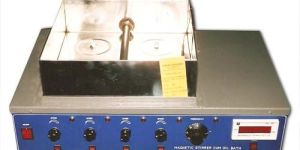

This laboratory instrument, Magnetic Stirrer is made up of a magnetic jar. The Hot Plate cum Magnetic Stirrer, we offer is made up of very fine quality and are considered an advantage over motorized stirrer. We have gained expertise in manufacturing Magnetic Stirrer due to our sea experience. We are fully efficient in delivering Magnetic Stirrer under stipulated period, under most competitive price. We also have a separate quality assurance department to ensure that what ever moves out of our manufacturing unit is to the best of out standard. We are among leading Laboratory Magnetic Stirrer Manufacturers and Exporters. Ideal equipment for stirring high viscous liquids with preheating. Temp. control: ±1° C Temp. range: up to 300° C Max. stirring : 1 lit. cap. X 4 Variable speed :60-1200rpm Electronic speed regulator: 50-1500rpm Power consumption : 500W

High Temperature Oil Bath manufactured by us is facilitated to take high temperature of heat. This Digital High Temperature Oil Bath are double walled body. The gap between the double walled is filled with wool to minimize the heat thus produced. Temperature is controlled by proportional digital indicating controller. This wide range of High Temperature Oil Bath is available in compatible prices; this has been possible due our years of experience and research. We are one of the oldest and most reputed High Temperature Oil Bath Manufacturers.

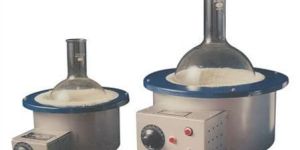

RAAGAA Electric Heating Mantle is a quality laboratory heating instrument, which is manufactured from high quality of material, so to deliver it a longer like. The heating device used in Flask Heating Mantle is of good quality. Currently we are supplying to many laboratories and hospitals. With our experience of more than 3 decades has taught us a lot about bringing new and new improvisation in Laboratory Heating Mantle, making them more perfect with time. We are currently numbered among some of the most renowned Heating Mantle Manufacturers and Suppliers. General FeaturesDesigned on the model of Electro-thermal Engg, LTD. U.K.Manufactured to rigid international specifications and standards Close proximity of the heater to the container ensures perfect heat transfer.Highly polished aluminium housing prevents mechanical damage to the heater and flaskSafe element temperature of 450C operating at Black heat conditionsFunnels and Flasks with bottom drain of can be conveniently heated Resiliency of glass fabric permits use of flasks of normal capacity irrespective of makeWell designed panel box prevents damage to electrical accessories occurring due to heat radiationSuitable replacement by highly skilled and experienced engineer under rigid quality controlCan be handled by unskilled staff.Application Heating mantles are extensively used in laboratories and industries in carrying out operation like distillation digestion fraction etc particularly when inflammable liquids like organic solvents are used. These also find wide range of application in research institution quality control laboratories of chemical and pharmaceutical industries etc.

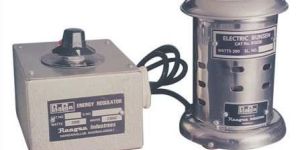

We manufacture Electric Bunsen, which is available in stainless steel construction. This Laboratory Electric Bunsen has a wide application as it can be used in most routine laboratory work. It is designed in a way that this apparatus can be used for evaporation of solution in china dishes and also for purposes like heating test tubes crucibles small flasks beakers immaterial of their shape. We are currently regarded in among some of the most renowned Electric Bunsen Burners Manufacturers in Tamilnadu.Special Features Stainless Steel ConstructionElectrically operatedGives no flame or smokeProduces radiant heatElement temperatures of 800C - 1000C.

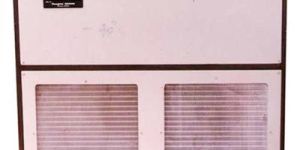

The Deep Freezers, we manufacture are quick freezing and storing component for blood, serum, vaccines, they are widely used in many hospitals and laboratories. Our product can store sample at low temperature of -20 C to -30 C. Low Temperature Deep Freezers are manufactured from selected component like fan cooled condenser. Superior insulating system and specially designed refrigerated system so as to make them ideally suitable for use in Laboratories and research institutes. Constructed of double walls, the exterior is made of sheet steel and the interior of stainless steel. The door gasket keeps the door sealed a gained warm air and moisture. They are highly quiet in functioning. Temperature is controlled by digital indicating controllers. Due to the manufacturing of quality products, we are regarded as one of the renowned Laboratory Deep Freezers Manufacturers & Exporters.

We manufacture RAAGAA, Constant Temperature Water Bath, which is primarily a viscosity determination instrument. These machineries are full automatic and are highly accurate, as much as better then 0.01C, backed by PT100 sensor system. The Electric Constant Temperature Water Bath is made from selected thick grade brass SS sheet heavily nickel plated to withstand corrosion. It has wide applications like; it can be applied in general laboratory routine tests kinetic studies and so on in universities educational institutions etc. our products have been the first choice among customer in India. Description The working chamber made out of selected grade thick brass SS sheet heavily nickel plated to withstand corrosion is mounted in a pressed aluminium cabinet with proper air gaps to avoid heat losses due to conduction. The inner tank is with toughened glasses mounted on silicone rubber gaskets. The exterior cabinet is properly recessed to accommodate outer glasses to minimize transfer of heat to the bath media. The circulation stirrer unit accommodated near the heaters in a separate compartment separated by a wire arrangement make the bath obstruction free for use. The control devices are suitably mounted to withstand heat etc.separate compartment separated by a wire arrangement make the bath obstruction free for use. The control devices are suitably mounted to withstand heat etc. It is available in 12, 28 & 40 litres capacity.

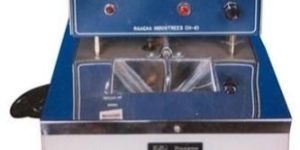

Circustat, manufactured by RAAGAA, industries are best regarded for their accuracy, which is to control with in the range of 5 degree above ambient to 90 degree. The Circustat, we deliver is of double walled construction. The heating is provided by means of two heating element thermostat heater and other by means of auxiliary heater. These machines are technical the most advance and we have tried to bring in best technology in them, probably that̢۪s why we regarded as one of the most reputed Circustat Circulation Thermostat Suppliers in India. Features : Solid state controlAccuracy of temperature better than 0.05CPump capacity of 3 to 4 Ltrs per minuteBuilt in Cooling Coil Application It is a universal laboratory apparatus designed for carrying out work and research at constant temperature with a high accuracy of temperature control within the range of 5 degree above ambient to 90 degree . This is useful for circulation constant temperature fluid through spectrophotometer interface meter etc It is of double walled construction. The tank is of rectangular in shape and is fabricated out the thick stainless steel. The exterior is made out of aluminum sheet and finished in pleasing shade. The heating is provided by means of two heating elements one as thermostat heater and the other as Auxiliary heater. The thermostat heater is controlled by a contact thermometer in conjunction with a solid state relay mechanism. The Auxiliary heater is used for quick heating and it has step less heat the control. This is also made use of as a permanent heater depending upon the temperature set as the wattage is variable the accuracy of the bath is controlled very closely. The top lid accommodates the pumping unit contact thermometer circulating cooling coil and a set of concentric rings to accommodate specimens. For working upto 5 degree C below ambient cold water can be circulated through the built in cooling coil provided.The control box is fixed to a side and it has pilot lamps for Mains. Thermostat and Control switch for Auxiliary Heater. Specifications Temperature Range: 5 degree above ambient to 90 degree Accuracy of Temperature control: Better than +0.5C Tank capacity: 5 Liters Material of construction Inner tank: Stainless Steel Pump out put: 3 to 4 ltrs/min Mains: 230 / 240 V AC 50 C/s Wattage: 750W (Approx).

This specially designed RAAGAA product has become a land mark in the domain of Chilled Water Circulator. In its built it has two structures an inner chamber made of SS and outer chamber made of aluminum, mounted on a sturdy angle iron frame. It is also equipped with a refrigeration system consisting of hermetically CFC free sealed compressor. It is also equipped with Thyristor based proportional digital indicating controller with PT 100 sensor. We are among most reliable Ultra Cryostat Circulator Manufacturers and Chilled Water Circulating System Exporters
