Rajsri Instruments International Pakkam, Chennai, Tamil Nadu

Nagman is a 4 decade old organisation dedicated to the cause of Instrumentation, serving industries in India & worldwide thro’ their Calibration Products & Services and Temperature Sensors. Nagman’s infrastructure & facilities (Manufacturing, Quality Assurance & Calibration), skills & capabilities (with respect to Design & Applications Engineering) are widely recognized (& accepted) by leading project consultants executants & major industries.

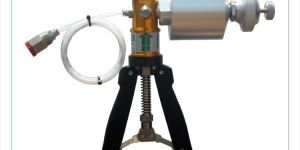

Compact, Light Weight, Hand Operated • Combined Vacuum & Pressure Pump with Pressure Vacuum Changeover option • Generation (Range) of : Pressure upto 60 bar; Vacuum upto 0.9 Bar Fine Adjustment Vernier to realize upto 1 mBar Resolution Sensitivity • Very Low Leakage rate • Flexible Nylon Hose (1 Meter) with Swivel Adaptor to connect devices under test • Test Connection Port : 14″ (F) BSP Gauge Indicator Connection Port : 38” (F) BSP

Compact, Light Weight, Hand Operated • Combined Vacuum & Low Pressure Pump with Pressure Vacuum Changeover option • Generation (Range) of : Pressure Upto 2 Bar; Vacuum Upto 0.9 Bar • High Sensitivity Resolution Fine Adjustment Vernier with built-in Volume Chamber to realize High Resolution Sensitivity of around 0.05 mBar (0.5 mmWC) • Very Low Leakage rate • Flexible Nylon Hose (1 Meter) with Swivel Adaptor to connect devices under test • Test Connection Port : 14″ (F) BSP Gauge Indicator Connection Port : 38” (F) BSP

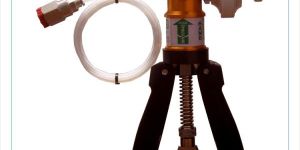

Compact, Light Weight, Hand Operated • Combined Vacuum & Pressure Pump with Pressure Vacuum Changeover option • Generation (Range) of Pressure upto 10 25 35 40 bar; Vacuum upto 0.9 bar • Fine Adjustment Vernier to realize upto 1 mBar Resolution Sensitivity • Very Low Leakage rate • Flexible Nylon Hose (1 Meter) with Swivel Adaptor to connect devices under test • Test Connection Port : 14″ (F) BSP; Gauge Indicator Connection Port : 38” (F) BSP

Compact, Light Weight Unit with Holster • Capability to Measure & Simulate DC Voltages, DC Current, Frequency, Resistance, Thermocouples & RTDs • 5 digits display of Measurement & 6 digits display for Simulation • Dual LCD with white LED for backlight • Measurement & Simulation of : DC Voltages : 50 mV & 500 mV & 5 V in Measurement Mode 100 mV, 1V & 10V in Simulation Mode DC Current : 50 mA in Measurement Mode; 20 mA in Simulation Mode Resistance : 500 Ω & 5 KΩ in Measurement Mode; 400 Ω, 4 KΩ & 40 KΩ in Simulation Mode Thermocouples : R, S, B, E, K, J, T & N

Compact, Light Weight Unit with Holster • Capability to Measure & Simulate DC Voltages, DC Current & Frequency • 5 digits display of Measurement & 6 digits display for Simulation • Dual LCD with white LED for backlight • Measurement & Simulation of : DC Voltages : 200 mV, 5 V & 50 V in Measurement Mode 1000 mV & 10 V in Simulation Mode DC Current : 50 mA in Measurement Mode; 20 mA in Simulation Mode Frequency : 50 Hz, 5 KHz & 50 KHz in Measurement Mode 100 KHz, 1 KHz & 10 KHz in Simulation Mode

Compact, Light Weight Unit with Holster • Capability to Measure & Simulate DC Voltages, Resistances, Thermocouples and RTD • 5 digits display of Measurement & 6 digits display for Simulation • Dual LCD with white LED for backlight • Measurement & Simulation of :RTD Types : PT100, Pt200, Pt500, Pt1000, Cu10 & Cu50 Resistances : 500 Ω & 5 KΩ in Measurement Mode; 400 Ω & 4 KΩ in Simulation Mode

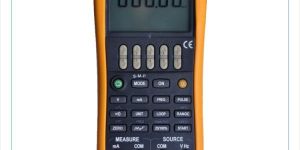

Compact, Light Weight Unit with Holster • Capability to Measure & Simulate Current Readings • Capability to provide Loop Supply (24V) for Transmitters

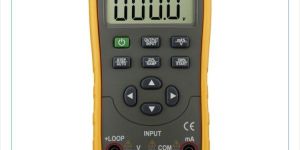

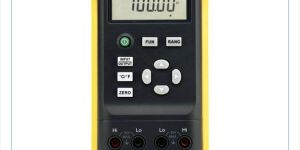

Compact, Light Weight Unit with Holster • Selectable Temperature Output Readings (in °C °F) • Measurement & Simulation of RTD Types :Pt100 -200 to 850°C; Cu50 -50 to 150°C Resistance : 400 Ohms

Compact, Light Weight Unit with Holster • Selectable Temperature Output Readings (in °C °F) • Measurement & Simulation of Thermocouple types R, S, B, E, K, J, T & N Voltage – 1 V Simulation, 100 mV Measurement

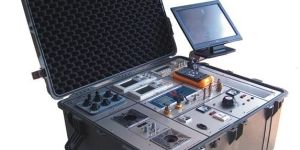

Dry Block Temperature Calibrators (2 Nos.) Range : -35 from Ambient to 123°C & 50 to 350°C — Function Generator — 5½ digit Digital Multimeter — Process (Multifunction) Calibrator — Decade Resistance Box — Variable AC & DC Power Supply for Units Under Test — Integrated Interfaced with CPU & foldable Touch Screen Monitor, CALMAN Plus – Calibration Management Software for Automatic Semi-Automatic Test Calibration routines; Data Collection Storage etc.

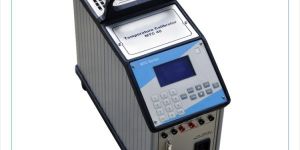

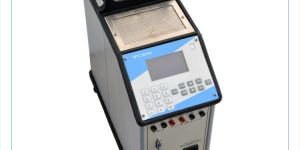

Range : -40°C from Ambient to 123°C • Accuracy : ±0.3°C • Advanced – Micro-controller based Technology • Heavy Duty Portable Bench-top Model • High Accuracy, Resolution & Stability • Fast & heat cooling • 128 x 64 Graphic Display • Measurement Capability for RTD, mA & Resistance Signals • Touch Membrane Keypad • Switch Test Contact Measurement

Range : 50°C to 350°C • Accuracy : ±0.4°C • Advanced – Micro-controller based Technology • Heavy Duty Portable Bench-top Model • High Accuracy, Resolution & Stability • 128 x 64 Graphic Display • Measurement Capability for TC, RTD, mV mA V & Resistance Signals • Touch Membrane Keypad • Switch Test Contact Measurement

Advanced – Micro-controller based Technology • Heavy Duty Portable Bench-top Model • High Accuracy, Resolution & Stability • 128 x 64 Graphic Display • Measurement Capability for TC, RTD, mV mA V & Resistance Signals • Switch Test Contact Measurement • Touch Membrane Keypad • Interchangeable Thermowell Insert • RS-232 Interface & Calibration Software

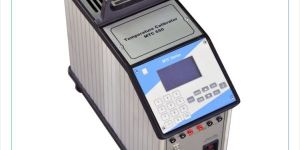

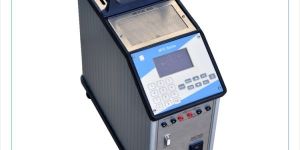

Range : 50°C to 650°C • Accuracy : ±0.6°C • Advanced – Micro-controller based Technology • Heavy Duty Portable Bench-top Model • High Accuracy, Resolution & Stability • 128 x 64 Graphic Display • Measurement Capability for TC, RTD, mV mA V & Resistance Signals • Touch Membrane Keypad • Switch Test Contact Measurement • Interchangeable Thermowell Inserts, Single Multi-hole • RS-232 Interface & Calibration Software

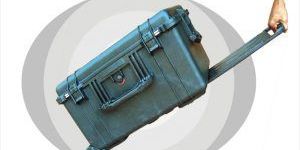

Temperature, Pressure andor Electrical & Electronics Modules mounted in rack, placed inside Mobile (sturdy) Trolley case, ready for use as Table-top Unit or for FieldSite Calibration.

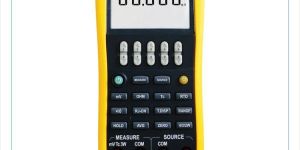

Compact & Portable • Capability to Measure & Simulate DC Voltages, DC Current, Resistance, Thermocouples & RTDs • 128 x 64 Graphic Display with backlight • Measurement & Simulation of : DC Voltages (200 mV, 2000 mV, 20 V) DC Current (50 mA) Resistance (400 & 4000 Ω ) Thermocouples (K, J, R, B, N & S) RTDs (Pt100, Pt200, Pt500, Pt1000) • Reference Junction Compensation : Internal Automatic from 0°C to 50°C; External Adjustable from 0°C to 60°C • InOut Data Memory : 20 Values can be stored manually

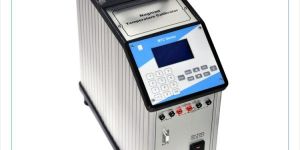

• Range : 50°C to 650°C • Accuracy : ±0.4°C • Advanced – Micro-controller based Technology • Heavy Duty Portable Bench-top Model • High Accuracy, Resolution & Stability • 128 x 64 Graphic Display • Measurement Capability for TC, RTD, mV mA V & Resistance Signals • Touch Membrane Keypad • Switch Test Contact Measurement • Multi-hole Thermowell Inserts • RS-232 Interface & Calibration Software • Count down timer (Shows when unit is stable) • Stability Indicator

Range : -10°C to 120°C • Accuracy : ±0.2°C • Advanced – Micro-controller based Technology • Heavy Duty Portable Bench-top Model • High Accuracy, Resolution, Uniformity & Stability • Large Graphic Display (Multi-information Display) • Measurement Capability for TC, RTD, mV mA V & Resistance Signals • Touch Membrane Keypad • Switch Test Contact Measurement • Multi-hole Thermowell Inserts • RS-232 Interface & Calibration Software • Count down timer (Shows when unit is stable) • Stability Indicator

For Primary Interface & Total Liquid Testing & Calibration of various Types Models of Level Measurement (& Control) Devices including Float Displacer Radar Capacitance Ultrasonic Magnetic – both Inbuilt & External Chamber types. Skid Mounted Platform with Drift Tray & Lifting Lugs Heavy Duty with Extended Features & State of the art design Ranges : 1000, 1500, 2000, 3000, 4000 & 5000 mm Calibration Accuracy : ±0.05% F.S. or better (Min. 1 mm) Precise Magnetrostrictive Type Reference Level Transmitter Laser Zero Datum Setter (Transmitter & Receiver) Transparent Perspex Chamber Test Chamber with Inlet, Drain & Overflow Connections for housing External Type Level Devices Instruments for Calibration against the Standard Reference Chamber with Master Probe.

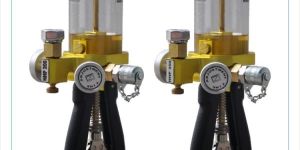

Compact, Light Weight, Hand Operated • Ranges : Upto 200 350 Bar (3000 5000 PSI) • Fine Adjustment Vernier with Open Close Release Valve for small incremental Pressure readings • Test Connection Port : 14″ (F) BSP Gauge Indicator Connection Port : 14” (F) BSP • Medium : Oil (optional : Water) • Oil Reservoir Material : Transparent Acrylic • Reservoir Capacity : 100 cc

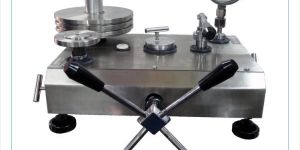

Engineering Units : Bar KgCm2 PSI (Kpa & Mpa also available). • Adjustable Foot & Spirit Level • Piston Calibrated thro’ “Cross Floating Techniques” • Calibrated to Standard Gravity (Optional : Calibration to Local Gravity as per Customer’s requirement) • Accuracies Traceable to International Standards • Non-Magnetic Stainless Steel Weight Sets

Piston Calibrated thro’ “Cross Floating Techniques” • Calibrated to Standard Gravity (Customer specific Gravity adjustment can also be done optionally) • Accuracies Traceable to International Standards • Non-Magnetic Stainless Steel Weight Sets • Calibration Certificate – for overall Accuracy + PCU (Area) + Weights (Mass) from NABL Accredited Lab – as per ISOIEC 17025:2005

Type : Tester

Certification : ISO 9001:2008 Certified

Application : Industrial Use

Color : Sky Blue

Feature : Easy To Use

Condition : New

Automatic Grade : Semi Automatic

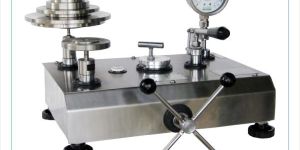

• Ranges : Upto 700 Bar • Accuracy : ±0.025% of Reading • Single Dual Piston • Oil operated • Engineering Units : Bar KgCm2 PSI • Adjustable Foot & Spirit Level • Piston Calibrated thro’ “Cross Floating Techniques” • Calibrated to Standard Gravity (Customer specific Gravity adjustment can also be done optionally) • Accuracies Traceable to International Standards • Non-Magnetic Stainless Steel Weight Sets • Calibration Certificate – for overall Accuracy + PCU (Area) + Weights (Mass) from NABL Accredited Lab – as per ISOIEC 17025:2005
