RASCI INSTRUMENTS Balaji Nagar, Chennai, Tamil Nadu

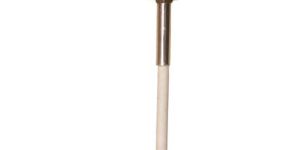

High Temperature Thermocouple Type ‘K ‘ up to1200°C, ‘S’ up to1600°C, ‘B’ up to1800°C Available range of 0 to 1800 ºC. assemblies find applications in temperature measurement of Furnace, Oven and other High Temperature Application of corrosive or non-corrosive nature. High Temperature Pressure assemblies with SS thermo wells and weld on flanges are offered on request. A wide Variety of designs, diameters, lengths and materials of sheaths ( ceramic SS) can be offered along with standard designs. High precision test Thermocouples duly calibrated from recognized test laboratories. Available with Aluminum Head with IP 65 weather proof or Flame proof.

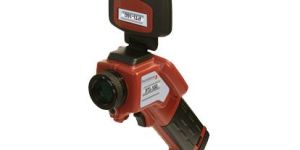

are easy-to-use thermographic cameras which offer an optimal priceperformance ratio. Equipped with an integrated high-performance UFPA detector, these cameras are quickly ready for use and deliver sharp, accurate thermal images for on-site problem analysis.cameras are unique measuring instruments and feature automatic hotspot detection, up to 4 moving measurement points, a discernable acoustic alarm signal, an integrated laser pointer and close focusing distance from 0.1m to infinity.

Accept input RTDs, Thermocouples, Voltage , Current Process – Temperature , Pressure, Humidity ,Level Flow,Co2, Air velocity, Diff pressure etc … 1000 Readings Per channel Memory with RTC Display Range -1999 to 9999 counts Real time, Print time ,Offset , Input , Range selectable Available with Large display sizes 2” and 4” Communication RS232,RS485, USB and Direct Printer port TFT Display Sizes 5.7”,7.5”,9.2”,15” with 1 …80 channels available.

Size : 5.7”,7.5”,9.2”,15” with 1 …80

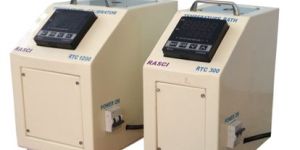

calibration bath outer fabrication of Mild steel with powder coated The RTCH are insulated with high alumina insulation brick work Followed by and ceramic fiber mat to reduce the radiation heat loss to Minimum This is suitable for thermocouple and Rtd sensors calibration Meth od of master Comparison.High accuracy temperature controller With Tyristor based control circuit.

All temperature HumidityPressure Indicating and recording systems, Heat treatment Furnace , Oven, Cooling Chamber , molding , packing machine , AC , refrigerator , Room environment etc,Optional for with and with out Display Also available single pen and 23612 point ( Input) Operating Voltage 110 VAC or 230 VAC Chart speed 20 mm hour and up to 200 mm hour optional Chart Size 120mm or 180 mm , pen and multi color ribbon External power supply for transmitter optional Cutout size : 208 X266 mm.

Voltage : 110 VAC or 230 VAC

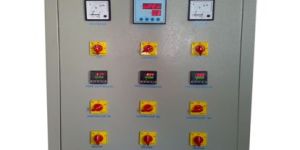

Control Controller Accept input RTDs Thermocouples Three Phase Mains Operated Three single Phase Control Output Control Device Contactor or Solid state Relay or Tyristor Capacity available 254070100120 A Fabricated wit Stainless Steel or MS with Powder Coated Temperature Range 50 to 1200 º C.

.The RTCL are insulated with ceramic fiber mat to reduce the radiation Cool loss to Minimum This is suitable for Low Temperature Sensor, Indicator and Rtd sensors calibration Method of master Comparison. High accuracy temperature controller With Tyristor Contactor based control circuit. The RTCL Cooled by High Quality Compressor and Maintain Temperature use Heater .Insulation with high quality superior quality Insulator.

Temperature : -80 °C ,-40°C, -20°C … 50°C

thermocouple and RTD Compensating Cable for thermocouple Type J , K, N, S, B Insulation type PVC, Teflon, Fiber ,SS shielded with 2 wire for RTD type Pt 100, Pt500,pt1000 insulation Teflon, Fiber, SS shielded with 2 wire, 3wire and 4 wire , Duplex cable also available Use proper compensating cable avoid temperature loss . Also available with thermocouple RTD and compensating connectors Customized cable also available.

Oven outer fabrication of Mild steel with powder coated Inter space in between the walls is tightly packed with special grade glass wool. Inner chamber accommodates perforated stainless steel Trays at adjustable heights. Insulated double walled door in the front is Provided with high quality locking arrangements. This is provided with single Door with 100 mm thick glass wool insulation mounted. Heavy Duty air circulation fan for maintain the uniformity . The oven heated by nichrome strip Heater.

Control mode onoff and Time proportional, Hysteresis, Time, Proportional , Offset Selectable , Dual Display ( PVTime) with Dual Relay Output, Control set Point can be set feather touch keys, Power supply 230 VAC mains operated.

Transmission OP (DualSingle): Linear current (4 20 mA) or voltage (0-10VDC),Re transmission accuracy: 0.2%FS± 1 Digit,Customized Transducer as per your application, Other features: Input calibration ( zerospan), humidity:

Process Indicating systems for institutes, Industries ,mapping , Heat treatment Furnace , Oven, Cooling Chamber , molding , packing machine , AC , refrigerator , clean Room environment , online pressure , humidity etc.110VAC supply, controlAlarm output, wire Gland , Jumbo Display, with Flame Proof RTDs , Thermocouples, Transmitters , universal Power supply , Space mounting, Retransmission output 4-20mA and loop powered indicator etc.

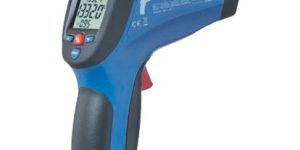

Dual laser targeting, Automatic data hold Direct K type Thermocouple input -50℃ to 1370℃ Measure Temperature -50.0 to 999.9 °C …2200°C ( -58 to 3992° F) , Response less than 150 msec White backlit LCD display, Over range indication High temperature, Max, Min, DIF, AVG record HighLow alarm, trigger lock, Adjustable Emissivity Adjustable 0.10~1.0, IR Accuracy ±1.0% of reading 9 VDC battery operated - Alkaline Battery for long life Standard Two pin omega female connector for Thermocouple Optional Portable Handy Thermocouple with Two pin omega Connector.

digital pressure gauge for positive, negative, and differential measurement designed to be a direct replacement for mechanical gauges. Mounts in Industry standard Holes, 5 selectable engineering units. The A1 features a bright ½" LED display. optional 4-20 mA output for applications requiring.

Accuracy : ± 1 %

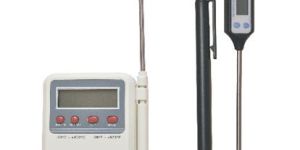

Thermometer along with stainless steel sensor Probe Measure Temperature -50.0 to 199.9 °C…300°C ( -58 to 572 ° F) , 1 sec normal Temperature sensing time Auto Resolution and Unit °C°F Selectable 3 ½ Digit liquid crystal display ( LCD) with Maximum Display Reading of 1999 counts Standard 9 VDC battery , 200 Hours Battery Life Hold max min, onOff, hilow alarm switches Water proof with 1.5 VDC battery operated Auto power off and low batter indication.

Transmission OP (DualSingle): Linear current (4 20 mA) or voltage (0-10VDC), Customized Transducer as per your application,Other features: Input calibration ( zerospan),Operating ambient: Temp.: 10C~60°C‚ humidity:

Heating Cooling Chamber outer fabrication of Mild steel with powder coated and Inner Fabrication of Stainless Steel .The RHCC are insulated with ceramic fiber mat to reduce the radiation Cool loss to Minimum This is suitable for Low Temperature Process Testing application. High accuracy temperature controller With Tyristor Contactor based control circuit. The RHCC Cooled by High Quality Compressor and Maintain Temperature use Heater .Insulation with high quality superior quality Insulator.

Automatic water and oil Level controller Use mini float and any type of float and limit switch Top water tank control High and low level Option for bottom level control for motor safety We provide motor empty run timer Floats available SS and PVC type with magnetic control Provide LED indication for Motor ON and OFF, water LOW and NORMAL Auto Manual ( By pass) and OFF switches In standard type load 15 Amps , single phase motor optional three phase motor output , size : 192X110X65 mm.

Size : 192X110X65 mm

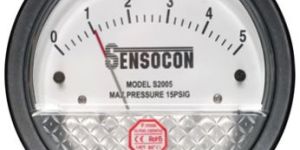

differential pressure gauge for positive, negative, and differential pressure measurement of air and compatible gases. Available pressure ranges from 0-0.25" up to 0-100" w.c. Mounts in Industry standard Holes Die cast Aluminum Housing Measure duct static pressure, room pressure fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many.

Accuracy : ± 2 %
