Rinco Ultrasonics India Pvt Ltd Thirumudivakkam, Chennai, Tamil Nadu

As a principle our standard machines are equipped with an hydraulic lifting table. Depending on the machine size a contact force of up to 70 kN can be applied. This is necessary for large suction pipes made of PA 6.6 GV30 with heavy distortion or very large welding surfaces. Since many years all our vibration welders are fitted with our patented CPC system. This kind of regulation which is integrated in the converter stimulates the vibration unit with optimal resonance frequency. Thus, a low energy consumption is guaranteed during the friction phase. It is not necessary to enter the frequency parameter in the machine, as it is permanently “optimized”. Thus, the KLN drive systems are independent from the tool weight. The tool weight is solely limited in height, caused by the mechanical design and the high accelerating powers arising in these systems. The integrated frequency regulation and a specially developed hardware allow also for extremely quick start of vibration and active braking at the end of the vibration process.

For the assembly of plastic parts, which differ in size and condition and would therefore not be suitable for standard machines, we recommend the use of special equipment with several ultrasonic units for ultrasonic welding and…

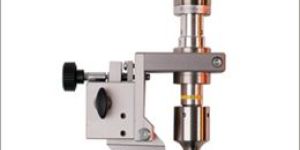

The 35 kHz ultrasonic hand welding units are suitable for manual welding and cutting operations from small to medium size. The ultrasonic hand welders with an operating frequency of 35 kHz are suitable for use in manual welding for welding, spot-welding, riveting and forming thermoplastics and for cutting, welding and spot-welding technical textiles. The hand welders can be operated with both an Ecoline generator and an RDG generator or SDG generator.

Ultrasonic welding generator ACU The ultrasonic welding generator ACU is designed for the operation of ultrasonic welding machines of the Dynamic Series.

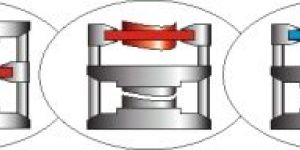

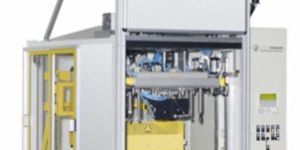

The TOOLMASTER Semi-Automatic is also operated with a "sandwich" tool. The sandwich process is carried out at closed machine doors. The manual part of the exchange is restricted on the transfer of the sandwiches from the transport trolley into the machine. Within 10 minutes the retrofitting is over.

Upper tool, hot plate element and lower tool are brought together in the machine fully automatically by pressing a key, brought into parking position as "sandwich" and depending on the application moved to the pre-heating station or set ready for unloading.

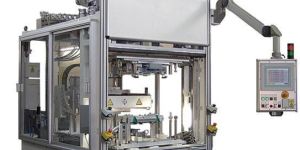

The KLN „TOOLMASTER“ series for hot plate welding is widely used in the automotive industry and in many plastic-processing plants. Basically the TOOLMASTER versions vary by their tool design, their size of useable surface and the degree of automation. All versions are suitable for high temperatures and optionally equipped with fire protection engineering, which quickly separates the tool in case of energy drop or timeout. Apart from this product range we also manufacture special machines adapted to your individual requirements.

details : operable with rdg, sdg and adg generators as well as with an agm generator in combination with an external controller travel measurement, trigger / trigger potentiometer and depth detecting stop optionally retrofit designed for integration into special purpose machines compact construction rugged design for maximum durability .

Type : Automatic

Material : Aluminum, Brass

Pressure : Medium Pressure

Structure : Butterfly

Certificate : CE Certified

Port Size : 1inch, 2inch

Number Of Way : 2way, 3way

We offer hand welding machine. The 35 khz ultrasonic hand welding units are suitable for manual welding and cutting operations from small to medium size.

The generators are designed for the control of ultrasonic welding machines.

We offer multi head spm. In the field of plastic assembly techniques kln concentrates on five main procedures: ultrasonic welding, vibration welding, hotplate welding, infrared welding, spin welding and thermal procedures.

Machines of the "Easy Series" allow for welding operations of thermoplastic parts in two different frequencies.

We are leading supplier of huge range of vibration welding machine.

One of the best leading supplier of Equipment.

In the field of plastic assembly techniques KLN concentrates on five main procedures: Ultrasonic welding, vibration welding, hotplate welding, infrared welding, spin welding and thermal procedures. For these procedures we supply the complete product lines:Full series of standard machines, special equipment, tools, tooling exchange cells, robot automation, combined equipment and periphery devices.
