Worm Gear
A gear consisting of a spirally threaded shaft and a wheel with marginal teeth that mesh into it. The toothed wheel of this gear; a worm wheel. Product Code : SAMS DYN - 014
...more

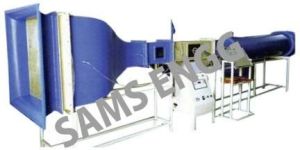

wind tunnel
This is an open circuit Wind Tunnel which provides a region of controlled airflow into which models can be inserted. The propulsion is provided by a fan at downstream of working section. The tunnel consists of bell mouth shaped entry to guide the air smoothly into settling chamber consisting of honeycomb and nylon mesh screens which filters and stabilizes the air flow. This follows working section or test section where various models can be tested. Product Code : SAMS AE - 001
...more
WHIRLING SHAFT
In a rotating shaft at which instability occurs is called whirling or critical speed. When shaft reaches critical speed it will have maximum deflection. It is applicable in power transmitting equipments like turbine, propeller shafts, etc. Product Code : SAMS DYN - 004
...more
WERE TEST RIG
It is essential to decide the wear rate at design stage, in doing so it is necessary to develop such an equipment which will serve the purpose of material testing. The purpose of friction and wear test Product Code : SAMS DYN - 032
...more
Weather Station Forecast
Indoor Temperature Range : 32 to 122 degrees Fahrenheit; 0 to 50 degrees Celsius Temperature Accuracy : +/- 2 degrees Fahrenheit Product Code : SAMS ARCH - 003
...more

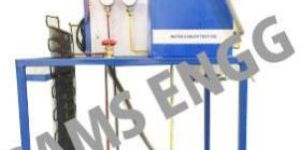

Water Cooler Test Rig
Compressor : Hermetically sealed compressor having cooling capacity of (as per water cooler) Condenser : Air cooled condenser made up of copper pipe & Aluminum fins Thermostat : 5 degree C to 15 degree C Voltmeter : 0-300 V Product Code : SAMS R/AC - 009
...more

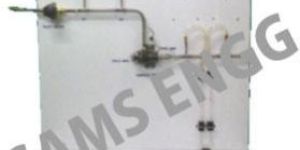

Vortex Tube Test Rig
The Vortex Tube Test Rig is one of the non- conventional methods of cooling which has no moving parts. It requires only source of compressed air. Through this tube, when air is admitted at high pressure, from one end, hot sir is discharged and from the other end, cold air comes out. The test rig is designed such that all the performance can be evaluated. Product Code : SAMS R/AC - 00
...more

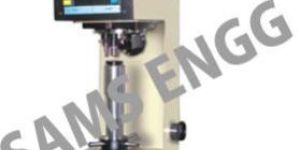

vickers testing machine
SAMS Vickers Hardness Tester is a simple and accurate means to produce and measure the diamond indentation.
...more

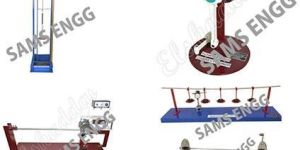

Vibration Test Facilities Apparatus
The apparatus is designed to help in conducting various experiments to illustrate and verify the principles and relations involved in the study of vibrations. Following experiments can be performed with this unit. Product Code : SAMS DYN - 007
...more
Vibrating table
o determine transmissibility of forced vibrations and to analyze all types of Vibrations with its frequency and amplitude Motor:1/6 HP, Speed:2800 Rpm With Digital Rpm Indicator,Dimension:L B H 1000 X 700 X 950 Approx, Overall Weight:60 Kg (Approx) Product Code : SAMS DYN - 006
...more

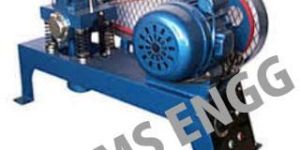

Vibrating Machine
Conforming to the specifications and tolerance in accordance to I.S.-4031. Suitable for proper vibration of mould 70.6mm. Suitable to work on 220/230 Volts, single phase A.C.supply, with endless belt and coiled springs, Product Code : SAMS CVL - 008
...more
Vertical Universal Milling Machine

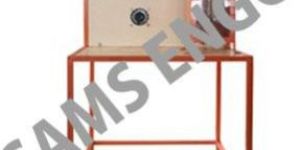

VERTICAL CYLINDER APPARATUS
It is designed to study the temperature distribution along the length of a vertical pipe in natural convection. The unit consists of a vertical brass pipe heated by a cartridge heater inside it. It is fitted in an enclosure to provide undisturbed natural convection currents. Thermocouples are attached on the pipe to measure local temperatures. Heater input is measured on voltmeter and ammeter. Product Code : SAMS HTL - 003
...more
Vernier Transit Theodolite
Accuracy : 20 sec

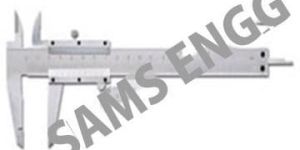

Vernier Caliper
Specification : Measuring range of 0-150mm/6", 200mm/8", 300mm/12", 600mm, 1000mm. Vernier reading of 0.05mm/.001"
...more

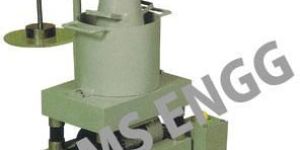

VEE-BEE CONSISTOMETER
Conforming to the specifications and tolerance in accordance to I.S.-1199 used for the determination of the workability of the concrete. The concrete is deform in a container and is vibrated after removing the cone on a small vibrating table operated at a fixed amplitude and frequency operation 220 Volts single phase A.C.supply Product Code : SAMS CVL - 009
...more
VARIOUS MECHANISMS
A four-bar linkage, also called a four-bar, is the simplest movable closed chain linkage. It consists of four bodies, called bars or links, connected in a loop by four joints. SINGLE SLIDER CRANK MECHANISM : When one of turning pairs of a four bar chain is replaced by sliding pair, it becomes a single slider crank chain DOUBLE SLIDER CRANK MECHANISM : The double slider-crank linkage has four links joined in a kinematic chain consisting of two revolute joints and two sliding or prismatic joints Product Code : SAMS DYN - 008
...more
Petrol Engine Test Rig
The setup consists of single cylinder, four stroke, VCR (Variable Compression Ratio) Petrol engine connected to eddy current type dynamometer for loading. The compression ratio can be changed without stopping the engine and without altering the combustion chamber
...more
Diesel Engine Test Rig
The setup consists of single cylinder, four stroke, VCR (Variable Compression Ratio) Diesel engine connected to eddy current type dynamometer for loading. The compression ratio can be changed without stopping the engine and without altering the combustion chamber
...more
Valve Re-facing machine
We are suppliers of Valve Grinding Machine. By using this machine we can perform grinding process for engine valve seat area. Product Code : SAMS AUTO - 007
...more
Unsymmetrical Bending Apparatus
Apparatus consists of a mild steel angle of size 1" X 1" X 1/8" or an equivalent metric units of length 80 cm is tied as a cantilever beam. The beam should be fixed at one end such that the rotation of 45degree intervals are given and clamped such that the principal axis of its cross-section may be inclined at any angle with the horizontal and vertical planes. Also arrangement will be provided to apply vertical load at the free end of the cantilever and to measure horizontal and vertical deflection of the free end. Product Code : SAMS AM - 009
...more
UNIVERSAL VIBRATION SETUP
To verify the relation simple pendulum. To verify the relation of compound pendulum & to determine the radius of gyration. To study radius of gyration of bi-filar suspension. To study the undamped free vibration of spring mass system. Product Code : SAMS DYN - 031
...more
Universal Milling Machine
Universal Force Table
It consists of cast aluminum plate of 400 mm dia. graduated in 360 degrees. The table is fitted on a case iron stable base with leveling screws to make the table in leveled position. It is possible to fix the table in any desired position. Supplied will six set of brass nickeled slotted weight each set containing nine weights and one hanger of 50 grams. And is complete with six sliding clamping pulleys to fix up the same. Product Code : SAMS AM - 014
...more
Dynamic Balancing Machine
This equipment is designed for carrying out the experiment for balancing a rotation mass system. The apparatus consists of four circular discs mounted on a shaft. The discs are grooved for the attachment of weights at a specific radius. The block are clamped on shaft is rotated by a motor to check dynamic balance of the system. Product Code : SAMS DYN - 005
...more
