Sheet Cutting Machine Dealers in Chennai

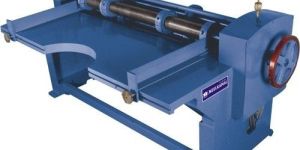

Suitable for cutting and creasing the corrugatedBoards. The machine is fitted with 4 bars (2 in front & 2 in back) front bars are fitted with cutting dies and the rear bars are fitted with creasing dies, side wheeladjustment is provided for increasing and decreasing the height as per requirement.

• Condition: New
• Warranty: 1 year
• Type: Automatic
• Features: Resistance against rust, Quality tested, Longer working life
• Power Source: Electric
• Usage: Industrial

Product Details : The feeding unit adopt vacuum suction lead edge feeding system, increase the feeding speed and decrease the rate of cardboard blocking when using back-kick feeding system. High pressure centrifugal fans auxiliary feed the cardboard to ensure the The absorption force can be adjustable to different cardboard thickness and dimension. Frequency converter control the force, make sure the smoothly feeding .Ultra-thin feeding function, Even 2mm thickness cardboard can be used. Front bar is adjusted manually . Right bar is electrically adjusted. Left bar own the function of pneumatic flapping. Adjusting of the back bar ( left ,right,up and down) is manual, convenient , fast and precise. PLC control, unite control panel on control desk, simple and clear , convenient and swift. The main motor apply the frequency converter controling the speed, start smoothly and adjust the speed according the user. Equipped with the number counter , easy and clear for production. Start with the alarm bell ring, more safety. The wall panel applies supper quality Cast Iron , 50mm thickness, down feeding roller is made by high quality steel with balance alignment and hard chrome plated. Upper feeding roller is covered by wearable rubber , long life span. Flexible channel on the surface of the rubber roller, ensuring the precise of feeding without damage the cardboard. Die cutting roller is objected to balance alignment and hard chrome plate. Supper quality steel. With compensating gear device in phase adjusting, digital display and control with adjusting in 360 degree both running and stop. When feeding ,die cutting roller pneumatic up and touch the rubber roller ; when stop , it automatic down and separate with the rubber roller, saving using time of the rubber roller. The rubber applies Taiwan Youli polyurethane rubber, smooth cutting, and easy installation , can be used for 8000,000 times. Mechanical left and right moving device(40mm) for rubber roller: each cutting in different place, prolong the using life of the rubber roller effectively. Speed automatic compensating device make sure that all the boxes are the same size.The soft roller self-repairing device raising the rate of reuse. All the transmission gears are helical tooth, smooth transmission , little noise, with the materials of supper quality carbon structural steel,after heating treatment and high frequency hardening , HRC45-50, high wearable and long lifespan. Spray lubrication system , simple and effective.

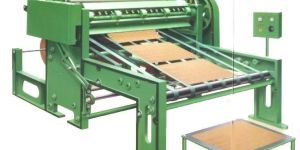

To Trim and Crease the Corrugated Board Simultaneously. The machine is easy to operate & sturdy in construction. The creasing heads & cutting heads can be easily set as required. The platform is provided with 2 side gauges for feeding of the board. Gauges are provided for accurate cutting & creasing. Sizes Available : 65”, 75”, 95” & 105”

We are specialized in offering reliable range of CNC Table Style Thin Sheet Plasma Cutting Machine. This CNC Table Style Thin Sheet Plasma Cutting Machine is highly appreciated for its fast speed, high accuracy plasma cutting machine, which comprises of compact modular construction vital for easy and fast installation CNC table style cutting machine is high speed high accuracy plasma cutting machine which features compact modular construction for easy and fast installation. Fume extraction table is integrated to satisfy environmental requirements. Positive bilateral longitudinal drives and precise machine guiding profiles provide high cutting accuracy and contouring precision. Working width up to 2000mm. Maximum working length up to 6000mm. Positioning speed up to 12000mm/min.Integrated cutting table (max. plate thickness 40mm). This cutting machine is high speed high accuracy plasma cutting machine which features compact modular construction for easy and fast installation. Fume extraction table is integrated to satisfy environmental requirements. Positive bilateral longitudinal drives and precise machine guiding profiles provide high cutting accuracy and contouring precision. Longitudinal and transverse energy feed drag-chains, hose/ cable clean and move smooth.Direct rack and pinion or Ball screw in both axes for accurate and repeatable motion.Plasma Torch height sensing system with rapid initial height sensing.High torque Servo motors of Panasonic, Schnider or Delta brand with brake system & Gear box.An Adtech or Hypertherm controler screen allows entering the program directly on the system or transfer files through USB.Effective width available in 1.5 & 2.0 Meter in standard size. Effective Length available from 3 Meter � 5 Meter. MTC, Sigmanest or Radan variety of software available for programming.Rapid Speed 0mm � 12000mm, Cutting speed 0mm -6000mm.Maximum two torch stations available as per customer requirement.Hiwin or PMI make LM Guides for X & Y axis movement for smooth & precision driving.Suitable for Thin sheet Plasma cutting application.Plasma cutting thickness up to 20mm. Mainly use for sheet-metal cutting thickness (0.9mm-19.00mm), It can achieve high accuracy and high speed cutting. Under a certain condition it can replace laser cutting machine, yet the investment cost will be 1/8 0r 1/10 of laser cutting machine, It�s quite popular during customers. When the machine cuts plate, the distance between cutting torch and steel plate keeps fixed by ARC Voltage controler which greatly improved the cutting quality.

Suitable for cutting and creasing the corrugatedBoards. The machine is fitted with 4 bars (2 in front & 2 in back) front bars are fitted with cutting dies and the rear bars are fitted with creasing dies, side wheel adjustment is provided for increasing and decreasing the height as per requirement.

YAG 500W Sheet Metal Laser Cutting Machine integrates optical, mechanical, and electricity in one, which adopts laser, computer control technology and high-performance CNC laser power system. The cnc laser cutting machine is applied to cut stainless steel, carbon steel, alloy steel, spring steel, aluminum, silver, copper, titanium and some metal plate and pipe. Widely used in sheet-metal structure, high-low-voltage electrical cabinet production, hardware, knife-volume, production of advertising signs, metal crafts, decoration aviation, mechanical parts, electical meter, sawblades, spring-chip and other industries. Features The outside sliding guide ensures fast processing speed, which is especially suitable for the garment and leather industries. Being integrated with more concise frame, this machine is more economical but still have the same excellent cutting and engraving effects. Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, stability and effectiveness. The stainless steel honeycomb platform we adopt, which is breakage-proof, ensures stable focus distance thus good cutting and engraving quality. Original Singapore imported lens with molybdenum base makes the equipment produce smaller facula and stronger cutting force, greatly improving working efficiency and reducing cost. Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipments manufacturing industry for years, extending the life of the laser tube. This machine uses USB port to transmit data, equipped with large-capacity internal memory, improving working speed and efficiency greatly.

• Automation Grade: Automatic
• Body Material: Stainless Steel
• Motor Power (hp): 3 HP
• Weight (kg): 1500 - 3300 kg
• Floor Space (inch): 68x61, 78x61, 88x61, 98x61 Inch
• Size: 45, 55, 65, 75 Inch
• Cutting Length: 20/80, 17/100

• Features: Superior quality , Compact design , Accurate dimensions.

• Voltage: 220-240 V
• Max Cutting Thickness: 10 mm,15 mm,25 mm
• Frequency: 50/60 Hz

• Material: Mild Steel
• Automatic Grade: Automatic
• Power Source: Electric
• Usage: Industrial, Metal Cutting

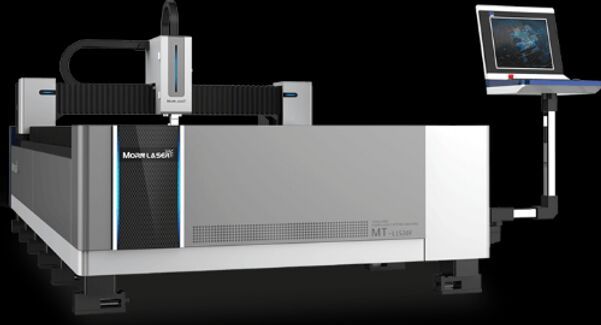

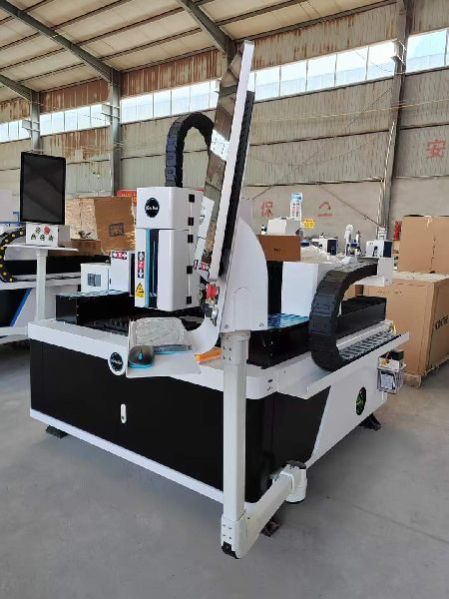

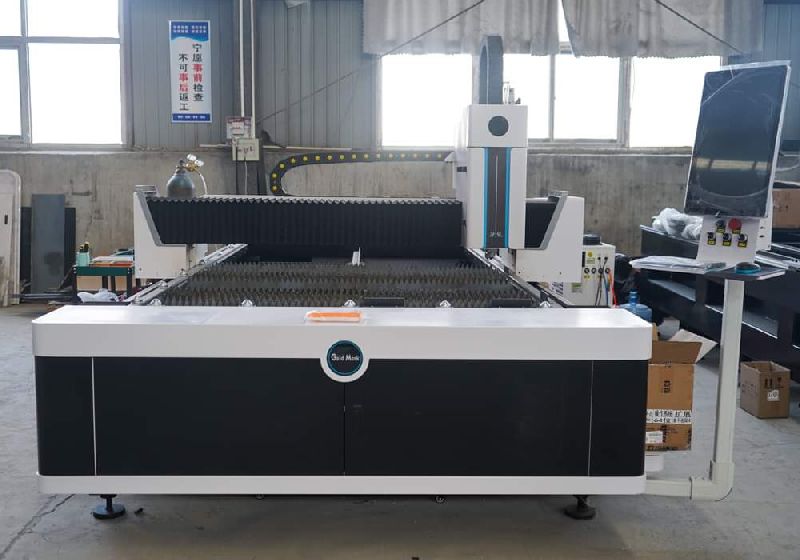

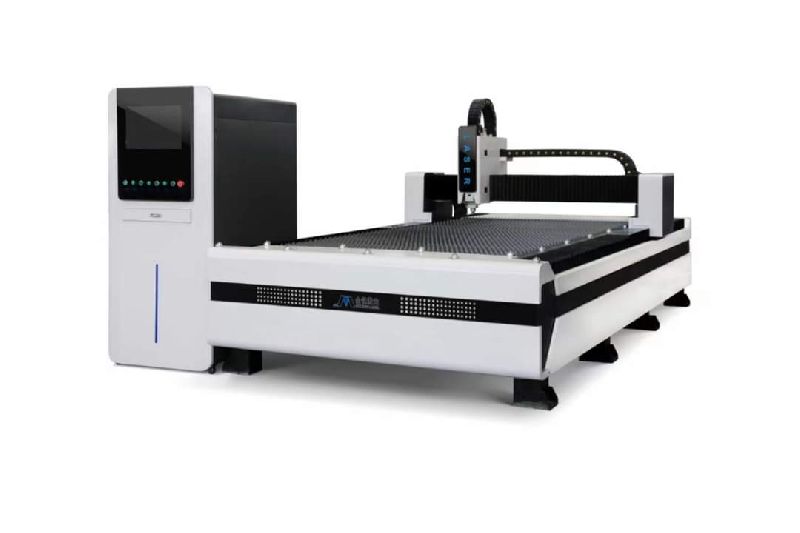

Moon Laser is an economical fibre laser cutter with a small investment that runs at full speed at a low cost. The Economical Sheet Fibre Laser Cutting Machine is a 1000W laser cutting machine specially designed for the advertising industry to cater to the increasing demands of metal advertising products. The economical and practical laser cutter adopts a high-rigidity enhanced lathe bed, an advanced laser source, and top-rated transmission parts to ensure high-performance cutting.

• Voltage: 110V,220V,380V,440V
• Condition: New,Used
• Warranty: 1year,2years,5years
• Automatic Grade: Automatic,Fully Automatic,Manual,Semi Automatic
• Certification: CE Certified,ISO 9001:2008
• Color: Black,Brown,Grey,Light White,Blue,Light Green
• Power: 1-3kw,3-6kw,6-9kw,9-12kw
• Driven Type: Electric,Hydraulic,Mechanical,Pneumatic
• Use: Cutting Metal Sheet

We are the main supplier of this product.

• Material: Mild Steel
• Capacity: 1-3 Ton/day
• Voltage: 220 V
• Table Size: 45" x 55"
• Automation Grade: Semi-Automatic
• rand: MMT
• Model Name/Number: MMT00181
• Cutting Size: 42"
• Frequency: 50/60 Hz

• Max Cutting Thickness: 16mm Ms, 8mm SS
• Condition: New
• Operation Mode: Automatic
• Max Job Size(mm X mm): 1500 x 3000 mm
• Job Material: Metal
• Power(KW): 500 / 700 / 1000 watts
