Shree Venus Engineering Washermenpet, Chennai, Tamil Nadu

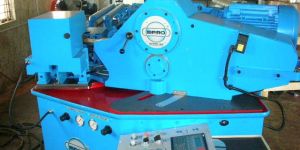

Ms.Shree Venus Energy manufactures Rigid Spiral Ducts using the State-of-the-art latest Hi-tech machines from Ms.Spiro International , Switzerland, the pioneers in manufacturing of Spiral duct machines in the World. The duct manufactured in this machine meets highest air tight classification as per International Standards. RANGE OF PRODUCTS: Diameter Range : From 80 mm dia to 1400 mm dia Thickness Range : 0.4 mm to 1.2 mm thickness Tube Length : Unlimited Material : Aluminium,Brass,Copper,Zinc,Galvanized CRCA Sheet,Stainless Steel or Plastic Coated Steel. Fittings: Different fittings like Elbows, Reducers are made in a specially designed Gorelocker machine from Ms.Spiro, Switzerland, ensures the uniformity of sizes and trouble free erection at site. Also, the air tighteners of classification meets the International Standards.

The spiral casing is manufactured using the State-of-the-Art machine imported from Ms.Spiro International from Switzerland and PUF injection is carried out by using the State-of-the-art SAIP machine imported from Italy which ensures the closed cell content is more than 90% and complete foaming of the annual spacers fixed in between the pipes and outer casing.

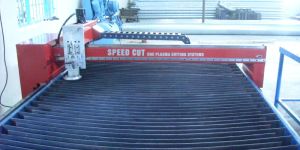

The growing need of quality air ducts and scare availability of skilled man power and shortest time duration available for manufacture of ducts, we need to equip with sophisticated CNC machinery to produce high quality duct. To overcome these factors, Shree Venus has emerged with CNC fabricated machine made ducts. Ms.Shree Venus Energy System manufactures Rectangular Duct with the State-of-the-Art CNC machine imported from Ms.Engel Europa International Ltd., Sheffield, U.K. , the Pioneer in supplying air duct manufacturing machines. The machines supplied by them ensures zero defects quality manufacturing air ducts.

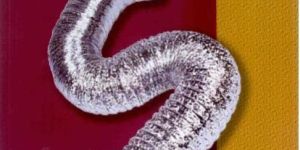

Shree Venus Flexible ducts are manufactured from the State-of-the-Art Australian Technology, are extremely versatile and flexible ducts are suitable for all high and low velocity air conditioning and ventilation systems. Shree Venus flexible ducts are manufactured by laminating high quality Aluminium foil, two ply polyester film over a high quality spring steel wire helix to give an excellent strength and flexibility. Shree Venus ducts are strong, durable and fire resistant with flexibility of being compressed to 10% of its extended length. Specification for insulateduninsulated : Size Range : Ø 100 mm to 500 mm Compression : 10% Standard Length : 6 meter Temperature Range : - 30º C to 110º C Steel Wire Thickness : 1.0 mm to 1.2 mm Pressure Rating : 250 mm WG [+ ve],25 mm WG [- ve] Insulation material : Fiberglass wool 25 mm thick having Density of 16 Kg.M3 or 24 Kg.M3

Shree Venus Energy System manufactures Flexible Duct Connector with TDF Flanges which eliminates the duct system noises and vibrations. All air duct installations for heating, cooling or ventilation are attached to mechanical equipment containing a fan or blower. Vibrations noises and rattles resulting from operation of the fan or blower are transmitted into the metal ducts which carry the noises throughout the system. In order to isolate the vibration and noises to the source “Shree Venus” came out with a product called Flexible Duct Connector consisting of fabric which secured to sheet metal on both sides, without puncturing the cloth and hence increase the life of the Canvas and also the leakage of air will be “zero” through the canvass, which can be inserted between the equipment and the duct work

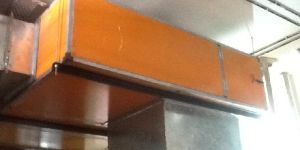

“Shree Venus” system are equipped with full fledged in – house facilities with CNC machine , State-of-the-Art machines for manufacture of Double Skin Insulated Plenum for air distribution application. Double skin plenum insulated with PIRPUF, Rockwool, Ceramic Wool, Fiberglass wool which meets Class O specifications.

We are the leading manufacturers, exporters and supplier of this products.

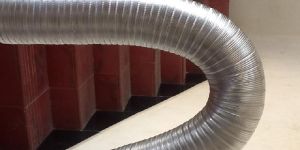

Shree Venus semi flexible duct are manufactured from a corrugated strip specially wound tp produce a tube with a double overlapped and crimped joint to ensure pressure tightness to 20c WG. Shree Venus Flxible Ducts uses double overlapped joint and extra deep corrugation to increase the flexability. Shree Venus semi flexible ducts are relatively self supporting without sagging while maintaining great cross section strength. Suitable for use in Chimney Hood. Ideal for use in short formating connection of HVAC Ducting. Suitable for open ducting without false ceiling. Suitable for use in Fumes ExtractToilet Ventilation, Kitchen Exhaust DuctingHoods. Accoustically treated flexible ducts suitable for use in in-line duct as silencers. Suitable for use in reducing the fan sound as silencer. Compiles with BS476 part 6,7 and 8 for Fire Resistance
