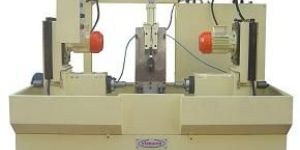

Hydraulic Twin Spindle Boring machine
Hydraulic twin spindle boring machine note: the machine features are customized according to component shape & size for optimizing the machine performance. note: the machine is customized to perform the facing operation after completing the boring operation. The cnc system enables the machine to run at a different feed & speed during facing & optimize the machine performance.
...more
Hydraulic Power Press
Hole & Drilling Machine
Specification: hole & drilling machine type of machine - five station fixed component - crank pin ’ connected load - 8 hp note: the machine features are customized according to component shape & size for optimizing the machine performance.
...more
Chamfering Machine
Specification: facing, drilling & chamfering machine type of machine - rotary indexing type component - jockey lever connected load - 12 hp note: this machine is equipped to performa the first operation of jockey lever after casting. The machine fixture is specially designed to accomodate different cavity of casting with perfect location.
...more

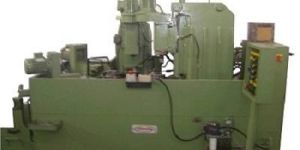

Boring Machines
We are offering boring machines. Specification: component - rocker arm connected load - 10 hp note: this is a six station rotary spm. Two stations are used for drilling & boring at one place in the rocker arm. Three stations are used for drilling, facing & tapping operation. The sixth station is for loading & unloading. This machine is very effective for reducing the man power.
...more

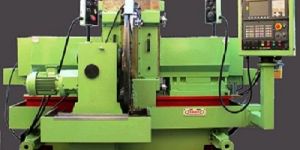

Double Disc Grinding Machine
We are offering double disc grinding machine, technical specification - double disc grinder duplex grinder grinding wheel dia. : 500 mm component thickness to be ground : 1 � 35 mm max. component width to be ground : 10 � 110 mm max quill infeed of the grinding wheels : 50 mm each. spindle power : 20 hp each hydraulic motor : 2 hp feeder motor : 2 hp coolant & filtration : 2 hp (optional) floor area (w x d x h) : 2.5 x 2.5 x2.5 mtrs. machine weight : 5500 kgs. note: these are the standard specification of the machine, however the machine features are customized according to component shape & size for optimizing the machine performance.
...more
Double Disc Grinding Machine
We are offering double disc grinding machine, technical specification : double disc grinder duplex grinder grinding wheel dia. : 660 mm component thickness to be ground : 1 � 35 mm max. component width to be ground : 10 � 180 mm max- servo infeed of the grinding wheels : 75 mm each. spindle power : 30 hp each servo motor for in feed : 22 nm servo for dressing : 12 nm servo spindle motor for feeder : 3.7 kw coolant & filtration : 5 hp (optional) floor area (w x d x h) : 6 x 6.5 x 3 mtrs. machine weight : 12500 kgs. note: these are the standard specification of the machine, however the machine features are customized according to component shape & size for optimizing the machine performance.
...more
Compressor Cylinder Block
We offer Compressor Cylinder Block Note: The machine features are customized according to component shape & size for optimizing the machine performance.
...more

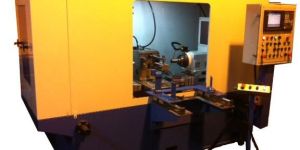

Cnc Twin Spindle Boring Machine
Specification: Cnc Twin Spindle Boring Machine Type of Machine - Two Way CNC Boring SPM Component - Main Frame Of Harley Davidson Motorcycle Connected Load - 14 Hp Note: The machine is customized to perform the facing operation after completing the boring operation. The CNC system enables the machine to run at a different feed & speed during facing & optimise the machine performance.
...more
Cnc Slott Milling Machine
We are offering cnc slott milling machine. Specification: type of machine - 3 axis cnc milling component - clutch cover connected load - 12 hp note: the machine features are customized according to component shape & size for optimizing the machine performance
...more
Centering Machine
We are offering centering machine, technical specification: component: uj cross operation: centering & facing connected load: 20 hp note: these machines are normally customized according to component shape & size for optimizing the machine performance.
...more

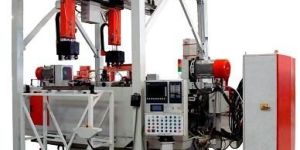

Camber & Caster Angle Machine
Specification: camber & caster angle machine type of machine - 4 way milling spm component - rear twist beam after assembly connectedload - 40 hp note: this is a 4 axis cnc milling spm. The special features of this machine is that its machining of the rear axle can be adjusted in both the planes to control the camber & caster angle of the wheels. The machine can be customized according to component of different models of the vehicle. since the component is heavy, the machine is supplied with a gantry for automatic loading & unloading the component.
...more
Button Milling Machine
Specification: component - rocker arm connected load - 10 hp note: this is a six station rotary spm. Two stations are used for drilling & boring at one place in the rocker arm. Three stations are used for drilling, facing & tapping operation. The sixth station is for loading & unloading. This machine is very effective for reducing the man power.
...more
Bag filling Machines
We are known to be one of the leading manufacturers and suppliers of this impeccable range of bag filling system or bag filling industrial machinery. For the purpose of maintaining this reputation, we engage in the utilization of high grade raw materials and modern machines, in accordance with the set industry norms and guidelines. in addition, the offered range is marked at the most reasonable rate possible. Features: easy operations longer service life superior performance specifications: system bag filling system scope of supply bag filling machine 3 mtr slat conveyor with bag closure (double stitch.) capacity 5 kg to 50 kg, (up to 100 kg) output 4-6 bags per minute dimension l-900 mm x w-900 mm x h-2700 mm product application free flow material resolution 10 gm filling accuracy up to 2e filling mechanism electro-pneumatic filling system load cell based, weigh metric coarse, medium and fine with auto in light correction filling mode coarse, medium and fine with auto in light correction digitizer advanced 8 bit micro controller power supply bagging machine-230 v ac, 50 hz., conveyor-440 v, 3-phase (2 hp). Air supply 5-6 bar. Air consumption approx 20 lpm accessories required air compressor (3 hp), cvt (optional)
...more
Double Disc Grinding Machines
Filling Machines
Power Press Machine
Special Purpose Machines
