Stacker Machine Dealers in Chennai

Charateristics:  1.Automatically stack and collect the paperboard.2.Pneumatic control the transversely output of paperboard, electrical ouput.3.Vertical paperboard collecting use width belt for transportation.4.When the paperboard stack to required height, the paperboard is output by switch controlled.          Technical Parameters:  1. Design speed: 150m/min.2. Working width:1800mm.3. Max. Length of paperboard: 2400 mm.4. Max.Height of paperboard: 200 mm.L,5. Gas: 0.4—0.9Mpa.6. Steam Pressure: 0.8—1.3Mpa.7. Operation direction: Left or right (design as customer’s workshop.)         Diameter of the rolls:  1. Belt roll: Ø86mm, Surface of roll is chrome-plated and polished.2.Transversely output roll: Ø124mm Surface of roll is chrome-plated and polished       Drive Power:  1.Main transport motor: 0.75KW;380V; 50HZ2.Transversely output motor: 0.55KW;380V; 50HZ3.Running power: 0.55KW ;380V 50HZ

In the management of a maritime hub or an inland port, you have to know the weight of the containers moved through the indispensable binomial transport with safety. Today, directly from the driver seat, you can manage the goods that your machine moves, weighing, storing and classifying them by type, by customer, by destination up to print their loading movements data or receive them remotely on a smart phone or tablet by using VEI ipotweb.com platform. Advantages The load is detected through the reading of the lifting pressure. No structural changes to the machine are introduced, keeping the nominal accuracy and the operational standards unchanged.

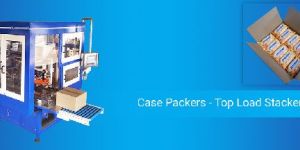

The machine is a monoblock carton erection with stacking model top load filling The jumbo model is suitably designed to pack relatively bigger size master cartons CLD/Carton bundles to be stacked on an adjustable magazine driven positively Cartons will be erected and presented to filling station along with flap locators Product from end of line is arranged to the matrix size in the matrix table The matrix is pushed to the specially designed receiving plate inside the table The cycle repeats till the CLD is filled with top layer and ejected on completion Bottom and top taping are done by closing minor and major flaps automatically Sturdy base frame and safety covers with polycarbonate and limit switch interlock PLC : allen bradley make with HMI support with fault indication system FESTO/SMC pneumatics / air consumption 20 CFM @ 6 Bar Pr / power : 3 KW Speed depends upon the matrix combination ( effective cycles x matrix size ) Infeed conveyor is with customer scope or supplied by us at additional cost. Safety light curtains (Beam Sensors ) is not a part of the scope which is optional. The machine is versatile and suitable to pack pouches, bottles also Change over parts are as applicable extra

• Lifting Capacity: 1500 Kg
• Fork Length: 1000 mm
• Fork Width: 300-840 mm
• Lifting Height: 3000 mm
• Turning Radius Mm: 1450 mm
• Load Centre: 400 mm

• Color: Brown
• Brand Name: KARUNYA
• Shape: Square
• Pattern: Plain
• Minimum Order Quantity: 1 Unit

• Design speed: 100m/min.
• Working width: 1800mm.
• Stacked cardboard maximum length: 2400 mm.
• Cardboard maximum stack height: 500 mm.
• Gas supply: 0.4-0 .9 Mpa.
• .Operating direction: Left or Right Mobile phone ( to be determined according to customer plant )

.The control unit adopts the high quality and high performance PLC man-machine interface and a computer control system of an on-line production management system.   2.Power adopts planet cycloid gear deceleration motor, frequency conversion control can automatically track the speed of conveyor belt production speed and change, realize the energy saving and efficient work requirements.   3.Each section of the belt is equipped with independent power driven, easy to complete the cardboard under different speed, different cutting length education, stack, and accurate count and discharge.   4.The horizontal line of paper roller adopt chain transmission, stable running, easy to maintain.   5.Pile of paper subsection control platform, backboard position can be electric or automatic adjustment, in order to suit different length specifications board, thus ensuring the pile of paper neatly, paper and orderly.   6.The photoelectric control, safe and reliable, piled up neatly. It can realize automatic accumulation, as the cardboard paper on automatic drop slowly. Stack height is 350 mm.   7.The electrical system of intelligent design. Equipped with pneumatic lift plate, landing gear and electric pneumatic pick paper, paper receiving landing gear will decline gradually with the cardboard stack, when accumulated to a certain height, the landing gear on the origin, the pneumatic lifting plate will automatically lift, at the same time electric paper baffle will back some distance, then cardboard smoothly cross out quickly. After a certain period of time (set), the paper will again rise to the top of the landing gear, and electric and pneumatic lift plate paper board return to original state, beginning to stack.
