Star Trace Private Limited Red Hills, Chennai, Tamil Nadu

Type : Vibro Sifter

Weight : 100-1000kg, 1000-2000kg, 2000-3000kg, 3000-4000kg, 4000-5000kg

Color : Brown, Green, Grey, Light White, Silver

Voltage : 110V, 220V, 380V, 440V

Condition : New, Used

Automatic Grade : Automatic, Fully Automatic, Manual, Semi Automatic

Driven Type : Electric

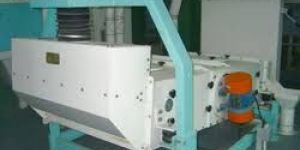

STAR TRACE vibro separator is a unique particle size gradable separator designed for greater capacity per meter square of screening area & over size material discharge with relatively much less percentage fines than other screening machines. Our company has been a leader in manufacturing and supplying a vast variety of screen separators to various industries across the country. We offer horizontal vibro separator and circular vibro separator which come with many special features. Our screen separators are known for their high performance, innovative designs, and affordable prices making them extremely popular among customers

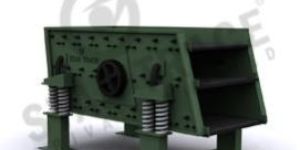

Star Trace actively catering to the needs of various industries as the single source, for custom Built Material Handling systems and equipments, have added over the years to the manufacturing program, a wide range of size reduction and separation equipments. Star Trace updated know-how, product development, research and awareness is making crushing and screeing jobs more efficient. In addition to the various types of crusher and vibrating screens, Star Trace takesup turnkey jobs of complete crushing and screenng plants, right from concept to commissioning, capable to handle all kinds of rocks, ores, mineral and lumpy hard materials, even, quarries and other industries.   VIBRATING SCREENS : Star Trace Vibrating Screens has wider range of applications. It is a two bearing free floating vibrating screen which efficiently screens all moderately free flowing materials. The circular throw action is dervied from unbalance weights which are suspended from the vibrator unit and transmit an uniform vibration to screening surface and ensures that material travels over the screening surface at a constant rate. The amplitude of degree of vibration can be adjusted to suit charge of duty by adding or removing unbalance weight plates. Circulars motion ensures rapid stratification at the feed end separates sized product in the shortest possible time. Screen's inclination normally varies between 15 Deg. and 20 Deg. and can can be installed with fixed angle or adjustable bracked arrangement. Speed of screen varies between 800 R.P.M and 1200 R.P.M Screens are manufactured in following widths 600, 800, 1000.1200, 1400, 1600, 1800, 2000 m.m and and lengths varying from 1200 mm to 600 mm Number of decks can be upto four.

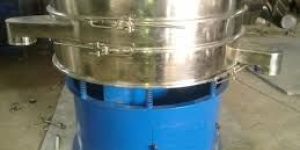

The motivation is through a unbalanced motor with a double extended shaft, fitted at both ends with eccentric weights .The top weight on the motor shaft rotates in a plane close to the center of the mass of assembly. Rotation of the top eccentric weights creates vibration in the horizontal plane, which causes material to move across the screen cloth to periphery increasing the horizontal throw, causing oversize material to discharge at a faster rate.

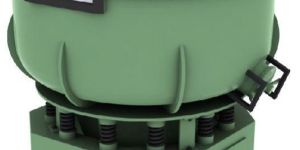

STAR TRACE VIBRATORY FINISHING MACHINES ARE SUITABLE FOR DEBURRING, DESCALING, EDGE RADIUSING, POLISHING, SURFACE IMPORVEMENT, PRE PLATING FINISHING ALL TYPES OF COMPONENTS INCLUDING FULLY MACHINED PARTS IN METALS & PLASTICS   PRINCIPLE OF STAR TRACE VIBRATORY MACHINES In the STAR TRACE vibratory finishing machines the media and the components which are carried through the tub/bowl vibrate and travel forward in a spiral or corkscrew motion with the generated vibration.   ADVANTAGES OF STAR TRACE VIBRATORY MACHINES   Continuous treatment. No point of rest for components and media during process. Much shorter processing time than conventional barreling. Much gentler action. No risk of damage, deflection or distortion while processing delicate components. Components may be inspected at any time without stopping the machine.

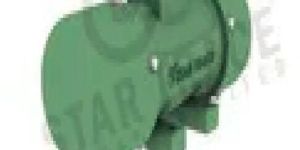

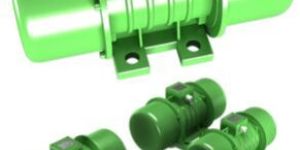

STAR TRACE Vibratory motors are totally enclosed 3Phase, Squirrel cage induction motors with adjustable, eccentric weights mounted at both ends of the shaft, to set up vibrations during rotation. Main Uses Of VIBRATORY MOTORS Plastics Food Petro-chemical Process/Packaging Mining Cement Power Stations

Usage : Industrial

Country of Origin : Made in India

Number of Poles : 6

Speciality : Increased efficiency, Enhanced reliability & low maintenance

The metallic components like scrap, bales, pig iron and foundry retains are stored in the hopper. The hopper shape is specially designed to enable bulky and irregular scrap pieces to be extracted without problem. Vibrating furnace charger is effective solutions to problems such as high labor cost, hazards operators faced in foundries, melting shops etc. Such a kind of automation allows foundry men to work at a safe distance thus preventing injuries arising out of molten metal splash. It also facilitates in rapid and quick charging of the furnace thereby allowing maximum utilization of the furnace, in addition to this, the damage to furnace lining is avoided which normally occurs in manual charging of the furnaces.

We are the leading supplier of this products.

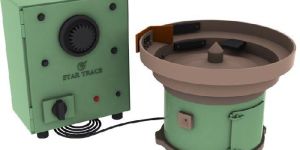

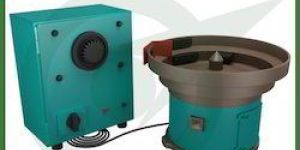

STAR TRACE Vibratory Bowl Feeders found extensive application for feeding automatic machine tools with separate blank and for the orientation for small blanks of the most complex configuration. The Vibration principle is employed for rectilinear travel of the blanks along a vibrating chute, for elevating the blanks along the helical ramp of a vertical vibratory conveyor with helical oscillation and for orienting blanks in vibratory-bowl feeders having single or multiple start helical track, or ramps, on the internal surface of a cylindrical bowl to which helical oscillations are imparted. Under the action of the vibrations, the blanks are dispersed over the convex bottom of the bowl towards the walls where they enter the input end of the track along when they travel upward the orienting device allows only the properly oriented blanks to reach the delivery end of the track, all others are dislodged and drop back onto the bottom of the bowl.   CONSTRUCTIONS: Bowls: Bowls have many distinct tooling features built into the basic bowl design, with tracks varying in width and shape to accommodate different types of components. These inherent features of the bowl are of great assistance, when bowl tooling is being developed to fulfill a specific tooling application.   Drive for bowl feeder All drive units are correctly engineered to give stable performance at high speed with minimum maintenance. Standard units are turned to give vibrations frequency of 100 cycles per second. Totally encapsulated type coils are used.   Control for bowl feeder Every drive unit is supplied with separated control box, with which, it is possible to control the speed of the feeder infinitely. Standard units are suitable for electrical supply of 230 Volts, 50HZ.   Are available in different size with:   Cast Aluminum bowls for symmetrical and regular shaped components. Fabricated stainless steels bowls for irregular shaped components. Bowl mounted on sets of leaf springs secured to a heavy base with rubber feet. Electronic Amplitude Controller. Clockwise or Anti- clockwise helical tracks in bowls of cylindrical, conical and step construction. Suitable passive and active tooling for orientation and feed. Required power supply 220V, 50Hz.     Optional Accessories Includes:   Variable Frequency, Variable Amplitude (VFVA) Controller for very high feed rates. Electronic sensing and pneumatic jets for automatic feed level control. Linear tracks with escapement device Special wear-resistant coating on tracks for low noise.

Vibrating Tumbler Screening Machines for Fractionating, dedusting, filtering, control screening, dewatering, and separation of powders and liquids.   Design STAR TRACE Vibrating Tumbler Screening Machines are built for continuous operation with up to 3 decks. A vibrating motor in the center of the bottom pan creates the high frequency three dimensional tumbling movements. The motor is greased once for its life and is maintenance-free. The screen body is vibrating freely and connected to the base by steel springs. MTS-V 600 and 900 are equipped with clamp screws for quick manual dismantling without tools. With 2B Finish, brushed inside and outside.   Advantages:   Low energy consumption Low noise level Low foundation loads Practically maintenance-free Simple adjustment to the product Designed for food Pharmaceuticals

Warranty : 1-5 Years

Condition : New, Used

Material : Cast Iron

STAR TRACE Vibrating Tables are designed to settle and compact dry bulk materials in various types of containers. Their application provides either a sizeable increase in the net weight of the container or reducing in the container size with subsequent savings in shipping and storage space. Main Industrial Uses Of Vibrating Tables Steel Foundries Concrete Chemical and Bulk Materials Food Processing Plastics Aerospace

POWDER SHIFTERS is used for grading and ensuring the minimum mesh size of the powder. It is available in four models. Sieve sizes are from 85 x 38 cm (0.25 HP) to 250 x 100 cm (2 HP).

The fluidized zone provides:   Homogeneous mixing independent of particle size and density. Free particle movement. Minimal heat generation Gentle mixing Low chear     Large access doors ensure:   Quick inspection Easy cleaning     Large discharge doors give:   Fast emptying Reduced segregation Minimal residue     Steel fabrication:   Various steel options available.     Low Power Consumption Guarantees:   Low friction Minimal wear Low maintenance Low running cost     Twin mixer shafts provide:   Overlapping paddles Optimal particle movement Fluidization Short mixing time Control of main particle movement Insignificant dynamic forces on structural steel work and buildings     Fast and Gentle High Precision mixing The complete design of STAR TRACE Mixer Combine fast mixing with slow shaft speed and gentle product handling resulting in highly homogenous mixes after extremely short mixing times. Carefully positioned paddles on two low speeds, counter rotating shafts create a fluidized zone with low power consumption. This means very low shear and friction which in turn makes the mixer ideal for fragile products which cannot tolerate rough handling.   Versatile for Liquid Additions We are able to add liquids at much higher rates than normally possible, due to the high particle movement capacity and fluidization of the particles. All the material surfaces are constantly being exposed for maximum dispersion. It is possible to add small or large amounts of liquid, with high or low viscosity to powders, granules or pellets.   Filling Level How it Works The STAR TRACE mixer consists of twin drums with two counter rotating rotors and specifically angled paddles. The rotors overlap in the centre of the mixer and the paddles completely sweep the bottom and mix all the material at the same time. In zone B the materials have a main movement counter clockwise at the perimeter of the mixer. Simultaneously there are movements in the fluidized zone A both up and down, left and right and back and forth, All the time with space between the particles allowing free and random movement. The interaction of the two zones is the key to the unique fore berg mixing Technology as all particles are transported into a highly homogeneous mix. The STAR TRACE mixer is very flexible in filling volume. The model number indicates the NOMINAL filling level i.e., the level just above the rotor shafts, and is not to be mistaken for the total mixing volume. From our nominal filling level of 100% variations from 40% to 140% can be tolerated with the same perfect mixing results. The mixing time may be a few seconds longer than normal when mixing very small or very large batches.

Star Trace Tubular Feeders ensure that all the material safely transferred from the feed hopper to the required destination. Available in round or square sections , Star Trace Tubular Feeders are manufactured in a range of sections from 100 mm to 500 mm and in lengths of up to 6.5 meters. Powered either by vibratory motors or electromagnetic drive units Star Trace Tubular Feeders can be operated at tube angles from 14 uphill to 15 declination.

Type : Recycling Plant

Capacity : Depends on customer requirement

Brand Name : Star Trace

Particle size is one of the most important properties of any bulk material. Electromagnetic Vibrating Test Sieve Shakers are engineered to provide dependable, accurate particle analysis, quickly and consistently. Typical sample analysis applications include handling a variety of material characteristics, such as :   Pharmaceutical ingredients, powder and granular. Chemical processing materials, powder and granular. Aggregate materials, sand, cement, fire rock and gravel.     Test Sieve Shakers electromagnetic design offers many equipment-feature benefits compared with manual or motor-driven units. The electromagnetic shaker combines sharp, vertical motion with rotary motion at 3,600 vibrations per minute for optimum performance. These high speed, straight-line vibratory actions minimize particle deterioration, provide faster particle separation with improved accuracy and assure uniform particle size distribution. Electromagnetic drives also assure outstanding durability with virtually no maintenance or part replacement. There are no motors to overheat or burn out, no belts, gears, pulleys or other moving components to wear and lubrication is not required. Operation is simple. The operator places the nested sieves on the shaker, with the material being analysed in the top sieve and pushes the handle down to lock the sieves in position. The unit preset timer is then actuated to test the material sample. This time-control device guarantees uniformly-timed sample analysis. A rheostat control can be set to a fixed voltage value to assure a consistent analysis of all particle samples. despite line voltage variations. All design and operation noise levels conform with IS standards. Test Sieve Shakers are compact, lightweight and can be easily moved to adjacent laboratories or testing facilities. Each shaker holds six 8-inch diameter Standard Screen fullheight testing sieves and a bottom pan, or twelve half-height sieves and a bottom pan. Units operate at 230 volt, 50Hz, single phase a.c.

Feature : Durable, Easy to install,High efficiency, Long life

Material : Stainless Steel

Shape : Square, Rectangle

Condition : New, Used

Material : Cobalt, Earth Metals, Iron, Lodestone, Nickel

Thickness : 0-10mm, 10-20mm, 20-30mm, 30-40mm

Application : Suspension Use

Color : Black, Grey, Metallic, Shiny Silver, Silver, Smoke-grey, Yellow

Feature : Durable, High Coercivity, Modern Anisotropic, Prefect Finished, Robust Construction, Strong & Rugged

Application : Sewage

Driven Type : Battery Operated ,Electric, Fuel, Hydraulic, Oil, Pneumatic

Condition : New,Old

Color : Grey , Silver

Voltage : 110V, 220V, 280V,380V, 440V

Pressure : High Pressure , Low Pressure, Medium Pressure

Weight : 100-200kg, 200-300kg

Material : MS / FRP / SS

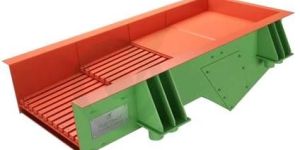

Type : Vibratory Feeders

Brand Name : Star Trace
