SUN FILTRATION PVT LTD Porur, Chennai, Tamil Nadu

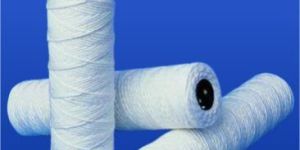

Wound string filter cartridge are structured loose outer layers and tight layers which can offer true depth filtration for high dirt holding capacity and extremely and chemical compatibility. Features: Fits all the standard housings. Low pressure drop, high dirt holding capacity and long service life. Loose outer layers and tight inner layers offers effective depth filtration. Various filter media fit with various applications. Specification: Filter media:PP(polyethylene),cotton. Outside diameter:55cm,61cm,63cm,65cm. Inner diameter: 28mm,30mm Length:10 ",20",30",40" Filter fineness: 1/5/10/20/30/50 Core material:polypropylene or stainless steel Max temperature: PP(60°C), Cotton(120°C).

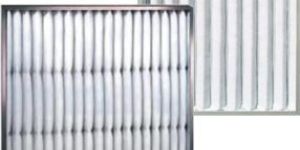

Introduction Coarse filters are also referred as rough filters available from EU-1 to EU-4 as per European Standards. Application Filter particles down to 10 microns with an efficiency of 85% to 95%. The filters can be installed directly in AHUs or mounted in banks. Media and Its Function Superior quality non-woven synthetic filter media, sandwiched between two layers of HDPE mesh which acts as a retainer and screens out large particles, thus, preventing them from being embedded in the media. Construction and Supports The pleating of the media enhances the filtration area for better efficiency. To eliminate the possibility of even a small amount of dirty air bypass, the media pack is securely bonded to the periphery of the enclosure frame using PU hardener

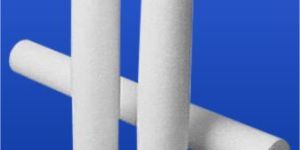

  Spun-boned PP filter cartridges are coreless filter elements purely made of polypropylene by spun-bonded technology. Applications: Residential and commercial treatment Fine chemical,reagent,solvent,resin. Coating Edible oil Liquor,juice,sugar Make-up water Specification: Material: polypropylene. Outside diameter:55cm,61cm,63cm,65cm. Inner diameter: 28mm,30mm Length:10",20",30",40" Filter fineness: 1/5/10/20/30/50 Max temperature:PP(60°C)

Material : Quality polypropylene needle felt

Material : Quality Polyester needle felt

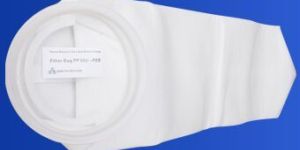

Oil-out laminated polypropylene filter Bags are the first line of defense in trace oil removal. This unique structure combines a polypropylene felt with a polypropylene micro-fiber, laminated together to provide excellent dirt holding capacity with extended oil removal capabilities. Oil-out filter bags are available in all industry standard sizes with a 10 micron nominal retention level.

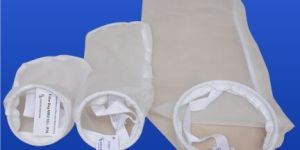

Nylon monofilament (NMO) precision woven filtration media offers enhanced removal characteristics and improved strength and durability. Each filament in the weave has been extruded with a consistent yarn diameter, enabling the filtration structure to deliver exact pore openings. As well, the smooth extruded surface allows the structure to be cleaned and reused in certain applications. NMO filter bags are available in micron ratings from 25 to 1250.

Material : Quality Nylon Monofilament Meshes

High efficiency particulate arrestance filters are also known as Absolute filters, which are the ultimate means of removal of submicron air borne particles.HEPA filters are 99.97% efficient on particles of 0.3 micron in size or larger. These filters find wide usage in all clean room and pharmaceutical applications where class of cleanliness and particle count is critical.HEPA Filter finds its place in pharmaceutical industry, as drugs are made under very strict compliance of standard. The efficiency of HEPA Filter is 99.97% on particle of 0.3 microns. Our HEPA Filters are made with world class filtration media “Lydall”.

The filter cartridge has the characteristics of excellent chemical compatibility, high flow rate, low pressure difference, long life, low price, wide filtration precision and it can be used in different places. Features: 100% pure polypropylene construction Wide chemical compatibility No lubricants or anti-static additives Excellent dirt holding capacity Consistent filtration over the life of the cartridges Specification: Filter Media: polypropylene Outside diameter: 69mm Inner diameter: 28mm Length:10",20",30",40" Filter fineness: 0.08~0.1/0.22/0.45/0.5/0.6 End caps: DOE, -222flat, -222fin, -226flat, -226fin and others.

HEPA Filter finds its place in pharmaceutical industry, as drugs are made under very strict compliance of standard. The efficiency of HEPA Filter is 99.97% on particle of 0.3 microns. Our HEPA Filters are made with world class filtration media “Lydall”.

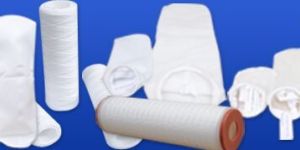

Sun Filtration manufactures high quality liquid Filtration products. Sunfil offers Polypropylene, Polyester, Nylon Monofilament Mesh (NMO) filter bags for various industrial liquid filtrations.SUNFIL Filter bags are SewnWelded construction. Welded Filter bags are double protecting from damage in seems. Bottom seems are 100% welded both strong and flexible allows the filter bag to confirm to the shape of the retainer basket creating support as differential pressure builds. Welded construction completely eliminates unfiltered liquid bypass from occurring due to needle holes.

Diameter : 7inch(180mm)

Length : 17inch(450mm)

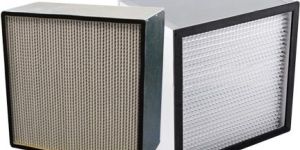

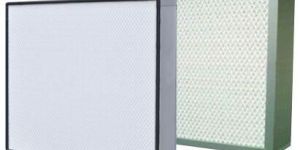

Introduction High efficiency particulate arrestance filters are also known as Absolute filters, which are the ultimate means of removal of submicron air borne particles. Application HEPA filters are 99.97% efficient on particles of 0.3 micron in size or larger. These filters find wide usage in all clean room and pharmaceutical applications where class of cleanliness and particle count is critical. HEPA Filter finds its place in pharmaceutical industry, as drugs are made under very strict compliance of standard. The efficiency of HEPA Filter is 99.97% on particle of 0.3 microns. Our HEPA Filters are made with world class filtration media “Lydall”. Media and Its Function HEPA air filtration media is specially engineered for use in a wide range of absolute clean room applications. The media is a micro glass fiber with high uniformity consistent filtration. Construction and Supports The HEPA filters are manufactured in standard size as well as customer specific sizes in deep pleat type (conventional aluminium separator style) and mini pleat type (with EVA hot melt separators). Positive sealing is ensured with PU sealant.

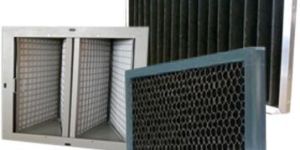

Introduction Air cleaning through an effective gas phase air filtration system is a way to remove gaseous contaminants from the breathing air. Most gas phase filtration systems use activated carbon to adsorb gaseous molecules. Application Activated carbon is a superior adsorbent for food, beverage, agricultural, and pharmaceutical processing applications. The activated carbon filters are used in applications to filter out odour and hazardous gaseous contaminants present in kitchen, industrial, animal house, laboratory exhausts etc. These filters are also effective in controlling the presence of gases or organic vapours. Media and Its Function Activated carbon is a porous material consisting mainly of elementary carbon modified to have a large internal surface area. The activated carbon in the form of granules or in the form of impregnated glass fiber media act as an adsorbent. The pores trap the contaminants. On a microscopic level, activated carbon looks and acts much like a natural sponge, with pores and a vast amount of surface area. As gaseous molecules come into contact with the carbon, they are drawn into the carbon and held into place by a variety of forces. Construction and Supports The activated carbon filters are offered in different models to meet the desired air handling capacity. It is offered as flat panel adsorbent filters completely packed with activated carbon granules. The carbon panels can also assembled into a “V” Bank filter to enhance the air handling capacity. Activated carbon impregnated glass fibre media from “Lydall” is used as the filtration media to enhance more quantity of air. This filters can also be assembled in “V” bank form for maximum air handling capacity.

Introduction Fine filter are also referred as Microvee filters. Fine filter are available in both pleated form as well as soft bag form. Application Filter particles down to 5 or 3 microns, with an efficiency of 95%, recommended for industrial and class applications. These filters can be directly installed in AHUs or mounted in banks. Media and Its Function Superior quality non-woven synthetic filter media with regular labyrinthine structure being built of synthetic fibers which are bonded together by PU resin. This media is sandwiched between two layers of HDPE mesh, which acts as a retainer. Construction and Supports Large number of pleats of the media enhances the filtration area for better efficiency. The filters are made 100% leak proof by securely fixing the media pack to the periphery of the enclosure frame using PU hardener.

Introduction Sun Filtration Private Limited offers wide range of filter press fabric for various industrial applications. Application The product finds its place in solid-liquid separation applications in petroleum, chemical, food, medicine, sewage treatment and industrial application such as Brewery, Dyes & Pigments, Mineral Ore, China Clay and sewage treatment. Types of fabrics Clean Room Service includes: Simple Filter Press Fabric Membrane Filter Press Fabric Recess type

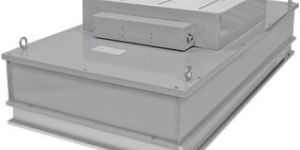

Introduction Fan filter units are self-powered filter units provide uniform air flow to meet cleanliness standards. The technology ensures uniform air flow across the filter face, free from noise and maintenance. The units are available in different sizes of 4' x 2', 3' x 2' and 2' x 2' in height of 14". The energy efficient, dynamically balanced centrifugal impeller with outer rotor motors ensures low noise level and most suitable for clean room applications. Application Fan filter units with HEPA filters are designed to meet hospital, pharmaceutical, food & clean room applications with controlled air distribution. Construction and Supports The housing is fabricated with SS 304, SS 316, Aluminum, Galvanized sheet steel with suitable surface finish. This is equipped with room side replaceable H13 or H14 Mini pleat HEPA filter and 5 micron Pre filter. The modules are designed to facilitate change of HEPA filters within the clean room.

Introduction Sun filtration Private Limited offers filter bags to fit most styles and types of bag houses and other dust collection systems. The bag filters are available in a wide range of fabrics, configurations, sizes and finishes. The bags are carefully fabricated and made to ensure ease of installation and change-out. The various option of media include Polyester, polypropylene, Teflon etc.

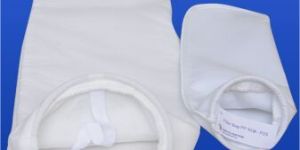

Material : Inside Quality polypropylene needle felt + Outside Nylon Monofilament Mesh

Introduction Room side replaceable terminal modules with HEPA filters for pharmaceutical, food and biotech clean rooms are offered to suit ceiling grids. The terminal modules allow air from the HEPA filter fitted within the housing, to have a minimal time period in which to collect contamination from the surrounding parts of the housing. Application The terminal modules with HEPA filters are designed to suit pharmaceutical, food & clean room applications with controlled air distribution. Media and Its Function The terminal modules are constructed with aluminum as well as powder coated galvanized sheets with DOP insertion points and upstream pressure tapping points along with balancing dampers with integral butterfly valves for easy operation. The modules are designed to facilitate change of HEPA filters within the clean room. These modules are designed to combine guaranteed HEPA final filtration and controlled air distribution. The damper assembly is adjustable from within the room and is supported by a damper support channel permanently attached to the filter hood duct collar. The units are protected with a powder coated diamond pattern grille.

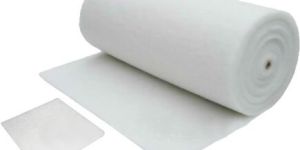

Advantages: Progressively structured ensure perfect performance. Absolutely no migrating of paint-damaging particles larger than 10 micron. With special adhesive coating in full depth on each individual fiber. Full self-extinguishing flame properties. Clean air side dense and smoothed and reinforced with open mesh scrim. Applications: Car Plants 2 Wheelers Trucks & LCV After Market Booths / Body Shop
