Temperature Transmitters Dealers in Chennai

• Output: 4 – 20mA DC
• Application: Industrial
• Input: PT100
• Temperature Range: 0 to 150°C
• Auxiliary Supply: 90-260 V AC OR DC
• Housing material: ABS

• Material: Metal

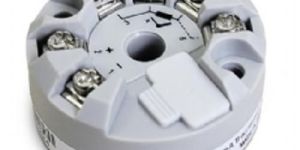

• Style: Head Mounted
• Application: Industrial Automation
• Warranty: 1year
• Pack Type: Box

We are a leading company involved in manufacturing, supplying and exporting an extensive array of Controller Instrument. These are very easy to use and are offered at very affordable prices.

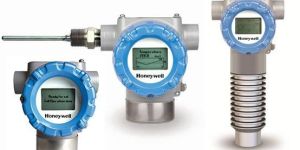

transmitters are the industry’s first modular and most reliable transmitters, delivering total value across the entire plant lifecycle. Setting a standard for total performance in harsh and noisy process environments, the SmartLine temperature family offers lower total cost of ownership, along with high accuracy and stability over a wide range of process and ambient temperatures. temperature transmitters are the industry’s most robust transmitters with efficient control system integration and other unique features that help it deliver in tough and noisy environments. Our temperature transmitters measure temperature accurately and reliably in industrial processes in tough and noisy environments, converting low level signals from temperature sensors to analog and digital output signal. The transmitters achieve this through: Onboard ambient temperature and cold junction compensation Ability to work with both single and dual sensors Simple and easy configuration Comprehensive onboard diagnostic capabilities for the sensor and the transmitter.

• Type: Temperature Transmitter(TIT), Field Mounting Type
• Certificate: Ex d, FM, ATEX, TR CU(EAC), CE, KCs, IP66/67.
• Model Name: ATT2100
• Protocol: Digital Communication, HART 5, 7
• Trim ability: Zero, DAC
• Power supply & Load Requirement: 250 to 550 ohm @ 24 Vdc, Loop Powered
• Failure Mode: Low ≤ 3.78 mA, High ≥ 21.1 mA
• External Buttons: Zero & Span 2 buttons for device configuration
• Ambient Temp. limit: -40 to 85℃ ( -104 to 185℉ )
• Stability: RTD – 2 years (±0.12% of Reading or 0.15℃ whichever is greater), T/C – 1 years (±0.12% of Reading or 0.15℃ whichever is greater) .

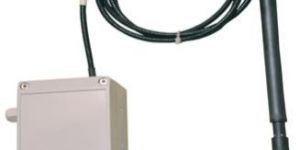

Measures Humidity, Temperature and Calculates Dew / Frost Point Temperature Compensated humidity signal Standard Scaling : 4…20mA = 0...100%rh / -50...200 ºC Temperature Ready for direct 3 - wire RTD connection housing and can also be supplied in an industry standard IP65 case Probe with Adjustment Profile “Standard” Factory Adjustment Certificate Adjusted at 23°C and 10,35,80%rh over a wide -50… 200ºC range with integrated cable Accuracy ±1%rh/±0.2k, power supply of 10-35 VDC or 12-24 VAC

  Our combo 2-in-1 humidity and temperature transmitters are perfectly dependable for your industrial automation needsthat require these two parameters to be measuredsimultaneously. Thedesign of these transmitters ensuresexcellent reliability, stability and accuracy even in most demandingindustrial environments. Additionally, these transmitters provide a wide range of measurement that makes them ideal for all your needs.

CO2 , relative humidity (RH) and temperature (T) measurement in one housing new standards in CO2 measurements for HVAC version for CO2 and T can be easily extended with a RH plug-in module energy efficiency, long-term stability and reproducibility The operation is based on the infrared principle mounting concept stands for easy installation and replacement within seconds Ranges

• Application: Building Management for Residential and Office Areas ,indoor HVAC and clean rooms, Fruit And Vegetable Storage, Green houses, Life Stock Barns,

CO2 , relative humidity (RH) and temperature (T) measurement in one housing new standards in CO2 measurements for HVAC version for CO2 and T can be easily extended with a RH plug-in module energy efficiency, long-term stability and reproducibility The operation is based on the infrared principle mounting concept stands for easy installation and replacement within seconds Ranges available 0�20005000 ppm,10�90%rH,-5�55 º C Output available 0� 510 VDC 4-20mA Operating Temperature 0 �50 º C , ACDC operated

We offer siemens sitrans t temperature transmitter . Easy integration in your system with 4 - 20 ma, hart,profibus pa, foundation fieldbus as well as wireless hart • extended diagnostics • maintenance benefits contact us today for cost effective solution

• Brand Name: Novus
• Power: Loop powered
• Model Name/Number: TxRail-USB
• Usage/Application: Industrial Process Monitoring
•  :

• 0% (4 mA) to 100% (20 mA): ±2% (5% to 95% RH)
• 6 seconds without sintered cap; 60 seconds with sintered cap: -20°C (4 mA) to 60°C (20 mA)
• ±1% FS: 0 to 60°C (32 to 140°F)
• 79 x 49 x 150 mm (3.1 x 1.9 x 5.9”): 150 g (5.3 oz.)
• HI8666 is supplied with built-in RH sensor, protective sintered cap for RH sensor, mounting brackets and instructions.: Power Supply: 10-30 Vdc Output Signal: 4 to 20 mA Panel Cutout: 73 x 42 mm (2.9 x 1.6")

The HI8666 is a solid-state, wall-mounted transmitter for on-site, continuous monitoring of relative humidity and temperature in critical or controlled environments. It is equipped with a removable sintered cap, has excellent accuracy, and can communicate signals to remote panel meters, controllers, or data acquisition systems.   Features at a Glance Built-in Sensor - The HI8666 contains a built-in thin-film polymer capacitive (TFPC) sensor that accurately measures relative humidity and temperature. Analog Output Communication - Each 4-20 mA analog signal can be sent to remote panel meters, controllers or data acquisition systems. The signals are to be powered by separate external voltage sources. Sintered Cap Protection - With the sintered cap installed, the sensor is protected from dust and debris prolonging the life of the sensor and the instrument with less maintenance required.

• Supply Voltage: 7.5 to 45 V DC(without display) , polarity protected
• Output Signal: 4 to 20 mA
• Load: Max.(V power supply -7.5 V)/0.022 A
• Galvanic Isolation: U=2000V AC (input/output)
• Display Range: -1.9.9.9.9-9.9.9.9.9
• Weight: Approx. 800g
• Exxplosion: Intrinsically safe Exia II CT4
• Shock and Vibration Resistance: 4g/2 to 150 Hz as per IEC 60 068-26
• Degree of Protection: IP 00,IP66(installed)
• Condensation: Allowable
• Storage Temperature: 40 to 100 Deg C (-40 Deg F to 212 Deg F)
• Ambient Temperature Limits: 40 to 85 Deg C ((-40 Deg F to 185 Deg F)
• Response Time: 1 sec
• Switch on Delay: Less than equal 5 sec

Microcontroller based design Configurable through configurator One model for both T/Cs & RTDs Linearisation of T/C and RTD inputs Realistic Cold Junction Compensation Input to output isolation IP-65 weather proof enclosure

• Brand Name: Aparajit
• Material: Stainless Steel
• Accuracy: 0.2%
• Temperature Range: 50 to 300 degree C
• Power supply: 12VDC to 34VDC
• Material Grade: SS304/SS316

Honeywell make temperature transmitter, pressure transmitter, differential pressure transmitter, rtd, flow transmitter, level transmitter, transducer ( pressure, differential pressure, displacement, torque), limit switch.

Precise Non Contact Infrared Temperature Transmitter, Wind Speed Sensor

Temperature Transmitters, Sewage Treatment Equipment
