Vibro Sifter Dealers in Chennai

The motivation is through a unbalanced motor with a double extended shaft, fitted at both ends with eccentric weights .The top weight on the motor shaft rotates in a plane close to the center of the mass of assembly. Rotation of the top eccentric weights creates vibration in the horizontal plane, which causes material to move across the screen cloth to periphery increasing the horizontal throw, causing oversize material to discharge at a faster rate.

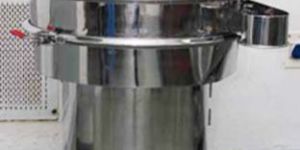

Located in Chennai, Tamil Nadu, we are offering our qualitative range of Vibro Shifter. We offer Vibro Shifter in various diameter sizes to cater to divisive applications of the buyers. As a prominent Manufacturer and Supplier of Vibro Shifter, we ensure that customers all over the country receive their order of Vibro Shifter within the postulated time.   Vibro Shifter are circular gyratory screens used to separate solids from solids and liquid from solid. Vibro Sifter consists of Specially Designed Motor mounted vertically at the center of the base plate of the Screen. The Screen is in between feeding hopper and bowl. The material is fed on to the centre of top screen. The undersize material passes rapidly through the screen during its travel to the periphery. The over size material get continuously discharged through a tangential outlet. This is achieved by specially designed Vibratory Motor along with eccentric Top and Bottom Weights. Features : All contact parts made of SS 316 as per GMP standard Easy dismantling and cleaning Faster output at low power consumption Double & Triple deck screens with outlet and hopper for bottom deck available on request. Special requirement like brushing arrangements, SS lid with charging port and spring loaded outlets. Noiseless, Maintenance free & high speeds Standard machine are with TEFC motor explosion proof / flame proof motor material Models: Screening Diameter of  12”, 20”, 24”, 30”, 36”, 48”, 60”

• Material: Iron
• Capacity: 60 inch
• Material Grade: 316
• Motor Power: 1.5 to 5 kw
• Usage/Application: Industrial
• Brand: Sre Mag
• Body Material: SS

Gyratory Screen is especially designed for material of unique particle size. Gyratory Screen has better capacity per meter square of screening area and oversize material discharge with relatively much less percentage fines. Gyratory Screen is greatly appreciated for heavy-duty performance, low operating cost, and longer service life. Working Principle The motivation is through a unbalanced motor with a double extended shaft, fitted at both ends with eccentric weights .The top weight on the motor shaft rotates in a plane close to the center of the mass of assembly. Rotation of the top eccentric weights creates vibration in the horizontal plane, which causes material to move across the screen cloth to periphery increasing the horizontal throw, causing oversize material to discharge at a faster rate. The bottom eccentric weight rotates below the center of mass creating tilt on the screen giving vibration in vertical and tangential plane. Increasing the vertical component of motion, this promotes turnover of material on the screen surface helping maximum quantity of undersize material to pass through the screen. Rugged Springs placed over the circular motor base amplifies the vibration. The top weight on the motor shaft rotates in a plane close to the centre of the mass of assembly. Rotation of the top eccentric weight creates vibration in the horizontal plane which causes material to move across the screen cloth to periphery. Increasing the top eccentric mass, increases the horizontal throw, causing oversize material to discharge at a faster rate. The bottom eccentric weight rotates below the centre of mass, creating tilt on the screen, giving vibration in vertical & tangential planes. Increasing the vertical component of motion, this promotes turnover of material on the screen surface helping maximum quantity of undersize material to pass through the screen. The vertical motion also minimizes blinding of screen by "near size" particles. The tangential component of motion is controlled by the angle of lead given to bottom weights with relation to top weight. Variation in lead angle controlled the spiral pattern of material travel over the screen cloth. Speed & flow pattern of material travel over the screen cloth can be set by the operator for maximum throughout & screening efficiency for any screen able product, wet or dry, coarse or fine, heavy or light, hot or cold. Typical material passes rapidly through the screen during its travel to the periphery. The over size material get continuously discharged through a tangential outlet. Applications Mineral processing Ceramic Food & Beverages Abrasive Industries Chemical Pulp & Paper Rubber Industry Pharmaceutical Animal Feed Effluent & Waste water treatment Paint & Pigments Sand & Gravel Petroleum Sugar & syrup Benefits Low power consumption Varied range of applications High processing rate per unit area of screen Accurate separation Minimum screen building Screening up to 200 mesh Ball tray for anti blinding Modular design to yield up to 8 predetermined fractions Dust-free and noiseless processing within closed circuit can be achieved

• Body Material: SS
• Motor Power: 0.5 HP
• Screen Area: 1884 sq cm
• Screen Diameter: 600mm
• Model Name/Number: EFI - 01
• Brand: Electro Flux

''EFI'' Gyratory screen motion is the most effective method for screening. The heart of the Vibrating screen is its specially designed heavy-duty Energy efficiency Motor, having Un balanced weight at top & bottom end of the shaft. Rotation of Un balanced top weight causes vibration in Horizontal plane whereas the rotation of lower weight causes tilt & vibrations in vertical plane. By changing their lead angle, various spiral-screening patterns are obtained to suit different application.

• Motor Power: 1 H.P
• Capacity: 6 Cu. mt/ Hr.
• Weight: 90 Kg
• Automation Grade: Manual
• Usage: Industry
• Screen Mesh Size: 1500 X 900 mm, 5 x 5 mm
• GT Mesh Dimension: 1750x1250x1200 mm
• Mobility: 230 volts
• Frequency: 50 Hz
• Moisture Content: Below 5%
• Loading: Manual
• Screen Mesh: 1500 mm x 900 mm
• Driving Mechanism: V-Belt
• Phase: Single Phase
• Eccentric Vibrator: 1500 x 900 mm

We deals in manufacturing and supplying of wide range of vibro shifter.
