Weighing Controllers Dealers in Chennai

Owing to our timeliness and hassle free deliveries, we have become the primary choice of the buyers. We own a well-maintained storage facility that helps us in meeting bulk and urgent requirements of the clients at a time. It is managed and maintained by the storekeepers.

• Type: Bagging
• Brand Name: Akar control
• Model: BAG17
• Display: Digital
• IP Rating: IP68
• Real Time Clock: Yes

• Type: Semi-Automatic
• Country of Origin: Made in India
• Display Type: LCD
• Voltage: AC 230 V
• Analog Output: ADC 32 bit
• Warranty: 1 Year

• grey: red
• grey: red

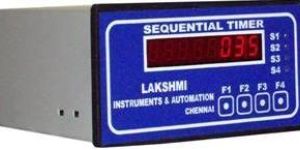

We offer Bag Filter Controller. Bag filters are a cost effective dust extraction system designed and engineered to meet the stringent laws of pollution control. With the users becoming more and more aware of the importance of environmental hygiene, there has been a change in the outlook of industries towards keeping the place of work dust and pollution free. The regulations on emissions for iso and other certifications also have accelerated the momentum of achieving clean working environment in factories a. 16 channels as a standard output. Higher or lower number of output channels may be provided. b. on time: 1-9999 milli seconds, off time 1-9999 seconds, pause time from 1sec to 9999 sec (programmable at site). c. display: â½â�� high, 8 nos of 7 segment red led display d. output: 1 no relay contact per channel. All output contacts are rated for 3 amp. @ 230vac on resistive load. e. operating sequence: the operating sequence of the output load or solenoids is from first to last channel. f. remote start: the remote nc contact provided for sequence to start. g. remote stop: the remote nc contact provided for sequence to stop and all the loads are disconnected. After resuming remote start, the sequence shall resume from the 1st channel. h. channel skip facility: unwanted channel can be skipped through programming. i. manual pulsing: generally timer works in auto mode. Manual pulsing mode is also provided for cleaning the bags one by one in manual mode. The output channel remains on till the pulsing key is released.

The physical hardware (body) is the same, only the firmware (personality-brain) changes. It takes a generic load cell signal and also encoder (pulse) input signal. It is applicable for any weight or load range depending on load cell capacity used as input signal.

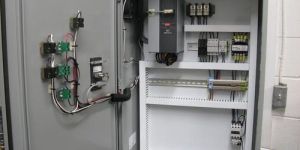

Bag filters are a cost effective dust extraction system designed and engineered to meet the stringent laws of pollution control. With the users becoming more and more aware of the importance.

Weight indicator in DIN case, dimensions 96x96x130 mm. IP54 front panel protection (IP65 optional). Four-key membrane keyboard. Eight indicator LED. Possible installations : panel, wall (W200BOX-EC) Six-digit red LED display (14 mm height). RS232 and RS485 pots (Modbus RTU/Laumas ASCII protocol). 3 logic inputs, 5 relay outputs. Optional : Data storage on USB pen drive 16-bit analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V Alibi memory Additional RS485 port Fieldbuses : Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP,Ethernet/IP, Ethernet TCP/IP for remote management (connectable to yourPC, smartphone, tablet, etc. via web) Certifications : OIML R76:2006, class III, 10000 divisions 0.2 μV/VSI OIML R61 – WELMEC Guide 8.8:2011 (M.I.D.) On request : GOST-R – Russia UL Recognized component – United States and Canada W200 series weight indicator into IP67/IP64 box Polycarbonate box, dimensions 170x140x95 mm, four fixing holes Ø4 mm, 6 PG9 cable glands. Five-key membrane keyboard. Eight indicator LED. Wall mounting. W200BOXEC External switch for formula selection (EC option), Sart and Stop buttons. W200 series weight indicator into explosion proof box The system is composed of: Explosion proof box, ATEX II 2(1) GD approved, provided with heat-resistant transparent tempered glass window and 5 external buttons which performs the same functions as W200 keyboard. W200 series weight indicator. Passive fail-safe Zener barriers, ATEX II (1) GD approved.

This instrument is useful for controlling input feeding mechanisms to feed/fill required quantity of material into a tank/hopper/bag. A maximum of 6 material can be batched using this controller, each with coarse/fine feeding. Four opto-isolated digital inputs are provided for controlling the batching process. A high resolution and high speed ADC is used for digitizing the load cell signal and 5000 external counts are provided. RS485 serial communication is provided for interfacing to PC. The instrument operates using 230 V AC SMPS based power supply. All control outputs provided are open collector type and external relays are required for operating feeders. Firmware is provided for calibrating the instrument, for entering the setpoints and other batching parameters, for displaying the cumulative batching data and for communicating with a PC. All batching parameters can also be downloaded directly from the PC and every batch can be monitored and stored in the PC. The PC software is also available as an option.
