Structural Glazing and Curtain Walls Dealers in Chennai

We design and install stunning Aluminum Composite Panel (ACP) elevations that elevate your building's aesthetics, durability, and functionality. Choose from a wide variety of colors, finishes, and textures to create a unique and eye-catching exterior for your commercial or residential space.

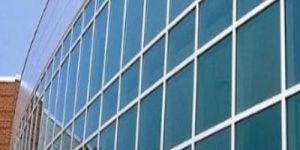

Facades made entirely of glass have a firm place in contemporary architecture and create impressive building elevations. This Structural Glazing Façade System has gradually emerged in recent decades, driven largely by the pursuit of transparency in the building facade among leading building designers. This new technology has evolved in long-span applications, and can be categorized by the various structural systems employed as support. The Structural Glazing facade system consists of a definite width ( say50 mm wide ) insulated aluminum mullions and transoms. The system is based on double glazing units with a warm edge and a specially developed mounting profile for installation fittings. The glass panes are anchored in the mullions and transoms with the help of installation fittings. The weather seal between the glass panels is done with the use of an approved sealing compound, usually black. The design of the inside gasket and the insulating strip optimises the insulation of the profiles. The mullions are designed so as to ensure stability under the dimensioning loads and are joined together with hidden joints. The system also includes opening units, which can be easily integrated.

The structural glazing system, will be fixed to the main building structure using components of alloy steel or other materials appropriate and conforming to statutory requirements and coded of practices. In general, Galvanized steel bracket shall be used as the anchoring system. The type size of the bracket is to be selected in accordance with engineering calculations to withstand 200 KgSqm x 1.5 times for safety factor.

A. G. rubber extruded profiles are capable of having low compression set, good dimension stability, design flexibility and flame retardant etc. We make glazing extruded profiles with durable and reliable rubber compounds designed by us in-house with different hardness and colors.

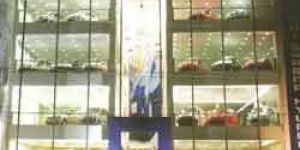

We are known as the best spider glazing producing company in chennai, spider glazing are available in different dimensions and specifications. A high quality  glass is picked to manufacture this product line. Moreover, our range of spider glazing has a wide demand in varied offices, complexes and malls. Its other features are:  Large and fully smooth glazed area Doors and windows can be inserted in our spider glass façade Excellent adaptation to all weather conditions Full daylight on all sides Good thermal insulation

• Country of Origin: Made in India
• Features: Eye catching, Easy to fix, Strong
• Material: Aluminium
• Color: Any Colour
• Finishing: powder coating
• Glass Thickness: 5mm thickness glass
