AMON POWER CONTROLS Ram Nagar, Coimbatore, Tamil Nadu

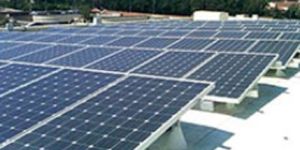

Whether you are a company interested in a captive solar power plant for your needs or a power producer looking to scale up solar power in your portfolio, We can design a fully integrated and customized solar power plant project for you. We have the prowess to manage solar energy projects of any scale and the much-needed know-how to work within the confines of regulatory policies and vast geographical parameters.We have a wealth of experience in managing utility scale projects with insight into what it takes to work within the demands of regulatory policies and varying geographies, both in urban and rural areas.Some of the solar projects listed below are our testaments riding high on our time-tested knowledge, expertise and seamless execution of complex projects across India.

Features : No glare, no flash. Eco friendly. Choice of colors cool white, Warm white & Normal white. Life - 50,000 hours. Beam angle 120 degree . Efficacy (Lm/W) - 100 . THD 80 , Power factor >0.95 Constant current drive, low current fluctuation. Efficient light distribution. Perfect luminance and brightness levels for roadways .

Whether you are a company interested in a captive solar power plant for your needs or a power producer looking to scale up solar power in your portfolio, We can design a fully integrated and customized solar power plant project for you. We have the prowess to manage solar energy projects of any scale and the much-needed know-how to work within the confines of regulatory policies and vast geographical parameters.We have a wealth of experience in managing utility scale projects with insight into what it takes to work within the demands of regulatory policies and varying geographies, both in urban and rural areas.Some of the solar projects listed below are our testaments riding high on our time-tested knowledge, expertise and seamless execution of complex projects across India.

  Working of Amon Solar Charger AMON solar chargers are available in PWM or MPPT various ranges 12 V to 120 V and 20A to 60A which is compatible with AMON inverter design and can be used with other inverter designs as well.This is a MOSFET / IGBT based design which has very negligible voltage drop of 0.05V or less which means the loss is very less, ideal for solar applications. Since the drop is less, the losses are negligible so the efficiency achieved is > 99.5%. This is a micro-controller based charger; the micro-controller will sense the battery full charge Voltage and will cut-off the battery when it reaches full charge. It will reconnect the battery if the battery drops to a preset level. The charger will also disconnect the panel from the battery, this is To avoid the reverse current flow from the battery to the panel during night. Moreover, if you connect the panel reverse, the micro-controller will not switch on the charger, similarly if you connect the battery reverse, the charger will not function. Battery reverses and panel reverses Protections are incorporated in the design. If you connect both panel and battery reverse at the same time, the micro-controller will not switch on the charger. In all the above cases, the circuit will not damage and there will not be any current flow from the panel or battery.

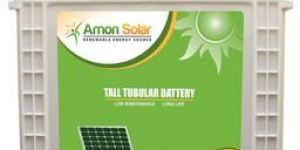

  Features : Superior quality plates manufacture form own plants. Technically designed battery grids. Produced on automatic grid casting machines . Auto controlled electrodes formation. Special lead alloy encompass virgin active materials. Auto heat sealing assembly line . Extended backup. Eco friendly and polllution free . Ready to use. Available in factory charged condition. Replacement Guaranty for any manufacturing defects.

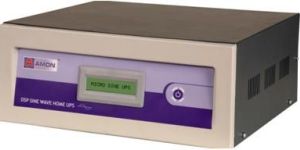

Features: D.S.P (Digital Signal Processor) Based design Pure sine wave output resulting in silent operation of motor and fans safe to all kind of loads. Computer compatibility S.M.P.S charging up to 120V AC input Priority solar charging facility Inverter / UPS Selection Switch Tubular / automotive battery selection switch Feather touch push button micro switches L.C.D. display for mains ON, Mains Volt, Charging ON/OFF, Charging current, battery Volt, Inverter / UPS ON/OFF, Output Volt,Output Load etc., Protections against over load, short circuit, battery deep / Overcharging, Mains over volt (up to 440V), Phase input @output reverse, phase & neutral reverse, heavy load in all these error conditions will be shown in the LCD display.

AMON solar charger along with our inverter will have first priority solar charging. i.e., when it Is charging from solar, it will not charge from the mains. Also, when it is charging from solar and battery Is nearly full charged (for AMON Inverter this voltage is settable in menu), the inverter will start Working by disconnecting the mains bypass. So the solar power will go to the load through inverter and Also charge the battery (online function) if the solar current is more than the inverter current. If solar current is less than the inverter current, inverter will take the balance current from the battery.When the battery reaches the reserve charge (in AMON Inverter this value is settable), inverter will stop And mains will bypass, and the battery will be charged by solar. During nights, if the battery is not Charged from the solar, battery will charge from the mains but only to a certain percent (in AMON Inverter this value is settable) so the next day the battery can be charged from solar. If the battery is Fully charged using mains the previous night then the solar energy during the next day will be wasted.This way the first priority is always given to solar. Features: D.S.P. (Digital Signal Processor) based design. Pure sine wave output resulting in silent operation of motor and fans safe to all kind of loads. Computer compatibility. S.M.P.S Charging up to 120V AC Input. Inverter / UPS Selection Switch. Solar Charging Control Switch. Mains Charging Control Switch - No tension for night charging. Auto Switchover between Solar and Mains. Simultaneous Charging throgh mains as well as solar panel. PWM / MPPT Solar Charge controller.. Solar display for panel voltage, panel current, battery voltage and total generater solar energy in Kwh. Inverter display for mains ON, Mains Volt, Charging ON / OFF, Charging current, battery Volt, inverter / UPS ON/OFF, output volt, output load etc., Protections against over load, short circuit, battery deep / over charging, Mains over volt (upto 440V), phase input & output reverse, phase & neutral reverse, heavy load in all these error conditions will be shown in the LCD display.
