Boring Pump Dealers in Coimbatore

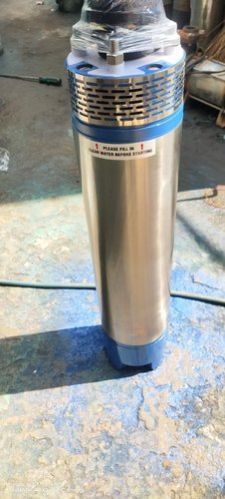

Our Stainless Steel Bore Well Submersible Pumps are equipped with an advanced electric motor. These pumps are ideal for general submersible water applications such as able to drain infiltrating water, cellars to reservoirs, clean or slightly dirty water and for garden irrigation.

Salient Features Motor Motor construction in integral locking method for easy servicing Copper rotor for better connectivity International NEMA standard spline coupling to enable inter-changeability Carbon thrust bearing for less friction and better efficiency even at low voltage field conditions Reinforced motor design to withstand wide voltage fluctuations Pump To ensure pump stability and perfect alignment, an additional protection is provided in the pump portion Sand guard provision in both lower and upper portion of the pump SS insert in all noryl diffusers for wear & tear resistance even in sandy bore wells NRV to avoid water hammering effect to the pump Application Domestic and Minor Irrigation Residential Complexes and high rise Buildings Drip and Sprinkler Irrigation Fountains and Special Performance Table

Submersible pumps for 6” Bore Well 3 HP to 25 HP Three Phase. Submersible pumps for 4” Bore Well 0.5 HP to 3.0 HP Single Phase and 3 HP to 7.5 HP Three Phase. Specification:- Our product ranges from 0.5 H.P to 3 H.P. suitable for 4” , 6” bore hole having a total head upto 500 metres and with a discharge upto 1400 LPM. For 8” bore holes and above we have motors upto 40 H.P. with a total head upto 500 metres and discharge upto 3300 LPM.

Applications Domestic & Community Water Supply Bore well applications in agriculture and irrigation Drip and Sprinkler Irrigation Housing Complex, Bungalows High Raise Buildings

• Power: 3hp to 7.5hp (5.5kw)
• Motor: 140mm dia motor 3 hp to 7.5hp Three phase 415 Volts
• Head Range: up to 407 meters Pumps 100mm (4”) submersible pump
• Head: up to 407 meters (1330 feet)
• Discharge: up 540 LPM

Bore well COMBO submersible pump for 6” (150mm) bore well. Applicable for deep bore wells ( 500 to 1330 feet) with low water yield. When  Compared to a regular  6”(150mm) bore well pumps , for a 1000 feet depth, HP  required for a 6” bore well pump is  minimum12.5hp( minimum water   discharge is 110 LPM). But when the yield in the bore well is less than 70 LPM, this combo pump requires only 5 hp   FEATURES: Pump designed and constructed with casing tube and with tie bolt to arrest whirling effect and thus increase the life of the pump. With low power, high head is achieved. 3hp -235 meters , 5hp-370 mts, 6hp-407 meters. Thus suitable for low yielding bore wells . Existing V6 motors can be used . Standardized spares engineered to perfection makes this pump a world class pump APPLICATIONS: For pumping water from deep bore wells A regular 6” Bore well motor can be used as prime mover A low discharge 6” pump of 5hp can be used max up to a depth of 450 feet. But this combo pump of 5hp can used for a depth of 1300 feet. Thus savings in cost and power Existing 6” motor can be used with this pump

Salient Features Motor Motor construction in integral locking method for easy servicing Copper rotor for better connectivity International NEMA standard spline coupling to enable inter-changeability Carbon thrust bearing for less friction and better efficiency even at low voltage field conditions Reinforced motor design to withstand wide voltage fluctuations Pump To ensure pump stability and perfect alignment, an additional protection is provided in the pump portion Sand guard provision in both lower and upper portion of the pump SS insert in all noryl diffusers for wear & tear resistance even in sandy bore wells NRV to avoid water hammering effect to the pump Application Domestic and Minor Irrigation Residential Complexes and high rise Buildings Drip and Sprinkler Irrigation Fountains and Special

• Type: Borewell
• Motor Phase: Three Phase
• Brand: Akash

Applications   Domestic & Community Water Supply Bore well applications in agriculture and irrigation Drip and Sprinkler Irrigation Housing Complex, Bungalows High Raise Buildings

• Light weight and easy to install: Stainless steel pump shell for corrosion resistance and LTB bushes for high wear resistance and longer life
• Improved hydraulic design with increased efficiency and reduced power consumption: Built in NRV with minimum friction
• Noise free operations.: Easily rewindable Squirrel-cage motor of water-cooled, designedfor 200 – 240 V, 50 Hz, AC power supply
• Modular construction and easily interchangeable parts: High quality water-resistant polymer insulated wires for longer life even under adverse voltage conditions
• Available in radial flow impeller design in shell type assembly: Pressure diaphragm to compensate excess pressure due to heating up of filled water
• Impellers and diffusers of high quality engineering polymer:

Boring pump run with maximum efficiency that satisfy the need of every customer in various ranges of applications. SharpPower Water Pumps has recorded a remarkable growth with commitment towards value creation for its customers and stress on Research & Development.

• Number Of Stages: Multi Stage Pump
• Type: Borewell
• Motor Phase: Three Phase
• Head: 51 to 100 m
• Maximum Discharge Flow: 1001 - 5000 LPM
• Motor Horsepower: 5 - 20 HP
• Brand: Ambal/Metro
• Usage/Application: Agri
• Model Name/Number: AMPS/22

• Supply Voltage: Single Ph 220V + 10% -15%
• Speed: 2820 rpm
• Maxi. Permissible sand in wate: 25 g / m3 (max)
• Pumping liquid: Clear cold fresh water
• Hardness of water: 300 (max)
• Water temperature: 33 C

ALTUS 100mm ( 4”) Bore well Submersible pump sets offer trouble free operation lifting water to new heights from new depths. The pumps are manufactured under exacting quality control measures to offer longer life and higher efficiency. The computerized design allows varied voltage operation.   The ALTUS Submersible pumps are ideally suited for Industrial and residential use, Multi storeyed buildings, Agriculture and Horticulture farms and Public water supply systems.
