Concrete Equipment Dealers in Rathinapuri, Coimbatore

• EASY OPERATABLE: GOOD FINISH

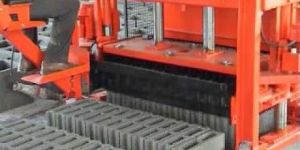

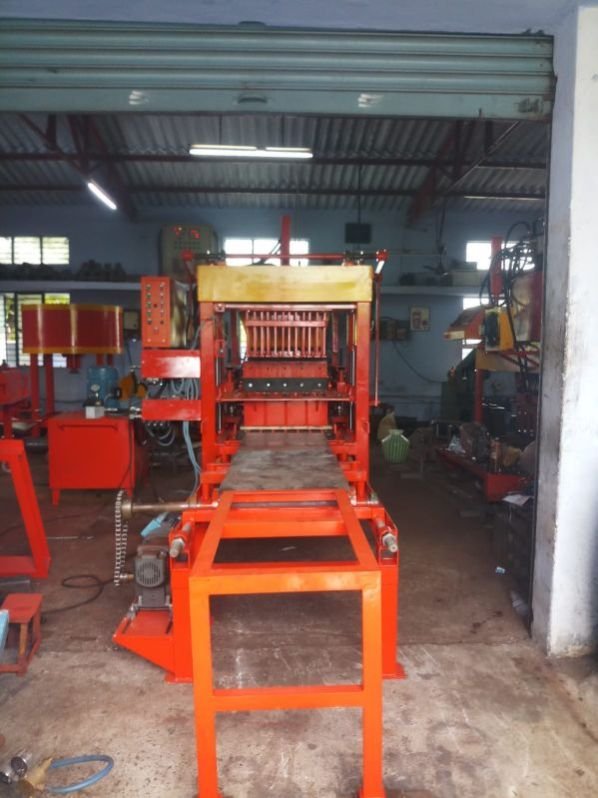

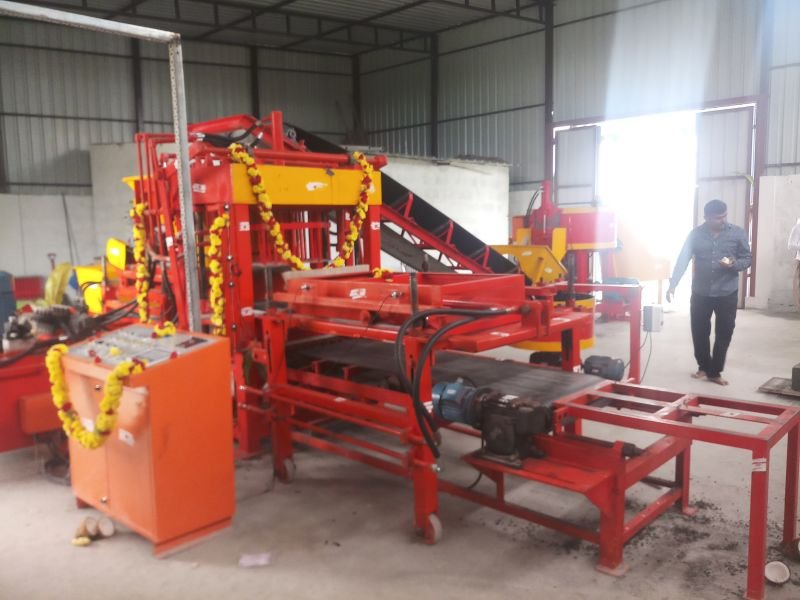

Manual Model: This machine has two separate working stations powered by 10 HP hydraulic power pack. Each station(mold) has the separate hand operated values to activate pressing and lid cylinders. By proper timing of the cylinder operations through a valve, maximum production can be achieved. Automatic Model: The automatic machine can be easily operated by simple pressing of a push button for each cycle of the mold. The cycle logic is very well designed with a PLC which will operate the first station and subsequently next station will start operating on its own without any time delay.

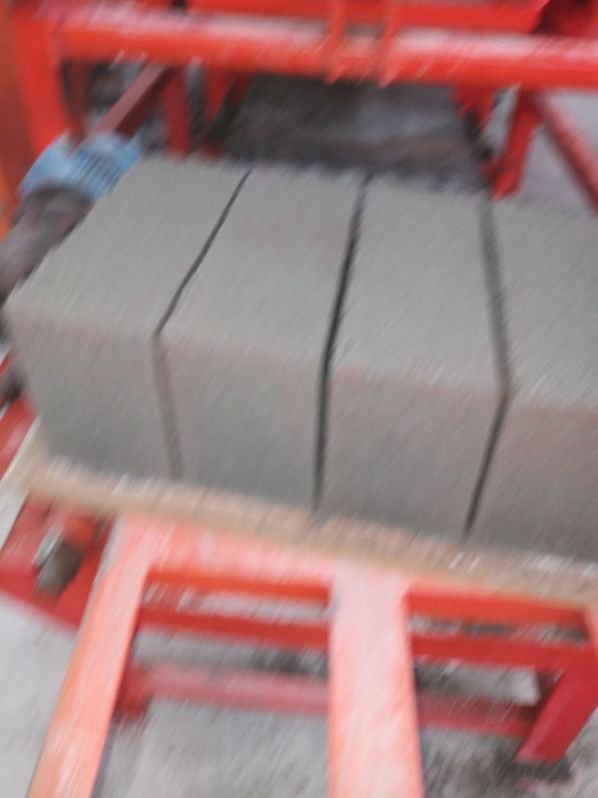

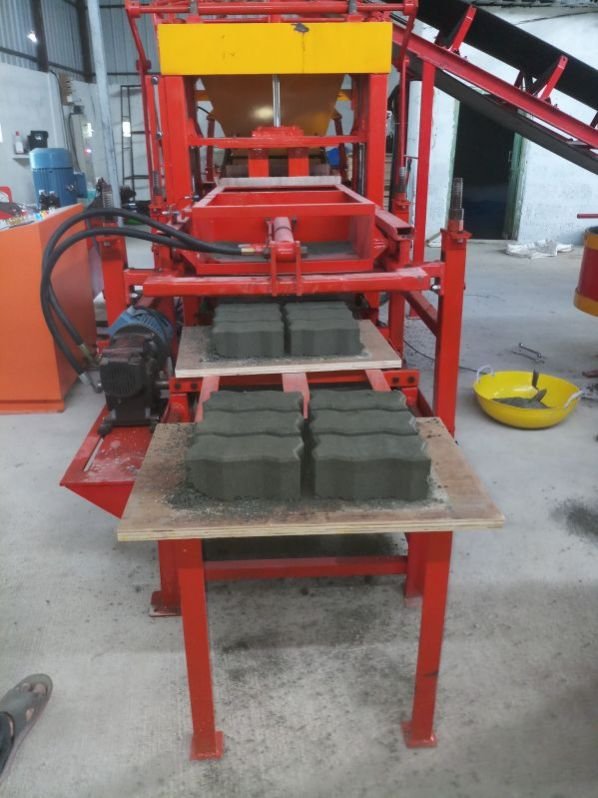

It is a stand type hand Operated Block Making Machine with Vibrator. The block will be made with the help of wooden Steel Pallet.

• Type: 860
• Brand Name: IMW
• Condition: NEW
• Place of Origin: COIMBATORE
• Machine Weight: 1000 KG
• GREEN COLOUR: BLUE COLUR

Item Code: 860 It is an egg laying type Hydraulic Concrete Block Making Machine on wheels, Which will lay block on the concrete Floor and move to the next laying. Any type of concrete blocks can be produced with Consistent quality by fixing different types of concrete mould and ram in the machine. 860 MODEL SINGLE VIBRATOR DOUBLE VIBRATOR TRIPLE VIBRATOR Total Power 3 Phase 415 V 5 H.P 6.5 H.P 8 H.P Hydraulic Motor 3 H.P 1440 rpm 3 H.P 1440 rpm 3 H.P 1440 rpm Vibrator Mould Motor 1.5 H.P 2880 rpm 3 H.P 2880 rpm 3 H.P 2880 rpm Vibrator Ram Motor _ _ 1.5 H.P 2880 rpm Travel Motor 0.5 H.P 1440 rpm 0.5 H.P 1440 rpm 0.5 H.P 1440 rpm Weight without Mould & Ram 1000 kg (approx) 1150 kg(approx) 1300 kg (Approx) Vibrations 6000 Hz Amplitude Adjustable Operating Pressure 140 kg/cm2 Moulding Area 860 x 600 mm Dimensions 2000 x 1500 x 2000 mm Production Capacity 40 - 50 Strokes / Hour 400 x 100 x 200 mm 8 block/stroke - 2500 - 3200 / Shift 400 x 150 x 200 mm 5 block/stroke - 1600 - 2000 / Shift 400 x 200 x 200 mm 4 block/stroke - 1200 - 1600 / Shift

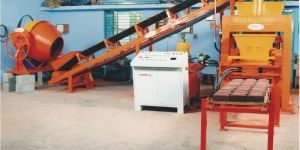

We are the One and Only Manufacturer of FULLY AUTOMATIC MACHINES in India. We Designed Various New Models in Fully automatic HOLLOW BLOCK MACHINES.An egg-laying type machine on wheels, this Hydraulic Operated Concrete Block Making Machine will lay the block on the concrete floor and move to the next laying space. By fixing different types of concrete mould and ram into the machine, any type of concrete block can be produced with consistent quality. This machine we can be fitted with Single Vibrator (2 HP), Double Vibrator (3 HP) and Treble Vibrator (4 HP).

• Material: Iron
• Condition: New
• Brand Name: Subi Tek
• Max Weight: 0-200 kg
• Phase: Single
• Automation Grade: Semi-Automatic
• Is It Portable: Portable

• Capacity: 7.5 / 10 hp

Hydraulic Concrete Block Making Machine

Hydraulic Concrete Block Making Machine, Construction Machinery

concrete block machines

Concrete Block Making Machine, Brick Making Machines, Construction Machines

Concrete Block Making Machine, Metal Pallets, mobile cabins
