Faraday Ozone products Pvt ltd Saravanampatti, Coimbatore, Tamil Nadu

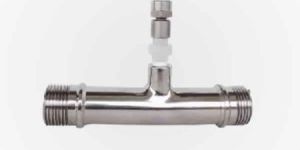

Venturi Injector Be the first to review this product Faraday manufactures venturi injectors in engineering plastic as well as stainless steel for various ozone applications and other uses where liquid and gas mixing is neccessary. Faraday has wide range of venturi injectors from ½ inch to 2 inch. Features:     • Made of engineering thermoplastics with superior strength, high temperature stability.• Excellent chemical resistance to most of the chemicals.• No moving parts, low maintenance, trouble free operation.• Unique design allows maximum cavitation in the injection chamber, thereby  providing instantaneous mixing and low initial and installation cost.• Ideally suited for continues mixing functions, require no secondary blending devices.• Alternatively where no differential pressure is available, the injector can be operated in conjunction with a small booster pump to boost pressure through injector.

Domestic Ozone Sterilizer is a multi function device, used to purify both air and water. With digital display, there are 6 time duration for each rotation on the timer button, minimum staying times is 10 min, while maximum staying time can reach 90 mins. Manual rotate system can set the working time freely.    Application: Food and Water: Fruits and vegetables washing Tableware washing Fish and meat Washing Water treatment Bathing Laundry Children’s articles   Air Purification: Airtight room  Kitchen Pets Carpets,newly decorated room with new furniture

Teflon Tube Be the first to review this product Teflon tubes are used to pass the flow of ozone gas from the ozone generator to the mixing equipment such as diffusor or venturi injector. Teflon is an ozone compatible material and will not be corroded by ozone.   Teflon tubes are used to pass the flow of ozone gas from the ozone generator to the mixing equipment such as diffusor or venturi injector. Teflon is an ozone compatible material and will not be corroded by ozone.

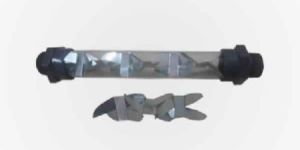

Static Mixer Be the first to review this product Static Mixers are used for effectively mixing gas with liquid or two liquid after the venturi injection. The device consists of mixer elements contained in cylindrical (tube) housing. Similarly the overall system design incorporates a method for delivering gas with liquid - two streams of liquids into the static mixer. As the streams move through the mixer, the non-moving elements continuously blend the materials. Complete mixing is dependent on many variables including the fluid properties, tube inner diameter, the number of elements, and their design.   Benefits:     • Static mixers deliver a high level of mixing efficiency, therefore the consumption of dosed chemicals, gases and formation of byproducts can be dramatically reduced.• They eliminate the need for tanks, agitators, moving parts and direct motive power and they allows to gain highly efficient mixing with low energy consumption.• The energy required for mixing is efficiently extracted as pressure drop from the fluid flow through the elements. Mixers are invariably installed in existing systems without reducing the capacity of existing pumps.• The installation is very easy, no special skills are required other than normal engineering skills. • Mixers have no moving parts and are virtually maintenance free• Each Static mixer is carefully designed to meet the specific requirements of each application

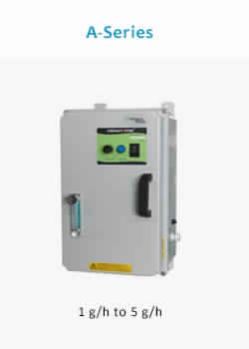

Our vast experience in ozone generators of all ranges comes from our in-house Research & Development team who consistently improvise on implementing newer technologies to our products   We design and manufacture ozone generators ranging from 1 gram per hour to 50 kilogram per hour suitable for various applications. Our High Voltage, High Frequency Corona Discharge technology enables us to achieve High ozone concentrations of 8 – 12 % by weight. Higher the concentration, better the dissolved ozone efficiency and lower the oxygen feed gas requirement/consumption.   We have different series of ozone generators that offer various ranges, features and integrations required for different applications and running conditions.   A-Series comprises our ready-to-use range of ozone generators with 1 g/h to 5 g/h models  available. It is an integrated ready-to-use system with inbuilt oil free air compressor for feed gas preparation - produces ozone by just giving power connection to it. No other additional connections are required and the installation is very simple. Our A-Series uses our patented High Voltage, High Frequency Corona Discharge technology for ozone production - the most advanced method available. Our A-Series is built on a GRP fiberglass enclosure that is rugged, has longer durability and withstands harsh weather conditions.It is wall mountable. Our A-Series offers good value for money with superior technology for ozone production that offers continuous and reliable ozone output.   All the materials used inside the machine are highly compatible and resistant to ozone such as SS fittings, SS base plate and Teflon tubes for connections. Air cooling by using highly efficient fans in specific designed areas allows for better heat dissipation thereby increasing the overall efficiency and life.

Our Ozone Destruction Monitoring Equipment is a durable 304 stainless chamber with 6mm fittings that easily attaches to an ozone contact tank, de-gas separator or other ozone contacting system to convert any unused ozone off-gas into oxygen before venting into the atmosphere.

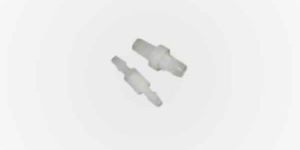

NRV Be the first to review this product NRV - Non Return Valve check valves ensure that the gas/ water from the venturi injector does not back to the ozone generator in case of back pressure/ back flow.

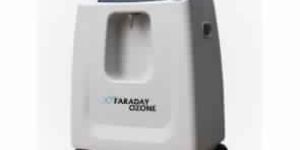

Medical Oxygen Concentrator Air contains 21% oxygen, 78% nitrogen, 0. 9% argon, and 0. 1% other gases. Faraday Oxygen Generating Systems separate oxygen from compressed air through a unique Pressure Swing Adsorption (PSA) process. The PSA process uses molecular sieve (a synthetic zeolite), which attracts (adsorbs) nitrogen from air at high pressure and releases (desorbs) it at low pressure. Faraday Oxygen Generators use two vessels filled with molecular sieve as adsorbers. As compressed feed air flows through one of the vessels, the molecular sieve adsorbs nitrogen. The remaining oxygen passes through the vessel and exits as the product gas. Before the adsorber becomes saturated with nitrogen, the feed air is diverted to the second vessel. At that point, the sieve in the first vessel regenerates by desorbing the nitrogen through depressurization and purging it with oxygen from the second vessel. This process is then repeated in the second vessel to complete a cycle that allows the oxygen generator to deliver a constant flow of product oxygen at 90% minimum purity. Under normal operating conditions, the molecular sieve is completely regenerative and will last indefinitely.   Oxygen Concentrator - OXY-5 Be the first to review this product   The Medical Oxygen Concentrator uses ambient air as a source  of oxygen. It is designed to deliver continuous and concentratedflow of oxygen. It has been designed to provide a combination of enhanced features, reliability of a proven technology and unsurpassed quality.It runs on electricity and the only maintenance required is the regular cleaning of filters.   Features:     • Quiet Operation - less than 48 dBA• Easy to transport and maneuver• Slender & Sleek Cabinet Design with Integrated Handles• Quick Snap Rear Panel allows easy access to filter, hour meter & battery• Superior Grade of Molecular Sieve• Patented Maintenance Free Rotary Poppet Valve• Exclusive Moisture Reducing Wick Assembly• Reinforced Base Substructure and Recessed Casters to guard against breakage.• Spring Mounted High Efficiency Thomas Nexus Compressor• Patented RPSA Technology

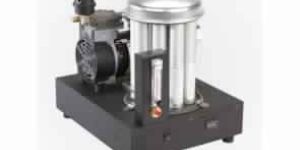

Industrial Oxygen Concentrator Air contains 21% oxygen, 78% nitrogen, 0. 9% argon, and 0. 1% other gases. Faraday Oxygen Generating Systems separate oxygen from compressed air through a unique Pressure Swing Adsorption (PSA) process. The PSA process uses molecular sieve (a synthetic zeolite), which attracts (adsorbs) nitrogen from air at high pressure and releases (desorbs) it at low pressure. Faraday Oxygen Generators use two vessels filled with molecular sieve as adsorbers. As compressed feed air flows through one of the vessels, the molecular sieve adsorbs nitrogen. The remaining oxygen passes through the vessel and exits as the product gas. Before the adsorber becomes saturated with nitrogen, the feed air is diverted to the second vessel. At that point, the sieve in the first vessel regenerates by desorbing the nitrogen through depressurization and purging it with oxygen from the second vessel. This process is then repeated in the second vessel to complete a cycle that allows the oxygen generator to deliver a constant flow of product oxygen at 90% minimum purity. Under normal operating conditions, the molecular sieve is completely regenerative and will last indefinitely.     Oxygen Concentrator - OXI-5 Be the first to review this product   The OXI-5 Series Oxygen Concentrator is completely self-contained, and its overall design is built for 24 hour operation. The total industrial strength and quality of the OXI-5 Series will provide the end-user with years of dependable reliable, and maintenance-free operation.The OXI-5 Series is built on a powder coated steel frame/chassis. Its internal air compressor, aluminum sieve beds with state-of-the-art molecular sieve material, filtration and flow of control systems are designed for years of operation. Each OXI-5 Series  goes through rigorous quality control testing procedures. The OXI-5 Series is available in 120 V, 60 Hz, 220-240 V, 50 Hz models for use worldwide. The OXI-5 oxygen modules incorproate proven pressure swing adsorption (PSA) principles into a unique patented design which is far more compact, efficient, rugged and lower in cost than conventional PSA systems.    Features:   • Reliable oxygen production• Rugged, environmentally tolerant design• Compact & lightweight for maximum design flexibility• Constant deliver delivery pressure• Low capital and operating costs• Eliminates the need for an external product tank• Suitable for use in any industrial location• Extended Compressor Life

Fruit & Vegetable Purifier - FVP10 Be the first to review this product FVP10, a creation of Faraday Ozone, is an innovative product which can be wall mounted. It generates Ozone gas to eliminates microbes, inhibit fungi, resist viruses, remove toxin and odours. It sterilizes the surface of fruits and vegetables effectively, to enhance the taste of purity and health. FVP10 has timer with LED indicator for time setting, which shows 5 different timing varies from 5 - 60 minutes. Set the desired time according to the application. It generates 100 mg/h ozone, which will discharge to cleaning bowl through silicon tube, for disinfection.   Food is something we cannot ignore, as without it, we will not survive. Food safety has become more and more prime concern to those who care what we eat. Washing fruits, vegetables and meat with plain water will not help in removing pesticides and other toxic contaminations on its surface. Understanding this we have introduced out latest product, FRUIT & VEGETABLE PURIFIER (FVP10) which utilizes the powerful ozone technology for removing all the impurities on the surface of fruits, vegetables and meat.  Benefits : Makes you healthier by removing 100% bacteria, virus and fungus  Easy operation & maintenance Lowest power consumption Compact in size - Wall mountable Eco - friendly to use Can be applied to various home applications   How to Use ? Connect the one end of silicon tube to the ozone outlet and other end to a diffuser, place the diffuser in the bottom of the cleaning bowl which diffuses ozone into water To turn ON, connect the plug in power supply and then LED will glow RED to indicate that the device is ready to use  After few seconds, the LED representing 5 minutes will automatically glow GREEN colour  Select the timer to set your desired time between 5 to 60 minutes Timings can be changed by selecting the required time After setting time, press Start button to run the machine. Then the glowing LED indicates that the machine has started to generate ozone gas to supply  After completion of set time, the machine will automatically stop. Then press Stop button, switch off the power supply and remove the plug If you want to stop the machine while its working, press Stop button

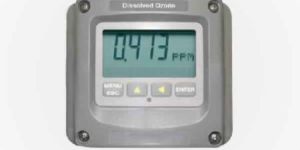

Dissolved Ozone Monitor - MON-DOZ-05 Be the first to review this product Dissolved ozone monitor is the ideal choice for on-line monitoring and control of ozonation systems. Capable of measuring ozone concentrations in the range of 0 - 4 ppm. Faraday's monitor is ideally suited to water bottling systems or municipal water treatment. Utilizing a highly selective polarographic membrane sensor, dissolved ozone can be monitored interference-free, with little maintenance. There are no moving parts and what little maintenance is required can be done in just a few minutes. Installation is simple and you can be up and running in a few minutes. Available in loop-powered, AC operated, portable versions, our monitor is well suited for almost any ozone measurement requirement. And for even more flexibility, the instrument is available with an optional pH sensor input that allows a single unit to provide both dissolved ozone and pH analog outputs.    Features:     • Simultaneous display of measured values and parameter settings• Simple operation confirmation mechanism• 24 V DC power supply (CE-compatible)• Choose the optional pH sensor and get outputs for both ozone and pH.

Diffuser is used to mix ozone in water. Diffuser is made of fine pores that mix ozone gas as bubbles in water.

Air Sterilizer Instaclean - Air, odor sterilizer and room sterilizer used for Shock Treatment in Indoor Spaces to remove Odor, Mold growth, Fungal and Bacteria and viruses. • Destroys odors: smoke, pet, cooking, and chemical• Kills bacteria, airborne viruses and other micro organisms Eliminates odor without producing any hazardous byproduct• Removes allergy causing pollen and microbes• Prevents mold and mildew, the leading cause of Legionnaires Disease• Its natures own purifying process   Ozone Air Sterilizer - AS50 Be the first to review this product   Our Instaclean AS50 a portable air sterilizer/sanitizer that uses ozone for treatment of rooms, halls etc by circulating ozone inside the room using inbuilt blowers. This instaclean can be used almost everywhere - anyplace where odour needs to be removed or area should be sterilized/sanitized and made free of micro organisms.Our Instaclean is suitable for room sizes of upto 2500 cubic feet for 1 hour treatment time and also for heavy odour/microbial treatment. This Instaclean comes with a programmed timer control to be set for 5 minutes, 10 minutes and such based on the room size.   The Purification Process Oxidation : Ozone, when introduced into the atmosphere in low levels is an excellent air purifier. Ozone in itself is an unstable three-part molecule of oxygen. When an ozone molecule contacts a pollutant, it attaches itself to it and changes its molecular structure in most cases to carbon dioxide and hydrogen. By destroying viruses, bacteria and other microbial contaminants, the source of the odor is eliminated and the odor does not return. Ozone destroys the contaminant molecule; it does not mask it as other methods do. Ozone treats all of the air, not just the air that is pulled into it as do the vast majority of electronic filters that are on the market today. Ozone residual will revert back to pure oxygen, making it environmentally friendly.   Why Instaclean ?   • To remove smoke & odors instantly• Sterilize bacteria, virus & molds• Long power supply cord for easy operation• High speed blower to cover long distance• High ozone output - corona discharge cells   Features :   • Destroys odors: smoke, pet, cooking, and chemical • Kills bacteria, airborne viruses and other micro organisms Eliminates odor without producing any hazardous byproduct• Removes allergy causing pollen and microbes• Prevents mold and mildew, the leading cause of Legionnaires Disease • Its natures own purifying process   Applications :   • Hotel Rooms• A/C Cabins• Dr’s Cabins• Fire Restoration• Operation Theater• Hospital• Home, Office and public spaces

Ozone Monitor in Air Ambient Ozone Monitor is designed for Ozone gas monitoring. Ozone Monitor is very essential in detecting any ozone leakage from ozone systems placed in indoors. As per safety norms from OSHA and EPA, ozone monitor is must in every industry uses ozone systems. Faraday's state of the art ozone monitors or ozone sensors measure ozone levels with high accuracy, rapid  response and operational simplicity. We offer a range of high quality ambient ozone monitors and ambient ozone controllers for different applications  to global market. • Ambient gas monitoring and control• Active sampling for higher accuracy• Analog • Digital • Relay outputs• Large easy-to-read display• Alarm or Control options• Low maintenance• Easy to install
