Fluidics Engineers Private Limited Saravanampatti, Coimbatore, Tamil Nadu

Welded Type Cylinder   A rugged and reliable cylinder due to its welded design and threaded cap. This type of cylinder usually has a narrow body and often a shorter overall length and can be offered with long strokes.    Specifications   Rated Pressure: 210 kg/cm². Cylinder Bore Diameter up to 400 mm. Strokes up to 5000 mm. Temperature range: -20°C to 90°C. (Optional sealing systems for temperatures up to 180°C)

Material : Cast Iron

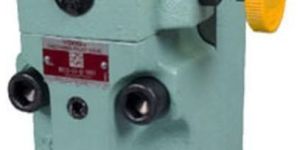

Unloading Relief Valve  Unloading relief valves are used to operate pumps under a minimum load in accumulator or 2-pressure pump circuits etc.

Automatic Grade : Semi Automatic

Type : Industrial Valves

Country of Origin : India

TRANSMISSION FILTERS   In machines with a hydrostatic drive and combined working hydraulic system, return-suction filters replace the suction or pressure filters previously required for the feed pump of the closed-loop hydrostatic drive circuit as well as the return filter for the open-loop working hydraulic circuit. While each circuit operates independently with separate filters, the combination of the two circuits via the return-suction filter causes interaction between the circuits.

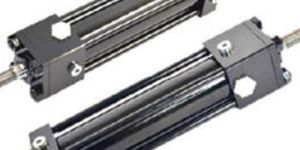

Tie-rod type  Medium Pressure Cylinders  Tie-rod type, Medium Pressure hydraulic cylinders, available with a wide range of mounting arrangements conforming to CETOP recommendations.   Specifications Rated pressure 50 kg/cm². Peak pressure 70 Kg/cm². Cylinder bore diameters: 25mm to 350mm. Strokes up to 3000 mm. Temperature range: -20°C to 90°C. (Optional sealing systems for temperatures up to 180°C)

Structure : Series Cylinder

Type : Tie-Rod Cylinder

Tie-rod type  High Pressure Cylinders Tie-rod type, High Pressure hydraulic cylinders, available with a wide range of mounting arrangements conforming to CETOP recommendations.   Specifications Rated Pressure 160 kg/cm². Cylinder bore diameters: 25 mm to 350 mm. Strokes up to 3000 mm. Temperature range: -20°C to 90°C. (Optional sealing systems for temperatures up to 180°C)

Condition : New

Color : Blue

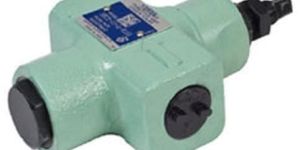

Throttle & Check Valve Model Number Designation This valve is used to regulate an actuator speed in a circuit where line pressure is almost steady and small fluctuation of oil flow due to pressure changes is permitted. Integrated check valve allows reversed free flow from outlet to inlet port.

Temperature Gauge   These temperature gauges are developed for accurate and reliable measurement of temperature in a hydraulic system. YIL temperature gauges are built for highest standard of quality, performance, reliability and durability. These are argon welded joints having an excellent accuracy and good sensitivity against temperature change.

Material : Mild Steel

Shape : Round

Color : Silver

Display Type : Analog

Type : Temperature Gauges

Country of Origin : India

Telescopic Cylinders   Single-acting, Double-acting and custom built Telescopic Cylinders can be offered   Specifications Bore diameter 50 mm to 250 mm. Stroke up to 8000 mm. Rated Pressure: 210 kg/cm². Number of Stages : up to 6 (for single acting). Number of Stages : 2 (for double acting).

Material : Mild Steel

Shape : Round

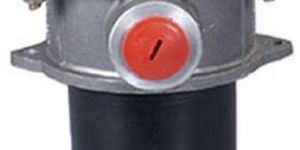

Tank Top Return Line Filter  These tank top return line filters are used to improve the reliability of a lube or hydraulic system to eliminate failure due to contamination. This can be mounted directly on the tank top and they provide the optimum removal of contaminate from the system.   Features Built in by-pass check valve setting at 1.05 Kgf/cm2. Powerful ceramic magnets fixed on the filter head attracts iron particles, it increases pump and system life. Suitable for petroleum and mineral based oils. High grade impregnated paper element.

Material : Mild Steel

Suction Strainer These suction strainer are used to trap contaminates from the fluid flowing through it. This can be located on a suction port of the pump or sub merged in the hydraulic tank and attached to the suction line heading to the pump. These suction strainers consists of stainless steel wire mesh, glass filled nylon head and end cap. Features Reusable stainless steel wire mesh. Excellent filtration efficiency. 100 mesh standard (149micron). Suitable for petroleum and mineral based oils.

Strainer Material : Mild Steel

Shape : Round

Color : Metallic

Packaging Type : Corrugated Box

Country of Origin : India

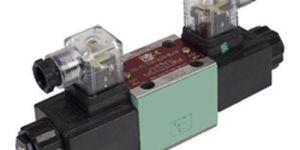

DSG01 Solenoid Operated Directional Valve   WIDE RANGE OF MODELS–Choose the optimum valve to meet needs from a large selection available. The DSG-01 50 series solenoid operated directional valve comes with two basic models: Standard type ——- Useable at high pressure, high flow [315Kgf/cm2 ,63L/min.] Shockless type ——- which greatly reduces noise, which is a result of spool changeover and vibration in pipes.

Material : Mild Steel

Country of Origin : India

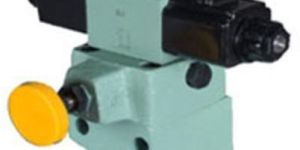

These valves protect the hydraulic system from excessive pressure, and can be used to maintain constant pressure in a hydraulic system. Remote control and unloading are permitted by vent circuits.   Solenoid Controlled Relief valves These valves are a combination of relief valve and solenoid valve. Piping between the two is eliminated as the solenoid valves is directly mounted on the relief valve and connected with the relief valve vent. Pump pressure may be unloaded remotely by an electrical signal to the solenoid, or by connecting pilot relief valves to the solenoid valve ports

Material : Mild Steel

Country of Origin : India

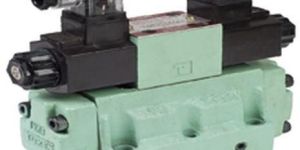

Solenoid Controlled Pilot Operated Directional Valve   These valves are composed of a solenoid operated pilot valves and a pilot operated slave valve. When a solenoid is energised the pilot valve directs the flow to move the spool of the slave valve, thus changing the direction of flow in the hydraulic circuit.   High Pressure High Flow High pressure [315 Kgf/cm2 ] along with high flow means compact system design. Lower pressure Drop System energy saving increased as pressure drop of each valve has greatly reduced

Material : Mild Steel

Country of Origin : India

Size : 10

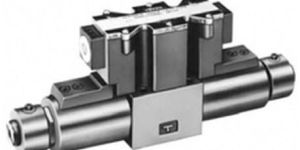

“G” Series Shockless Type Solenoid Operated Directional Valves (Shifting Time Adjustable)    The G-Series Solenoid Operated Directional Valves incorporate electronic circuits to enable adjustment of the spool shifting time. A special spool shape that minimizes shock is used, shock caused by the actuator starting and stopping, as well as vibration due to oil hammering. The shifting time of conventional Solenoid Operated. Shockless, Directional Valves is constant and cannot be adjusted. As the shifting time of the G-Series valves can be adjusted, it can be set at an optional level to minimise shocks to the machine.

Material : Mild Steel

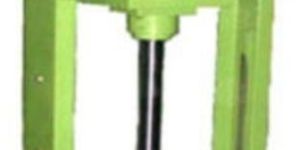

Rubber Bale cutter   Rubber Bale Cutters made available by us are precision designed to provide greater and accurate support in cutting, while at the same time also maintaining complete uniformity in thickness. Further, our rich process experience also allows these bale cutters to be customized as per specifications provided by clients. These machines are well recognized for their economy, durability as well as ease of use and find usage in for cutting rubber bales in different sizes.   Construction:   Steel hardened rollers that ensure smoother movement of bale through machine Semi and fully automatic cutters that is perfectly suitable for toughest natural as well as synthetic rubber bales Inclined cutters fed with continuous bales where the steel alloy blades cut bales into pre-determined size of selected thickness Bales automatically discharged with help of rollers

Max Load : 75 Ton

Operation : Automatic or manual

Oil Tank Capacity : 150 to 800 Ltr

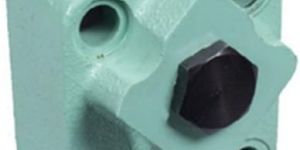

Right Angle Check Valves  These valves allow free flow in one direction and prevent flow in the reverse direction. Cracking pressure specified is the pressure required to open the valve and allow free flow.

Material : Mild Steel

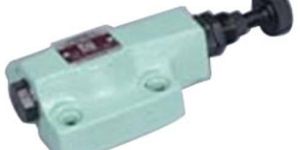

  Remote Control Relief Valve   This valve is used as a remote control valve for  pressure control valves. These valves are used in a hydraulic circuit to prevent damage due to excess pressure and to adjust the max. Pressure of small capacity. Available sizes NG6 & NG10.

Material : Mild Steel

Automatic Grade : Semi Automatic

Country of Origin : India

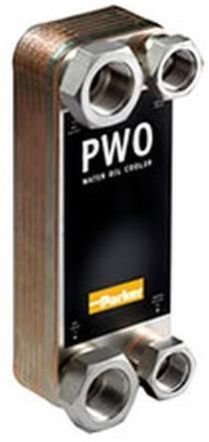

PWO – Plate Coolers brazed   Unique and maintenance-free – for efficient cooling   The PWO Plate cooler is a compact and light-weight oil-water cooler with high cooling capacity despite its small dimensions. It consists of corrugated channel plates enclosed by a back and front cover plate. The channel plates are pressed and vacuum-welded in an automatic procedure subject to very strict quality controls. The unique plate design provides highly turbulent flow conditions throughout the cooler, the key to efficient cooling. Turbulences prevent deposits from forming to such an extent, that the PWO cooler is virtually maintenance free.

Material : Stainless Steel

Type : Plate

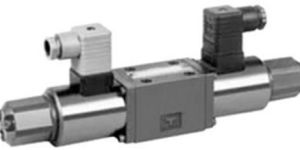

Proportional Electro-Hydraulic Shockless type Directional & Flow Control Valve   These valves are well accepted by industrial users as shifting time adjustable type shockless valves. By employing the basic design concept of the “G series solenoid operated directional valves”, we have been successful developing the shifting time adjustable shockless valves with high performance which makes the speed setting possible at any high speed operation. In combination with the newly developed digital amplifiers, the further enhancement of maneuverability and repeatability of the valves can be realized

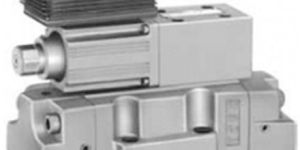

Proportional Electro-Hydraulic Relieving and Reducing Valves   These valves consist of a small size but high performance EH series electro-hydraulic proportional pilot relief valve and reducing valve with relief function. The valves control the system pressure proportionally through a controlled input voltage. Moreover, a good response speed in reducing the pressure even at a large load capacity can be obtained with the relief function of the valves.

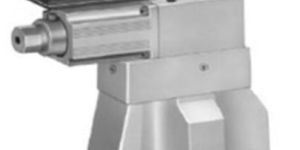

Proportional Electro-Hydraulic Relief Valves   These valves, consist of a small size but high performance EH series electro-hydraulic proportional pilot relief valve and a low noise type relief valve. The valves control the system pressure proportionally through a controlled input voltage.

Proportional Electro- Hydraulic Relief & Flow Control Valves   This relief and flow control valve is an energy-saving valve that supplies the minimum pressure and flow necessary for actuator drive. Since this valve controls the pump pressure by following the load pressure while keeping the differential pressure minimized, it servers as a low power-consumption energy-saving, metre-in, controlled flow control valve. Further, since a temperature compensation function is incorporated, this valve provides consistent flow control irrespective of the fluid temperature.

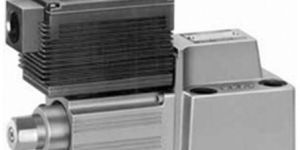

Proportional Electro-Hydraulic Pressure Control Valves These are Closed-Loop type pressure control valves controlling the system pressure from low to high in proportion to the input voltage. The stable pressure control is possible even in a small flow rate.

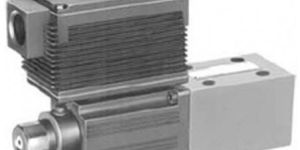

Proportional Electro-Hydraulic Pilot Relief Valves   The valve can be used as a pilot valve of the Proportional ElectroHydraulic Control valves. The valve can also be used as a relief valve for the hydraulic system where a small flow rate and continuous pressure control are required.
