The next option is the under-slung crane, which runs on the bottom flanges of rolled steel beams which form the crane tracks. These are usually indoor cranes and the crane tracks are suspended from the building structure. They have the advantage of being able to cover part of the building span without obstructing the floor below. Latest in this type are light weight crane systems wherein hollow sections are used as track sections inside which the travel trolley wheels move. These track sections can be used for the long travel tracks and also for the crane bridge.The under-slung arrangement allows the bridge of this type of crane to be designed with a cantilever at one or both ends.

Transfer cars are designed basically as per clients’ requirement and to meet necessity of industries.The frame is made from fabricated steel plates / rolled steel sections of ample strength.Travel motion wheels are provided as per the application. Transfer car with bogies may also be provided to negotiate curved tracks.Power supply is provided through CRD (Cable Reeling Drum) / shrouded bus-bar system / festoon cable system as per the requirement.

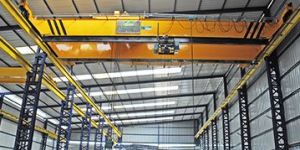

GKAF hoisto cranes brand Electrically Operated Overhead Travelling Cranes are designed & manufactured in accordance with IS: 3177 and IS: 4137. The structural parts of the cranes are designed in as per with IS: 807 and IS: 800. Our cranes are manufactured with standard components and controls to ensure reliability.The single girder design, in general preferred up to 15T capacity and span of 20M, is made from either rolled steel I-beam with C-Channel capping section on top for lateral stiffness or box section fabricated from plate. The rolled steel section girders, even though widely used, are ultimately limited by the availability of beam size and length. The distance from the hook at the top most position to the top of the gantry is often greater than indouble girder designs, although low headroom hoists can minimize this limitation.     STANDARD FEATURES:  GKAF hoisto cranes cranes have high quality structural assembly.  GKAF hoisto cranes cranes have minimum maintenance.  Easily adjustable imported brand limit-switches.  Load tested to 125% and certified by GKAF hoisto cranes from tests undertaken in our own workshops.   RANGE OF SPECIFICATIONS:  Safe Working Load: 500 kgs to 50,000 kgs  Span: 30 mtrs  Height of Lift: As per customer specifications  Class of Duty / Standards: M5 to M8 as per IS 3177 / IS 807  Speeds: As per clients’ specification / application.  Crane Control: From floor through Pendant Push Buttons, Optionally through Radio Remote Control / cabin with master control  Drive System: Twin Drive through Squirrel Cage Induction Geared Motors with built-in fail safe brakes  Motors: Squirrel Cage Induction Crane duty motors, IP 55 enclosure, S4 duty, 40% CDF  Brakes: ACEM / DCEM disc type brakes, optionally Shoe type brakes for hoist & LT motion  Power Supply System: To Hoist and Cross Travel through C-Rail Cable system / Cable Drag Chain To Crane through Shrouded Bus Bars / Trailing Cable / MS Angle Iron Conductors / Bare Copper Conductors (depending on customer's choice and application)

Geared type / Push-pull type manually operated trolleys mounted on monorail are designed to provide for transfer load from one place to another.Monorail trolleys have provision for mounting Chain pulley blocks or electric chain hoist or motorized chain blocks.     OPTIONAL FEATURES:  Non-sparking type  Power trolley type

Jib Cranes are built consistently with hoisting & traversing units manufactured as per Indian standards. Mast is fabricated from pipe / rolled steel section, while the Jib Arm is fabricated from I-Beam or Mild steel plates. Thrust and ball bearings provided for smooth swivel as well as to take care of vertical and horizontal load as well as radial thrust.Swivel operation provided both in manual operated through hand chain or electrically through motor & gearbox mechanism. The base is drilled to take foundation bolts.These cranes are available in 180 / 270 / 360 deg boom swivel angles.Hoisting unit may be manual chain pulley blocks operated through hand chain from floor or electric chain hoists or electric wire rope hoists. Traversing unit may be either geared travelling trolley (manual) or electric trolley.

We manufacture electric / manual winches are per customers’ requirement. Electric Winches are designed to pull or lift loads to very high heights. Single layer or multi layer winches can be supplied as per requirement.

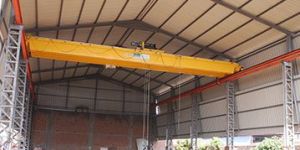

H.O.T Crane is a Hand Operated overhead traveling crane. Overhead traveling cranes are both single girder and double girder and have a capacity ranging from 500 kg to 50,000 kg capacity. RANGE OF SPECIFICATIONS:  Safe Working Load: 500 kgs to 50,000 kgs  Span: 3 mtrs to 30 mtrs  Height of Lift: As per customer specifications  Class of Duty / Standards: M4 as per IS 3177 / IS 807 SPECIAL CRANES GKAF hoisto cranes prides itself on customizing equipment exclusively as per client requirements. Customization is achieved by a mix of standard components and specially designed components.GKAF hoisto cranes also offers custom-engineered hoisting solutions for various industries.

A goliath (gantry) crane is similar to a top running crane except that the crane bridge is supported by legs and the rails are at ground level. The additional leg structure makes the crane more expensive, this is offset by the considerably cheaper low level rails. That advantage increases with increased track length making them particularly suitable for large outdoor stockyards. There is an additional safety hazard arising from travelling on low level rails which must be considered, but this can usually be taken care of easily and ground level rails can be advantageous compared to the obstruction caused by the building structure columns. They can be of single or double girder design with similar construction methods. Furthermore they can be designed with a cantilever at one or both ends.A semi-goliath (semi-gantry) crane is a hybrid of a goliath and a top running crane with one end of the bridge supported by a high level gantry and the other by a leg running on a low level track. Typically they are used in an area adjoining a building and the high level gantry is integral with the building structure. They are therefore suitable for outdoor stockyards alongside a building but also for indoor use where a full span of the building is not required.Outdoor duty goliath cranes are checked for stability under storm condition. Special storm anchors are provided to prevent toppling of crane under storm condition.     RANGE OF SPECIFICATIONS:  Safe Working Load: 500 kgs to 50,000 kgs  Span: 20 mtrs  Height of Lift: As per customer specifications  Class of Duty / Standards: M5 to M8 as per IS 3177 / IS 807  Speeds: As per clients� specification / application.  Crane Control: From floor through Pendant Push Buttons, Optionally through Radio Remote Control / cabin with master control  Drive System: Twin Drive through Squirrel Cage Induction Geared Motors with built-in fail safe brakes  Motors: Squirrel Cage Induction / Slipring Crane duty motors, IP 55 enclosure, S4 duty, 40% CDF  Brakes: ACEM / DCEM disc type brakes, Shoe type brakes for Hoist, CT & LT motion  Power Supply System: To Hoist and Cross Travel through C-Rail Cable system / Cable Drag Chain To Crane through Shrouded Bus Bars / Trailing Cable / MS Angle Iron Conductors / Bare Copper Conductors (depending on customer's choice and application)

Suitable for the Hazardous area classifications Zone1, Zone2, Gas Group IIA, IIB, IICThe drive consists of flame proof motor, brakes, switches and push buttons. All electrical fittings are flame proofsuitable for group I, IIA and IIB gases. Flame proof limit switches for extreme ends in horizontal and vertical movement. Flame proof local control panel and main incoming isolator with contactor, thermal over-load relays & MCBs.   RANGE OF SPECIFICATIONS:  Safe Working Load: 500 kgs. to 20,000 kgs.  Heights of Lift: As per customer specifications  Class of Duty / Standards: Equivalent to IS 3938  Speeds: Selected depending on client specifications / applications / shed dimensions  Crane Control: From floor through Pendant Push Buttons, Optionally through Radio Remote Control  Drive System: Drive through Squirrel Cage Induction Geared Motors with built-in fail safe brakes  Motors: Squirrel Cage Induction Hoisting Motors with built-in fail safe brakes for Hoisting. Insulation Class for all motors B/F  Brakes: Built-in Brakes for Hoisting, Cross Travel Motions  Power Supply System: To Hoist and Cross Travel through Trailing Cables

GKAF hoisto cranes Wire Rope Hoists are designed & constructed generally as per the requirements of IS: 3938. Few salient features of the hoists are easy of use & maintenance, better Headroom, Modular construction.   Rope Drum: Fabricated from Seamless Pipes with grooves for proper seating of wire rope.Frame: Fabricated from plates confirming to IS: 2062, Gr A, laser cut profile & duly finished in boring machine.Gears & Pinions: Helical type, made from Alloy steel materials, duly hardened and tempered. Teeth cutting carried out after heat-treatment for smooth, less noise operation.Bearings: Heavy duty ball bearings of reputed makes used on all rotating parts, grease packed.Motors: S4, 150 Starts per hour, 40% CDF, crane duty Squirrel Cage motors as per IS: 325Wire rope: As per IS: 2266 of reputed make suitable construction, factor of safety as recommended in IS: 3938.Rope guide: Provided for guiding the rope along the axis of Rope slides & is easy to dismantle from rope drum.Hook: Forged steel as per IS: 3815 supported on thrust bearing. Hooks as per IS: 15560 shall be offered on request.Brakes: ACEM Disc brake provided for hoist and for Cross Traverse shall be provided on request.Limit Switch: Normal roller type limit switch provided for over-hoisting & over-lowering.Trolley Adjustment: Trolley easily adjustable for different beam sizes. Higher flange width shall be offered on request. OPTIONAL FEATURES:  CT Brake and CT Limit Switch  Panel for LT Drive  VFD for hoisting and cross traverse motion  Higher height of lifts  Different speeds for hoist and CT  Power supply systems  Shoe brake  Manual geared trolley, flexible trolley for negotiating radius of curvature, push-pull trolley

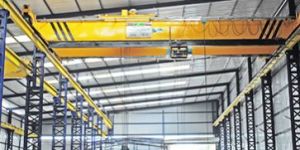

GKAF hoisto cranes make electrically overhead traveling cranes are designed & manufactured in accordance with IS: 3177 and IS :4137. The structural parts of the cranes are designed in as per with IS: 807 and IS: 800. Our cranes are manufactured with standard components and controls to ensure reliability.Double girder crane designs can use the same rolled steel sections within the limits imposed by available sizes. For higher capacities and longer spans, box girders are the usual choice. The hoist is part of a crab which usually runs on rails on the top of the bridge beams so that, when lifted up to its maximum height, the hook is between the beams, keeping the headroom required to a minimum.   RANGE OF SPECIFICATIONS:  Safe Working Load: 500 kgs to 50,000 kgs  Span: 30 mtrs  Height of Lift: As per customer specifications  Class of Duty / Standards: M5 to M8 as per IS 3177 / IS 807  Speeds: As per clients’ specification / application.  Crane Control: From floor through Pendant Push Buttons, Optionally through Radio Remote Control / cabin with master control  Drive System: Twin Drive through Squirrel Cage Induction Geared Motors with built-in fail safe brakes  Motors: Squirrel Cage Induction Crane duty motors, IP 55 enclosure, S4 duty, 40% CDF Brakes: ACEM / DCEM disc type brakes, Shoe type brakes for Hoist, CT & LT motion  Power Supply System: To Hoist and Cross Travel through C-Rail Cable system / Cable Drag Chain To Crane through Shrouded Bus Bars / Trailing Cable / MS Angle Iron Conductors / Bare Copper Conductors (depending on customer's choice and application)

Designed and Manufactured as per IS 3832.Load Chain Wheels are of S.G. Iron / Malleable casting with accurate chain sprockets for smooth running and mounted on two nos. ball bearing.Steel forged hooks are confirming to IS 8610 and fitted in upper arm. Bottom block made out of heavy duty S.G. iron / malleable casting.Gears are made from alloy steel material, precise machined, gear hobbed & case hardened – duly annealed.Hand Chain Wheel is manufactured from graded casting as per IS-210.Load Chain is of grade 80 confirming IS 6216 alloy steel material uniformly electrically welded from alloy steel duly heat treated for ductility, toughness & wear resistance and accurately calibrated for smooth running in wheels.Screw and Friction type positively self actuating load pressure brake ensures safety at all positions.     FEATURES:  Low maintenance  High operating efficiency  Corrosion resistant  Reliability  Longer service life  Noiseless operation

Designed to suit client’s specific requirement using superior quality raw material and bought out items.Manufactured in capacities ranging from 0.5 tons to 7.5 tons with normally cage size of 3 mtrs. x 3 mtrs. x 3 mtrs. with or without collapsible gate with required lift and upto ground + 10 floor.Goods Lift / Cage Lift are guided in steel guide member (T-section) with hoisting and lowering operations performed by our electric wire rope hoist.Operation is through interlocked push buttons and limit switches are provided for safety.     SPECIAL FEATURES:  LIMIT SWITCHES To prevent over hoisting & over lowering of hook.  Limit swtich at each floor and cage doors / floor doors to avoid any accidental casuality.  ELECTRO-MECHANIC DOOR LOCKS near the collapsible gates to ensure : (1) Lift does not work electrically if any door is open. (2) The collapsible gate does not open mechanically unless cage is on corresponding level.  SPRING BUFFERS on the floor of the lift well to cushion the cage.
