Gravity Die Casting Dealers in Coimbatore

Castings in Copper Base Alloys, cast iron, aluminum alloys and others like zinc can be produced using this method. Though most of the end product is of aluminium castings typically the weight can range from ½ kg to 50kg he production of castings starts with selecting either a reusable mold or a die having two or more parts. The die would be complete with the impression of the casting along with running, feeding and venting systems. There is provision also for removal of the casting. To maintain the casting’s accuracy, the die can easily be cleared of debris such as hot metal splashes and sand. The die is quite capable of a regular cycle of production along with fast dissipation of heat of the metal poured into it.Both simple ad complex quality castings can be produced. A unique feature of the gravity die casting methods is that it can handle heat treatment of high strength aluminium alloys that pressure die casting still cannot. Suitable for castings requiring complex intriSand Moulde coring and small production runs.

• Name: Adc12
• Product: Aluminium ingots
• MOQ: 1000

• Material: Aluminium, Iron
• Thickness: 10-15mm, 5-10mm
• Certification: ISI Certified
• Application: Industrial
• Color: Black, Grey
• Surface Finishing: Polished

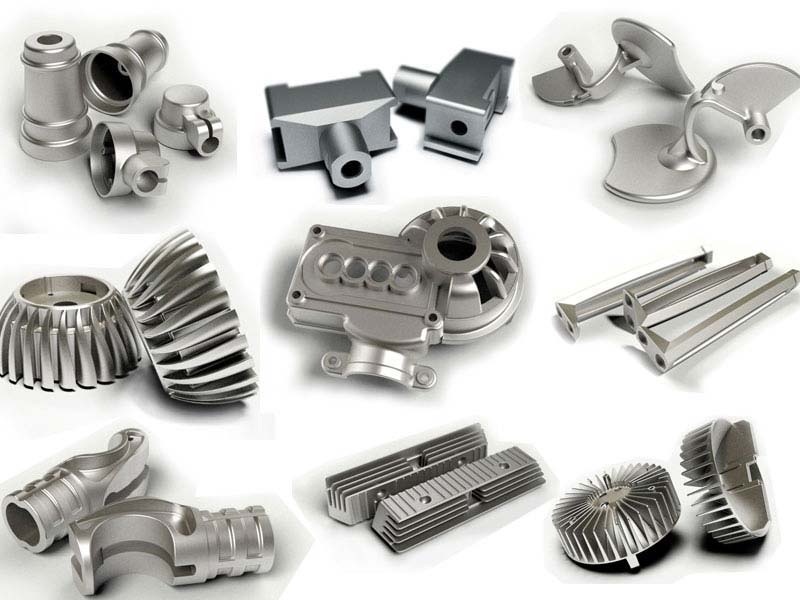

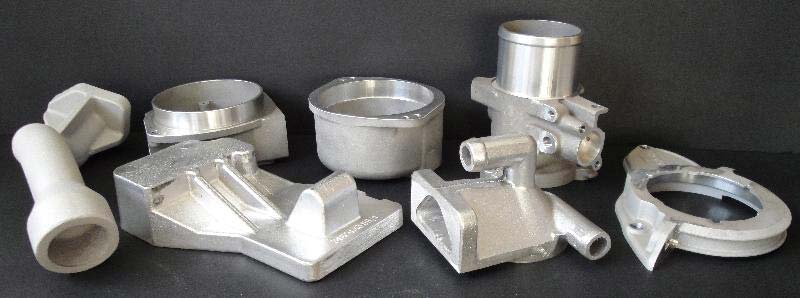

We offer Aluminium Gravity Die Castings in different sizes and shapes to meet the varied requirements of the cl;ients. The major concern of our firm is to deliver a quality content, thus, we check the product quality on several counts at all stages. We abide by the strict delivery policies and thus, we ensure that the products are sternly packed and delivered on time.

The company having its own Non-ferrous and Aluminium Gravity Die-casting unit & manufacturing wide range of Aluminum Die Casting Components for various Industries. At Present we are manufacturing and supplying the following components for a Leading Tractor Manufacturer. Air Intake Manifold V.W.H. Air Intake Manifold Leaner Governor Assembly

Gravity die casting is poured from a vessel of ladle into the mould, and the cavity fills with no force other than gravity, in a similar manner to the production of sand castings, although filling can be controlled by tilting the die. It is a repeatable casting process used to manufacture large quantities of components with minimum effort.

  Some of the products made using Gravity Die casting process are Housings, Junction boxes, impellers, Valve bodies, Flanges, Manifolds, Actuator bodies, Compressor parts, Electrical fittings parts, Covers. Permanent mould casting get their name from the fact that the process utilizes permanent metal moulds instead of temporary sand moulds for the casting process. Cast iron is the most commonly used mould materials as it offers great reliability during casting. The cores are made from other metals or sand. The cavity surfaces of the moulds are coated with fine layers of materials that have good heat-resistant properties such as clay or sodium silicate.   The moulds used in casting are pre-heated upto 200 ºC (392 ºF) before the molten metal is poured into the cast cavity. Casting has to be done with care in order to ensure that proper thermal balance in maintained throughout the casting process. This is done through a variety of ways including external cooling techniques using water or relevant radiation techniques.Permanent mould casting, while not offering the same level of design flexibility and ease pattern usage as Aluminium Sand Castings, it has the advantage of offering relatively lower design and development costs as well as production costs. At VJP, we have the expertise to undertake permanent mould castings of complex components of diverse application in various industries.

• features: Functionally efficient, Operational, Sturdy, Longer shelf life

The company has come up as dependable Gravity Die Castings Manufacturer & Supplier, based in Tamil Nadu (India). Gravity Die Castings are made available in varied grades and specifications as per the requirement of the clients. We can manufacture Gravity Die Castings for 1.5 kg to 15 kg for various industrial applications.

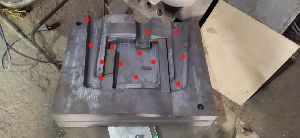

Type of tool : Gravity Die castingMould Size : 600 X 800 X 300No of Cavities : SingleWeight : 4Kg

This process is used for casting low melting point material such as aluminium, copper and magnesium. By pouring the metal in tilted position of the die, the feed rate is reduced. This decreases turbulance and foaming of liquid metal. Tilting helps in smooth flow of metal in the die, thus oxidation is reduced considerably. Using sand cores complex geometries can be casted. The resulting cast has high surface finsih and close tolerance.

• Material: Aluminium
• Country of Origin: Made in India
• Product: Aluminum Gravity Die Caster
• Deal in: New

We fulfilled our customers with the supply of gravity die casting because of the very good dimensional tools. As we have a strong pattern and tool making team with us, we develop the tool and pattern as per the component. Tool gives the value for the component produced. Gravity die casting tools are designed and developed by our engineers and the tools are inspected and sent for the production, once the sample has been approved, the production lots are produced. We manufacture gravity die casting in all types of non-ferrous material grades.

Gravity die-casting is the most common method of producing low volume large castings ranging from 50 grams to as much as 30 Kgs. Gravity Die Casting employs cast iron moulds which allow aluminium castings to be produced more accurately and cheaply.Tooling costs of gravity casting are a fraction of those needed for other die casting methods.The rapid chilling gives excellent mechanical properties whilst non-turbulent filling ensures production of heat treatable gravity castings with minimal porosity.Gravity die casting is perfect for proto type and small production batch castings with volumes ranging from as low as 300 pieces to 3000pieces.GOWSAI is a specialist in alloy die-casting, Our precision engineered range of Gravity Die Casting Components ranges from 80gm to 25kgs. Our Die-casting unit comprises of two furnaces with a total capacity of 300kgs, which is suitable for mass production and for fully mechanized casting. To ensure optimum metal quality, we maintain batch to batch shorter melting & holding time, which is specifically desired for small & medium sized Aluminum components. The components produced include castings with shell sand cores as well as metallic cores ranging from thick walled to intricate thin walled casting. The company is presently supplying a variety of gravity castings in raw/ fully finished condition. The finishes offered are shot blasted, mirror polished, painted, powder coated, anodized. We currently die cast in complete LM series as per BS. All our metals are premium grade.
