Horizontal Multistage Pump Dealers in Coimbatore

• Country of Origin: India
• Brand Name: WINMAX
• Application: Domestic / Residential / Villas / Hotel / Gardening / Industrial
• Power: A.C Electric Supply -1 Phase -230 V - 50 Hz
• Pressure: Operating Pressure 2 Bar
• Structure: SS 304 Diffusers And Impellers
• Certication: As Per ISI
• Type: Centrifugal
• Brand: Winmax
• Material: SS 304 Impellers
• Material: SS 304 Diffusers
• Motor Stator Laminations: CRNO Grade
• Rotor Shaft: SS 410
• Pump Distance Sleeves: SS410
• Class of Insulation: F Class
• Rotor: Aluminium Diecast
• Motor Body: Pressure Diecast Frame

• Power Range: 0.5 hp, 1 hp and 1.5 hp
• Speed: 2880 RPM
• Versions: Single Phase, 220-240 Volts, 50 Hz, AC Power Supply
• Maximum Total Head: 60 metre
• Delivery Size (mm): 25

• Brand Name: Winmax
• Power: A.C Electric Supply
• Pressure: Operating Pressure 2 Bar
• Application: Domestic / Residential / Villas / Hotel / Gardening / Industrial
• Theory: Centrifugal
• Structure: SS 304 Diffusers And Impellers
• Country of Origin: India
• Material: SS 304 Diffusers and Impellers

0.5 HP / 3 Stage Horizontal Multistage  Centrifugal Pump Specification: * SS 304 Impeller & Diffuser * SS 410 Shaft & Sleeves * Cast Iron Parts ED Coated * F Class Winding Insulation * Motor Body: Aluminium -Powder Coated * Single Phase Models Supplied with T.O.P (Thermal Overload Protector)

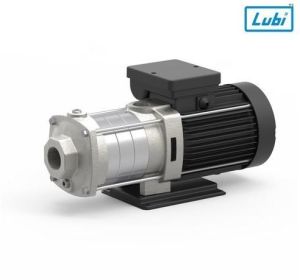

• Type: Horizontal
• Brand Name: Lubi
• Application: Industrial
• Power: 1-3kw
• Driven Type: Electric
• Pressure: High Pressure
• Warranty: 1 Year
• Motor Horsepower: 0.37 kW to 7.50 kW
• Head: 77 M

• Model: H4/3, H4/4, H4/5, H4/6
• Flow: 4m3

S.S Impellers Diffusers S.S Monoblock Shaft C.I Suction Delivery Head Single Phase 240V 1" BSP Inlet Outlet Thread

• Maximum temperature: 70° C

The Multistage Horizontal Centrifugal Pumps represent the latest design in hydraulic technology. It generates a very good pressure and at the same time a high flow with low power consumption and with low noise. These are suitable for pressure boosting, irrigation purposes and for process water transfer and general industrial applications.

• Brand Name: Torren Pumps
• Material: Cast Iron
• Application: Pressure Boosting, Small Gardens, Small Industries, Showers, High Rise Buildings

Featuring 2HP capacity, these pumps come equipped with a Thermal Overload Protector (TOP) to prevent overheating, ensuring longevity. Utilizing high-grade 'F' class enamelled copper wires, they are designed to withstand wide voltage fluctuations while consuming minimal power. Every aspect of these pumps is carefully crafted, incorporating dynamically balanced rotating parts to ensure exceptional performance and seamless operations. At Torren, we take pride in offering comprehensive end-to-end customer service, ensuring a smooth and satisfying experience for all our clients. Our high-performance vertical pumps are meticulously designed to meet your water pumping needs with precision and unwavering reliability.

• Flow: Max 140 lpm (8.4 m3/hr)
• Head: Max 60 m
• Suction Lift: up to 7 m
• Liquid Temp: upto 50° C
• Motor: 2 pole Induction motor
• single phase: 230 v +5% -15%

Application:   Domestic Water SupplyPressure boosting systemCooling SystemsSmall Industrial Water Supply systemGarden/FountainsRO PlantsWater Treatment and PurificationFeatures and Benefits:   Cast Iron Casing and BraketBrass/Stainless Steel ImpellersStainless Steel ShaftBuilt in Winding ProtectorInsulation Class F/B

We are engaged in offering high quality Horizontal Multistage Pumps in Tamil Nadu (India). The Pumps that we offer are procured from named vendors who produce them keeping in mind the set industrial norms. We offer the latest design of Multistage Pumps. Our Pumps efficiently generate a very good pressure and a high flow with low power consumption simultaneously. The Multistage Horizontal Pumps are suitable for pressure boosting, irrigation purposes, process water transfer and many more industrial applications. Besides, we ensure that the desired order is delivered on time. Salient Features  :   Suction and Delivery Chamber available in stainless steel (or) cast iron Impellers and diffusers are made up of stainless steel High quality mechanical seal Low noise and most silent running High flow and low power consumption Optimum hydraulic characteristics High quality aluminum extruded body Maximum temperature : 70oC

• Warranty: 12 MONTHS
• Model Name/Number: MH,MHN,MHI
• Motor Horsepower: 0.37 kW to 7.50 kW
• Head: 77M
• Material: Stainless Steel
• Product Type: Multistage
• Speed: 2900
• Automation Grade: Automatic

• Size: 40 to 125 mm
• Capacity: 350m³ /hr

Multistage pumps have a horizontal, barrel type construction with an axial thrust. Hence, it is suitable boiler feed water service, condensate extraction and for general water and fire-fighting systems.

Multistage pumps have a horizontal, barrel type construction with an axial thrust. Hence, it is suitable boiler feed water service, condensate extraction and for general water and fire-fighting systems.

Horizontal Centrifugal Multistage pump can be used for water circulation and mini RO Systems. The maximum operating pressure of these pumps is up to 10 Kg/cm2 and the flow range is from lm3 to 16m3. All wetted and rotating parts are manufactured in Stainless Steel, Cast Iron. A wide range of Seals are available for different applications. These pumps are foot mounted and are meant for   Pressure Boosting Systems Pressure Jet Cleaning Water Distribution Refrigerant Recycling Very Light and Non Aggressive Chemicals Transfer Process water systems Washing and cleaning systems High-pressure wash down systems Boiler feed and condensate systems

• Power: Single phase 200 to 240 V, 50 Hz AC supply
• Power Input Range: 0.5 HP to 2.0 HP
• Motor: Capacitor run motor,TEFC type
• Class of Insulation: ‘ F ‘ Class
• Speed: 2900 rpm
• Degree of Protection: IP54
• No of Stages: 3 to 8
• Flow rate: Maximum 7.5 m3/hr
• Head: Maximum 68 m
• Liquid temperature: Maximum 55°C
• Suction lift: Maximum upto 7 m
• Operating pressure: Maximum 15 Bar
