Horizontal Pumps Dealers in Coimbatore

• Brand Name: Torren Pumps
• Material: Cast Iron
• Application: Pressure Boosting, Small Gardens, Small Industries, Showers, High Rise Buildings

Featuring 2HP capacity, these pumps come equipped with a Thermal Overload Protector (TOP) to prevent overheating, ensuring longevity. Utilizing high-grade 'F' class enamelled copper wires, they are designed to withstand wide voltage fluctuations while consuming minimal power. Every aspect of these pumps is carefully crafted, incorporating dynamically balanced rotating parts to ensure exceptional performance and seamless operations. At Torren, we take pride in offering comprehensive end-to-end customer service, ensuring a smooth and satisfying experience for all our clients. Our high-performance vertical pumps are meticulously designed to meet your water pumping needs with precision and unwavering reliability.

• Brand Name: Winmax
• Brand Name: Winmax Pumps
• Material: Stainless Steel
• Finishing: Powder Coated
• Driven Type: Electric
• Color: Black
• Condition: New
• Power: 1-3kw
• Power Source: Electric
• Pressure: Low Pressure
• Operating Type: Manual
• Motor Horse Power: 0.1-1 HP
• Usage: Water
• Type Of End Use: Domestic
• Voltage: 220V
• Packaging Type: Carton Box
• Pump Size: 25X25mm
• Discharge Size Millimeter: 25 mm
• Type: Horizontal Centrifugal Pumps
• Weight: 15 Kgs
• Theory: Centrifugal Pump
• Frequency: 50 Hz
• Structure: Multistage Pump
• Warranty: 1 Year
• Cooling Method: Air Cooled
• Country of Origin: India
• Degree of Protection: IP55
• Head: 40 Mtrs
• Max Flow Rate: 5000 LPH
• Motor Speed: 2880
• Corrosion Resistance: Yes
• Motor Phase: Single Phase
• Maximum Discharge Flow: 5000 LPH
• Insulation Class: F
• Liquid Temperature: 90 Degree Centigrade
• Class Of Insulation: F
• Direction Of Rotation: Anti clockwise
• Type Of Duty: S1
• Rotor Shaft: SS410

3.0 hp to 10.0 hp.Total head up to 50 metres.Discharge up to 1000 LPM. Salient Features:-High Grade Cast iron body Copper rotorFrictionless BearingsCan withstand high volt fluctuationsHigh efficiencyTrouble free performance

• Country of Origin: India
• Certification: As per ISI
• Application: Agriculture, Domestic, Industrial
• Color: Black or Green
• Voltage: 220V
• Fuel: Electric
• Theory: Centrifugal Pump
• Automatic Grade: Manual
• Pressure: Medium Pressure
• Structure: Single Stage Pump
• Warrenty: 1 Year
• Type: Openwell Pump
• Type: Cnetrifugal
• Brand: Winmax
• Material: SS Motor Body
• Size: 25 x 25, 32 x 25, 50 x 40 & 50 x 50mm

• Type: Horizontal
• Brand Name: Lubi
• Warranty: 1 Year
• Power Range: 0.37kW - 2.2kW( 0.5HP-3HP )
• Version: Single phase 220 - 240V, Three phase 380 - 415V, 50Hz AC Supply
• Maximum Head: Upto 56.5 Metre
• Maximum Flow Rate: Upto 17 lps (61.2 m3 /hr)

• Maximum temperature: 70° C

The Multistage Horizontal Centrifugal Pumps represent the latest design in hydraulic technology. It generates a very good pressure and at the same time a high flow with low power consumption and with low noise. These are suitable for pressure boosting, irrigation purposes and for process water transfer and general industrial applications.

Applications   Pressure Boosting Muti Storey Building Pumping Softeners, Filtration System Feed Pumping Applications Features S.S Impellers / Diffusers S.S Monoblock Shaft C.I Suction / Delivery Head Single Phase 240V 1" BSP Inlet / Outlet Thread

• Power Range: 0.5 hp, 1 hp and 1.5 hp
• Speed: 2880 RPM
• Versions: Single Phase, 220-240 Volts, 50 Hz, AC Power Supply
• Maximum Total Head: 60 metre
• Delivery Size (mm): 25

• Type: Horizontal
• Voltage: 230 V
• Motor Horsepower: 2 HP
• Motor Phase: Single Phase
• Discharge Outlet Size: 2 inch
• Power Source: Electric
• Frequency: 50- 60 Hz
• Phase: Single
• Brand: Akassh
• Material: Mild Steel
• Features: Stainless steel body. Energy efficient. Long life durability. One year warranty. Affortable price. Dynamically balanced moror. Minimised temperature.

Performance Data - Capacity - 500M3/Hr Temperature - 100°C Pressure - 40 Bar Viscosity - upto 10,000 Cst These pumps are available in standard foot mounted configuration with sump heating arrangement as an option.

• Power: Single phase 200 to 240 V, 50 Hz AC supply
• Power Input Range: 0.5 HP to 2.0 HP
• Motor: Capacitor run motor,TEFC type
• Class of Insulation: ‘ F ‘ Class
• Speed: 2900 rpm
• Degree of Protection: IP54
• No of Stages: 3 to 8
• Flow rate: Maximum 7.5 m3/hr
• Head: Maximum 68 m
• Liquid temperature: Maximum 55°C
• Suction lift: Maximum upto 7 m
• Operating pressure: Maximum 15 Bar

• Power Source: Electric
• Motor Speed: 2900
• Pressure: 3.6 Bar
• Power: .37 to 1.50 kW
• Frequency: 50 Hz
• Voltage: 415volts
• Country of Origin: Made in India
• Speed: 2900
• Temperature: 0 to +90 deg. C.
• Phase: Single phase/Three Phase
• Flow Range: 10.5 m3/h
• Automation Grade: Automatic
• Series: MXF
• Head Range: 36 m

Applications Drip and Sprinkler Irrigation Public water supply Housing Circulating system Storage tank filling

• Size: 40 to 125 mm
• Capacity: 350m³ /hr

Multistage pumps have a horizontal, barrel type construction with an axial thrust. Hence, it is suitable boiler feed water service, condensate extraction and for general water and fire-fighting systems.

• Head: 15 to 50 m
• Motor Phase: Single Phase
• Warranty: 12 months
• Voltage: 230 to 415V AC
• Brand: KMP
• Frequency: 50 Hz

Pump with pressure controller is used for constant water pressure. Can be ideal when space is constraint near overhead tank. It also has dry running protection, incase of no water in the pipeline. Pump is also supplied with pressure tank for constant water pressure. When the pressure drops to the pre-set level, the pump will start-up and when the water consumption drops again, the outlet pressure will rise to a pre-set stop pressure after which the pump will stop. Available from 5 Its to 50 lts tank range. Available in : Single phase 220V and Three phase 415V operations. Features : Silent operation, compact design and highly reliable Wide performance range Liquid temperature from 20° C upto 120° C Built-in thermal protection F class insulation 80 Start / Stop per hour, 0.5 Hp TO 3 Hp – (5 Showers + 10 Taps)

• Type: Horizontal
• Voltage: 230V
• Motor Horsepower: 2hp
• Motor Phase: Single Phase
• Discharge Outlet Size: 2inch
• Power Source: Electric
• Frequency: 50-60Hz
• Phase: Single

• Type: Electric
• Power Source: DC Powered
• Country of Origin: Made in India
• Number Of Stages: Single-stage Pump
• Motor Horsepower: 1- 3 HP
• Brand: Apple
• Usage/Application: Industrial
• Model Name/Number: HORIZONTAL OPENWELL SUBMERSIBLE PUMPS
• Motor Phase: Single Phase
• Head: 15 to 50 m
• I Deal In: New Only
• Suitable For: 160 V to 240 V
• Features: Easy installations, Silent & Vibration free running, Most modern & Latest in new Design, Dynamically Balanced SS Impeller & SS Rotor Shaft, Superior design materials & manufacturing process assured.

With an eye on the growing market for various types of pumps for different Industrial applications, CRI has developed a wide range of Rugged, Reliable and Efficient Pumps for different applications.   The range is continuously growing with additions to the product portfolio at regular intervals. Industrial Pumps from CRI find applications not only in handling water but different types of fluids in Paper, Process and Pulp industries, Paint, Dyes and Chemical Industries, Mining and Metal Manufacturing Industries, Food & Beverage Industries, Textile industries, Power Industry, Machine Tool Industry apart from General Water supply. All the products can be customized to suit specific application and requirement and is backed by a dedicated State-of-the-Art Greenfield factory. All pumps are tested in a highly sophisticated PLC-SCADA based Test Bed complying with international standards. APPLICATIONS Water supply & Irrigation Fire Protection HVAC system Power Plants Steel & Cement Industries Paper Mills Oil & Gas Industries Petro Chemical Industries Treatment Plants Sea water desalination FEATURES Dynamically balanced double suction impeller Heavy duty double Volute casing Double volute casing combined with rigid shaft results in low shaft deflection Sturdy design and high efficiency Soft packed stuffing box design Grease Lubrication Easy maintenance

Multistage pumps have a horizontal, barrel type construction with an axial thrust. Hence, it is suitable boiler feed water service, condensate extraction and for general water and fire-fighting systems.

We are engaged in offering high quality Horizontal Multistage Pumps in Tamil Nadu (India). The Pumps that we offer are procured from named vendors who produce them keeping in mind the set industrial norms. We offer the latest design of Multistage Pumps. Our Pumps efficiently generate a very good pressure and a high flow with low power consumption simultaneously. The Multistage Horizontal Pumps are suitable for pressure boosting, irrigation purposes, process water transfer and many more industrial applications. Besides, we ensure that the desired order is delivered on time. Salient Features  :   Suction and Delivery Chamber available in stainless steel (or) cast iron Impellers and diffusers are made up of stainless steel High quality mechanical seal Low noise and most silent running High flow and low power consumption Optimum hydraulic characteristics High quality aluminum extruded body Maximum temperature : 70oC

Specification:- 3.0 hp to 30 hp. total head up to 80 metres. discharge up to 5000 lpm.

Salient Features: Stainless Steel Motor body, Shaft & Fasteners High Grade Casting with rust preventive coating High Quality Double lip oil seal High quality LTB 4 bearing bushes and thrust pad Dynamically Balanced Impeller & Rotor Shaft High quality polywrap E.C. grade copper wire Powder Coated C.I. Components Without Suction Bend

• Type: Horizontal
• HP Range: 0.5 HP to 2 HP
• Head Range: Upto 500 feet
• Phase: Three Phase
• Delivery Stage: 1" to 2"

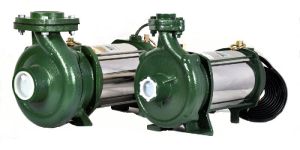

These multistage openwell submersible pumps are ideally suitable for openwell/pond/dem where there is wide fluction in water level, hence suction and priming problems do not arise, prime movers is of wet type, water lubricated motor. Application Horizontal/Vertical Openwell borewell submersible pump is designed for various applications like: Sprinkler and drip irrigation systems Pumping from in-well bores Pumping from sumps for high rise buildings and industry River and canal lift-irrigation Openwell pumping for agriculture & irrigation Features Submerged in water permantatly so no need of separate cabin Compact design suitable for minimum water level It also works on low voltage Noiseless and vibration free operation Installation without foot valve Easy installation and servicingion

• Flow: Max 140 lpm (8.4 m3/hr)
• Head: Max 60 m
• Suction Lift: up to 7 m
• Liquid Temp: upto 50° C
• Motor: 2 pole Induction motor
• single phase: 230 v +5% -15%

Application:   Domestic Water SupplyPressure boosting systemCooling SystemsSmall Industrial Water Supply systemGarden/FountainsRO PlantsWater Treatment and PurificationFeatures and Benefits:   Cast Iron Casing and BraketBrass/Stainless Steel ImpellersStainless Steel ShaftBuilt in Winding ProtectorInsulation Class F/B

Horizontal Centrifugal Multistage pump can be used for water circulation and mini RO Systems. The maximum operating pressure of these pumps is up to 10 Kg/cm2 and the flow range is from lm3 to 16m3. All wetted and rotating parts are manufactured in Stainless Steel, Cast Iron. A wide range of Seals are available for different applications. These pumps are foot mounted and are meant for   Pressure Boosting Systems Pressure Jet Cleaning Water Distribution Refrigerant Recycling Very Light and Non Aggressive Chemicals Transfer Process water systems Washing and cleaning systems High-pressure wash down systems Boiler feed and condensate systems

• Power Range:  0.37 kW – 1.5 kW (0.5HP-20 HP)
• Speed: 2880 RPM
• Version: Single phase 200-240V, Three phase, 380 -415V, 50Hz, A.C Supply
• Maximum total head: Upto 80 m
• Maximum flow rate: Upto 195 m3 / h (54 lps)
• Degree of Protection: IP 58
• Direction of Rotation: Clockwise viewed from driving end
• Nominal delivery size in mm: 25, 50, 65, 80 & 100
• Type of Duty: S1 (continuous)
• Method of starting: Capacitor Start  Capacitor Run (CSCR) / Permenant Split Capacitor (CSR) Direct on Line upto 5.5 kW, SD upto 30kW
• Maximum starts per hour: 6 times
• Part Name: Material
• Rear cover / Bracket: Cast iron
• Stator Shell: Cast iron / S.S / M.S
• Impeller: Cast iron (FG 200 / S.S AISI - 304 / Lead Bronze
• Shaft: SS AISI 410
• Pump casing: Cast iron (FG 200)
• Shaft seal: Nitrile butyl rubber
• Thrust assembly: Leaded Bronze and Compostos / Stainless Steel 420 with Graphite Carbon
• Diaphragm: High Nitrile butyl rubber
• Journal bearings: LTB 4
•  :
