Hydro Prokav Pumps India Private Limited SIDCO Industrial Estate, Coimbatore, Tamil Nadu

The working principle of Hydro Prokav dual flow Twin Screw Pumps is dependent on the rotation of the two screw spindles in the closed compartment. There is always a predefined fine clearance exists between the outside diameters of the screw spindles and the casing bore/ liner in which the screw spindles are located. Each half of the screw spindles is left handed and right handed thus when the spindles rotates, driven by the timing helical gears located at the end of the screw. The liquid is drawn towards the end of the screw and entrapped between the bore of the pumping compartment as well as the flanks of the screws and is then propelled axially from both the ends towards the centre. Such a dual flow nullifies the axial thrust completely, thereby enabling the screws to remain in a state of hydraulic balance resulting in high volumetric efficiency and overall efficiency.   Salient Features High volumetric efficiency High suction lifts without cavitation Self priming and ability to handle air vapour and gas in fluids No axial thrust Long and trouble free service life with safety in operation and user friendly design Uniform metered flow Ability to handle different types of liquids and fluids Conforms and adheres to API 676, 2nd edition Dry running capability Negligible wear over years Axial smooth steady flow High speed running Pulsation free output Negligible vibrations Intensive to varying viscosities Long maintenance free service Lowest NPSHR Interchangeable liner Adaptability of various MOC Shaft sealing at suction pressures Axial thrusts completely eliminated No metal to metal contact between rotors Positive clearance between rotors Confirming to API 676 Standards Mounting: Horizontal Internal Bearing pumps Horizontal External Bearing pumps Jacked Pumps Vertical Pumps         Fluids Handled (applications) Fuel Oil LSHS HPS RFO Crude Oil Vacuum Residue Wax Bitumen Mineral Oil Turbine Oil Hydraulic Oil LDO Kerosene Oil Naphtha Lubricating Oil Molasses Black Liquor Polymeric Resins Lacquers Cosmetic Creams Detergents Soaps Glucose Jelly Fats   User industries Petro Chem icals Refineries Oil Storage Depots Bunkering Stations Power plants Marine Shipping Sugar Industries Steel Industries Paper Industries Textile Industries On shore and off shore Exploration

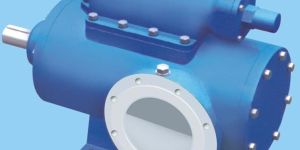

TRIPLE SPINDLE SCREW PUMPS ARE USED FOR HANDLING LDO, LSHS, HIGH SPEED DIESEL AND ALL TYPES OF OILS WITH MEDIUM CAPACITY RANGE AND HIGH PRESSURE.

Brand Name : Prokav

Application : For handling LDO, LDHS, hihg speed diesel & all types of oil with medium capacity range,high pressur

Type : Pumps

Country of Origin : Coimbatore

Hydro Prokav offers Wide Variety of high performance Triple-Screw Pumps which are highly efficient in handling a wide range of liquids with varying viscosity at high pressures, for use in a variety of industrial and marine applications. The pumps are manufactured using premium quality materials matched to service requirements. Hydro Prokav Three screw pumps employ just three screw elements-one power screw and two idler screws running in the three precision bores in the housing or liner. The screws are so profiled that they form a liquid tight seal between the thread. As the screws rotate, pocket/cavities are formed where liquid gets trapped and conveyed from one end of the screws to the other end –similar to the action of the piston pump with extremely low noise and vibration levels, almost impossible to be achieved by any other design of positive displacement or other types. The power rotor does not drive the idlers as commonly believed. The hydraulic forces acting on the screw flanks turns the idlers torquelessly thus reduce the friction. Thus idler simply roll over the root diameter of main screws and float freely in casing/liner bores. Large surface areas on idlers dia. reduce the unit pressure centralize the power rotor and absorb the redial loads. A balance piston integrally machined on power rotor takes care of axial thrusts.     SALIENT FEATURES High reliability Long Service Life Negligible Maintenance High efficiency Self Priming Smooth Pulsation Free Flow Low Noise and Vibration High Speed Capability Insensitive to viscosities High Pressure Capability Axial flow – No churning , Chewing or shearing Excellent suction capability Hydraulic balancing of forces eliminates need for any bearings Fast, Easy replacement of Parts Mounting configurations to fit any spaces limitation :-Horizontal, Vertical, Close-Coupled ,Sump In – Line Construction enables simplified piping arrangement. ANSI or DIN flanges While in operation, the screws are in hydrodynamics balance on film lubrication and do not require any additional bearings. The one ball bearing often used is only for axial positioning of rotor and safer operation of mechanical seals. Small rotor dimensions enable the pump to be operated at high speeds directly coupled 3000 or 3600 RPM motors or other prime movers. Such unique design and features had demonstrated excellent reliability with pumps in operation continuously non- stop for decades together without replacement of any components or maintenance on clean fluids.   Key Features – Benefits that Reduce life cycle cost Maximum Reliability of System to Increase Revenue Pumps delivers smooth flows with minimum pulsations Hydraulically balanced screws Lower Maintenance Costs by up to 50 % Pumping elements contained in one cartridge assembly Fast, easy replacement of parts Reduced overhaul turn around time No timing gears required and fewer wearable parts One or no bearings required and fewer wearable parts Versatility to meet Customer Specification Custom design fabricated pump and per API standards A choice of shaft seals for every application Mounting configurations to fit in any space limitations: Horizontal, Vertical, Close Coupled, Sump In – line construction enables simplified piping arrangements ANSI or Din Flanges One pump size designed to offer flexibility in flow Pump Series KTS – Series Triple Screw Pump General Pump with Cast Iron construction. Maximum flow 250 M3/hr   Typically Confirms to API 676KTS HC – Series Triple Screw Pump Special Pump with Heat Jacket Arrangement Maximum flow 250 M3/hr   Optionally available to API 676KTS NH – Series Triple Screw Pump Special Pump with option of Heat Jacket Arrangement Maximum flow 150 M3/hr Option of Various Material of construction line SS 304 / SS 316.     User Industries Cement Industry Power Stations Petro Chemical Refineries Oil Depots Ship Building Industry Rayon, Staple fibres Steel Industries Fertilizer Industries Paper Mills Food Processing Industries Breweries Bitumen and Asphalt Industries These Pumps are designed for handling clear viscous liquids and are suitable for different pressures upto 70 bars. The pumping elements comprise of a power screw and two idler screws, running in a close fitting insert. The idler screws serve to maintain the closed chambers that pump the liquid. Each screw is provided with a drum so that axial forces are hydraulically balanced. The shaft seal chamber is connected internally to the inlet and the seal is therefore always subjected to the inlet and the seal is therefore always subject to inlet pressure only. The inserts screws and balancing bushes together with bearing and seals for a replaceable cartridge that is located inside a casing. The pumps can be supplied in a variety of materials of construction and for various mounting arrangements.

Pressure : Up to 64 Kg/cm2

Features No inverter-D.C.Directly to Solar array Rugged Construction Simple Instalation and Maintenance Highly Reliable       Applications Village Water Supply Live Stock Watering Water Supply to remote homes /agriculture Micro-irrigation   Benefits No Conventional grid electricity required Long Operating life Highly reliable and durable Easy to Operate and a maintain Eco-friendly No Fuel cost-uses abundantly available free solar energy

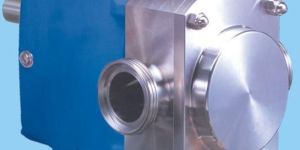

The principle of operation of our Sanitary Lobe pumps are two synchornized rotors (Lobes) rotating against each other build chambers towards the casing of the pump. At the suction side, the fluid enters the chambers and during rotation, the fluid is displaced in the direction of the volume flow in to the Discharge side.

Pressure : up to 10 Kg/cm2

The principle of operation of our Sanitary Lobe pumps are two synchornized rotors (Lobes) rotating against each other build chambers towards the casing of the pump. At the suction side, the fluid enters the chambers and during rotation, the fluid is displaced in the direction of the volume flow in to the Discharge side     Salient Features High suction capability Ease of maintenance without disturbing pipe assembly Reversible pump Also transfers abrasive partciles in suspension Low pulsation, low noise and high precision metering discharge Smooth quite flow Excellent self priming Intensive to viscosities All metal construction, no contamination Single Sealing, external bearing Low noise and pulsation Reversibility Bracket/Gear Box mounting allows free expansion/contraction-alignment not affected Easy maintenance Slow speeds ensure better pumping and longer life Reduced maintenance Fluids Handled THE INTERNAL GEAR PUMPS ARE USE TO HANDLE THE FOLLOWING CLEAR FLUIDS Furnace Oil Mineral Oil Edible Oil Petroleum GellyPaints & Varnishes Solvents Chemicals Acids Alkalis Hot Syrups

Pressure : up to 10 Kg/cm2

Country of Origin : Based on Requirement

FOR HANDLING ALL VISCOUS FLUIDS IN FOOD PROCESSING INDUSTRIES, DIARY AND PHARMA INDUSTRIES. GOOD TO BE USED FOR HANDLING BUTTER, ICE CREAM, HOT GHEE, HONEY, CHAWANAPRASH, SYRUPS, LIQUID GLUCOSE ETC.

Brand Name : Prokav

Application : For handling butter, ice cream, hot ghee,honey etc.

Condition : New, Good

Type : Pumps

Country of Origin : Coimbatore

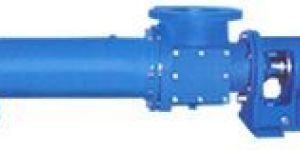

WE MANUFACTURE AND EXPORT ALL TYPES OF PROGRESSIVE CAVITY PUMPS FOR ALL TYPES OF INDUSTRIAL APPLICATIONS LIKE SUGAR, PAPER, OIL & GAS, WASTE WATER, PHARMACEUTICAL, FOOD PROCESSING, CHEMICAL, PETROCHEMICAL ETC FOR HANDLING HIGHLY VISCOUS, FIBROUS, HIGH CONSISTENCY SLURRY, SLUDGE AND FLUIDS EVEN WHICH CANNOT FLOW BY ITSLEF AND FLUIDS WITH SOLIDS SUSPENSIONS.

Brand Name : Prokav

Condition : New, good

Type : Circular knitting machines

Country of Origin : Coimbatore

Usage : For all types of industrial applications like sugar, papaer, oil, gas etc.

HYDRO PROKAV KM 2000 SERIES PUMPS Hydro Prokav KM 2000 Series pumps are built with rugged gear-type universal joint which is the effective solution to handle heavy radical thrust loads. This design ensures best performance with very minimal maintenance, low wear & Tear rotating parts and longer life of pump. Special Option to suit every application- Flush gland Allows Gland Pocking leakage to be flushed away from the pump preventing severe damage to seals and packing. Permits controlled leakage of process or flush fluid to reduce friction and dissipate heat. Inlet and outlet connections for flushing leakage away to drain Ideal for waste water treatment.sugar, petrochemical and paper industry applications. Available with flanged and wide throat version with or without shaft sleeves. Sailent features of Hydro Prokav KM 2000 progressive cavity pumps   low total cost of ownership Positive displacement non-pulsating flow Accurate, repeatable flow Head independent of pump speed Low NPSH Requirement Self-priming High suction lift upto 28 feet low shear particles upto 2.8 ” in diameter Reversible Viscosities up to 1,000,000 cps No valves to clag, Stick or Vapor lock No timing gear adjustments. High Valumetrics and mechnical efficiency Smooth fluid discharge no vibration Easy to maintain Wide temperature range to 400 Deg F Ideal for metering applications Easy to regulate Superior abrasion resistance RANGE OF PRODUCTS Wabble stator pumps L frame pumps KM 1000 series pumps KM 2000 series pumps KX series PX series Wide throat pumps Bridge breaker pumps Sanitary design quick clean pumps Vertical/ Drum emptying PC pumps   Materials of construction Pump body :Cast Iron, Cast Steel,CF8,CF8MInternals,Including Rotor :Alloy Steel,Tool Steel,AISI 304,AISI 316,Stators:EPDM (to 260 Deg F)Fluoroelastomer ( to 400 Deg F)Nitrile (to 210 Deg F)Natural Rubber( to 185 Deg F) The heavy duty transmission train A. Gear Type universal joints with perfect sealing of rubber sheath prevents contamination of joints and foreign particle entry to joints and foreign particle entry to joints during pumping of fluids.B. The grease lubricated gear joints can very well operate up to 90 Deg C, far higher than other oil lubricanted joints.   C. Thrust Plates are clamped by pins ensuring maximum life for gea joints and smooth functioning. D. The lenghty Coupling rod design maintains shaft angularity of less than 1.5 Deg for reduction stress on gear joints and on Bearings. Low maintainance casing & bearing housing assembly A. Hydro Prokav KM 2000 series pups are built with grease packed tapered roller bearing for withstanding better load conditions of the rotating parts.B. Sturdy casting improve pump performance by reducing vibration load to the shaft and bearings   C. The gear joint on shaft side reduces the radial thrust on drive shaft and bearings and requires minimal pump disassembly. Drive Shaft assembly A. Hallow single shaft design reduces run-out for extended packed gland or mechanical seal life.B.Stuffing box assembly can accommodate single/double mechanical seal or different types of packing. Additional Features A.Suction chamber allows full 360 Deg rotation for easier piping installation.B. Suction and discharge flanges as per ANSI,BS,ASA,DIN OR JIS for easy installation   C. Drain plug provided at the casing ensures the total drain of liquid form casing before inspecton or during maintenance D. All pumps are provided with inspection ports on either side for efficient cleaning. E. Gland area is drilled and tapped for easy disposal of stuffing box leakages. Unique Fitment of pumping elements A. Precision machined rotor and elastomer stator design reduces slippage for higher efficiency and improved volumetric effeciency.B. Hard Chrome plated rotors provide high abrasion resistance and longer service life.   C. Wide variety of elastomers available for every applications with proven qualities

These pumps are made out of Cast steel,CF8M, CF8 and special material like DSS, Alloy20 etc. Pump Housing and Cast Iron Bearing Housing. Rotors of Hard Chrome Plated Alloy steel , Tool steel , SS 304, SS 316 and the rotating part are of Alloy Steel or Stainless Steel. These pumps are with rugged gear-type universal joint which is the effective solution to handle heavy radical thrust loads. This design ensures best performance with very minimal maintenance, low wear & Tear rotating parts and longer life of pump.   Special designs available for the above series confirming to API 676.

KYV Series pumps are vertical pumps for close or open grain application in petro chemical industries. The distance between pump suction and mounting chamber can be varied based on site requirement. Special designs available confirming to API 676.

These pumps are made out of SS 304,SS 316 or special Alloys like Alloy 20, Hastalloy. Rotors of Hard Chrome Plated, SS 304, SS 316 and the rotating part are of Stainless Steel. The universal joints are specialy designed single or double knuckle joints. The Rubber Stator is made out of Natural or Synthetic rubbers like Nitrile, EPDM, Hyplon, Silicon, Neoprene, Viton, Butyle or Hi –Nitrile based on application. Ceramics and Refractories,Chemical and Process ,Construction, Cosmetrics  and  Toiletries , Edible Oil, Effluent and Sewage Treatment, Electronics, Engineering, Fertilizer, Marine, Mining Man-made Fibre , Oil Exploration, Paint and Varnish, Paper, Pulp and Cellulose, Petrochemical and Refinery ,Printing Ink ,Soap and Detergent, Sugar etc. Hopper type suction inlet allows gravity flow of plastic viscous media on Augur cum coupling rod pushing viscous substances into pumping cavity. Standard pumps employ mild steel hopper pump casing with alloy steel rotating parts. For corrosive or hygienic duty, all contact parts will be in SS material. Shaft sealing by soft gland packing / mechanical seal. Delivery connection in BS, ISO, ASA, ANSI flanged ends and for hygienic applications, IDF /SMS/ Tri clover or equivalent are used. Bridge Breaker Paddle Assembly is available as option for products forming bridge while handling high consistency media and referred as KYWM series of Pumps.

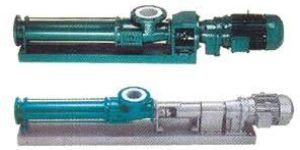

These pumps are compact pumps close coupled pumps with pump housing made out of cast iron, SS 304,SS 316 or special Alloys like Alloy 20, Hastalloy. Rotors, Hard Chrome Plated alloy steel,Tool Steel,SS 304, SS 316 and the rotating part are of Stainless Steel. The universal joints are specialy designed single or double knuckle joints. The Rubber Stator is made out of Natural or Synthetic rubbers like Nitrile, EPDM, Hyplon, Silicon, Neoprene, Viton, Butyle or Hi –Nitrile based on application.

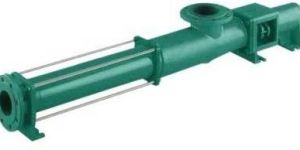

KX Series Progressive Cavity Pump is of cast iron construction with various metallurgy of rotating parts like Alloy Steel, Tool Steel, SS 304 and SS 316 while KX � CF pumps are of complete SS 304 and SS 316 material of construction. Other various options of FRP / Ebonite lined housing with rotating parts in Super Alloys like Alloy 20, Hastelloy C, Hastelloy B and Titanium are available for highly corrosive applications. Shaft sealing is ensured by soft gland packing / mechanical seal. Torsion free metal bonded stator and double sealed universal joints as Pin & Bush Joints or Special designs like Gear joints or Cardon Joints as per customer requirements for longer service life and improved efficiency results in trouble free performance of the pumps. Salient Features : Non-clogging : handles solids in suspension or mixture containing high percentage of solidsCan work on Snore : inherently self-primingHigh Suction Lift : low NPSH(R), effective in high vacuum conditionsMinimal Internal Wear : Gentle handling of shear sensitive and abrasive products because of low internal velocityReversible : suction and delivery ends can be interchanged by merely changing direction of rotation of the prime moverVersatility : handles abrasive, shear sensitive and viscous materials, solids in suspension and air-solid-liquid mixture

Type : Pump

Country of Origin : Coimbatore

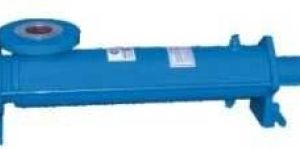

KX-PX Series Progressive Cavity Pump is designed with special geometries in 1/2 as well as 2/3 profiles. While cast iron and SS 316 material of construction are offered, special materials of construction are also available for highly corrosive fluids. Shaft sealing is ensured by soft Packed Gland/ Mechanical seal. Torsion free metal bonded stator and double sealed universal joints are provided for longer service life and high efficiency.

Type : Pump

Country of Origin : Coimbatore

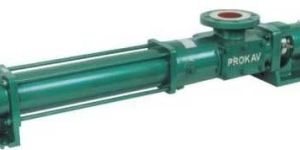

Wettable parts of KHA Series Progressive Cavity Pump is made out of SS 304, SS 316 or special Alloys like Alloy 20, Hastalloy. The Rubber stators are of Natural or Synthetic rubbers like Nitrile, EPDM, Hyplon, Silicon, Neoprene, Viton, Butyle and Hi �Nitrile, based on end application.

Application : Natural or Synthetic rubbers like Nitrile, EPDM, Hyplon, Silicon etc.

Type : Pump

Country of Origin : Coimbatore

The KDA Series Progressive Cavity Pump is made out of Cast Iron Pump housing and Bearing Housing, Rotors of Hard Chrome Plated Alloy steel/Tool steel , SS 304, SS 316 and the rotating part are of Alloy steel or Stainless Steel. The Universal joints are specially designed Single or Double Knuckle joints. The Rubber stator is made out of natural or synthetic rubbers like Nitrile, EPDM, Hyplon, Silicon, Neoprene, Viton, Butyle or Hi �Nitrile, based on application.

Application : Natural or synthetic rubbers like Nitrile, EPDM, Hyplon, Silicon etc.

Type : Pump

Country of Origin : Coimbatore

KC Series Progressive Cavity Pump comes with compact configuration of screw pumps in which the pumping parts are coupled directly to the drive thereby eliminating the bearing housing. The KC Series Progressive Cavity Pump is suitable for restricted spaces of operation or mobile pump sets apart from low maintenance and cost effectiveness ensuring long service life. Various material of construction are offered to suit varied applications in CI, CS, SS304, SS316 etc., while Stators will be of Natural, Nitrile, EPDM, Neoprene, Hypalon, Viton, Silicon, Butyl, Hi-Nitrile, Buna Poly Butadiene etc.,

Application : For restricted spaces of operation or mobile pump sets

Country of Origin : Coimbatore

KB Series Progressive Cavity Pump comes with a portable design, vertical screw pumps for emptying barrels. Driven by vertical flange mounted geared or flanged Motors, the KB Series Progressive Cavity Pump is available in MS or SS construction with rotating parts to suit duty conditions. Shaft sealing is provided by soft gland packing / mechanical seal.

Type : Pump

Country of Origin : Coimbatore

K-KX-KY (W) Series Progressive Cavity Pump is provided with hopper type suction inlet allowing gravity flow of Plastic Viscous media on Augur cum Coupling Rod pushing viscous substances into pumping cavity. Standard pumps employ Mild Steel Hopper Pump Casing with alloy steel rotating parts. For corrosive or hygienic duty, all contact parts are in SS material. Shaft sealing is provided by soft gland packing / mechanical seal. Delivery connection in BS, ISO, ASA, ANSI flanged ends and for hygienic applications, IDF /SMS/ Tri clover or equivalent are used. Bridge Breaker Paddle Assembly is available as option for products forming bridge while handling high consistency media and referred as KX-WBB series of Pumps. Salient features : Suitable for all media up to most thick pulpy consistency with highest content of solid or fibrous materialOpen hopper type inlet with force-feed screw upstream of rotor and statorTorsion-free metal bonded stator for increased stator life and higher efficiency per stage pressurePulsation, turbulence, or aeration free metered flow proportional to the speedCapable of developing up to 48 Bar even at low pump speedEasy and quick maintenance, which does not require any special toolsTemperature range from �40C to +200C

Country of Origin : Coimbatore

K-KX-KY (F) Series Progressive Cavity Pump is a hygienic design pump with all metal parts in contact with liquid in smooth SS and stator of non-contamination rubber and seamless body eliminating product-retaining pockets. Shaft sealing is provided by food grade, gland packing / mechanical seal. In addition, the K-KX-KY (F) Series Progressive Cavity Pump is equipped with IDF / SMS /TRICLOVER / equivalent end connections. Salient Features : All metallic parts in contact with the fluid are in smooth finish stainless steelStator is of non-contaminating polymer, which is resistant to oils and fatAll internal contours are designed to be swept by the product flow or by a detergent when �in-line� cleaningElimination of product retaining pockets avoids chemical or bacteriological contaminationSimple construction allows quick dismantlingCan work against high vacuum. Ideal for lifting viscous fluids from the vacuum panLow fluid velocities ensures gentle handling of shear sensitive fluids without damagePulsation, turbulence or aeration-free metered flow proportional to speedCapacity varied simple variation of pump speed to match system parameters

Type : Pump

Country of Origin : Coimbatore

Hygienic design pump with all metal parts in contact with liquid in smooth SS and stator of non-contamination rubber, seamless body eliminating product retaining pockets. Shaft sealing by food grade gland packing / mechanical seal. IDF / SMS /TRICLOVER / equivalent end connections.     Salient Features: All metallic parts in contact with the fluid are in smooth finish stainless steel Stator is of non-contaminating polymer which is resistant to oils and fat All internal contours are designed to be swept by the product flow or by a detergent when “in-line” cleaning Elimination of product retaining pockets avoids chemical or bacteriological contamination Simple construction allows quick dismantling Can work against high vacuum. Ideal for lifting viscous fluids from the vacuum pan. Low fluid velocities ensures gentle handling of shear sensitive fluids without damage Pulsation, turbulence or aeration-free metered flow proportional to speed Capacity varied simple variation of pump speed to match system parameters

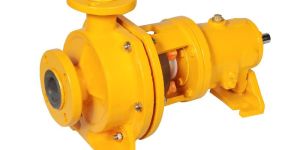

FRP LINED PLASTIC CENTRIFUGAL PUMP. PUMPS ARE AVAILABLE IN POLYPROPYLENE, UHMWPE, TEFLON AND HIGH DENSITY PLASTIC.HYDRO PROKAV CENTRIFUGAL PUMPS ARE OFFERED WITH WIDE VARIETY OF METALLIC AND NON METALLIC CONSTRUCTION. FLOW AVAILABLE UP TO 500 M3/Hr AND HEAD UP TO 100 M. WIDELY USED IN CHEMICAL INDUSTRIES, PHARMACEUTICAL INDUSTRIES, ALL TYPES OF SUGAR, PAPER AND PROCESS INDUSTRIES. ANY FREE FLOWING LIQUIDS CAN BE PUMPED WITH OUR BACK PULL OUT ISO 2858 CENTRIFUGAL PUMPS. PUMPS ARE OFFERED WITH IS, DIN, BS AND ANSI FLANGES AS PER CUSTOMER'S REQUIREMENTS. PUMPS ARE OFFERED IMMEDIATE DELIVERY

Brand Name : PROKAV

Application : ACIDS, ALL CORROSIVE MEDIA TRANSFER

Application : ALL TYPES OF PROCESS INDUSTRIES.

Power : 1 HP TO 200 HP

Pressure : UP TO 10 Kg/CM2

Structure : ISO 2858 CENTRIFUGAL PUMPS

Country of Origin : COIMBATORE,India
