J C Equipments SIDCO Industrial Estate, Coimbatore, Tamil Nadu

Welded bonnet type is used in some special services such as Ammonia condensers, Freon condensers and Vacuum Steam condensers. One advantage of this design is the fully welded construction which provides perfect sealing required for such applications.

We are the leading manufacturers of Vertical Shell and Tube Heat Exchanger in India. A Vertical Shell and Tube Heat Exchanger is the most common type of heat exchanger in all Industries. Mostly used in higher-pressure and Higher Temperature applications.

In nuclear power plants called pressurized water reactors, large heat exchangers called steam generators are two-phase, shell-and-tube heat exchangers which typically have U-tubes. They are used to boil water recycled from a surface condenser into steam to drive a turbine to produce power. Most shell-and-tube heat exchangers are either 1, 2, or 4 pass designs on the tube side. This refers to the number of times the fluid in the tubes passes through the fluid in the shell. In a single pass heat exchanger, the fluid goes in one end of each tube and out the other. In Offshore Industries, Water Makers are made up of U tube Heat Exchangers. To Maintain the Lower Pressure Drop in High Tube Length.  A tube bundle heat exchanger with baffles is disclosed wherein a tube bundle is housed within an inner casing which is acted upon from both the inside and the outside by a heating medium   A multiple tube bundle heat exchanger includes axially opposite tube plates, a housing, and a plurality of tube bundles disposed between the tube plates. Each of the tube bundles is an independent tube bundle subassembly forming an integral unit having at least one heat exchanger tube with two axial tube ends.

We are the leading manufacturers of welded stainless steel tubes and pipes for a wide range of applications. Stainless welded pipes and heat exchanger tubes for the industrial usages.   Stainless steel heat exchangers are particularly useful in bad water environments caused by pollution or from the chemicals used to counter it. They can also be used to overcome the corrosive nature of some synthetic oils and refrigerants. Stainless steel heat exchangers are particularly useful in bad water environments caused by pollution or from the chemicals used to counter it.   Stainless Steel Heat Exchanger Design   Stainless steel heat exchanger are highly corrosive in nature and other special applications. Stainless steel heat exchanger are designed and manufactured, employing the industry standards and are also custom designed according to the client specifications and requirements. Stainless steel heat exchanger is mostly used to reduce heat from high temperature liquids and is appreciated for its durability and long service life.   Features of Stainless Steel Heat Exchangers   Material used: Stainless steel High efficiency and Low consumption It is made of imported stainless steel pipe. Easy cleaning and maintenance   Stainless Steel Heat Exchangers Advantages are, Easy to install, Good quality, Low Cost, Easy cleaning and maintenance, Affordable, Efficient designs that lower operating costs, Highly durable   Stainless Steel Heat Exchanger Applications 1. Cooling corrosive fluids in chemical,2. pharmaceutical or refining processes.3. Electrical industry4. Chemical industry5. Power Plants6. Heating and air conditioning

We are the leading manufacturers of Removable Tube Sheet heat exchanger in India.  A Removable Tube Sheet heat exchanger is the most common type of heat exchanger in all Industries. Mostly used in higher-pressure and Higher Temperature applications.   The special features of Removable bundle type heat exchanger is that the tube bundle can be withdrawn from the shell which facilities cleaning of the outer surface of the tubes and inner surface of the shell. The sealing between the shell and tube side fluids achieved by means of rubber rings which set in a groove between the tubes a shell flange.

We Heat Transfer Equipments Pvt ltd extend our global services with design and manufacturing of all types of pressure vessels for the Industries with (or) with out U stamp as required. Below are some of pressure vessels up to 250 bar pressure can be manufactured in Heat Transfer Equipments Pvt Ltd. A pressure vessel is a closed container designed to hold gases or liquids at a pressure substantially different from the ambient pressure. Generally, a pressure vessel is considered to be thin-walled if its radius is larger than 5 times its wall thickness. There are many types of pressure vessel they are   Thin Walled Pressure Vessel, Thick Walled Pressure Vessel, Strong Tanks Pressure Vessel, Transportable Containers, Propane bottles and gas cylinders.   Pressure Vessel Application   Pressure Vessels for Water Treatment Plants Gas Storage Vessels Pressure Vessels for Refrigeration & Cryogenic Pressure Vessels for Shipping Industry   Uses of pressure vessels   The pressure vessels are used fluid to store such as liquid vapors and gases under pressure. Major uses of pressure vessels are as follows.   Pressure vessels are used in steam boilers Pressure vessels are also used in storage of chemical in chemical plants Use in storage of petroleum products (petrol, diesel etc) It is also used in engine cylinders.

PRESSURE VESSELS   We Heat Transfer Equipments Pvt ltd extend our global services with design and manufacturing of all types of pressure vessels for the Industries with (or) with out U stamp as required. Below are some of pressure vessels up to 250 bar pressure can be manufactured in Heat Transfer Equipments Pvt Ltd.   DESIGN OF HEAT EXCHANGERS AND PRESSURE VESSELS   We HTE is ASME (American Society for Mechanical Engineers) approved manufacturers for Heat Exchangers and Pressure vessel, Our products are Designed, Manufactured and Inspected as per the U stamp vessel Consideration. Our Shell and Tube Heat Exchangers Design Process Contains Two Parts - Thermal and Mechanical Design.   We are in Design and manufacturing of the heat transfer equipments as per the TEMA (Tubular Exchanger Manufacturers Association) ASTM Section (VIII) (unfired pressure vessels) BS, DIN Standards. And follows IS 2825, IS 6088, IS 4503, codes.   We are ASME certified on June 30th 2011 to manufacturer Heat Exchanger in India. ASME - [The American Society of Mechanical Engineers]. We are U Stamp and S Stamp Certified that Authorized for Manufacturer and Assembly of Power Boilers and Pressure Vessel. Click to view larger. 1. Mist Eliminators2. Filter housings3. Air receivers4. Headers5. Storage tanks6. Column7. Vacuum pre concentrator8. Nuclear waste storage tanks9. Economizer coils10. Feed surge drums etc.

We manufacture and supply highest quality range of plate heat exchanger using the most advanced technology for a wide series of heat transfer applications used in various industries such as chemical industry, offshore, oil and gas, petrochemicals power plants, pulp and paper, steel, zinc and aluminium, sugar, vegetable oil, breweries / distilleries, dairy / beverages and others. The difference lies at plate design, sealing technology, capacity range, product range etc. We always continue to improve our Plate heat exchanger to give total customer's satisfaction.  Plate Heat Exchanger Features High heat transfer coefficients Optimized heat recovery Compact constructions No mixing of product Flexibility to change plate arrangement and to add / remove plate Easy maintenance and suitable for CIP, plate pack easily accessible. Plate Heat Exchanger A plate type heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. This has a major advantage over a conventional heat system in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates. This facilitates the transfer of heat, and greatly increases the speed of the temperature change. It is not as common to see plate heat exchangers because they need well-sealed gaskets to prevent the fluids from escaping, although modern manufacturing processes have made them feasible. Plate Frame Heat Exchanger Application Plate Frame Heat Exchanger Cleaning Plate and Frame Heat Exchangers Animation Plate and Frame Heat Exchanger Approach Plate finned type Heat Exchanger Brazed Plate Heat Exchangers Plate Heat Exchanger Design The concept behind a plate heat exchanger is the use of pipes or other containment vessels to heat or cool one fluid by transferring heat between it and another fluid. In most cases, the exchanger consists of a coiled pipe containing one fluid that passes through a chamber containing another fluid. The walls of the pipe are usually made of metal, or another substance with a high thermal conductivity, to facilitate the interchange, whereas the outer casing of the larger chamber is made of a plastic or coated with thermal insulation, to discourage heat from escaping from the exchanger. The plate heat system (PHE) s was invented by Dr Richard Seligman in 1923 and revolutionized methods of indirect heating and cooling of fluids. Plate exchanger one is composed of multiple, thin, slightly-separated plates that have very large surface areas and fluid flow passages for heat transfer. This stacked-plate arrangement can be more effective, in a given space, than the shell and tube heat system. Advances in gasket and brazing technology have made the plate type heat system increasingly practical. In HVAC applications, large exchangers of this type are called plate-and-frame; when used in open loops, these heat system are normally of the gasket type to allow periodic disassembly, cleaning, and inspection. There are many types of permanently-bonded plate heat system, such as dip-brazed and vacuum-brazed plate varieties, and they are often specified for closed-loop applications such as refrigeration.   Plate heat systems also differ in the types of plates that are used, and in the configurations of those plates. Some plates may be stamped with "chevron" or other patterns, where others may have machined fins and/or grooves. Liquid foods such as milk, fruit juices, beers, wines, and liquid eggs are pasteurized using plate-type. Wine and fruit juices are normally deaerated prior to pasteurization in order to remove oxygen and minimize oxidative deterioration of the products. Plate Type heat exchanger consist of a large number of thin, vertical steel plates that are clamped together in a frame. So it may called as Plate and Frame. We manufacture Plate Heat Exchanger that are used in dairy, pharma and biotechnology, beverages, brewery, chemical and power sectors. PHE plates are available in MOC AISI 304, AISI 316, AISI 316L, Titanium, Hast alloy, Monel in range thickness from 0.5mm to 0.9mm. It is suitable for handling fluid from 100 LPH to 3.5 Million LPH. The plate heat exchanger sare available in herring bone, free flow and semi welded construction and depending on application respective plates are selected.   Plate heat exchangers - Bolted design (plate and frame) Heat transfer plates are characterized by optimum embossing resulting in high heat transfer coefficients. This permits low-cost and optimum adoption to the respective application conditions Our product range includes single-pass and multi-pass plate heat exchangers with heat exchange surface up to 1500 m².  Plate Heat Exchanger Technical data: heat exchange surface per plate: 0,04 - 2,50 m² max. design pressure: 25 bar max. design temperature: 170°C Plate Heat Exchanger Safety:Our plates are provided with double gaskets at the inlet and outlet which prevent mixing of the two media. If designed as safety heat exchanger, double plates are provided with a special sealing system. Plate material: standard: stainless steel 1.4301/AISI 304, 1.4401/AISI 316 optionally: 1.4539, 254 SMO, titanium Gasket material: NBR (nitrile-rubber) EPDM (ethylene-propylene-rubber) Viton (fluorine-rubber) Further materials on request Special series: Safety heat exchangers (FPSS) Stainless steel design for food and FDA applications Compact double PHE-units including cocks and valves Design with welded cassettes (FPG)

We are the leading manufacturers of Plate finned type Heat Exchanger in India. PFHE are Classified based on the Application : 1. Refrigeration Condensers2. Air Coolers3. Air Heaters4. Steam Condensers5. Compressor Inter cooler and After coolers Oil refineries, Power Plants, Food Industries and Processing Industries are mainly using the Plate Finned Type Heat Exchangers for Condensation and Refrigeration purpose. Material of Construction : 1. Copper Tubes2. Aluminum Fins or Foils3. Copper Alloy tubes4.Carbon steel Casings5. Stainless steel casings Air Heater using blowers and Ducting system   Air Heaters and Air coolers : The ultimate use of Plate finned Heat Exchangers are Air cooling and Air heating. Here the Air to be cooled or Heated is flows through the Fin side. i.e Air flows across tubes. And Cooling or Heating medium is passes through the tubes. i.e Steam or refrigerant.   Heaters : When Cold Air comes from the system (or) Atmosphere it passes across the tubes, Tubes carrying of Hot Fluid (or)Steam will comes enters in to tubes. Due to temperature difference between the both sides. Heat gets transfers from Hot fluid to cold fluid through conductive tubes. The Required heat transfer area to achieve the Heating of air to required temperature is arrived using the standard Heat duty relations.   The flow of Air may be forced or Induced flow based on application. Heat Lost by Hot fluid = Heat gain by Cold fluid   Air coolers :: In the same way of Heating, Air coolers also working in the same principle. Here tubes will carry the cold fluid. i.e Refrigerant. Due to temperature difference between the both sides. Heat gets transfers from Hot fluid to cold fluid through conductive tubes. The Required heat transfer area to achieve the Heating of air to required temperature is arrived using the standard Heat duty relations.   Air will pass the Heat to the Refrigerant, Based on the LMTD between the fluids. In maximum cases the Air is sucked from the atmosphere using the air blowers and filters.   Features: For Quality Fins we use Virgin 1100 grade aluminum. As per the ASTM B280 Standards Internal Cleaning System for Coil are designed. We tested our coil at 400 PSI of dry nitrogen pressure. A Plate finned type Heat Exchanger is the most common type of heat exchanger in all manufacturing Industries. To know the plate fin heat exchanger cost mail us your requirements.

Pipe headers are used for working pressure over 200 bar. The U bend tubes are welded to weldolets on the pipe. The welds are heat treated and X-ray tested. HEADER MATERIALS INCLUDE:   Carbon Steel, Normalized HIC quality and HIC Tested Carbon Steel Stainless Steels 2205 Duplex Titanium Petroleum Refining Process Coolers / Condensers Cooling Tower Fans Cooling Water Coolers Air Cooler Fans Oil & Gas Production Gas Coolers Gas Compressor Inter / After Coolers Air Cooler Fans Power generation Cooling Tower Fans Steam Condensers Seal / Lube Oil Cooler Closed-Loop Cooling Water Coolers Geothermal Plant Condensers Air Cooler Fans Turbine lube oil coolers Turbine intercoolers Petrochemical Process Coolers Cooling Tower Fans Steam Condensers Air Cooler Fans Gas Processing LNG Plants Process Coolers Amine Re-boilers Air Cooler Fans Cooling Tower Fans Oil & Gas Transport Compressor Inter / After Cooler Jacket Water Coolers Pre Heaters Air pre-heaters Combustion pre-heaters Flue gas re-heaters Hydraulic & Lubrications Systems Oil coolers Air Cooled Heat Exchangers Condenser: Steam condensers Overhead condensers Refrigeration: Refrigerant condenser fin fan air cooling systems Fertilizer: Process Coolers Solvent Condenser Water Treatment, Industrial Application Water coolers engine coolers

We are proud to introduce ourselves as one of the leading Industrial Oil Cooler Manufacturers from India. We have outstanding information and communication technologies that have made us one of the top notch air Oil Cooler and engine oil cooler manufacturers in India. Our hi-tech plant and use of best quality raw materials help us to generate oil cooler that are industry benchmark of innovation and quality. We are flawless in our efforts to provide uninterrupted services to our clients and this hade made us one of the revered oil cooler exporters from India.   We produce Hydraulic Oil Coolers which are packed floating head type in general and are suitable for figment of the return line of a Hydraulic oil system. The hydraulic oil coolers designed by us are used extensively in power packs, presses, dredgers, plastics injection equipment and a number of other hydraulic systems.   Oil cooler can be connected to through hoses to the high-performance blocks by removing the plugs above the oil filter pad. It also contributes to lowering the engine-temperature. Of the three engine cooling systems (air, water, and oil), oil cooling is the most promising for getting big cooling gains with relatively little effort. It is necessary to keep the temperature of the oil, needed for the functioning of the engine and its subsystems, under control. Too high temperatures lead to a rapid degradation of the oil's lubrication characteristics with the risk of damaging mechanical parts. They may be designed to exchange heat between oil and air rather than oil and the coolant in the engine cooling circuit. The latter involves simplified oil circuits and low costs if compared to the oil-air solutions, which offer higher performances and do not imply an additional thermal load for the radiator.   Hydraulic Oil Coolers are used in variety of industries for desired applications. From standard to highly specialized, these units come in a full range of sizes and materials. These units are usually specified as floating head (TEMA type "W") with O-Ring and weep hole for early leak detection. The units can be designed to ASME Section VIII, Div 1, API 612, 618,618, & 660, TEMA Class R, C & B as well as customer supplied specifications. Heat Exchanger-Oil Cooler can be obtained at most competitive prices of the industry. Our product range:  Water Heat exchanger Oil coolers After cooler Condensers Fuel oil heaters Evaporators Steam – Air heaters Re – Boilers Water heater Marine heat exchanger Marine oil cooler Availability: One/Two/Three/ Four/ Six and Eight Passes Oil Coolers Applications Diesel Engines Marine Plastic Machinery Hydraulic Power Packs Other Industrial applications We offer engine oil coolers, which is an attachment in a Radiator bottom tank. These engine oil coolers cool Oil present in an Automatic transmission engine gear box. The transmission engine oil coolers designed and manufactured by us are used widely in a number of industrial applications worldwide. These oil coolers are designed according to various National and International quality standards and are very efficient. Continuous quality testing of these coolers during production ensures their high efficiency and low maintenance cost.   We manufacture transmission engine oil coolers designed for effective heat transfer. These transmission engine oil coolers are design specific and vary in diameter, length, effective length and connector construction etc.   The features of these industrial oil coolers are as follows.   Oil Coolers Features:   High performance Maximum Heat Transfer Light weight Durable Leak Proof Our ranges of high performance oil coolers are designed to keep the oil cool while maintaining its lubricating properties. This ensures smooth performance of the machine and long life of the engine. These oil coolers can be easily installed outside the radiator. We also specialize in designing special oil for towing or high performance applications.   A heat exchanger has a core provided with passages for a liquid to keep cool and passages for a cooling medium, a first collection tank for supplying the liquid, a second collection tank for withdrawing the liquid, at least one third collection tank, the core being divided into at least two sections through which the liquid successively flows and which are interconnected by the at least one third collection tank, one of the sections being connected with the first collection tank, while the other of the sections being connected with the second collection tank, a bypass line connected with the third collection tank and in parallel with the other sections, and structure for activating and deactivating the bypass lines.   Hydraulic Oil Coolers are suitable for heat transfer fluids, lubricating, transformer & quenching oils. They are high quality products incorporating the best materials and the latest technical features. The tube stack is fully floating so that thermal stresses are minimised and it can be easily removed should cleaning be necessary   Water cooled manifolds, charge air coolers and oil coolers for use on marine engines. Suitable for use with deck machinery, bow thrusters, power steering etc. fuel coolers are designed for cooling fuel on marine engines.

We offer marine heat exchangers, Mercruiser heat exchangers, marine water pumps and other marine cooling systems parts. We only can assist you in determining the best all around product for your particular application.  Marine heat system are the most common way to cool a boat's engine, using the lake, river or ocean water in which the boat floats. Since this water may be corrosive the engine may be cooled by a sealed mixture of distilled water and antifreeze. Heat from the water-antifreeze mixture is then transferred to the ocean (or lake or river) water which flows into a heat system. The water-antifreeze mixture runs through the heat exchanger dumping heat, but remaining separate from corrosive salts and chemicals found in the water the boat is floating in. If the ocean water eventually corrodes and ruins the heat system it can be replaced at a fraction of the cost of replacing the engine.   To protect the marine heat exchanger from corrosive salts, a sacrificial zinc anode is screwed into the heat exchanger. This anode must be periodically replaced as part of regular maintenance.   Because the water the boat floats in may be contaminated with floating particles such as wood or styrofoam balls the well designed boat will have a filter (often stainless steel mesh) to remove these particles before they are moved toward the heat exchanger. This filter must be periodically cleaned or else the flow of water to the heat exchanger will become obstructed and the engine will overheat.   Ocean water is caused to flow through the heat exchanger by an impeller, often made of rubber and looking like a paddle wheel. Impellers commonly fail by having their paddles fall off and when this happens the engine will overheat unless promptly shut off. Many marine engines using heat exchangers have a grease reservoir for the impeller. In such cases a screw is often made part of the reservoir and is turned a small amount periodically, such as once a month, to apply a bit of grease to the rubber impeller to reduce friction and prolong its life.   A consequence of using a heat exchanger on an in-hull marine engine is that there must be a thru-hull opening below the waterline to admit the ocean water to the marine heat exchanger. Most boats with this arrangement have a valve which closes this hole when the boat is unattended so that a leak in the cooling system will not cause the boat to fill with water and eventually sink.   There are three methods employed for water-cooled marine petrol and diesel engines: direct, heat exchanger and keel cooling. Direct cooling of the cylinders and heads by seawater is unsatisfactory, because the engine – which was probably originally designed for radiator cooling – will run too cold and the sea-water will eventually ruin the cylinder block and heads. Our cooler is suitable for small boats operating in shallow weedy water, but the need for pipe work external to the hull is a severe limitation. Heat exchanger cooling is the most common method, the seawater being isolated in components which can be designed to withstand its corrosive affect. The closed fresh-water circuit can be thermostatically controlled so that the engine operates at its design temperature. Our heat exchangers are high-quality products incorporating both the best materials and the latest technical features. The tube stack is fully floating, thus minimizing thermal stresses, and it can easily be removed should cleaning be necessary. Our heat exchanger header tanks prevent aeration of the engine water circuit which must be designed so that the system is self-venting on initial filling.It is usual for all the components in the seawater circuit to be in series, the gearbox-oil and engine-oil coolers being on the suction side of the sea-water pump and the heat exchanger and any sea-water-cooled exhaust manifolds being on the discharge side. In the case of turbocharged engines the charge air cooler should receive the sea-water first so that the lowest possible air temperature is obtained. The sea-water outlet from the heat exchanger should be from the end cover equipped with the upper connection, this ensures that the tube stack is always full of water. The gearbox cooler size will depend on the type of transmission used, but it will usually be a size smaller than the engine-oil cooler. If preferred, the oil coolers can be fresh-water-cooled; these will need to be larger owing to the higher water temperature but need not be suitable for sea-water and can be taken from our leaflet ENGINE AND TRANSMISSION OIL COOLERS.   A water-jacketed exhaust manifold is necessary on marine engines to reduce the temperature of the engine-room air space and the exhaust pipe. If the exhaust manifold is in the sea-water circuit it should be installed with the sea-water inlet at the back and the outlet at the front on the top to ensure that it operates completely full of sea-water. If the manifold is in the fresh-water circuit a small by-pass hole must be provided in the thermostat to ensure that some water is circulating through the manifold at ail times.   Our development is to combine a water jacketed exhaust manifold with the heat exchanger and header tank. This arrangement is particularly suitable for small series-produced engines; the manifold is cooled by fresh water and as a result a keel-cooled engine can be made by omitting the heat exchanger tube stack and the sea-water pump. On installation the fresh-water outlet from the manifold would be connected to the keel pipes and the return taken back to the engine fresh-water pump. Heat exchanger/manifold assemblies are heavier than ordinary marine manifolds and must therefore be supported on the underside using the fixing lugs provided.   When automotive engines are being converted for marine use the existing centrifugal-type pump should be retained for the fresh-water circuit and an additional pump fitted for the sea-water circuit. The sea water pipe bore should be chosen so that the velocity does not exceed 2 m/sec on the suction side and 3 m/sec on the discharge side of the pump. If the engine is being used to drive auxiliary equipment in a ship and the sea water supply is taken from the ship's main, ensure that the recommended flow rate cannot be exceeded.

We are the leading manufacturers of Kettle Reboiler Heat Exchanger Kettle Type Reboiler, Kettle Type Condenser, Kettle Type boiler in India. ASME Certified Type Boilers are available as per your requirements. We offer Kettle Type Reboiler Heat Exchanger, Kettle Type Condenser, Kettle Type boiler and Kettle reboiler, when you are looking for boil up from 20% to 100%. Our kettle reboiler designs are as per ASME standards and with customer specification. Horizontal U Tube bundle will be placed inside of the shell on Kettle Reboilers. Column Internal Reboiler, Forced Circulation Reboilers, Fired reboiler, Thermosyphon reboilers   A Kettle Reboiler Heat Exchanger is the most common type of heat exchanger in all Industries. Mostly used in higher-pressure and Higher Temperature applications.   Kettle Reboiler Heat Exchanger Advantages   Ease of maintenance for Kettle Reboiler Ease of control for Kettle Reboiler No limit on vapor load for Kettle Reboiler Vapor disengaging Low skirt height Handles viskosity greater than 5.10-4 Pa.s   Kettle Reboiler Heat Exchanger Disadvantages   Extra piping and space for Kettle Reboiler Kettle Reboiler is a High cost Heat Exchanger Low residence time surge section of reboiler   Reboilers are heat exchangers typically used to provide heat to the bottom of industrial distillation columns.   Types of Reboiler The selection of the proper type of reboiler for a specific service is very important to get best result. Major types of Reboilers are shell and tube heat exchanger type. Typical steam-heated kettle reboiler for distillation towers   Kettle Reboiler Kettle reboilers are very simple and reliable. Kettle reboilers require pumping of the column bottoms liquid into the kettle OR Kettle reboilers may be sufficient liquid head to deliver the liquid into the reboiler. In kettle reboiler steam flows through the tube bundle.   Thermosyphon ReboilerThermosyphon reboilers are not required pumping of the column bottoms liquid into the reboiler. Thermosyphon reboilers including vertical, horizontal, once-through or recirculating.   Fired ReboilerFired heaters may be used as a distillation column reboiler. A pump is required to circulate the column bottoms through the heat transfer tubes.

  The flue gas system consists of two air heaters. The combustion gas transfers its own heat to the water wall, the superheaters, the reheater and the economizer, then leaves the boiler to the flue gas ducts. The flue gas goes to the stack through the AH and is exhausted to the atmosphere.   Air pre-heater transfer heat from flue gas to air by means of a rotary matrix in which heat is absorbed by the heating elements passing through the hot gas stream and transferred to the combustion air stream.

We are the leading manufacturers of Fixed Tube Sheet heat exchanger in India. Our products are custom build as per clients requiement and specification. Custom build desing will lead to best performance and more life with low maintenance. We suggest you to send your specification to us for your Fixed Tube Sheet Heat exchanger. We are ASME Certified ISO Company following all rules and regulation from designing to delivery. Few words about Fixed tube sheet HE.,   A Fixed Tube Sheet heat exchanger is the most common type of heat exchanger in all Industries. Mostly used in higher-pressure and Higher Temperature applications.   Fixed tube Sheet heat exchangers are the one that are very much used in process chemical industries and refinery services, as there is absolutely no chance for intermixing of fluids. This type of heat exchanger is employed where even slightest intermixing of fluids can not be tolerated.

We are Heat Transfer Equipments Pvt Ltd established in 1989 and also have many years experienced in the fields of Cooling Tower Manufacturer. We have member with (CTI USA) Cooling Technology Institute USA. Dry Cooling Towers are commonly used in the Power Plant, it is latest model cooling tower. A lots of power plants are cooled simply by air. Dry Cooling Tower is an equipment which is used dry cooler of defensive the working fluid from ecological revelation and contamination. There is no loss of water by evaporation because No water consumption in this type of cooling tower and also, we install the dry cooling tower in a right manner. Why Dry Cooling Tower? Dry cooling tower be able to a great extent speed up the Planning approvals process. Options are ever-increasing expenditure premiums are falling. Preservation expenses a great deal reduced Legislation is able to protect water provisions to power stations in droughts Also we experience of more than 23 years in the industry of cooling tower manufacturer Dry Cooling Tower Benefits are: Very economical in cost, Conserving significant amount of water, Minimizing environmental impact. How to Design Dry Cooling Tower?   We are designing the dry cooling tower as per the client requirements and we having 23 years experienced in cooling tower industry. We have well designed and develop the timber cooling tower for various industries. Our designing department is updated and very qualified engineers with designing knowledge and designing standards by cooling tower technology (CTI Membership).   If the thermal power plant is not located on the seaside or near a huge lake and if the water is either too exclusive to use a wet cooling tower, then the only cooling preference is using a dry cooling tower. A huge of water gets conserved on using dry cooling towers and Optimized cooling tower designing and develop using latest materials and latest technology construction methods.   In Dry cooling tower, Reduced yearly operating costs and it also No decomposition caused by air and this type of cooling tower performance ensures minimum ecological impact.

Double Pipe Heat Exchangers A double pipe heat exchanger is one of the simplest form of Shell and Tube Heat System. Here, just one pipe inside another larger pipe. One fluid flows through the inside pipe and the other flows through the annulus between the two pipes. The wall of the inner pipe is the heat transfer surface. To make an Unit very Compact, The Arrangement is made Multiple Times and Continues Serial and Parallel flow.   This is also called as a hairpin heat exchanger. These are may have only one inside pipe, or it may have multiple inside tubes, but it will always have the doubling back feature shown. In some of the Special Cases the Fins also Used in Tube side. Types of Double Pipe Heat Exchangers 1. Counter flow and 2. Parallel Flow Heat Exchanger 1. Counter flow The main advantage of a hairpin or double pipe heat exchanger is that it can be operated in a true counter flow pattern, To get More Efficiency, In the mean Time, it will give the highest overall heat transfer coefficient for the double pipe heat exchanger design.   2. Parallel Flow Parallel Flow double pipe heat exchangers are focused to handle high pressures and temperatures applications. Also we can Achieve High Log mean Temperature using this.   3. Double Pipe Heat Exchanger DesignDouble pipe Heat Exchanger Thermal design is made based on Common Equation Q = UA ?Tlm After determination of the required heat transfer surface area, Other Mechanical Design are made, With reference to Process applications. The Design Process in Completely Simple Compare to All Other Heat Exchanger Design.   4. Construction and Standards:Before Construction we will have the Clear Discussion with our Customer, To select the Suitable Equipment, For a Customer Application. After Successful Analysis and Design We will submit our Valuable design with Suitable Drawings.   We do Design and manufacturing of the heat transfer equipments as per the TEMA (Tubular Exchanger Manufacturers Association) ASTM Section (VIII) (unfired pressure vessels) BS, DIN Standards. And follows IS 2825, IS 6088, IS 4503, codes.   We are capable to Construct the Hairpin Hear Exchangers in all Ranges based on Needs.   It is an object of the invention to provide an inexpensive double-pipe heat exchanger having high performance and comprising an inner pipe and an outer pipe which constitute a double pipe without adding a heat-transfer facilitating material such as an inner fin. In the double-pipe heat exchanger having the inner pipe and the outer pipe, the outer pipe is dented from its outside toward its inside, thereby forming a plurality of projections which are dented toward the inner pipe.

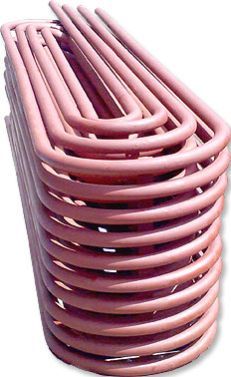

We are the leading manufacturers of Coil Type Heat Exchanger in India. A Coil Type Heat Exchanger is the most common type of heat exchanger in all Industries. Mostly used in higher-pressure and Higher Temperature applications. The Coil Heat Exchangers can have a methods of structuring theory with module package of heat exchangers. It may be design with gas and liquid flow for the Coil Heat Exchangers. Evaporation is not possible in the Coil Heat Exchangers processing.To guide the flow in the exchanger you can use a cylinder. You can also design a coil type heat exchanger without any displacement body. The coil may consist of a maximum of 5 parallel flown-through tubes.Shell-side flow is always forced flow.   Flow direction might be cocurrent or countercurrent.The theory of Coil Heat Exchangers are presented in the VDI Heat Atlas and the HEDH (Heat Exchanger Design Handbook) as well as in special research reports.This product can also set the program parameters so that the program will only calculate with standard tube and shell dimensions (default values). The Process will enables the constructor to optimise times of delivery or to reduce costs for storage by limiting the assortment of goods. Media must be single phase (liquid or gaseous) or condensing pure substances (pure substance con-densation, isothermal condensation). The properties of the used media are provided by LV property modules and are determined for mean temperatures and pressures. Condensation of multi-component mixtures is not possible with COIL.

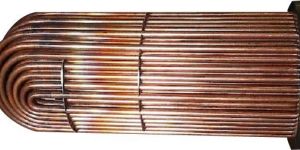

Calorifier is a term used to describe an extensive range of industrial and commercial hot water heaters. High performance tubular heat exchangers ensure Heat Transfer Equipments calorifiers offer the most flexible and economic solution to provide your hot water heating requirements. Heat Transfer Equipments heat exchangers utilize a range of primary heating systems.   Primary Heating Systems   LTHW (maximum temperatures of 100°C)   Low temperature hot water is the most common means of heating. Flows are usually based on a temperature drop of 11°C (from 82–71°C).   MTHW (100°C–120°C)   Medium temperature hot water systems are generally designed on a temperature drop of 30°C (from 120–90°C).   HTHW (temperatures above 120°C)   High temperature hot water systems are generally designed on a temperature drop of 40°C (from 150–110°C). Another important factor in the selection of primary water heating systems is the working pressure. Where the primary working pressure is greater than the shell design pressure the calorifier must be fitted with a bursting disc sized in accordance with the requirements of BS 853. Primary water pressure drops are generally not greater than 25 kPa. With HTHW Systems we recommend the use of flanged connections rather than screwed joints.   Steam   Steam is an ideal medium for water heating. Tubular heat exchangers can be designed to accommodate a wide range of pressures, although most users prefer to have calorifiers operating with pressures below 10 Bar g. Superheat can be accommodated and the degree of superheat should always be stated at the enquiry stage.   Condensate   Condensate tubular heat exchangers can be used to accommodate flash steam and subcool condensate. This harnesses the available heat which would otherwise be discharged from a traditional two pass tubular heat exchanger.   Heat Transfer Oil   Thermal oils have the benefit of high temperature combined with low operating pressures. Tubular heat exchangers are generally manufactured from cupro-nickel or stainless steel, depending on oil type.   Refrigerant   Generally only superheat is taken from systems although condensing units are available. Tubular heat exchangers are designed with double tube sheets incorporating a tell tale leak path. This reduces the risk from cross contamination between the secondary and primary sides.   Waste Heat   Storage calorifiers are a useful means of recovering waste heat from a variety of liquids or vapours and Heat Transfer Equipments offer a special design service for this purpose. Where the temperature or quantity of waste heat is insufficient for the desired output, supplementary heating can be incorporated into the calorifier to boost the storage temperature. The calorifier should be sized to absorb the maximum quantity of waste heat during the time it is available.   Water Hardness   Where it is required to heat water with a high degree of hardness, special precautions should be taken. This is especially true where high primary temperatures are encountered.   Calorifier Codes of Practice   BS 853 BS 6700 BS 5500 Commercial Calorifiers   Shell Materials   Copper Shells Stainless Steel Galvanised Steel Shells Duplex Cupro Nickel   Heat Exchanger Types   U-Tube Battery = Calorifier   This is the most common type of heat exchanger used in calorifier manufacturing. High efficiency tubes unaffected by thermal expansion provide extremely high levels of reliability. To ensure a high heat transfer capacity a wide range of multi-pass exchangers are available. Standard bundle arrangements are manufactured from 20mm tube although other diameters are used depending upon the duty requirement. Finned and plain tube options enable Heat Transfer Equipments to offer economic solutions to meet the most demanding duties.   Tubes are generally expanded into the tube plates and do not require sealing gaskets or ferrules. For high pressures and temperatures doubled grooved tube plates are offered. For tube bundles with straight lengths greater than 1250mm support baffles are fitted as standard. In order to ease disassembly batteries greater than 380 mm in diameter are fitted with a tapped hole to accept a lifting eye. In addition runner wheels, collar bolts and starting screws can be supplied. Tubes are available in copper, stainless steel,90/10 and 70/30 Cu-Ni.   Double Tube Heaters = Indirect Cylinder   Double tube heaters have replaced annular heaters. Whilst retaining low primary pressure drops and double sided heating surfaces, double tube heaters are of a much stronger construction. The heater is manufactured from pairs of concentric copper tubes and the primary water circulates through the annular spaces with collection headers at the top and bottom of the assembly.   By varying the length and number of tubes a wide range of heating surfaces can be fitted using standard components to construct the different headers. The secondary water is heated by natural convection with an added boost to the water passing the inner tube. The overall heat transfer rate is considerably greater than that achieved by a single annular heater and recovery rates in the order of 20 minutes can be achieved. Double tube heaters are generally used for low pressure applications where the removal of the heater is not required.   Copper Coil   Generally produced from a single tube formed into a helical coil and can operate at a greater pressure than a double tube exchangers. Unfortunately as the cylinder size increases the length of heating coil becomes disproportionately greater and this heater is therefore only practical for moderate size cylinders. The single coil is particularly useful for small flow rates with a large temperature drop such as those found in waste heat recovery and solar heating installations. Double coils are available for low pressure drop applications. Coils are able to withstand high working pressures. They can be safely used for high temperature water systems operating up to 200°C and in small cylinders for high pressure steam applications   Plate Heat Exchangers   Plate Heat Exchangers are compact and assembled from pressed stainless steel plates. Standard material for plates is 316L stainless steel. The plates are held in the exchanger by two methods, brazed and gasketted.   In brazed exchangers the stainless steel plates are copper brazed together to form a very compact and economic design suitable for pressure and temperature limitations 30 Bar g, 185°C. Gasketted plate exchangers use a gasket to seal the plate gap.   The gasket is glued to the plate. The plates can be easily removed for cleaning or maintenance. Maximum design pressure and temperature is dependent upon the frame rating, plate thickness and type of gasket selected. The plate exchanger offers the user several advantages.   In areas where maintenance space for 'U' tube withdrawal is limited then a plate heat exchanger offers a practical alternative. A plate heat exchanger can be serviced without any special tools or requiring heavy lifting tackle. If at a later date the design duty has increased then the plate pack can be easily extended by the addition of plates to increase the output for gasketted unit or replaced by a brazed unit with a larger plate pack. U-tube batteries, double tube and coil heaters rely on hot water convection currents to distribute the hot water within the storage volume. Plate heat exchangers will require a pump to circulate water from the storage volume and through the exchanger. A plate heat exchanger coupled with a pump on the cylinder side can offer an economic high output calorifier.

A plate type heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. This has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids spread out over the plates. This facilitates the transfer of heat, and greatly increases the speed of the temperature change. It is not as common to see plate heat exchangers because they need well-sealed gaskets to prevent the fluids from escaping, although modern manufacturing processes have made them feasible.   The concept behind a heat exchanger is the use of pipes or other containment vessels to heat or cool one fluid by transferring heat between it and another fluid. In most cases, the exchanger consists of a coiled pipe containing one fluid that passes through a chamber containing another fluid. The walls of the pipe are usually made of metal, or another substance with a high thermal conductivity, to facilitate the interchange, whereas the outer casing of the larger chamber is made of a plastic or coated with thermal insulation, to discourage heat from escaping from the exchanger. The plate heat exchanger (PHE) was invented by Dr Richard Seligman in 1923 and revolutionized methods of indirect heating and cooling of fluids. Brazed Plate Heat Exchangers Applications   Domestic water heating Hydraulic oil cooling Hydronic heating and cooling Snow melt systems Outdoor wood boilers, stoves, furnaces Radiant floor heating Beer and wort chilling and other water to water and liquid to liquid heat transfer applications Plate type heat exchanger one is composed of multiple, thin, slightly-separated plates that have very large surface areas and fluid flow passages for heat transfer. This stacked-plate arrangement can be more effective, in a given space, than the shell and tube heat exchanger. Advances in gasket and brazing technology have made the plate-type heat exchanger increasingly practical. In HVAC applications, large heat exchangers of this type are called plate-and-frame; when used in open loops, these heat exchangers are normally of the gasket type to allow periodic disassembly, cleaning, and inspection. There are many types of permanently-bonded plate heat exchangers, such as dip-brazed and vacuum-brazed plate varieties, and they are often specified for closed-loop applications such as refrigeration. Plate heat exchangers also differ in the types of plates that are used, and in the configurations of those plates. Some plates may be stamped with "chevron" or other patterns, where others may have machined fins and/or grooves. Liquid foods such as milk, fruit juices, beers, wines, and liquid eggs are pasteurized using plate-type heat exchangers. Wine and fruit juices are normally deaerated prior to pasteurization in order to remove oxygen and minimize oxidative deterioration of the products. Plate-type heat exchangers consist of a large number of thin, vertical steel plates that are clamped together in a frame. We manufacture plate heat exchanger that are used in dairy, pharma and biotechnology, beverages, brewery, chemical and power sectors. PHE plates are available in MOC AISI 304, AISI 316, AISI 316L, Titanium, Hast alloy, Monel in range thickness from 0.5mm to 0.9mm. It is suitable for handling fluid from 100 LPH to 3.5 Million LPH.. Safety:Our plates are provided with double gaskets at the inlet and outlet which prevent mixing of the two media. If designed as safety heat exchanger, double plates are provided with a special sealing system.Plate material:§ standard: stainless steel 1.4301/AISI 304, 1.4401/AISI 316 § optionally: 1.4539, 254 SMO, titanium Gasket material:§ NBR (nitrile-rubber) § EPDM (ethylene-propylene-rubber) § Viton (fluorine-rubber) § Further materials on request Special series:§ Safety heat exchangers (FPSS) § Stainless steel design for food and FDA applications § Compact double PHE-units including cocks and valves § Design with welded cassettes (FPG) We manufacture and supply highest quality range of plate heat exchanger using the most advanced technology for a wide series of heat transfer applications used in various industries such as chemical industry, offshore, oil and gas, petrochemicals power plants, pulp and paper, steel, zinc and aluminium, sugar, vegetable oil, breweries / distilleries, dairy / beverages and others. The difference lies at plate design, sealing technology, capacity range, product range etc. We always continue to improve our products to give total customer satisfaction. Brazed Plate Heat Exchanger Features High heat transfer coefficients Optimized heat recovery Compact constructions No mixing of product Flexibility to change plate arrangement and to add / remove plate Easy maintenance and suitable for CIP, plate pack easily accessible The brazed plates form two separate channel systems. The two media assume a true countercurrent flow, completely isolated from each other. This channel configuration is designed to produce high turbulence, promoting maximum heat transfer.

Heat Transfer Equipments Air Cooled Heat Exchangers are designed and fabricated in accordance with ASME Section VIII, Div. 1.   Air cooled heat Exchangers are same In the Functions of Finned Tube Heat Exchanger. This type of Heat Exchangers are Specially used in Large Quantity cooling Requirements. We are main Suppliers Air cooled Heat Exchanger for Oil Refineries and Process Fluid Cooling. The most economical and most common style air cooler, the forced draft ACHE, uses axial fans to force air across the fin tube bundle. The fans are positioned below the bundle thus not exposing the mechanical sections to the hot exhaust airflow. The forced draft air cooler also simplifies future plant expansion by providing direct access to bundle for replacement. Structural disassembly is not required. The second most economical and most common style air cooler is the induced draft ACHE. This design uses axial fans to pull air across the fin tube bundle. The fans are positioned above the bundle thus offering greater control of the process fluid and bundle protection due to the additional structure. Lower noise levels at grade are another benefit. The induced draft air cooler does require some structural disassembly if bundle replacement is required. Types of Finned Tubes:   Finned Tubes are most important part of the Heat exchanger which affect the efficiency of the Air Cooled Heat Exchanger. Below mentioned some types of Finned Tubes manufactured by us.   For more Types of Finned Tubes, visit Finned Tube Heat Exchanger page. TUBE MATERIALS INCLUDE:   Carbon Steel, Seamless, and Welded Stainless Steels, Seamless, and Welded 2205 Duplex Copper, Copper Nickel, Admiralty Brass Titanium

We are Heat Transfer Equipments Pvt Ltd INDIA manufacturers of Air Cooled Condenser system for all types of Thermal Power plants, Gas Plants and Oil Plants. We are certified ISO and AMSE company with more experience in HE Industry. To get best quality and price on your air cooled condenser send your requirement to info@heattransferequipments.com.   Air cooled condenser will cover from Turbine Generator outlet to the deaerator Inlet. Our Air cooled condensers are economical and pollution free system. So, the usage of water is 0% in the project. In this type of condensers, Steam to be condensate is passing through the seamless tubes of min 1 inch diameter (Large as per steam flow rate). Here secondary fluid is atmospheric air. which is from 30 Deg C to 48 Deg C based on location of erection. API 661 and ASME Sec VIII Div 1 standards are followed in the design and Construction of Air cooled Heat Exchangers. Parts of Air Cooled Condenser System: Expansion bellows Air cooled Condenser Condensate storage tank Condensate extraction pumps Inter condenser After condenser Hogger Ejection system Drain Pot Drain pot Pumps Gland steam condenser Supplementary Components of ACC System : Ejectors Strainers 3Bellows Valves Pipe Lines Instrumentation Operation of Air cooled condenser: Based on the heat duty calculations , Required air volume for the proposed heat transfer will be obtained using the Fans. Motor connected with fan will run the fan with required air flow rate, The angles of fan is set to achieve the flow rate. Gear box is connected with the motor to regulate the motor rpm. The gear ratio of the same is maintained to get required air flow rate.   Tubes are assembled in the tube bundle by triangular pitch pattern. All the carbon steel tubes are wounded with LL type fins. The material of Tubes and fins are SA 179 and Aluminum. If the plant is affected by negative minimum design metal Temperature. Impact tested or Stainless steel construction will be used for Tube Bundle. All assembled tube bundles are mounted in the 'A' frame for the active utilization of tube bundles in Heat transfer.   Tube Bundle, A frames, Fan, Motor, and gear boxes will be under civil construction. The outlet of the condensers, i.e. condensates is collected in the Condensate storage tank. Non condensable gases are collected through the separate pipe line and connected to the Inter and after condensers. Construction of Air cooled Condensers : The construction of the Air cooled condensers are based on the API – 661 standards and ASME Sec VIII Div 1. Also as per client location and operation mode the standards will be followed in the construction. The welding procedures followed in the fabrication will be approved by Authorized Inspector, for each and every jobs. The qualification of welders been tested using ASME Sec IX. The fabrication activities are controlled by the qualified Quality Control Team. Quality Control Manuel is followed in each stage of Design and Manufacturing of Condensation system. Which is approved by ASME team leader and our Authorized Inspector. All the Products manufactured in Heat Transfer Equipments Pvt Ltd are qualified to make U stamping. Also, Non destructive examinations of Products are conducted by the qualified Level II and Level III personals as per ASME Sec V. So, the quality of products are 100% assured and safe for operation. All major components of the Air cooled condensation unit is equipped with spare Like,1. Spare Inter and after condenser2. Spare Ejectors3. Spare Condensate extraction pump4. Spare drain pumps Above spare lines also have required valves for operation. By this way the continuous operation of Condensation system is ensured by Heat Transfer Equipments Pvt Ltd. Applications of Air Cooled Condenser systems : All Thermal power plants1. Gas based Plants2. Coal based plants
