K.U.SODALAMUTHU CO PVT. LTD Mettupalayam Road, Coimbatore, Tamil Nadu

We are offering Spiral Paper Tube Winder, Salient Features: * Higher output * Extra strong tubes * Electronic proportional control system for winding speed adjustment * Rapidly interchangeable mandrels * Pneumatic control of winding belt tension * Built-in control panel with remote station.

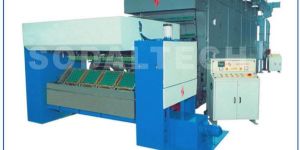

the rotary model moulding machine is of state-of-the-art design and is operated by electro-pneumatic power. the advanced design of control has independent control circuits for all operating units and conveniently located remote control operation ensures the operator to work comfortably and to have close monitoring of the process. most of the sensitive operations are logic controlled and fail safe.

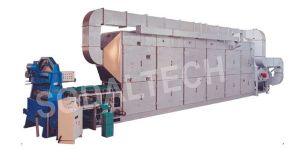

This model is recommended for entry level pulp moulding, project, with medium output. (e.g.: egg trays, fruit trays etc) this is similar to the conventional wet moulding process with transfer mould and forming mould working on reciprocating method. The forming mould goes down to the pulp and comes out as product formed over the mould. The transfer mould comes down, does wet press and goes up by holding the wet product with it.

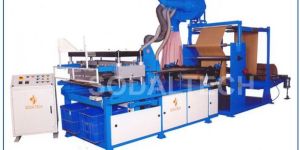

Salient Features:- · Highly versatile to cut patterns for cone tapers 5°57', 4°20', 3°30' etc · Automatic paper feeding and edge grinding · Rapid changeover between conicities · Online printer for precision printing with great flexibility · Inner logo printer (Optional)

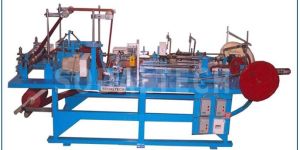

We are offering parallel paper tube winder, highly suitable for producing tubes for sewing thread, gun cartridges, pyrotechnic tubes (fireworks tubes) incense stick, packing tubes etc.

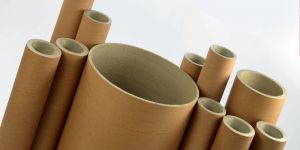

Industry Applications Paper Cores for winding fax rolls, telex rolls, toilet tissue paper,newsprint, kraft paper etc. Packaging Cores to wind BOPP tapes, polyester films, metalized foil etc. Textile Yarn carrier for POY winding, DTY winding, open-end spinning, fabric and jute winding, non-woven fabrics, carpet yarn winding. Others – Thermo-couple tubes, electronic cores, civil construction cores, storage tubes, pyrotechnic cores and mailing tubes.

Type : Paper Tubes

Material : Kraft Paper

Pattern : Plain, Printed

Feature : Compact Design

We are offering paper tube winder with multi cutter for kitchen foil tubes. This versatile spiral paper tube winder is to deliver high output of pre-cut cores for toilet tissue winding, kitchen foil winding etc.

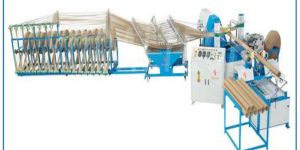

We are offering paper tube machine, salient feautres :- higher output extra strong tubes electronic proportional control system for winding speed adjustment rapidly interchangeable mandrels pneumatic control of winding belt tension built-in control panel with remote station.

Usage : industrial

This heavy duty spiral paper core winder is suitable to produce thick walled cores for various applications like reel cores, film winding cores, carpet cores etc. This machine is easy to operate and maintain. The cutting carriage moves on a free slide rails synchronized with the main tube winder. The online fine cutting unit delivers burr free cores without dust and noise generation. Technical specifications: output : up to 15 mts min. Depending upon the sizes of the tube minimum inner diameter : 25 mm maximum inner diameter : 300 mm maximum wall thickness : 16 mm salient features:- · higher output · electronic proportional control system for winding speed adjustment · rapidly interchangeable mandrels · pneumatic control of winding belt tension · built-in control panel with remote station

Higher output, extra strong tubes electronic proportional control system for winding speed adjustment rapidly interchangeable mandrels pneumatic control of winding belt tension built-in control panel with remote station.

Brand Name : SODALTECH

Certification : ISO 9001 : 2008

Country of Origin : India

  Depending upon the application the specification of the cone varies. The popular sizes in the present Textile Industries are 9 Deg15', 5 Deg 57', 4 Deg 20', 3 Deg 30', etc. In all yarn winding application, tension at the traverse extremes pulls yarn towards the cone centre. So we have to provide suitable surface finish to the cones like Embossing, Velvet Finishing, Flocking, etc.Generally, Embossing is used for coarse and lively yarns. This surface provides extra resistance to yarn slippage. However fine embossing surface is provided for medium count yarn and for the threads where take off could be restricted by the above bold embossing surface. This surface holds winding to full traverse length, yet permits free delivery to knitting or sewing machine. Velvet Finish surface is ideal for fine cotton yarns and prevents damage to delicate filaments of synthetic fibres. Yarn will feed off smoothly without sloughing, hanging or breaking. Velvet surface can be provided according to the requirement. Flocked Surface is found quite suitable for winding Rayon, Nylon and other low twist fine filament yarns. This is a smooth cone with flock finish provided on either entire areas or bonded at critical areas. The effect of flock can be controlled according to the twist, denier and number of yarn filaments. This surface also provides barrier to minimize absorption of coning oil by the papeThis cone is used principally for hosiery yarns on the universal cone winders. The specifications, colour, tip, surface finish are all provided according to the standard requirement. B. 5 Deg 57' Cones - Regular, Straight or Plain Point Nose. This cone is mainly used for winding single and multiple and cotton thread, synthetic yarns, twines, etc. In the latest auto coner like Savio Italy, these cones are widely used. These cones will have either embossed or velvetted or flocked surface.

Material : Kraft Paper

Shape : Cone

Color : Brown

Feature : Eco Friendly

We are offering paper cone finishing machine, salient features:- · base cutting, grooving, bull nosing, velvet finishing and automatic counting cum nesting operations done in a single machine · easy interchangeability of mandrels and abrasive belts · automatic indexing of cones as per operational sequence · bull nosing pressure, cutting depth and nosing axis – all adjustable independently · versatile to finish various cone tapers viz., 3°20’, 4°20’, 5°57’ etc.

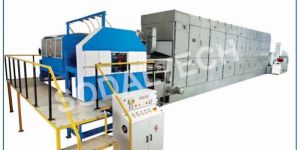

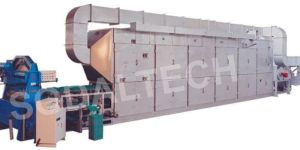

We are offering multi side rotary pulp moulding machine. This model is highly suitable for high volume production capacities for egg trays, fruit trays etc. This machine is fitted with sophisticated indexing mechanism to ensure optimum performance levels.

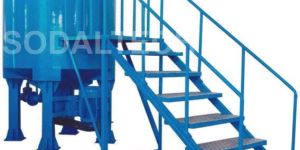

This machine is used to make liquid pulp from waste paper. The machine is ruggedly built to withstand fluctuating heavy pulping loads and the walls are made of mild steel with rust preventive coatings. The special material used in cutter (impeller) ensures aggressive cutting action with less input of power and time. The cutter is operated by an electric motor. Optional automatic waster paper conveyor can be attached to pulper. Capacity of the pulper: to pulp waste paper up to 200 kgshour depending on the raw material

Hot Press Machines with various platen sizes can be supplied .The hot press moulds are made with high precision & surface finish to improve the end product quality for egg boxes, egg cartons, industrial packaging, electronic packing, egg trays, apple trays, fruit trays, food trays, corner protecors, hospital trays, kidney trays, bed pans, shrink wrap trays, bio-degradable plant pots, flower baskets, mobile packing, printer packing.

This machine is used to wrap pre-printed label on the body of the can. Technical specifications: output : up to 30 pieces per minute depending upon size and operator’s efficiency (or) approx. 35,000 cansday depending upon the sizes minimum inner diameter of tube : 50 mm maximum inner diameter of tube : 100 mm maximum wall thickness : 5 mm maximum width of labelling area : 500 mm

technical specifications maximum parent reel width (approx) : 2000mm parent reel outer diameter (approx) : 1300mm slit reel outer diameter (maximum) approx : 1300mm minimum slitting width : 75mm maximum cutting stations : 27 nos output speed (approx) : 100 metres per minute depending on the quality of the raw material size etc parent paper reel loading : automatic parent paper reel clamping : automatic unloading of slit reel : automatic maximum weight of the parent reel (approx) : within 800 kgs gsm range : 100 gsm to 600 gsm paper core size : 3” both unwind and rewind station total power (approx) : 13 kw air supply requirement : 6 bar (100 lpm)   main features automatic unloading and dropping of slit paper reels. hydraulic type reel loading, lifting and shifting arrangement. trim waste removal system shaftless paper reel clamping numerical braking system for tension control .

Brand Name : SODALTECH

Certification : ISO 9001-2015

Operator : 1 Person Glue coating thickness adjustable Uniform coating on both sides of cone pattern Single revolution synchronized clutch Pneumatic air ejection system Faster interchange of sizes

Country of Origin : INDIA

This machine is used to fix the metal rings with the top & bottom of the drum and seamed to hold firmly with body. Salient features · this machine is simple to maintain and operate. · pneumatically operated clamping and grooving devices · the diameter and length of the machine can be adjusted easily · automatic constant web tension

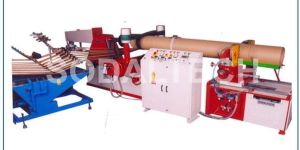

this production line is used to manufacture cylindrical fibre drums using kraft board. these drums are used to pack bulk drugs, chemicals, dyes, pharmaceuticals, engineering, consumer goods, adhesives etc. in textile mills the fibres are also transported through these drums. fibre drums are the most preferred option wherever there is a need for a cost-effective, light weight but strong packing material. this machine is used to manufacture spirally wound paper tubes using various plies and glue.

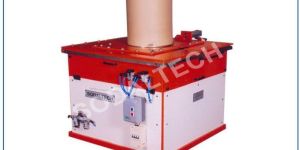

This machine is used to fix the bottom disc with the drum. Salient features · pneumatic clamping to hold the drum firmly. · the depth of grooving and diameter of grooving can be adjusted easily and quickly. · easy interchange facility of clamping.

This production line is used to manufacture cylindrical fibre drums using kraft board. These drums are used to pack bulk drugs, chemicals, dyes, pharmaceuticals, engineering, consumer goods, adhesives etc. In textile mills the fibres are also transported through these drums. Fibre drums are the most preferred option wherever there is a need for a cost-effective, light weight but strong packing material. This machine is used to manufacture spirally wound paper tubes using various plies and glue.

Country of Origin : India

Type : Iso 9001:2015

Brand Name : SODALTECH

this model is recommended for entry level pulp moulding, project, with medium output. (e.g.: egg trays, fruit trays etc) this is similar to the conventional wet moulding process with transfer mould and forming mould working on reciprocating method. the forming mould goes down to the pulp and comes out as product formed over the mould. the transfer mould comes down, does wet press and goes up by holding the wet product with it.

Country of Origin : India

Certification : iso 9001 : 2015

Brand Name : SODALTECH

Sodaltech ebrn 75 export model paper edge board rotary notching machine (wrap-around cutting) to make continuous v-notching fitted with rotary cutting system with following features : paper edge board size : minimum 25 x 25 mm, maximum 75 x 75 mm wall thickness : minimum 2 mm, maximum 3 mm. Depending upon size parent edge board length : minimum 200 mm, maximum 4000 mm (more length on special order) motor : 1.5 kw (2 hp) production speed : upto 35 metres minute depending upon the size thickness adjusting mechanism collection stand for notched edgeboards operator : 1 person
